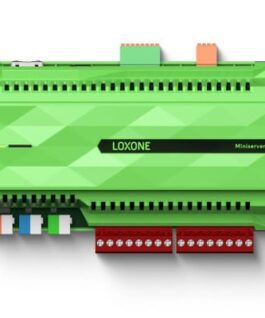

Loxone Miniserver
د.إ2,885The Loxone Miniserver is the main brain of a Loxone system acting as a central point of control for your home & building automation. It can look after everything from simple lighting to intelligent zoned heating control.
Showing all 9 results
The Loxone Miniserver is the main brain of a Loxone system acting as a central point of control for your home & building automation. It can look after everything from simple lighting to intelligent zoned heating control.
The Miniserver Compact serves as the central control unit for all automated functions in a smart building. It includes integrated interfaces for Loxone Link, Air, Tree and Tree Turbo that are used to expand with numerous devices. The Miniserver also has built-in Audioserver capabilities. In compact size, it minimizes space required for installation yet maximizes possibilities for larger scale buildings such as hotels.
The most flexible option for building automation: the Miniserver Go is the ideal option for retrofit and renovations installs. It offers impressive functionality and performance for smart homes, commercial premises and custom applications.
The Lutron HomeWorks HQP7-2 – QSX 2-Link Processor is a cutting-edge lighting control system designed for luxury homes, offering seamless integration and advanced automation capabilities. Key features include its ability to control up to two links of Lutron’s proprietary Clear Connect RF technology, ensuring reliable and responsive wireless communication with compatible devices. The processor supports integration with popular smart home platforms, enabling voice control and remote access via mobile apps. Its scalable architecture allows for easy expansion, accommodating future upgrades and additional devices. Unique selling points include its robust security features, energy-saving capabilities through precise lighting control, and the ability to create personalized lighting scenes that enhance ambiance and convenience. The HomeWorks QSX processor is ideal for those seeking a sophisticated, customizable, and future-proof home automation solution.
IP Interface with IP Secure and Data Secure, 2SU MDRC, with email and time server functions. To enable bidirectional communication between PC and the KNX bus via TCP/IP. 4 simultaneous connections possible. Programming the KNX bus via TCP/IP. Power supply by KNX bus, no external bus power supply required. Encrypted transmission at sending emails. Time server functions to send time and date on the KNX bus. Supports extended group addresses. KNX IP Secure and KNX Data Secure (from ETS 5.7). Secure access to the KNX bus through IP Secure with security key. Firmware can be updated. Quick application download (long frame support for ETS5). 3 year warranty.
IP Router with IP Secure and Data Secure, 2SU MDRC, with email and time server functions. Functions as KNX IP Interface, but with KNX line coupler functionality. To enable bidirectional communication between PC and the KNX bus via TCP/IP. 4 simultaneous connections possible. Programming the KNX bus via TCP/IP. Power supply by KNX bus, no external bus power supply required. Encrypted transmission at sending emails. Time server functions to send time and date on the KNX bus. Supports extended group addresses. KNX IP Secure and KNX Data Secure (from ETS 5.7). Secure access to the KNX bus through IP Secure with security key. Firmware can be updated. Quick application download (long frame support for ETS5). 3 year warranty.
KNX Modbus Gateway RTU485, 2TE, REG. Designed for bidirectional Data exchange between Modbus RTU- and KNX-products. Master- / Slave-Mode for all channels separately selectable. Comprehensive binary- and arithmetical mathematical functions configurable for each channel. Easy scaling settings. Value range conversion adjustable for each channel. Multi Read / Write Functionality on the Modbus-side. Slave ID for each channel separately configurable. 20 Value comparison blocks each with 4 comparable values and operations. Universal applicable, supports multiple Modbus- and KNX-Data types. No additional Modbus Power supply required. Power is provided over the KNX connection. Modbus / KNX galvanically separated. Developed and produced in Engelskirchen. 3 Year warranty.
Line Coupler with Data Secure, 2SU MDRC. MDRC device. Line Coupler to connect two KNX lines to each other. Electrical isolation between the lines. Separate bus power supply for each line required. Filter functions to reduce bus load. Supports extended group addresses. Supports KNX Data Secure (from ETS 5.7). Quick application download (long frame support for ETS5). 3 year warranty.
Logic Modul, 2SU MDRC. MDRC device, with 4 free to use LED indicators. 24 independent function blocks assignable: Universal logic with up to 5 conditions. Logic gates with (AND,OR/XOR), each with 8 inputs. Cyclical sending or quering of values. Value storage if the bus voltage fails. Monitoring of telegrams, Filter functions. Converting of data point types, Time functions. Multiplexer/Partition control. Min-/Max/Average value, Universal calculator. Converting to PWM, Telegram multiplier/sequencer. Quick application download (long frame support for ETS5). 3 year warranty.
