Tonewinner AD-2500 PRO 2Ch Amplifier – 2X500W @8Ω

Tonewinner AD-2500PA AV Power Amplifier  Specifications:

• Topology: Fully discrete, dual differential, high current, short signal path Class A/B – Class “H” power supply.
• Numbers of Channel: 2 Channels – High powered single channel modules.
• Power Output: ( Rated Power; THD <0.1% @ 115V (Tested @ AC 115V) – (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
• 500 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
• 899 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
• 478+ watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven..
• Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
• Broad-Band Frequency Response: 10 Hz to 59 kHz +0/-2 dB.
• THD + noise: < 0.0045%; at 100 watts RMS; 1 kHz; 8 Ohms.
• Signal to Noise Ratio (8 Ohm load):
• > 110.6 dB; ref FTC rated power; unbalanced input (A-weighted).
• > 96 dB; ref 1 watt; unbalanced input (A-weighted).
• Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
• Damping Factor (8 Ohm load): > 121.
• Input Sensitivity (for rated power; 8 Ohm load): 2.1 V.
• Gain: 29.81 dB.
• Maximum Power Consumption: 1700 watts.

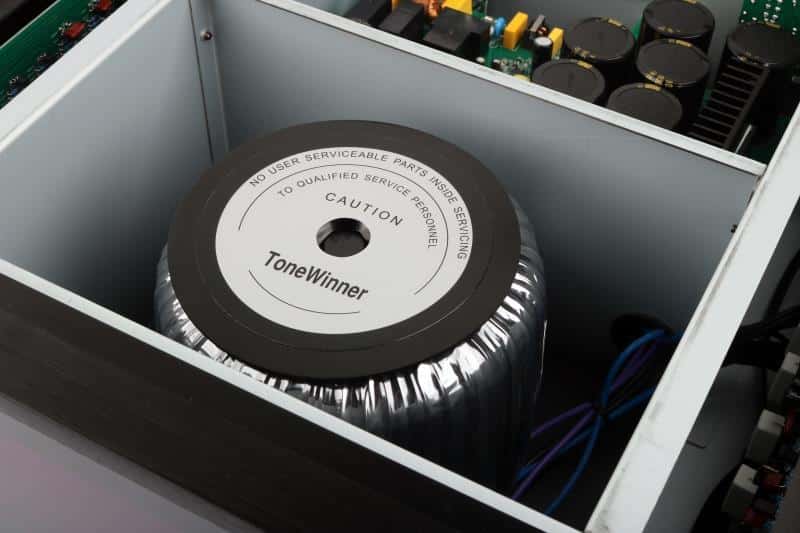

• Power Supply: 110V-240V: 15 Amps – 20 Amps Auto Switching Class “H”Power Supply.
• Material: Aluminum

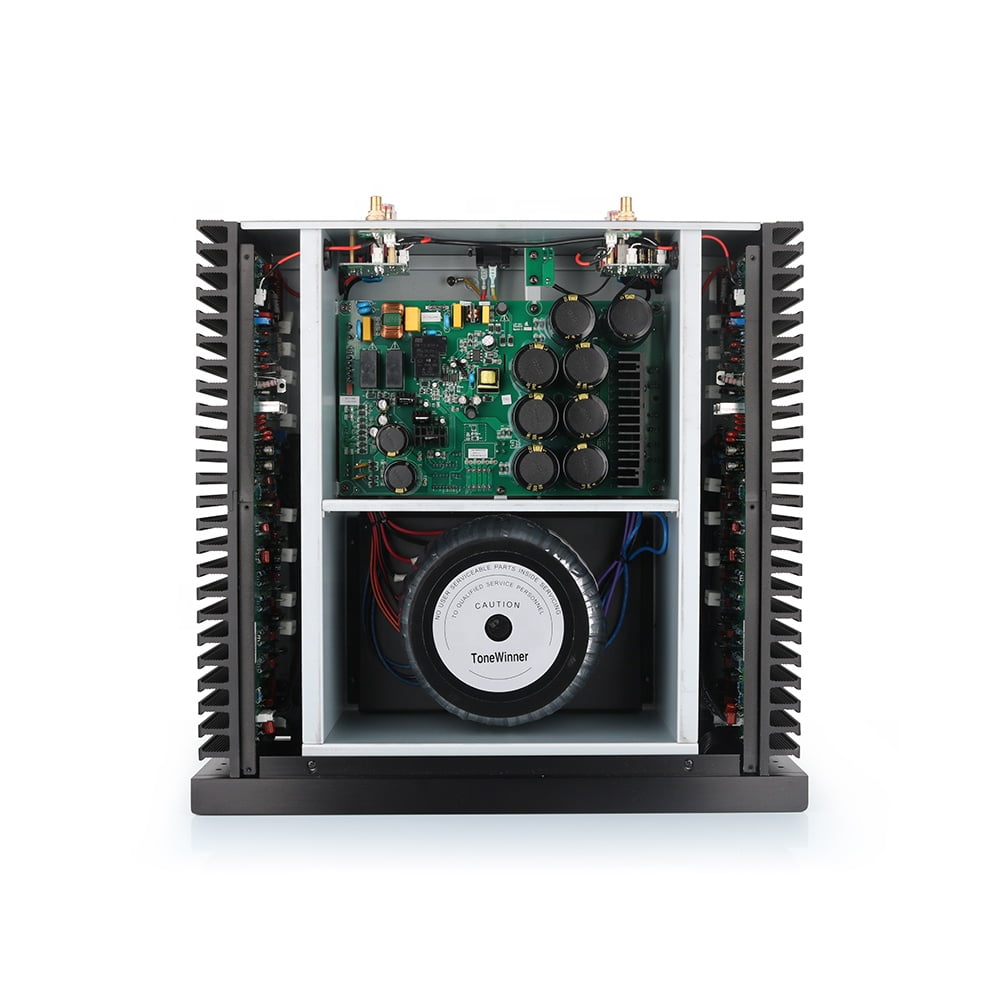

• Modules: Separate Heatsinks for individual modules.
• Color: Black

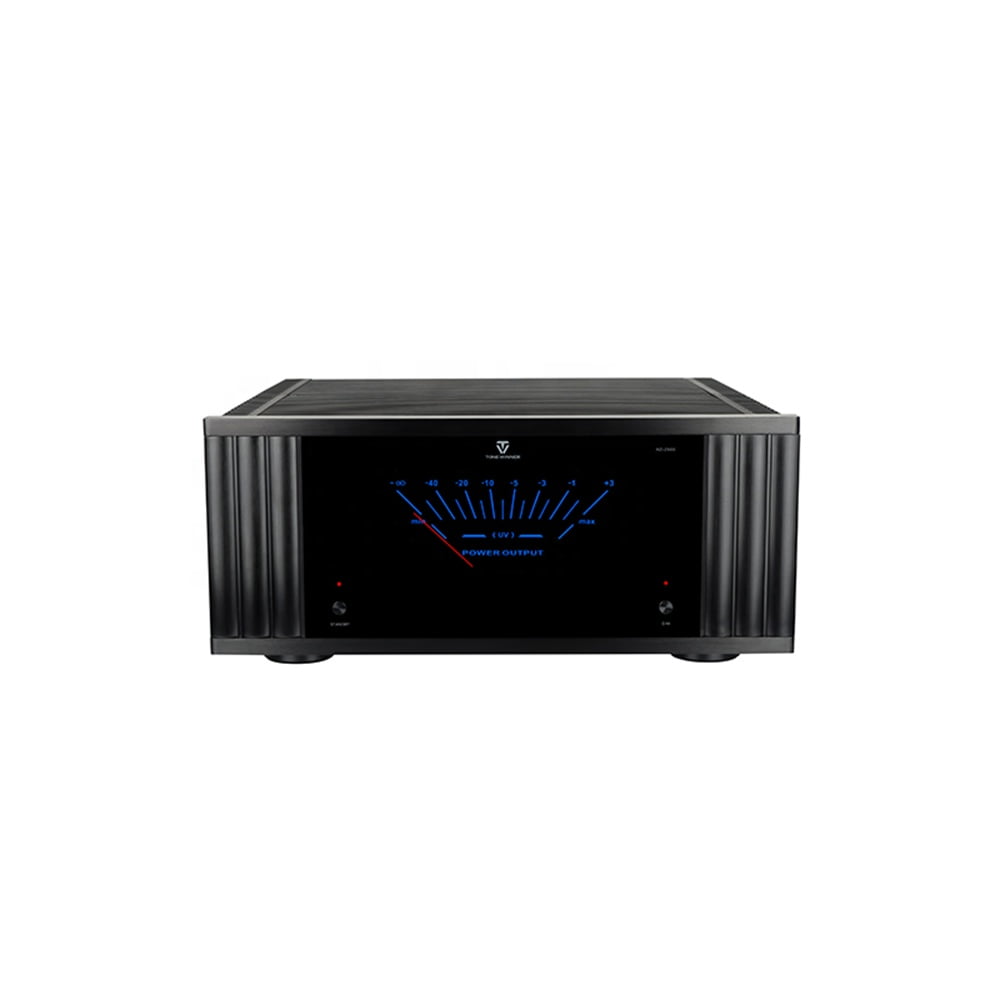

• Front Panel: Analogue meter with blue LED lights and Red Needle.
• Weight: 22.4KGS ( 51.37 Lb)
• Unit size: 17.48 L X 17.52 W X 7.6 H Inches
• Package size：22.52 L X 22.52 W X 12.64 H Inches
• Accessories: Power cord cable.
• Warranty: 2 years warranty
