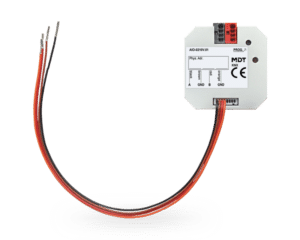

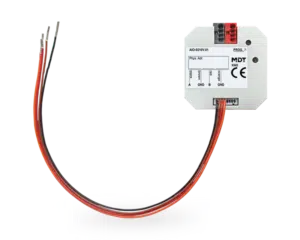

MDT Analog I/O 2-fold, flush mounted, 0-10V, In-/Output shiftable

Analog I/O 2-fold, flush mounted, 0-10 V, In-/Output shiftable. Suitable as analog output to control ventilation systems and other systems with 0-10 V input. Also useful as an analog input to engage rotation speed or other 0-10 V values. Each channel can be configured independently (In-/output). In/outputs are galvanically isolated from the bus. In/outputs are galvanically connected together. Voltage for output operation is generated inside the actuator. No external power supply required. Input operation 0-10 V / 2-10 V or 0-20 mA / 4-20 mA (switchable). – Adjustable conversation of measuring unit and DPT. – Min/max function, wire breakage detection. – Threshold and traffic light function. Output functions 0-10 V: – Control by 1 Byte, 2 Byte or 1 Bit objects. – Day/night function to limit control value. – Emergency mode if given value fails. Flush mounted in socket. Dimensions (W x H x D): 41 mm x 41 mm x 12 mm. Quick application download (long frame support for ETS5). 3 year warranty.
