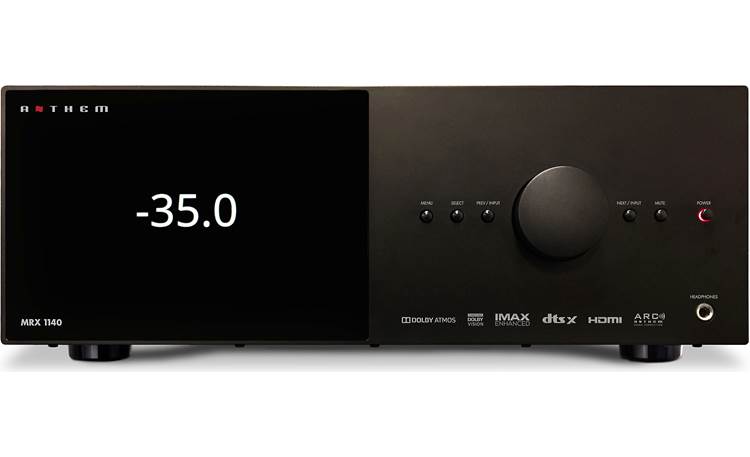

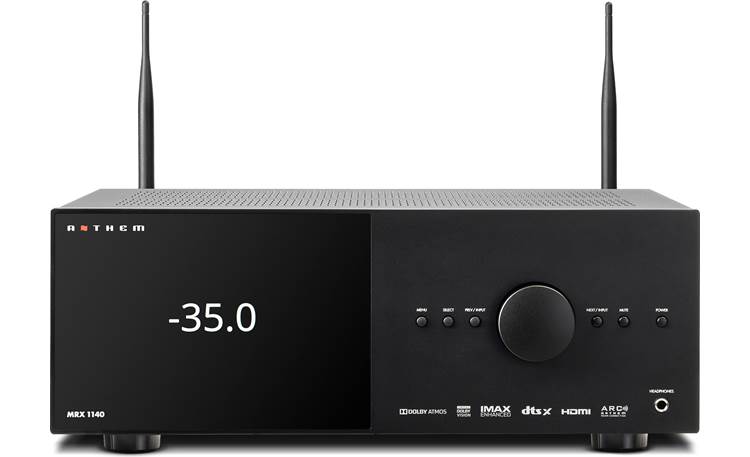

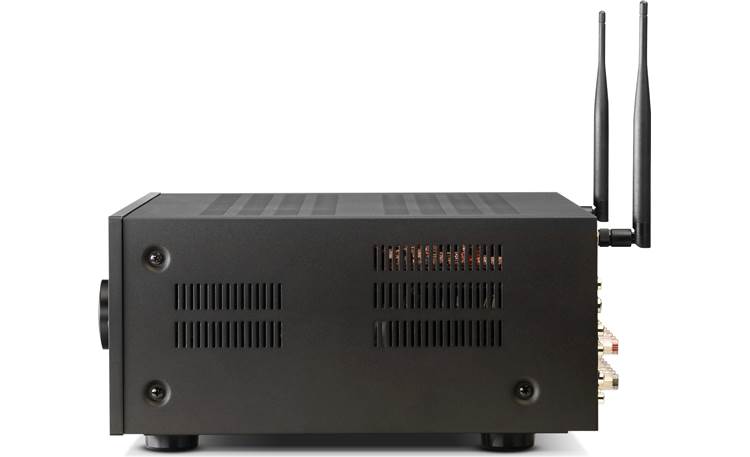

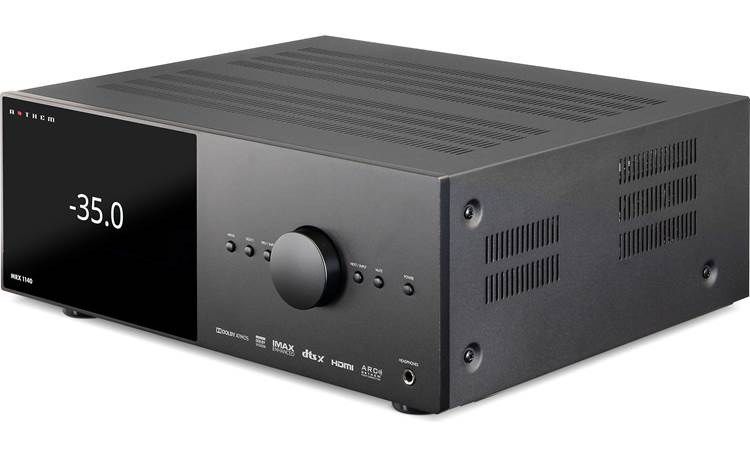

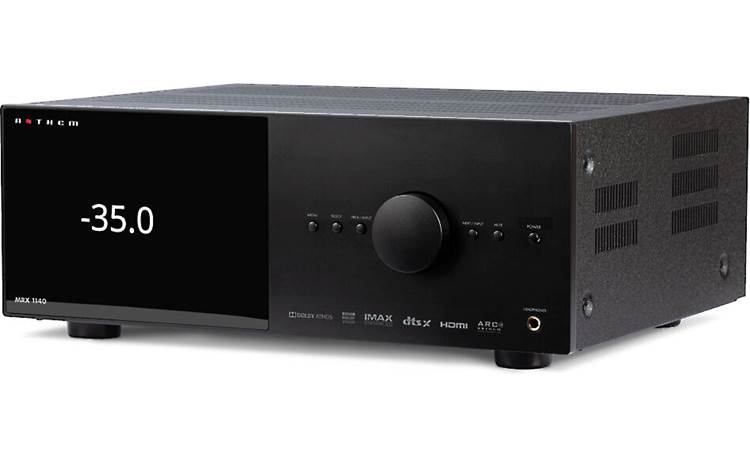

Anthem MRX 1140 8K 15.2 Pre-Amplifier / 11 Amplifier Channels Receiver
Anthem’s flagship receiver is an A/V masterpiece
Anthem’s top-of-the-line receiver just got an 8K upgrade — all 10 HDMI connections (7 in and 3 out) support 8K at 60Hz and 4K at 120Hz. The MRX 1140 8K doesn’t skimp on audio quality either — it offers exceptional signal processing, amplification, and room correction, along with an advanced digital to audio converter. It also has a fantastic web-based control system, allowing you to set up and control your system from your computer or smart device.
Enjoy theater-quality Atmos surround sound at home
The MRX 1140 8K is capable of driving up to 11 speakers at the same time. That means you can power an ultra-immersive 7.2.4-channel Dolby Atmos or DTS:X™ system, with up to four upward-firing or in-ceiling speakers for overhead effects.
Anthem MRX 1140 8K AV Receiver
15.2 Pre-Amplifier / 11 Amplifier Channel A/V receiver with Dolby Atmos, DTS:X and IMAX Enhanced. 140-watts per channel continuous power into 8 ohms. Includes ARC (Anthem Room Correction). HDMI 2.1, HDCP 2.3 supporting 8K/60Hz or 4K/120Hz
Complexity Simplified
At Anthem, our goal is to shape how you interact with your technology, so we went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondary zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You’re in control, and it’s never been easier.

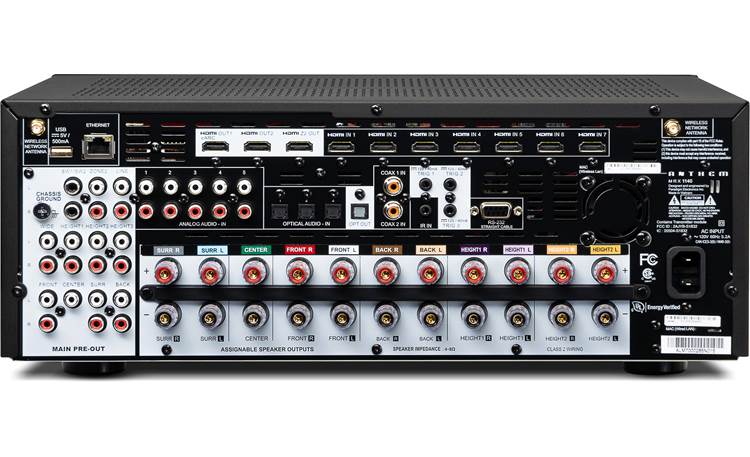

Advanced 8K HDMI Platform with e-ARC Support
Feel the power of every frame with the MRX Series and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs which support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the MRX 540, 740 and 1140 allow you to take your home entertainment to the next level with HDR10+, Dynamic HDR10+, ALLM and VRR support. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.
Experience Gaming Like Never Before on an MRX
It’s never been a more exciting time to be a gamer. With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the MRX Series, our most feature-rich AV receivers to date!
Channel Re-Assignment
The built in high performance amplifier modules can be configured in many ways to suit the specific speaker configuration. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740).
Configure amplifier channels for your system’s needs, then fully optimise the presentation with ARC Genesis.
Design
At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.
Robust Integration
Our latest Anthem MRX series features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices including:.
ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.
ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.
MRX 1140 8K Specifications
| PREAMPLIFIER | ||
| Maximum Output (<0.1% THD) | 5.2 VRMS, 7.1VRMS | |
| Frequency Response | 20Hz – 30KHz +/-0.2dB | |
| Frequency Response, Analog-Direct | N/A | |
| THD+N (2 Vrms output) | -100 dB | |
| S/N Ratio (2 Vrms output, IEC-A filter) | 110 dB | |
| PREAMPLIFIER + AMPLIFIER (1 W OUTPUT) | ||
| MRX 1140 / MRX 740 | SNR: 91 dB ch 1-5, 86dB others | |
| MRX 540 | SNR: 91 dB ch 1-5 | |
| SPEAKER IMPEDANCE | |||
| Compatible with 4 Ohms or higher impedance. | |||
| MAXIMUM CONTINUOUS OUTPUT (1% THD) | |||
| MRX 1140 | MRX 740 | MRX 540 | |
|---|---|---|---|
| Channels 1-5, Two Driven into 8 Ohms | 140 W | 140 W | 100 W |
| Channels 1-5, Two Driven into 6 Ohms | 170 W | 170 W | 130 W |
| Remaining Channels, Two Driven into 8 Ohms | 60 W | 60 W | n/a |
| Remaining Channels, Two Driven into 6 Ohms | 75 W | 75 W | n/a |
| POWER CONSUMPTION | |||
| MRX 1140 | MRX 740 | MRX 540 | |
|---|---|---|---|
| Typical Load | 570 W | 485 W | 365 W |
| Standby | 0.3 W | 0.3 W | 0.3 W |
| Standby IP Control Enabled | 1.8 W | 1.8 W | 1.8 W |
| Standby HDMI Bypass Enabled | 4.9 W | 4.9 W | 4.9 W |
| DIMENSIONS | ||
| Height (without feet) | 6″ (15.24 cm) | |
| Height with Rackmount Kit | 4U | |
| Width | 17″ (43.18 cm) | |
| Depth (including wifi ant not power cord) | 14-1/2″ (36.4 cm) | |
| WEIGHT | ||
| MRX 1140 | 33.6 lb (15.2 Kg) | |
| MRX 740 | 33.2 lb (15.1 Kg) | |
| MRX 540 | 28.2 lb (12.8 kg) | |
| POWER REQUIREMENT | ||
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. | |
| Weight | 15.2 kg |
|---|---|
| Brand | Anthem |
