Ascendo The 10 Passive On Wall Speaker – Matte Black

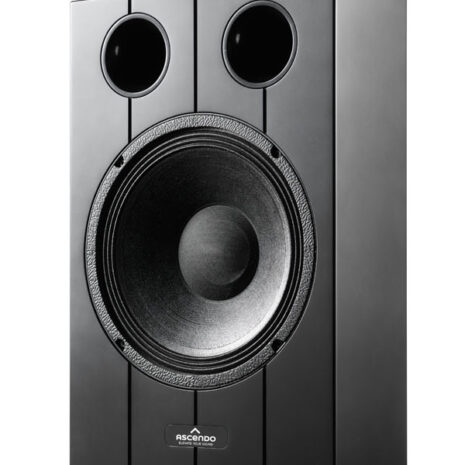

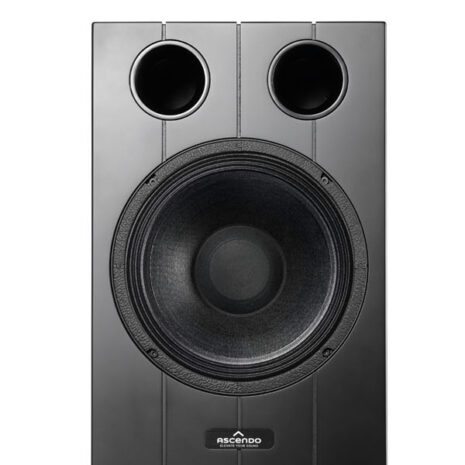

The10-P (Previous name: CCM10-P) is a very compact two-way passive loudspeaker system which utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial driver. It is uniquely placed to meet the requirements of living room and high performance home theater systems as front speakers, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure.

Use with our subwoofers will enable the The10-P to operate as small system that is remarkably powerful for its size.

Specifications (selection)
Speaker type

10″ time coherent point-source coaxial

Principle

Vented

Passive | Active

Passive

SPL

Measured data
120 dB cont. / 130 dB peak

Frequency range

Measured data
100 Hz – 20 kHz / -3dB

Efficiency

97 dB / 1W/m

Power Handling

500 W

Nominal Impedance

8 Ω

Woofer

10″ woofer

Tweeter

1″ compression driver

Directivity horizontal x vertical in Deg°

85° x 85°

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²)

Enclousure

MDF

Width

11,81 ” | 300 mm

Height

19,69 ” | 500 mm

Depth with grille

5,7″ | 145 mm

Depth without grille

6,06″ | 154 mm

Weight

26,46 lbs | 12 kg

Finish

Matte black and glossy white

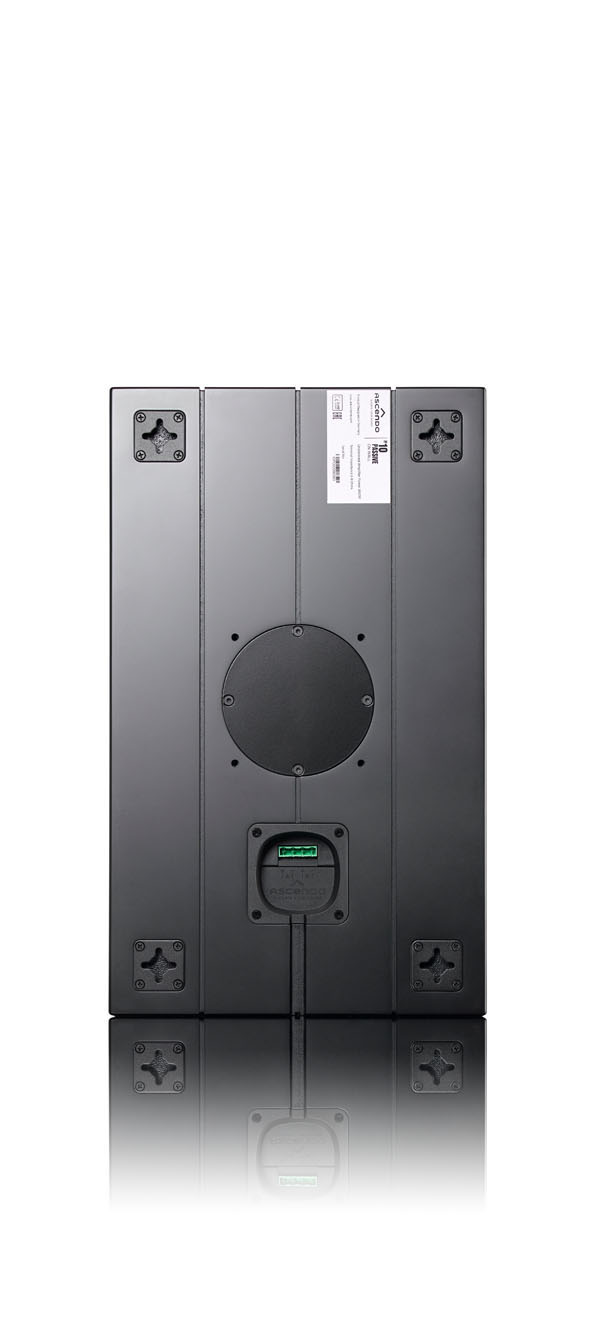

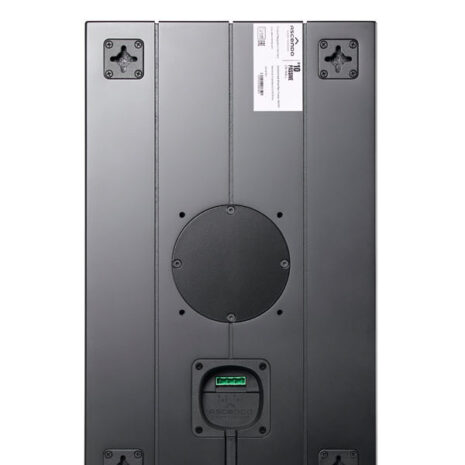

Mounting

4 x wall brackets for horizontal and vertical installation + VESA 100 x 100 mounting points

THE10 PASSIVE ON WALLl is supplied with a front cover as standard
