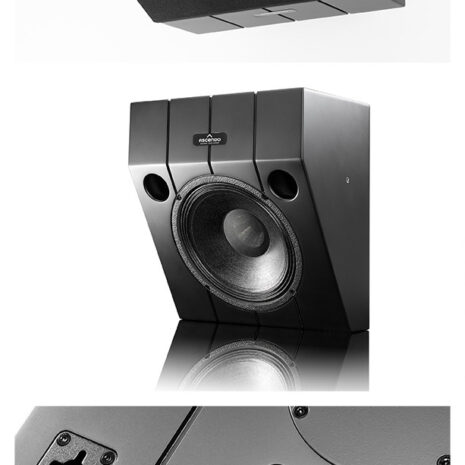

Ascendo The 10 Passive Wedge Speaker – Matte Black

THE10 PASSIVE WEDGE 30

The design objective for this model was to offer a pre-angled version of THE10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Specifications
Speaker type

10″ time coherent point-source coaxial

Principle

Vented

Passive | Active

Passive

SPL

Measured data
120 dB cont. / 130 dB peak

Frequency range

Measure data
100 Hz – 20 kHz / -3dB

Efficiency

97 dB / 1W/m

Power handling

500 W

Impedance

8 Ω

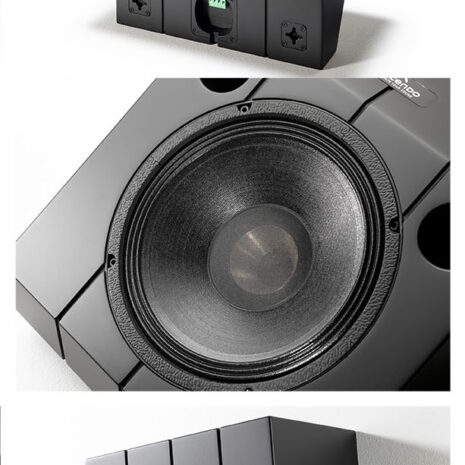

Woofer

10″ woofer

Tweeter

1″ Compression driver

Directivity horizontal x vertical in Deg°

85° x 85°

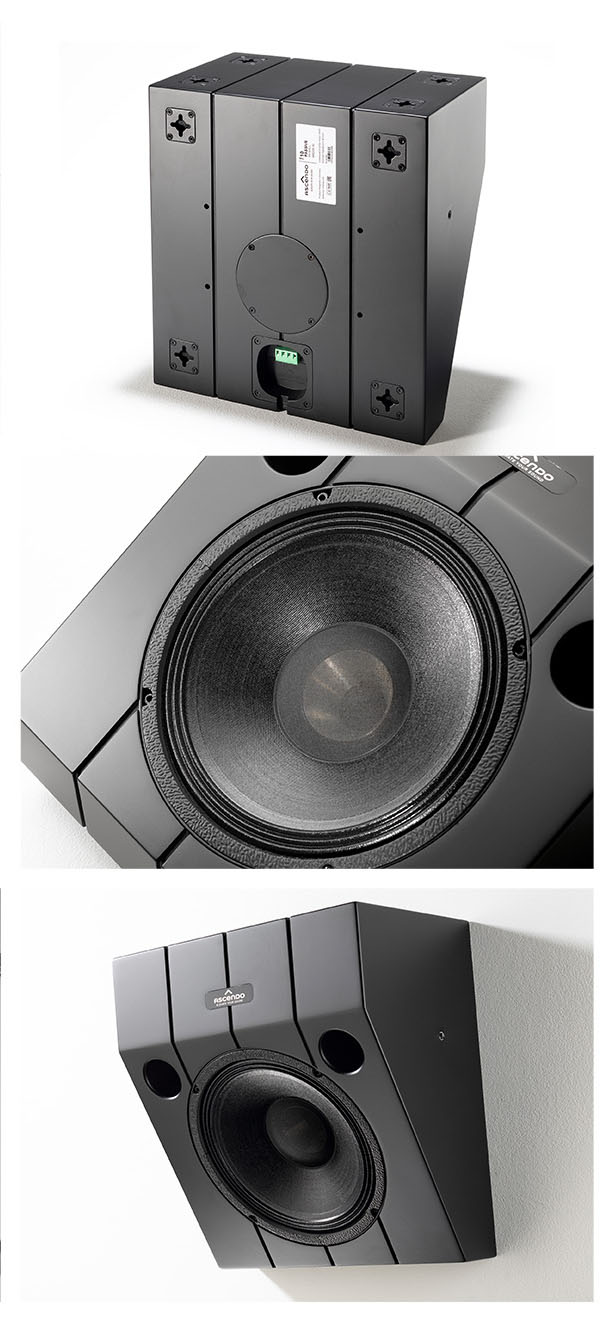

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²)

Enclousure

MDF

Width

14,7 ” | 360 mm vertical
14,7 ” | 360 mm horizontal

Height

15,04 ” | 382 mm vertical
8,62 ” | 219 mm horizontal

Depth (without grille)

8,62 ” | 219 mm vertical
15,04 ” | 382 mm horizontal

Weight

28,66 lbs | 13 kg

Finish

Matte black

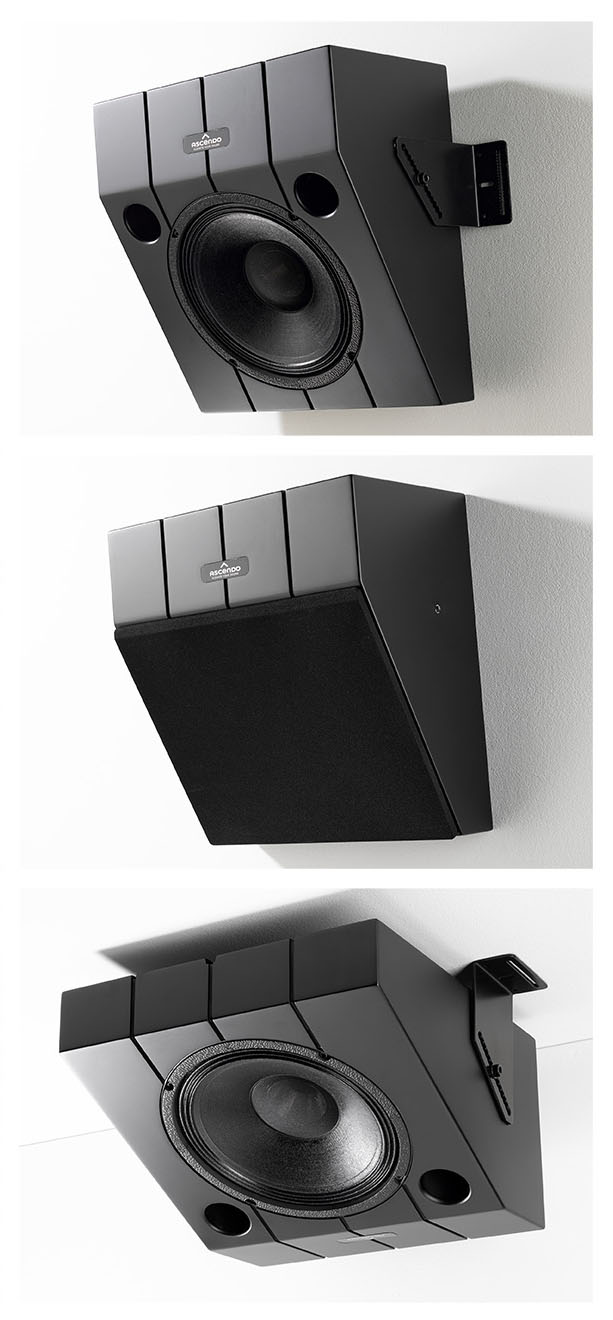

Mounting

Metal wall or ceiling mounting brackets that allows to angle the speaker further in two axes + 8 wall mount brackets, which allow to hang the speaker in multiple ways on the wall + VESA 200 x 100 mounting points

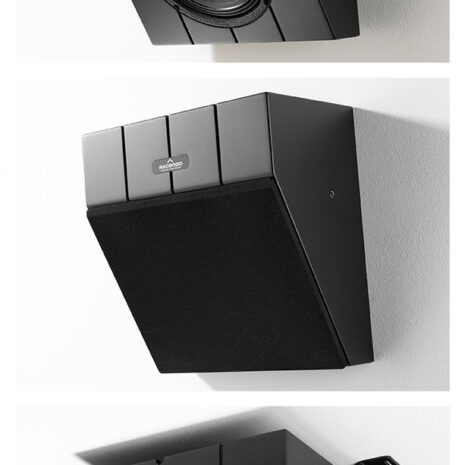

The THE10 PASSIVE WEDGE 30 is supplied with a front cover as standard
