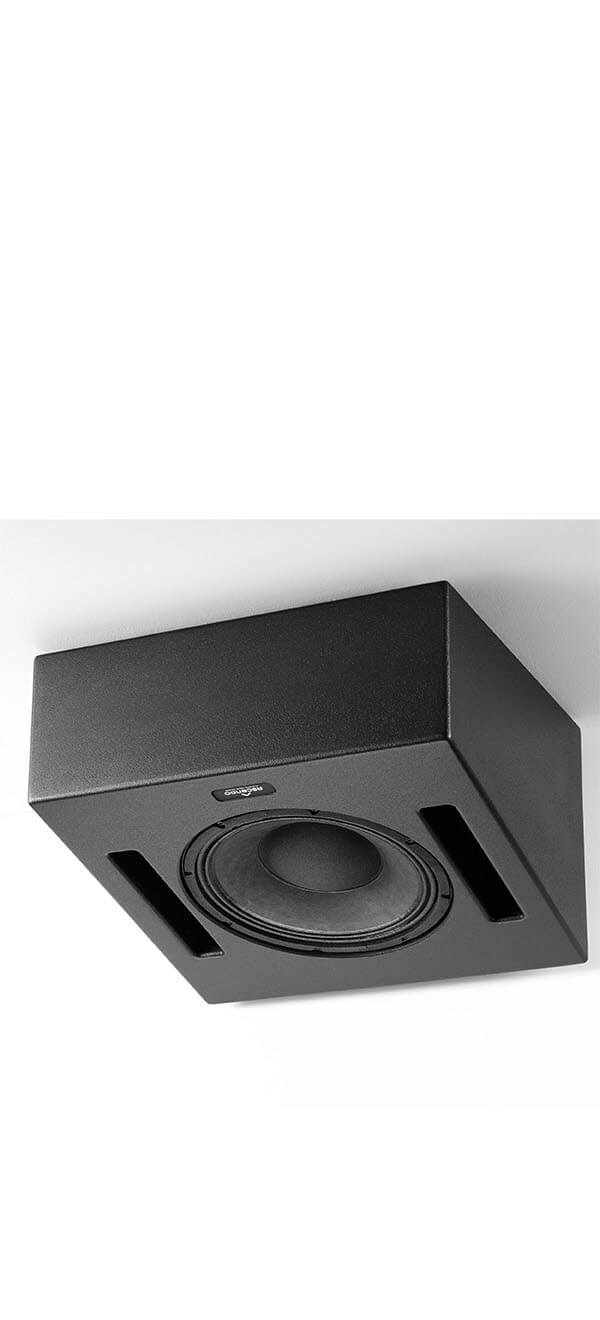

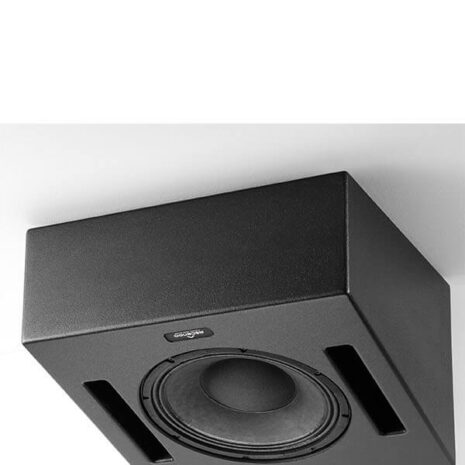

Ascendo The 12 PRO Passive Wedge

The design objective for this model was to offer a pre-angled version of The12 PRO PASSIVE that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The12 PRO PASSIVE WEDGE is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Specifications
Speaker type

Time coherent 12″ point-Source

Enclosure type

Vented

Passive / Active

Passive

Cont./peak output

126 dB cont. / 129 dB peak

Frequency Range

75 Hz to 21 kHz

Efficiency

97 dB / 1W/m

Power Handling

900W

Impedance

8 Ω

Woofer

12″, 300mm

Tweeter

1.4″ (Throat) compression driver

Directivity Horizontal x Vertical in Deg°

85° x 85°

Input Terrminal

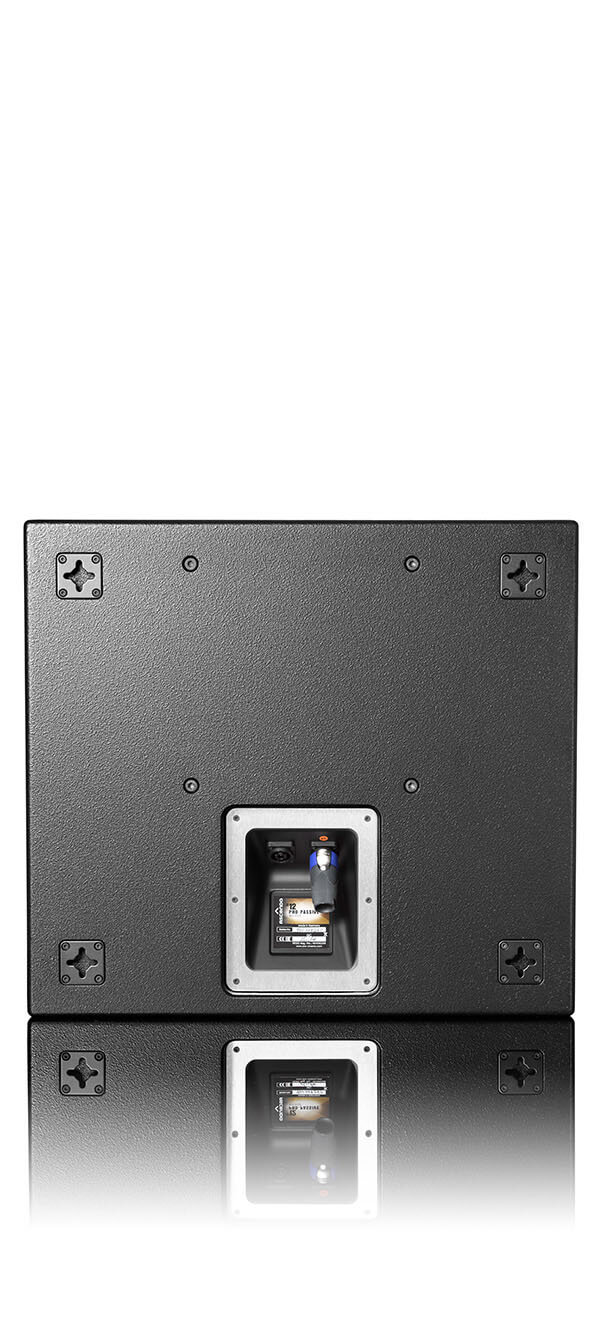

Neutrik Speakon

Enclosure

Internally braced birch ply

Width

19,69″ / 500 mm Horizontal

Height

17,72″ / 450 mm Horizontal

Depth With Plug

7,11-11,74″ / 180,61 – 228,17 mm, Angle 15°

Depth grill

0,39″ / 10 mm

Weight

50,70 lbs / 23,0 kg

Finish

Structural paint black

Custom colour options

Genuine piano lacquer (12 layers): matt lacquer: colour of choice, other finishes upon request

Shape customization

Possible, upon request

Mounting

4 x wall brackets for horizontal and vertical installation, VESA 200 mounting option
