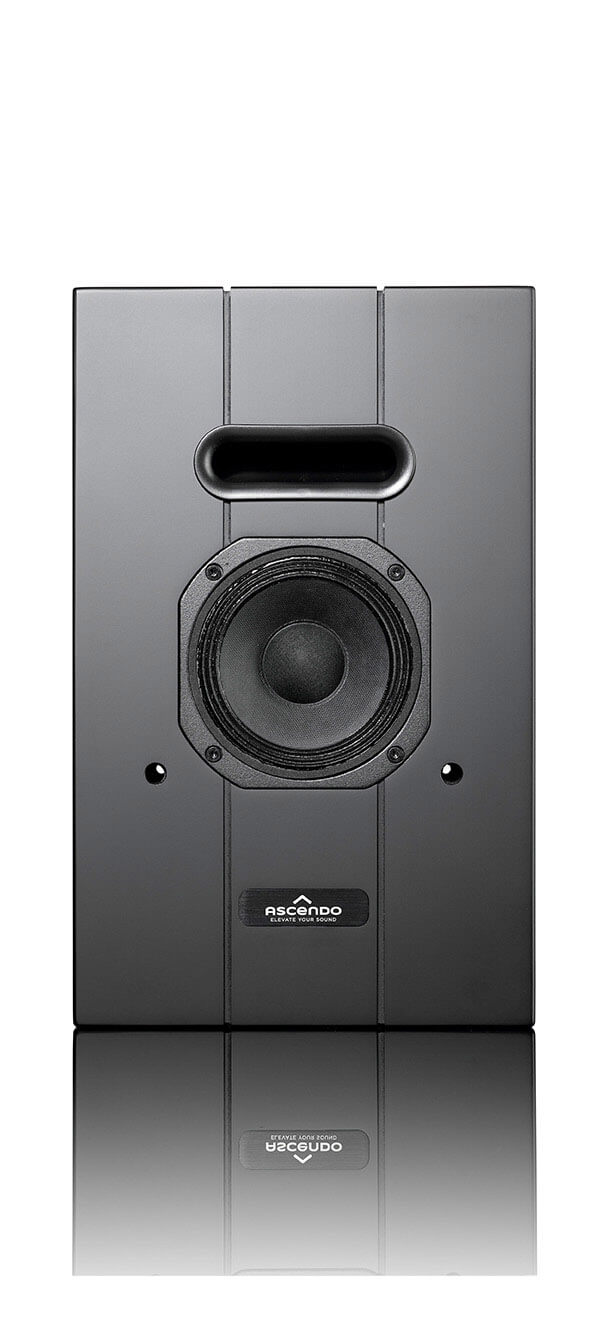

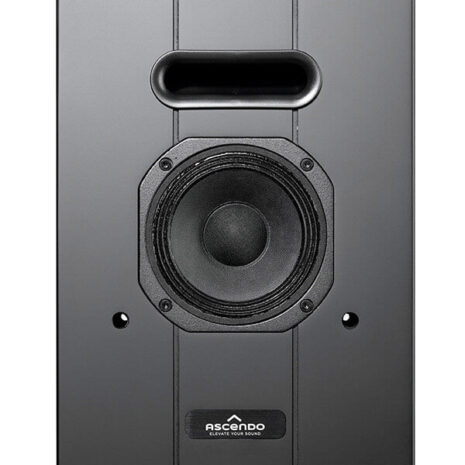

Ascendo The 5 Passive On Wall Speaker – Matte Black

Quality is not a matter of size or budget. This impressively demonstrates our smallest speaker model, the passive The5-P (Previous name: CCM5-P). The The5-P is a true high-performance speaker whose centerpiece is a heavy-duty 13 centimeter large coaxial driver, provenient from the area of professional PA technology. The genes of this advanced coax driver not only care for an amazingly great acoustic bandwidth, but also provide an efficiency of 88 dB (1 watt/1 meter).

The effectiveness of the The5-P therefore allows for the combination with lower output power amplifiers. For this reason, the smallest passive speaker from AiA is our top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X.

Another major advantage of the The5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.

Specifications (selection)
Speaker type

Time coherent 5¼” point-source coaxial

Passive | Active

Passive

Principle

Vented / Reflex

SPL

Measurement Data
108 dB cont. / 120 dB peak

Frequency range

Measurement Data
100 Hz – 20 kHz / -3dB

Efficiency

89 dB / 1W/m

Power handling

100 W

Impedance

8 Ω

Woofer

5¼”

Tweeter

1″ soft dome

Directivity horizontal x vertical in Deg°

85° x 85°

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²)

Enclousure

MDF

Width

9,84″ / 250 mm

Height

15,75″ / 400 mm

Depth with plug

2,95″ / 75 mm

Depth with grille

3,19″ / 81 mm

Depth grille

0,24″ /6 mm

Weight

8,82 lbs / 4,0 kg

Finish

Matte black /white glossy

Mounting

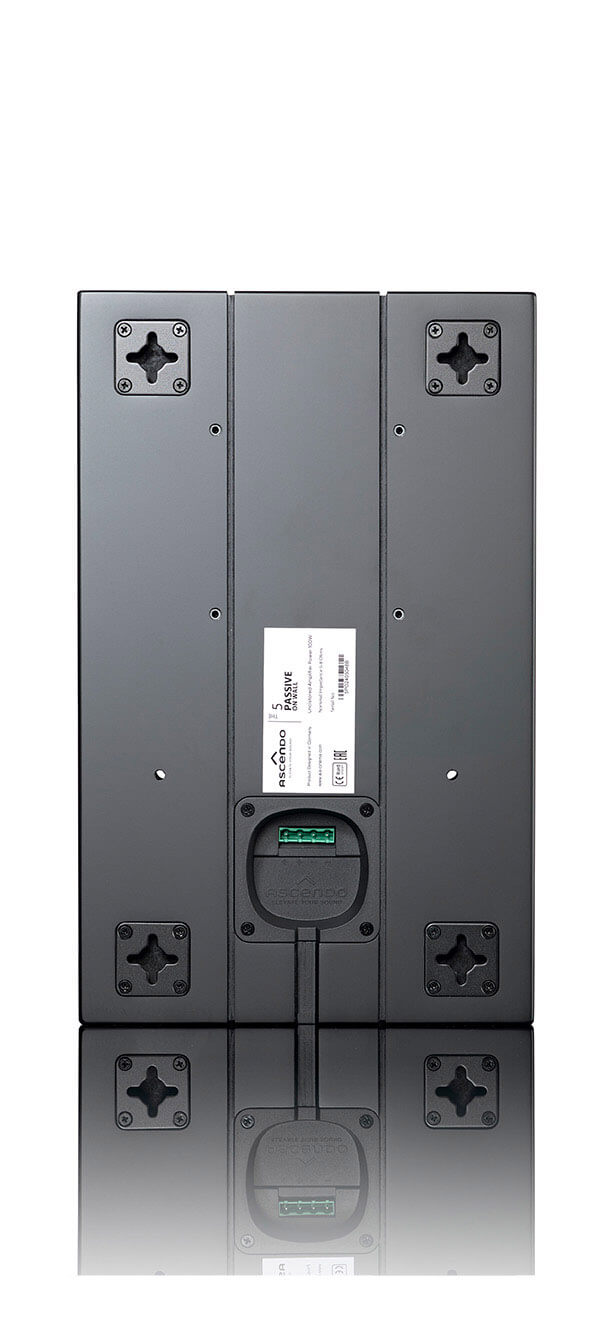

4 x wall brackets for horizontal and vertical installation, 2 though hols for direct wall or ceiling mounting, VESA 100 mounting points
