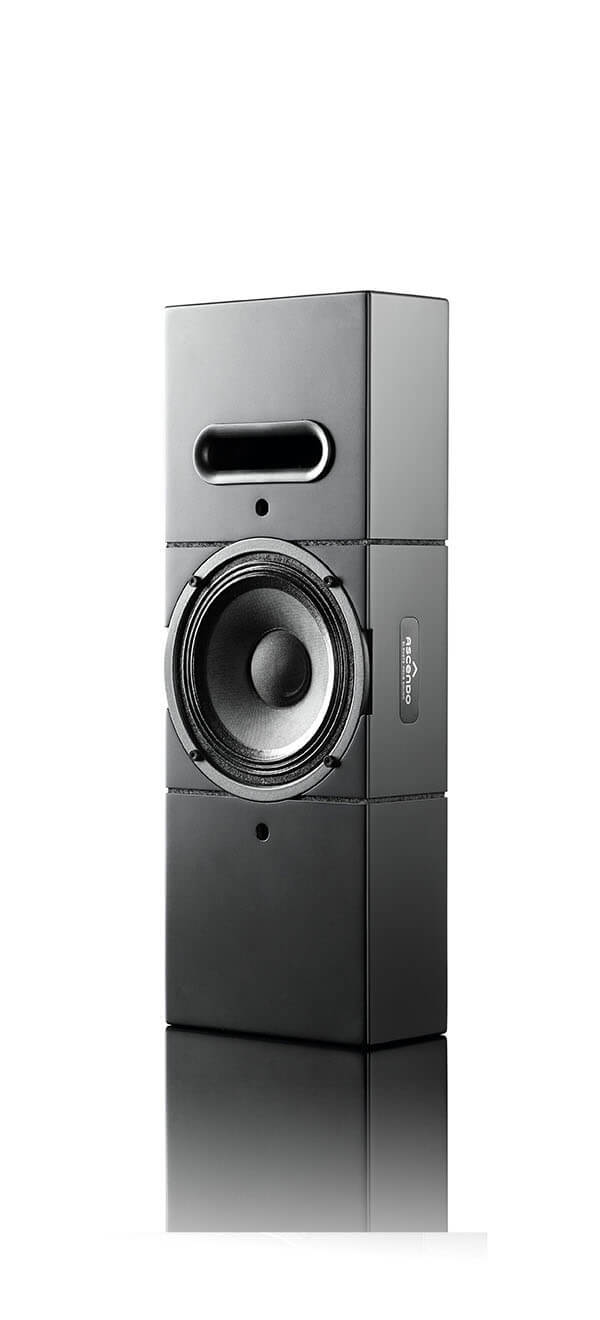

Ascendo The 6 Passive Narrow Speaker – Matte Black

The6 PASSIVE NARROW is an example of ASCENDO responding to the Custom requests of our dealers. This narrower version of model The6 PASSIVE ON WALL has been requested enough times that we officially welcome the model to our regular lineup.

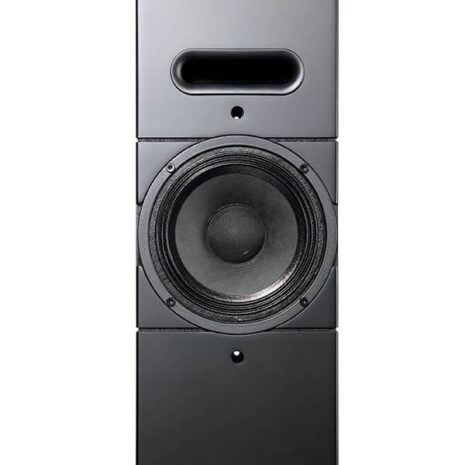

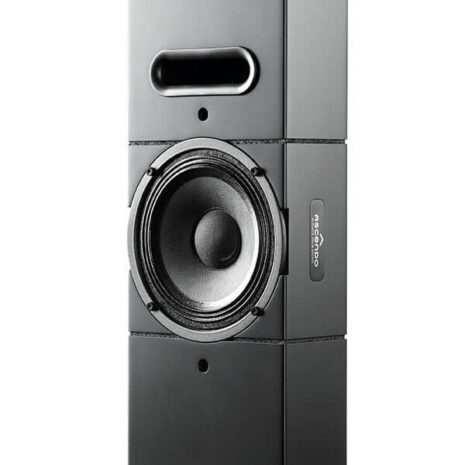

It is a very compact two-way passive loudspeaker system which utilizes a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.

The6 PASSIVE NARROW is an enormously dynamic and powerful speaker with a very compact width and height, and form factor that looks more at home either below or beside TVs than its sibling’s wider design.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Specifications
Speaker type

Time coherent 6,5″ point-source coaxial

Principle

Vented / Reflex

Passive / Active

Passive

SPL

Measured data
111 dB cont. / 122 dB peak

Frequency range

Measured data
110 Hz – 20 kHz / -3dB

Efficiency

93 dB / 1W/m

Power Handling

200 W

Impedance

8 Ω

Woofer

6,5″, 165 mm

Tweeter

1″ / 25 mm soft dome

Directivity Horizontal x Vertical in Deg°

85° x 85°

Input Terrminal

One 4-conductor Phoenix 12 AWG (3,3 mm²)

Enclosure

MDF

Width

19,49 ” / 495 mm

Height

7,09″ / 180 mm

Depth With Plug

3,46″ / 88 mm

Depth with grille

3,7″ / 94 mm

Depth grille

0,24″ /6 mm

Weight

10,58 lbs / 4,8 kg

Finish

Matte black /white glossy

Custom colour options

Genuine piano lacquer and matt lacquer: colour of choice, other finishes upon request

Shape customization

Possible, upon request

Mounting

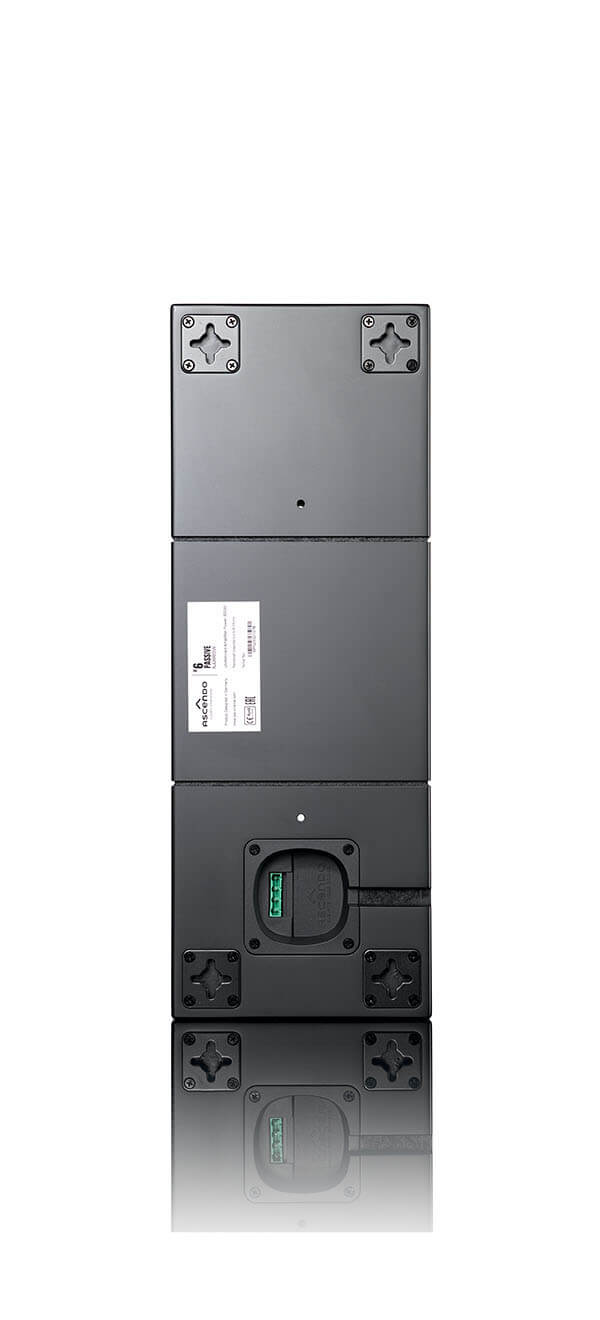

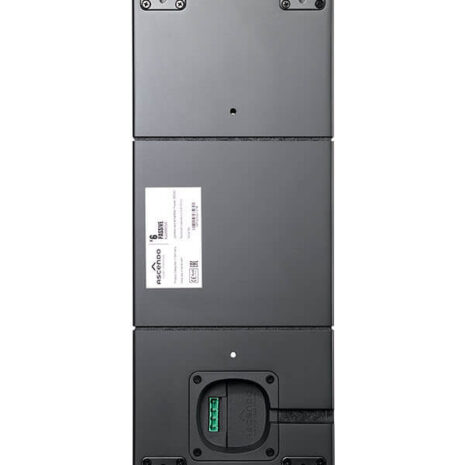

4 x wall brackets for horizontal and vertical installation, 2 though hols for direct wall or ceiling mounting

The THE6 PASSIVE NARROW is supplied with a front cover as standard
