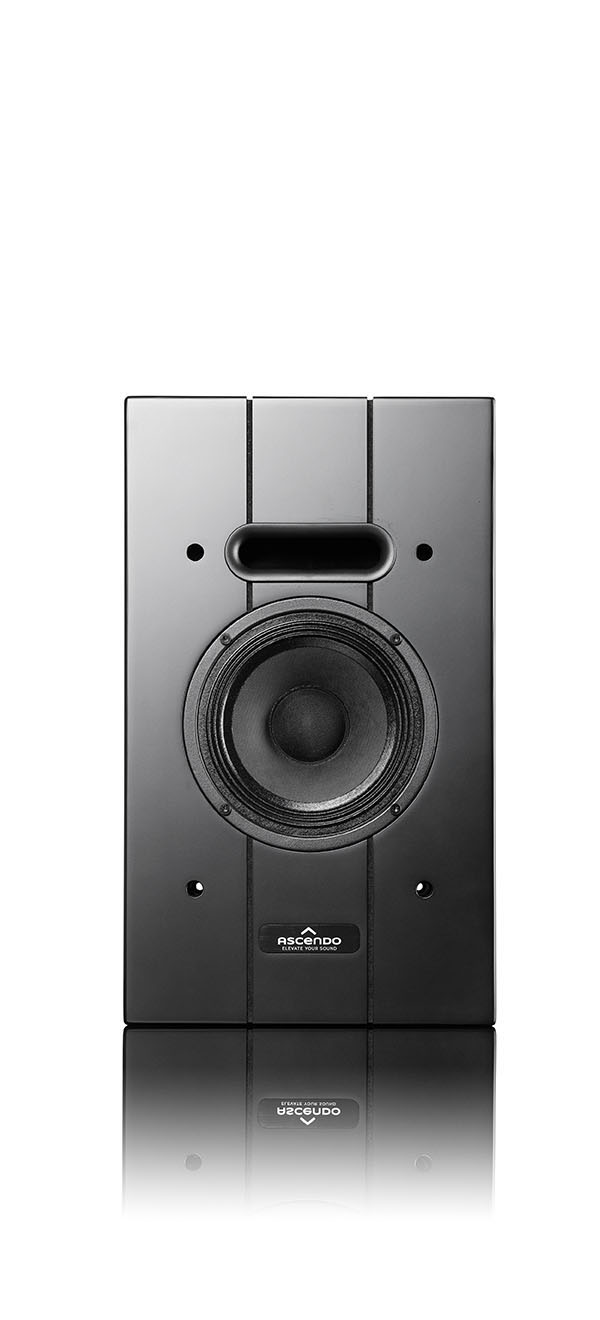

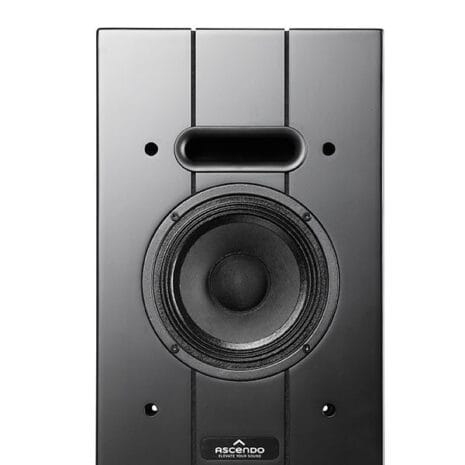

Ascendo The 6 Passive On Wall Speaker – Matte Black

Does quality need to be a matter of size and budget? This new 6.5″ addition to the CCM speaker series of ASCENDO was designed by our engineers to offer the highest performance ratio to speaker volume.

We employ the same proven two way axi-symmetric point source coaxial technology as the larger CCRM speaker series in a more compact packaging. The The6-P (Previous name: CCM6-P) ideally accompanies the CCM5 and if desired the new SV-12 subwoofer in an all ASCENDO budget high-performance system. It can serve as a surround and ceiling speaker in larger home theater systems as well as a music background speaker paired with a subwoofer.

The optional in-wall mounting kit will convert the The6-P into a flexible in-wall speaker.

The high sensitivity of 93dB/w/m paired with 200W RMS power handling lets you use this speaker with lower power receivers or very high-power amplifiers to achieve record SPL for reference level home theater projects. Another major advantage of the The6-P is its shallow depth of only 88 mm.

Specifications
Speaker type

6.5″ Time coherent point-source coaxial

Principle

Vented

Passive | Active

Passive

SPL

Measurement data
111 dB cont. / 122 dB peak

Frequency range

Measurement data
100 Hz – 20 kHz

Efficiency

93 dB / 1W/m

Power Handling

200W

Nominal Impedance

8 Ω

Woofer

6.5″ woofer

Tweeter

1″ soft dome tweeter

Directivity horizontal x vertical in Deg°

85° x 85°

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²)

Enclousure

MDF

Width

10,24 ” | 260 mm

Height

17,32 ” | 440 mm

Depth with grille

3,70 ” | 94 mm

Depth without grille

3,46 ” | 88 mm

Weight

11,46 lbs 5,2 kg

Custom colour options

Piano lacquer: colour of choice, matt or other finishes upon request

Shape customization

Upon request

Mounting

4 x wall mount brackets for horizontal and vertical installation + VESA 100 mounting points + 4 though holes for direct wall or ceiling mounting

THE6 PASSIVE ON WALLl is supplied with a front cover as standard
