Ascendo The 6 Passive Wedge Speaker – Matte Black

The 6 Passive Wedge 30’s design objective was to offer a compact and shallow pre-angled speaker that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

It is a very compact two-way passive loudspeaker system which utilizes a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.

Its 30-degree pre-angle meets the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The 6 Passive Wedge 30 is an enormously dynamic and powerful speaker, despite the 30-degree angle only a record-breaking 155 mm (6.1 in) deep with a very compact width and height.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Specifications (selection)
Speaker type

6.5″ Time coherent point-source coaxial

Principle

Vented

Passive | Active

Passive

SPL

Measurement data
111 dB cont. / 122 dB peak

Frequency range

Measurement data
100 Hz – 20 kHz

Efficiency

93 dB / 1W/m

Power handling

200 W

Nominal Impedance

8 Ω

Woofer

6.5″ woofer

Tweeter

1″ soft dome tweeter

Directivity horizontal x vertical in Deg°

85° x 85°

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post

Enclousure

MDF

Width

9,45 ” | 240 mm

Height

11,02 ” | 255 mm

Depth (without grille)

6,10 ” |155 mm

Weight

11,46 lbs 5,2 kg

Custom colour options

Piano lacquer: colour of choice, matt or other finishes upon request

Shape customization

Upon request

Mounting

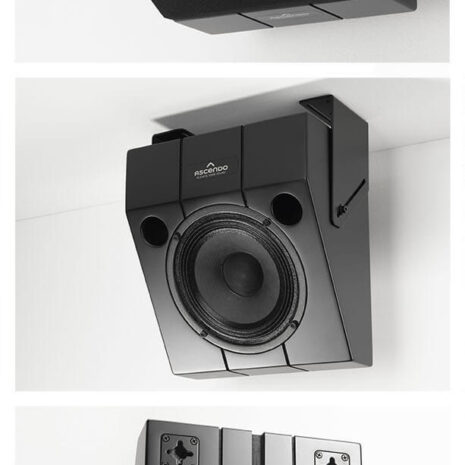

Metal wall or ceiling mounting brackets that allows to angle the speaker further in two axes + 6 wall mount brackets, which allow to hang the speaker in multiple ways on the wall + VESA 100 x 100 mounting points

THE6 PASSIVE WEDGE 30 is supplied with a front cover as standard
