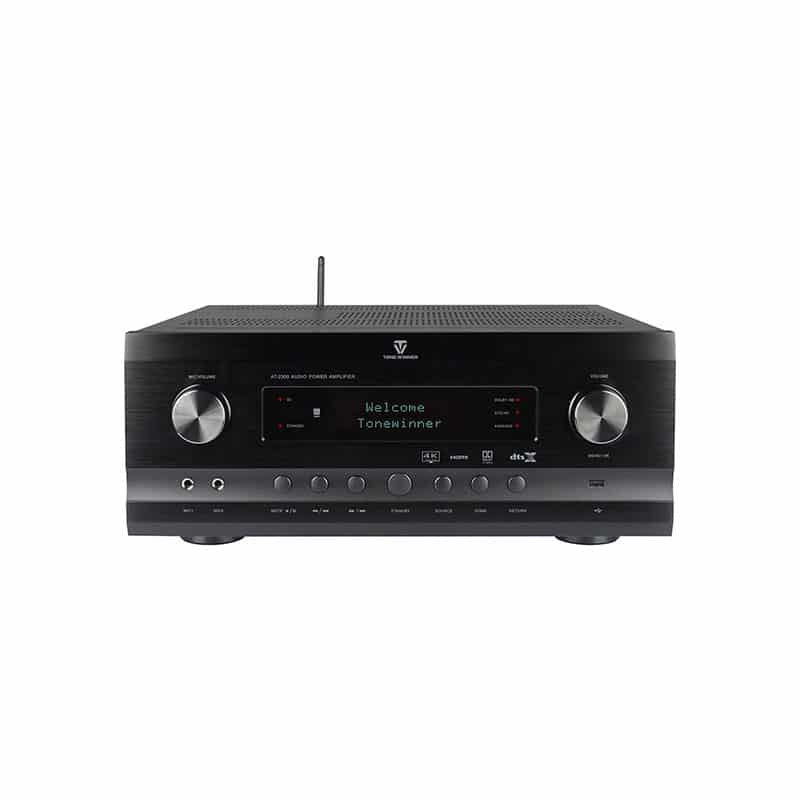

AT-2300 11.1 Ch. 4K Ultra HD AV Receiver with Dolby Atmos from Tonewinner

AT-2300 AV Receiver features：

• Support Dolby Atmos, Dolby True HD, Dolby Vision and HDR 10+ formats
• Support DTS:X, DTS-Master formats
• Support HDMI 2.0 & HDCP 2.2.
• Support 4K/60Hz，RGB 4:4:4, 18GHz full bandwidth video signal
• Stacked OSD menu operation display.
• Support 7.2.4 in total 13 channels with Atmos decoding.
• Built-in Karaoke function & multi-tap DSP mixing processor.
• Built-in auto smart room acoustic testing & compensation for spectral characteristic, loudness of each channel & distances between each Channel.
• Built-in Bluetooth audio receiver function.
• Built-in audio player function supporting files playing from TF card & USB disk, support several lossless & compressed audio format files playing such as FLAC, APE, WAV, MP3 & etc; support multi-layer folders management.
• Smart App for control of the device from IOS or Android enabled devices
• Support over 10 kinds of theater configuration from 2.0 channel to 7.2.4.
• 6 HDMI Inputs, 2 HDMI Outs including support for HDMI Arc & CEC, 2 coaxial ports & 2 optical audio ports.
• Process 11.2 Ch. And amplifies 7 channels with Built-in 7x150W（8Ω，RMS）Class high power HiFi amplifier, can drive 5.2 speaker system directly.
• RS232 port for integration with smart home systems
• Support as high as 1 second lip sync adjustment.
• Each channel has as many as 7 to 11 band parameters EQ.

AT-2300 AV Receiver Parameters

• THD: ≤0.05%（1KHZ）
• SN: ≥90dB (A weight)
• Output power: 7x150W/8Ω Gain: ≥ 40dB
• Channels : 7 Amplified Channels and 11.1 Ch. processing capability
• Impedance: 8Ω
• Frequency response: 20Hz-20KHz（+1dB）
• W: 14.7kgs
• Power supply: ~110V/60HZ ~220V/50HZ
• Unit size:431x408x179mm (WxHxD/Including the binding posts)
