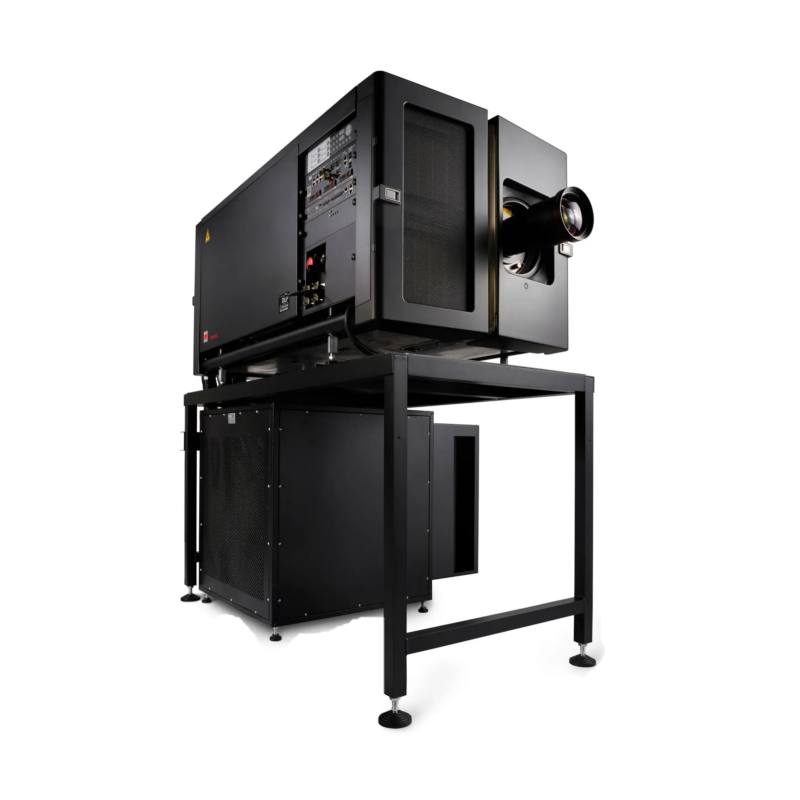

Barco Thor* Reference 4K/HDR Dedicated Cinema DCI-Compliant 6P-RGB Laser Projector (includes Alchemy ICMP)
The Thor platform represents the pinnacle of Barco Residential’s projection portfolio.
Thor’s perfectly designed, 6P RGB laser technology, 15,000 lumen output and hermetically sealed 4K DLP® engine, delivers reality altering levels of immersion for the largest home theatres.
Worlds first
Thor (and Thor+) are the world’s only integrated laser 6P 4K 3D projection solutions for Cinema at Home. In order to reliably achieve long lifetime at brightness levels twice that of xenon projectors, a sophisticated control system actively cools both laser modules and the DMD engine, providing a predictable 30,000 hour lifetime with at least 80% of the initial brightness.
Laser Speckle
Thanks to Barco’s industry-leading technology to minimize laser speckle, Thor is able to provide superior 2D and 3D images on both white and silver screens.
Color convergence mechanism
Thor also features our unique and highly acclaimed analog color convergence mechanism. By allowing the green and red DMD chips to be manually adjusted, perfect convergence can be achieved. This attention to detail renders images sharper and more immersive than ever before.
Hand Built
Not every projector can claim to be handbuilt, Thor can. Even though we are using state-of-the-art technologies for most processes – such as measuring, calibrating, assembling our electronics, and manufacturing the delicate optics and mechanics – every single step of the process is overseen by specifically trained professionals. Moreover, the assembly of vital parts is performed by hand, guaranteeing ultimate quality at all stages of manufacture.
Specifications
General specifications
- Projector type
- Three chip DLP
- Light source lifetime
- 30,000 Hours or more
Replaceable illumination
- CLO (constant light output)
- Yes
- Optical dowser
- Yes
- Software tools
- Barco Communicator
- Technology
- 3 x 1.38″ DMD™
- Integrated web server
- No
- Resolution
- 4,096 x 2,160 (4K)
- Aspect ratio
- 1.89:1
- Light source
- 6P RGB Laser
- Light output
- Up to 15,000 ANSI lumens
- Contrast ratio
- 6,000:1 Sequential
1,000:1 ANSI w/High Contrast Lens
- Brightness uniformity
- 80% at sides
75% at corners
- Input resolutions
- VGA up to 4K (4,096 x 2,160) @ 120Hz
- Lens range
- (R98013983) – 4K-VHC HDR (1.13 – 1.72:1) *
(R98013333) – 4K-VHC HDR (1.35 – 1.84:1) *
(R98013343) – 4K-VHC HDR (1.45 – 2.10:1) *
(R98013533) – 4K-VHC HDR (1.65 – 2.70:1) *
(R98013543) – 4K-VHC HDR (1.98 – 3.40:1) *(R98562942) – DC4K HC (1.35 – 1.86:1)
(R98562972) – DC4K HC (1.46 – 2.10:1)
(R98563002) – DC4K HC (1.65 – 2.60:1)
(R98563032) – DC4K HC (2.00 – 3.35:1)* Standard Lens Option(s)
- Optical lens shift
- Up to 25% vertical lens shift & up to 15% horizontal lens shift
Motorized zoom, focus, shutter and lens shift
Download Lens Data Here
- Tilt
- 20° Forwards
5° Backwards
- Color correction
- P7
- Color gamut
- REC2020
- Image processing
- Alchemy – Integrated Cinema Media Processor (ICMP)
- WARP
- N/A
- Orientation
- Pedestal / Table Top
- Network connection
- 10/100 Ethernet via RJ45 connection
- Operational humidity
- 75% Max. (projector and chiller)
- HDR
- HDR10
- 3D
- Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses (Dolby3D glasses cannot be reused)
Active glasses systems
Polarization recuperation systems
- Inputs
- Barco Alchemy ICMP included in the projector:
2 x HDMI2.0a (up to 4K 2D 60fps)
2 x 3G-SDI inputs
16 x AES/EBU audio channels (2 x RJ45)
8 x GPI, 8x GPO (4 x RJ45)
2 x Gbe for content connectivity & ingest
2 x front-accessible USB 3.0 for fast ingest
2 x front-accessible USB 2.0DCI 4K 2D up to 60fps*
DCI 4K 3D (24 or 30fps per eye)*
DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625 Mbps
MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
- Shipping Dimensions
- 1,780 x 1,320 x 1,020 mm excludes lens – packaged separately)
70.1 x 52.0 x 40.2 in. (excludes lens – packaged separately)
- DCI
- DCI Compliant
- Integrated storage
- 3.9TB effective storage (RAID-5)
via 3 x 2TB Hot-swappable 2.5″ hard-drives
- Control
- RS232, TCP/IP, 8 x GPIO
- Shipping weight
- 307 kg / 677 lbs (excludes lens – packaged separately)
- Power requirements
- Projector:
Y connection: 200-240V / 346-415V 50-60Hz 16A 3W+N+PE
Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG
Circuit breaker range: 25A to 40ADelta connection: 200-240V 3W+PE 28A 50-60Hz
Power cord size: 6 sq mm, 8AWG
Circuit breaker: 40AChiller:
Y connection: 230/400V 3W+N+PE 16A, 2.5 sq mm
Delta connection: 208V / 3W+PE
Max. 16A per phase
- Certifications
- CE; ETL/UL/FCC, CCC
- Power consumption
- Projector (Full Laser Power):
3.5 kW (2D or Polarization 3D)
2.0 kW (Barco Laser3D – 6P)Chiller (Full Laser Power):
2.0 kW (2D or Polarization 3D)
1.6 kW (Barco Laser3D – 6P)
- Noise level (typical at 25°C/77°F)
- Projector (w/Chiller):
68 dB(A) – MaxProjector (w/o Chiller):
52db(A)
- Operating temperature
- 10 to 30 °C Max. (sea Level)
- *
- Firmware upgradable
Please contact an authorized Barco representative for details
- BTU per hour
- 18,500 BTU/h
- Airflow requirements
- Air Inlet (from Rear w/Feet Down): TBC
Exhaust (from Rear w/Feet Down): TBC
- Exhaust airflow
- TDB
- Dimensions (WxLxH)
- Projector:
742 x 1,446* x 706 mm (includes feet / excludes lens)
29.2 x 56.9 x 27.8 in. (includes feet / excludes lens) Chiller:
701 x 701 x 800 mm
27.6 x 27.6 x 31.5 in.
* Excludes allowance for chiller hoses
- Weight
- Projector: 200 kg / ~440 lbs (excludes lens)
Chiller: ~115 kg / ~250 lbs
- Warranty
- Limited 3 years parts and labor
Extendable up to 5 years
- Safety requirements
- Class 1, Risk Group 3
