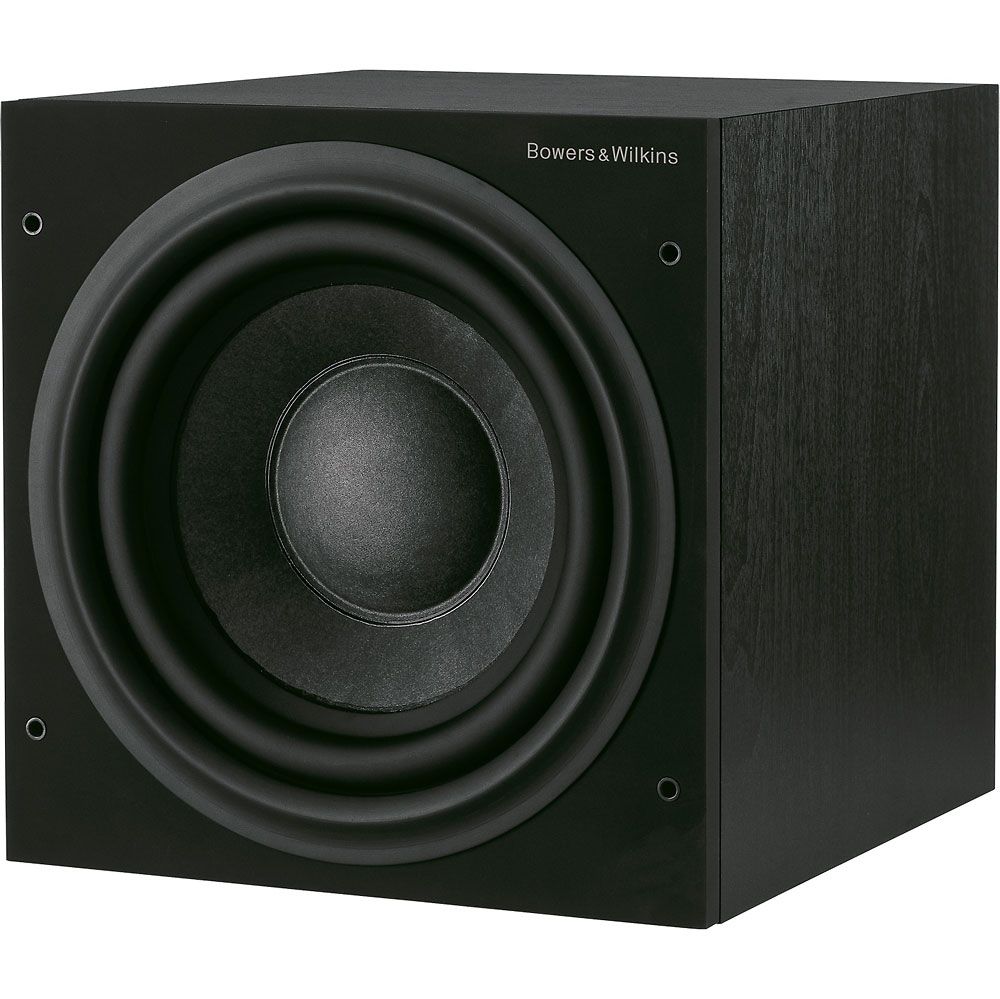

Bowers and Wilkins ASW610 Subwoofer

The ASW610 subwoofer strikes a perfect balance between the compact ASW608 and the powerful ASW610XP. Its versatility makes it suitable for a wide range of rooms and applications.

Powered by a highly efficient 200W amplifier, the ASW610 features a long-throw 10-inch driver that delivers impressive low-frequency output. With audiophile-standard Class D circuitry, this subwoofer remains cool and efficient even during intense audio playback.

As part of the 600 Series Anniversary Edition, the ASW610 embodies our commitment to performance and delivering music as intended by the artists. Its sealed enclosure ensures tight and exciting bass reproduction, while its compact size allows for flexible placement options.

The ASW610’s sealed design enables it to fill the room with impactful bass while maintaining precise control. It is an ideal choice for those seeking a compact subwoofer that doesn’t compromise on performance. With adjustable bass extension and roll-off alignment, you can tailor the subwoofer’s output to suit your listening preferences.

The subwoofer features multiple input options, including line in (RCA Phono) and speaker in (Binding post), allowing for easy integration into your existing audio setup. It also offers a low-pass filter with variable cut-off frequency and a phase switch for further customization.

With dimensions of 310mm (height) x 310mm (width) x 347mm (depth), excluding feet or spikes, the ASW610 is designed to seamlessly blend into your living space. It is available in black or white finishes, allowing you to choose the option that best suits your aesthetic preferences.

Whether you’re enjoying music or watching movies, the ASW610 subwoofer delivers a powerful and immersive audio experience. With its exceptional performance, precise bass reproduction, and compact design, the ASW610 is an excellent choice for those seeking enhanced low-frequency impact in their audio setup.

• Description: Active closed-box subwoofer system
• Drive unit: Ø250mm (10 in) paper/Aramid fiber cone long-throw
• Frequency range: -6dB at 20Hz and 25/140Hz adjustable (EQ at A)
• Frequency response: ±3dB 27Hz – 40/140Hz adjustable (EQ at A)
• Bass extension: -6dB at 20Hz (position A), -6dB at 25Hz (position B), -6dB at 30Hz (position C)
• Power output: 200W
• Rated power consumption: 40W / 0.5W standby
• Input impedance: 33kOhms
• Signal/noise: >90dB
• Inputs: Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack)
• Low-pass filter: Active 4th-order, variable cut-off frequency
• Dimensions:
  • Height: 310mm (12.2 in) not including feet or spikes, 322mm (12.7in) including feet, 338mm (13.3in) including spikes
  • Width: 310mm (12.2 in)
  • Depth: 347mm (13.66in) not including grilles, 375mm (14.8 in) including grilles and controls
• Net weight: 12.5kg (27.6 lb)
• Cabinet finishes: Black, White
• Grille finishes: Black, Grey
