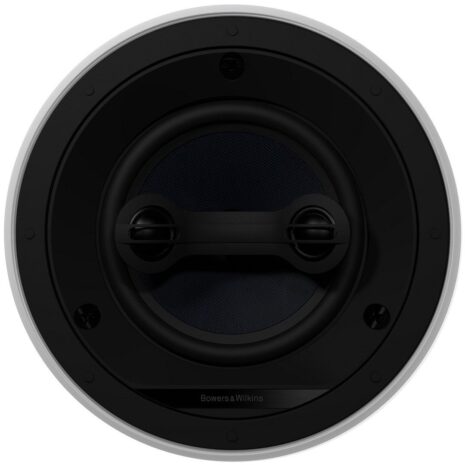

Bowers and Wilkins CCM 664SR In-Ceiling Speaker
The CCM664SR is a dual, two-way ceiling speaker featuring offset tweeters and a twin voice coil bass/midrange driver. It allows for either a combined stereo signal from one speaker or rear-channel surround sound, providing versatile audio options in a ceiling-mounted setup.
The CCM664SR is a dual, two-way ceiling speaker with a 150mm (6in) woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. It allows combining a stereo signal into one speaker without losing an audio channel. The speaker also features a two-position stereo/surround switch for easy mode switching. With QuickDogs and plug-and-play functionality, installation is quick and hassle-free.
Specifications:
Description: 2-way dual channel in-ceiling system
Drive Units:
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
Frequency Range (-6dB): 48Hz – 30kHz
Recommended Amp Power: 25 – 80w (per channel)
Sensitivity SPL (2.83V, 1m):
83dB (per channel)
89dB (both channels driven)
Nominal Impedance (min): 8 ohms (4 ohms) (per channel)
Approximate Dimensions:
Frame Dimensions:
Frame Diameter: 9.5″
Depth Behind Surface: 5.2″
Cut-out Dimensions:
Cut-out diameter: 8″
Protrusion: 0.2″
Pre-mount Kit: C6
Recommended Back Box: 6C
Approximate Weight:
Shipping: 10 lbs
| Weight | 3.29 kg |
|---|---|
| Brand | Bowers & Wilkins |
