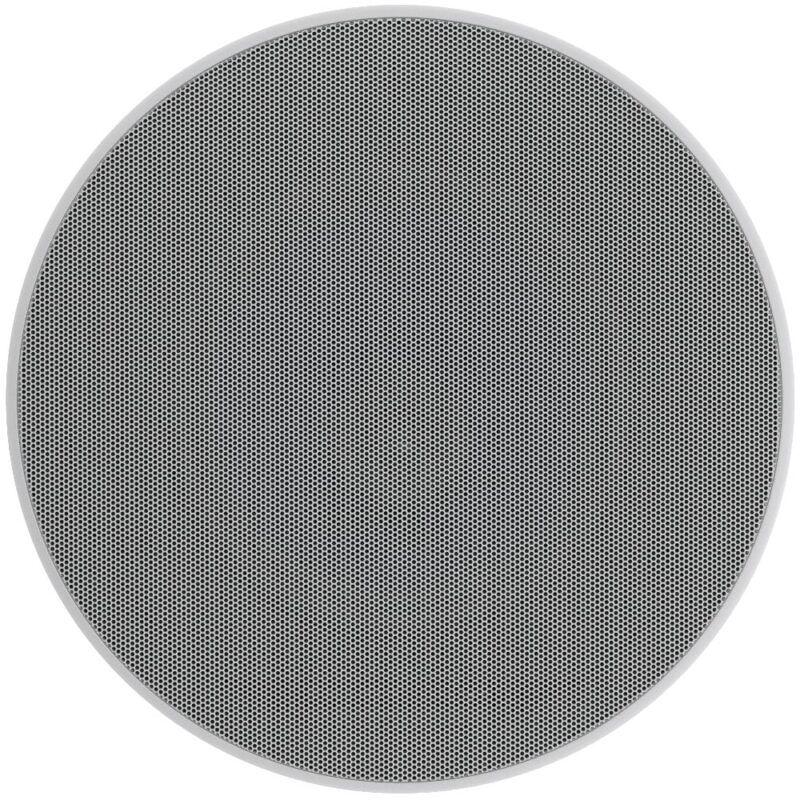

Bowers and Wilkins CCM 683 In-Ceiling Speakers – Pair

The Bowers & Wilkins CCM683 is a true high-performance ceiling-mount speaker, delivering exceptional audio quality. It features a 200mm (8″) woven blue Aramid Fibre cone bass/midrange driver and an aluminum tweeter in a sleek die-cast chassis. The tweeter’s adjustable pivot housing ensures precise off-axis treble response, while the die-cast chassis provides enhanced rigidity for cleaner and faster bass reproduction. With its hidden blue Aramid Fibre cone, this speaker delivers remarkably clear and dynamic sound. Sold as a pair.

Upgrade your audio experience with the CCM683. It offers advanced technology and superior components compared to entry-level speakers. The rotating tweeter, equipped with EQ controls, provides flexibility for optimizing sound. The 1″ Nautilus™ swirl-loaded aluminum dome tweeter combines with the larger 8″ midrange/woofer, utilizing blue Aramid Fibre cone material for enhanced performance. The CCM683 is a top choice for in-ceiling speakers, delivering impressive sound at an affordable price point. It pairs well with B&W 600 Series Anniversary or 700 series speakers for Atmos height or surround applications. For an even better match with 700 level mains, consider the higher-end CCM 7.5 S2.

Specifications:

Design: 2-way in-ceiling system Drive Units:

• 1x ø25mm (1 in) Nautilus™ swirl loaded aluminum dome tweeter
• 1x ø200mm (8in) blue aramid fiber cone bass/midrange Frequency Range (-6dB): 35Hz – 50kHz Recommended Amp Power: 25 – 130w Sensitivity SPL (2.83V, 1m): 88 dB Impedance Nominal (min): 8 ohms (4.5 ohms)

Dimensions: Frame Diameter: 11.4″ Depth Behind Surface: 5.2″ Cut-out diameter: 9.8″ Protrusion: 0.2″

Features:

• 2-way in-ceiling system with high-performance components
• Nautilus swirl-loaded aluminum dome tweeter for precise treble response
• Blue Aramid Fibre cone bass/midrange driver for enhanced sound quality
• Adjustable EQ switch for optimal off-axis response
• Sleek and durable die-cast chassis for improved rigidity
• Designed to match with B&W 600 Series Anniversary or 700 series speakers
• Suitable for Atmos height or surround applications
• Includes pre-mount kit (C8) and recommended back box (6C)

Experience the finest audio performance with the Bowers & Wilkins CCM683 ceiling-mount speaker.
