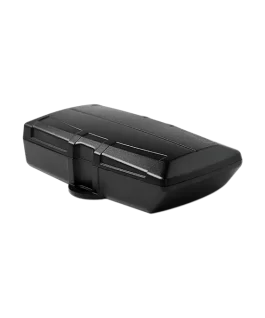

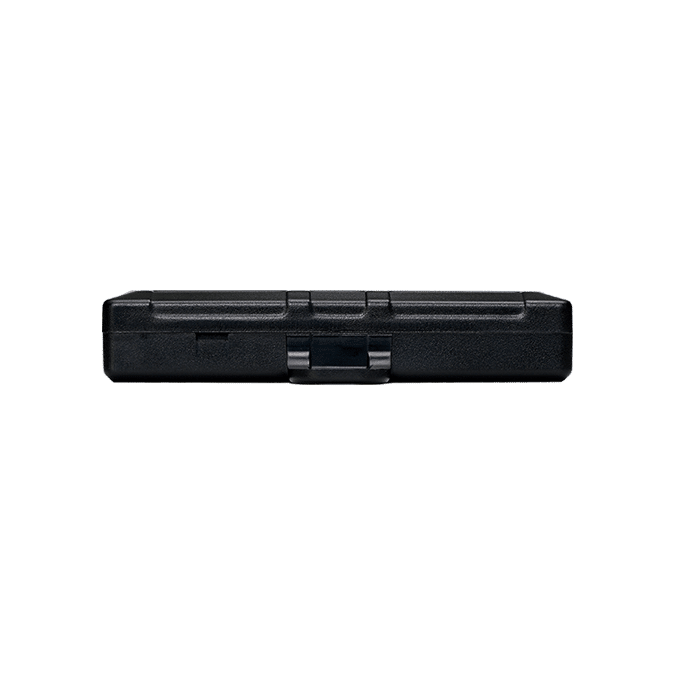

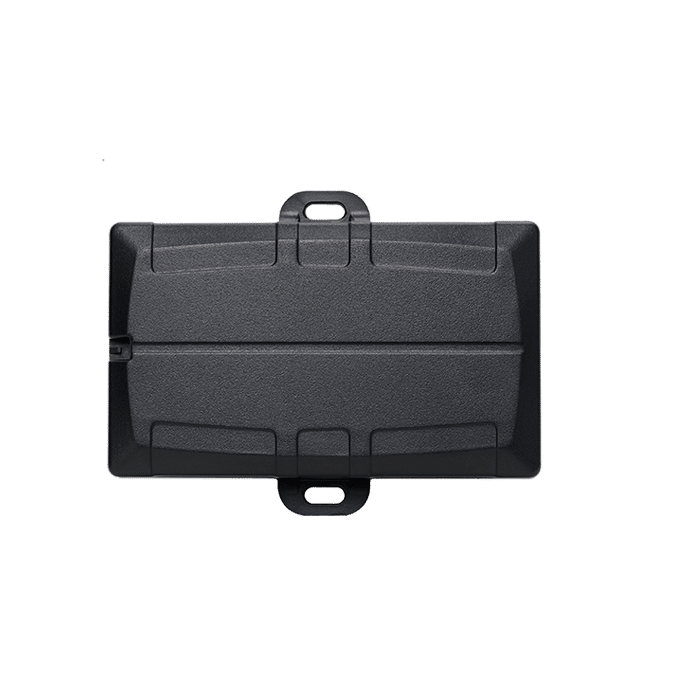

Dart3 – Robust GPS Vehicle Tracker

23 people are viewing this right now
5 products sold in last 17 hours
Selling fast! Over 8 people have this in their carts

Robust and affordable vehicle tracking device with inputs/outputs, remote immobilization for fleet management, driver ID, driver safety and behavior monitoring, theft recovery, and more

  • High-precision GNSS (GPS/GLONASS/Galileo) tracking device
  • Wired or Optional OBDII or cigarette lighter power harness available for plug-and-play installation
  • 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, 1 x Switched Ground Digital Output, Switched Power Out
  • Internal Backup Battery in case of loss of power or tampering
  • Configure iButton®, Wiegand or RFID readers for Driver ID
  • Accident and rollover detection, speeding, harsh braking and cornering, and more
  • Immobilization option to safely disable vehicles and equipment remotely
  • Available in Cellular 2G or LTE-M/NB-IoT versions

Dart3 Features

Real-Time Tracking

The Dart3 remains continuously connected while on the move for real-time vehicle and equipment tracking.

Inputs / Outputs

Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.

Back-up Battery

Features a LiPo internal backup battery pack in case of loss of power or tampering.

Driver ID Options

Configure iButton®, TTL, or Wiegand inputs for Driver ID Readers

Driver Safety & Behavior

Monitor speeding, harsh acceleration, braking, cornering, and more to improve safety and prevent unnecessary wear on vehicles.

Remote Immobilization

Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse or unauthorized usage.

Accident & Rollover Detection

Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicles.

Run Hour Monitoring

Calculate run hours and distance traveled (odometer) to understand and optimize vehicle and equipment utilization.

Preventative Maintenance

Set reminders based on distance traveled and run hours to reduce maintenance and repair costs.

Theft Recovery

Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

Advanced Geofencing

Create custom geofences and alerts if an asset enters or leaves specific locations. Geofences can also be downloaded directly to the device for enhanced location-based behaviors.

Installation Options

Wired or optional OBDII or cigarette lighter power harness available for plug-and-play installation.

Manufacturer

Digital Matter

Brand

Digital Matter

CONNECTIVITY

Cellular, LTE-M / NB-IoT versions

SIM Size & Access

Internal Micro 3FF SIM

Chipset

uBlox EVA-M8

Constellation

Concurrent GPS / GLONASS / Galileo

Channels

72 Channel High Sensitivity Receiver

Tracking Sensitivity

-167dBm tracking performance

Location Accuracy

~2.0m CEP, 50%, 24 hours static, GPS, SBAS, -130dBm, > 6SVs

GNSS Assistance

GNSS almanac and ephemeris data for greater sensitivity and position accuracy

Low Noise Amplifier

GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail

Cell Tower Location

Cell tower location fallback for positioning when GPS can’t get a fix

Input Voltage

8-36V DC (max)

High-Performance Automotive Power Supply

Stringent power “load dump” tests are conducted to ensure operation in the harshest automotive electrical systems. Built-in self-resetting fuse makes installation simple and safe.

Operating Current

2G ≈250mA when moving + ≈60mA while internal battery charging LTE-M / NB-IoT ≈50mA when moving + ≈60mA while internal battery charging

Sleep Current

<1mA

Back-Up Battery

2G – 1100mAh LiPo internal backup battery pack LTE-M / NB-IoT – 200mAh LiPo internal backup battery pack

Dimensions

99 x 76 x 19 mm (3.90 x 2.99 x 0.75″)

Weight

83g

Housing

ABS Polycarbonate Plastic

Installation

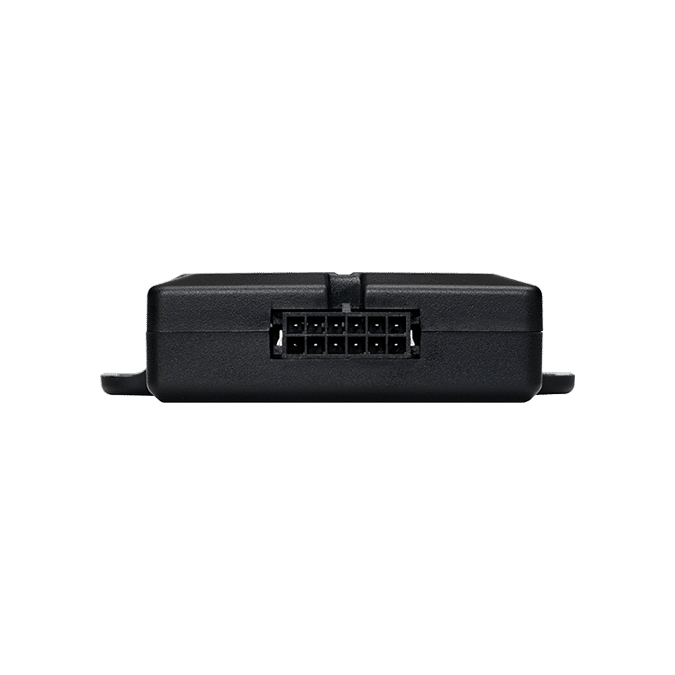

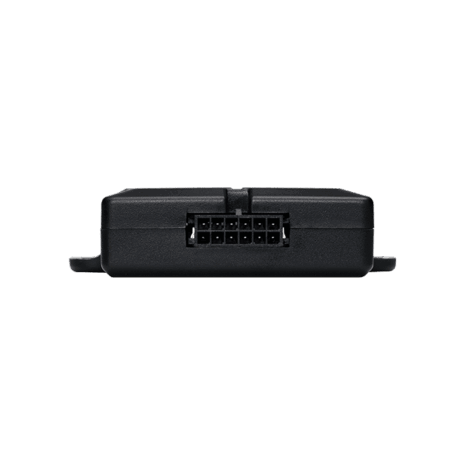

12 wire harness / 1m length supplied as standard *OBDII and Cigarette Lighter harness options available for quick and easy (or temporary) installs

Operating Temperature

-30°C to +60°C (connected to external power) At +40°C the internal backup battery will not be charged as a safety precaution .

Cellular Antenna

Internal

GPS Antenna

Internal

3-Axis Accelerometer

3-Axis Accelerometer to detect movement, high G-force events, and more

Flash Memory

Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging.

On-Board Speed & Heading

The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes

On-Board Temperature

The device reports internal temperature and prevents the internal battery charging in extreme temperatures. Internal temperature provides an indication of ambient temperature but may not always be precise.

Diagnostic LED

Diagnostic LED indicates operation status

Analog Inputs

1 x Analog Input. 0-40V

Digital Inputs

3* x Digital Inputs with configurable pull-up/down 0-48V DC input rangeOn/Off thresholds: Pull-up enabled: low at 0.4V, high at 1.9V Pull-down enabled: low at 0.8V, high at 2.2VCan be used for pulse counting *Digital Input 3 pin shared with Driver ID. Cannot be used in conjunction with Wiegand or TTL readers.

Digital Outputs

1 x Switched Ground Digital Output – 2A max Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle.

Ignition

1 x dedicated ignition Digital Input 0-48V DC – 2.2V on/off threshold Can be used as a digital input if not required

Switched Power Out

3-5Vout Max current 500mA

TLL Interface

Serial interface used to connect a Digital Matter RFID reader for Driver ID

Wiegand

Enables easy integration with a variety of Driver ID card types and readers or keypads

1-Wire® or iButton®

1-Wire® or “iButton®” can be used to read Driver ID tags. Readers available to suit multiple card formats.

Auto-APN

Auto-APN allows the device to analyze the SIM card and select the correct APN details from a list that is pre-loaded in the device’s firmware

Accident & Rollover Detection

Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicle or equipment. Second-by-second GPS data is saved on the device’s flash memory, with a capacity of approximately 2 hours of data. In the event of an accident, a subset of the data (60 seconds before / 10 seconds after) is uploaded to the server automatically (if configured) or can be requested manually for a detailed reconstruction of the incident.

Driver ID Options

RFID, iButton® or Wiegand interface for Driver ID, access control, and logbooking.

Geofence Alerts

The server can use device location to create geofences and alerts if an asset enters or leaves designated locations

Geofence Download to Device

Geofences can be downloaded directly to the device from Telematics Guru for enhanced location-based actions and alerts. 2G – Maximum of 20 geofences with up to 30 points per geofence LTE-M / NB-IoT – Maximum of 500 geofences with up to 100 points per geofence

Driver Safety & Behavior

Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles

GPS Jamming Detection

GPS Jamming or Interference can be detected and alerted on

In-Vehicle Alerts

Can be wired up to external buzzers or lights for in-vehicle alerts. Also features Built-in-Buzzer for alerts

Lone Worker Safety

Interface a variety of duress pendants to enable man-down alerts for lone worker safety monitoring

Preventative Maintenance

Set reminders based on distance traveled and run hours to reduce maintenance and repair costs

Real-Time Tracking

Device remains continuously connected while on the move for real-time asset tracking

Remote Immobilization

Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse or unauthorized usage

Run Hour Monitoring

Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization

Sensor Monitoring

Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more

Tamper Alerts

Instant alert if the device is removed from your asset or disconnected from its power source

Theft Recovery

Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval

Flexible Configuration

Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

Device Management Platform

Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system

Configuration App

Manage device firmware updates and parameters via DM-Link provisioning tool.

INTEGRATION

TCP Direct or HTTPS Webhook

Data Security

Military-level AES-256 Encryption from device to Device Management Platform to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security

Warranty

Two-year manufacturer’s warranty.
