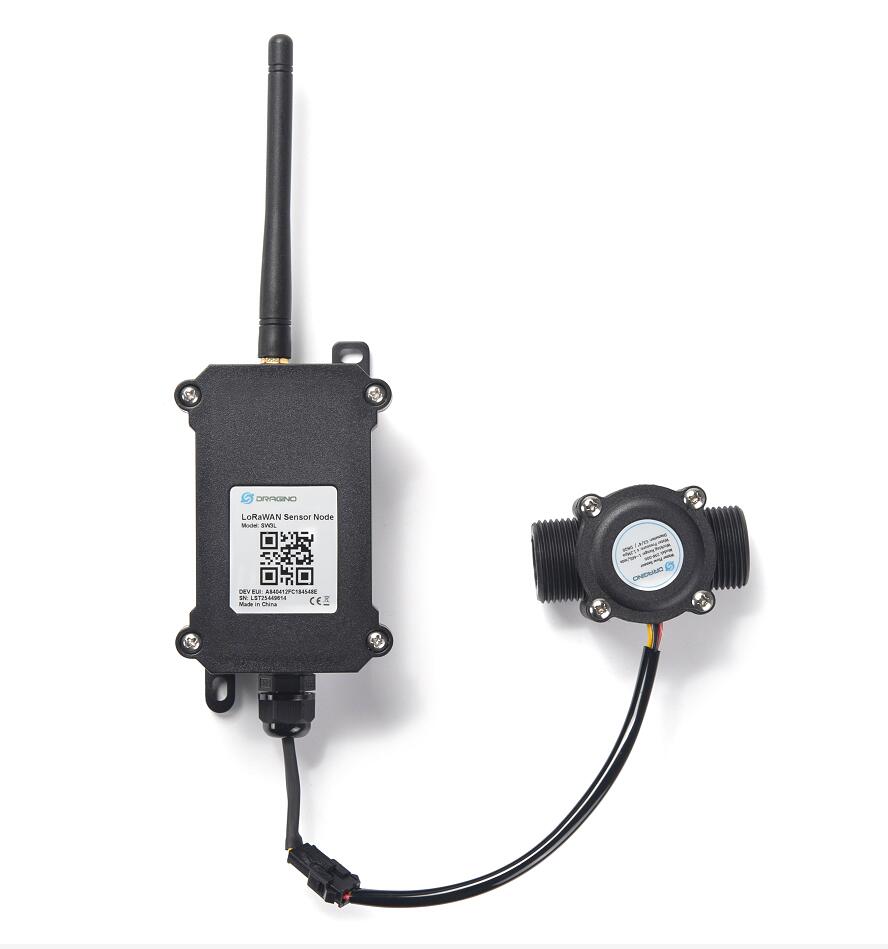

Dragino SW3L DW-006 Water Flow Monitoring Sensor

The Dragino SW3L is a LoRaWAN Flow Sensor. It detects water flow volume and uplink to IoT server via LoRaWAN network. User can use this to monitor the water usage for buildings.

SW3L is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.)

The SW3L will send water flow volume every 20 minutes. It can also detect the water flow status and send Alarm, to avoid the waste for water usage such as broken toilet case.

SW3L is designed for both indoor and outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.

Each SW3L is pre-load with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will auto connect after power on.

Features:
LoRaWAN v1.0.3 Class A protocol
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864
Upload water flow volume
Monitor water waste
8500mAh industrial battery(none-rechargeable)
AT Commands to change parameters
Uplink on periodically and open/close event
Datalog feature
Remote configure parameters via LoRa Downlink
Firmware upgradable via program port
Wall Mountable
Outdoor Use

Applications:
– Flow Sensor application
– Water Control
– Toilet Flow Sensor
– Monitor Waste water

Flow Sensor Spec:
006: DW-006 Flow Sensor: diameter: G3/4” / DN20. 360 pulse = 1 L
