Dragino WSS-01 RS485 Rain Gauge

23 people are viewing this right now
6 products sold in last 18 hours
Selling fast! Over 6 people have this in their carts

*Resolution: 0.2mm ,
*Accuracy: ?3%
*Rainfall strength: 0mm?4mm/min (max 8mm/min)
*Input Power: DC 5~24v
*Working Temperature: 0??70? ( incorrect below 0 degree, because water become ICE)
*Working Humidity: <100% (no dewing) *Power Consumption: 4mA @ 12v.

SKU: WSS-01 Categories: , , Tag:

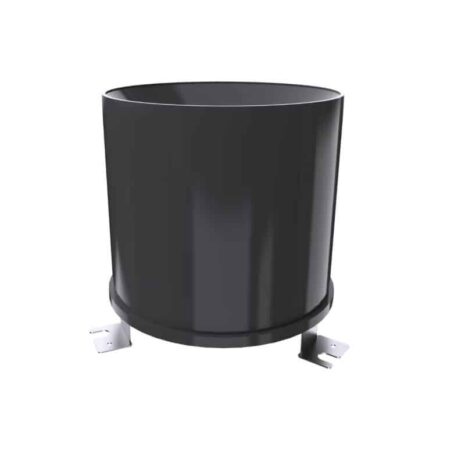

WSS-01 RS485 Rain Gauge is a weather monitor instrument to monitor rainfall.

WSS-01 uses a tipping bucket to detect rainfall. The tipping bucket use 3D streamline shape to make sure it works smoothly and is easy to clean.

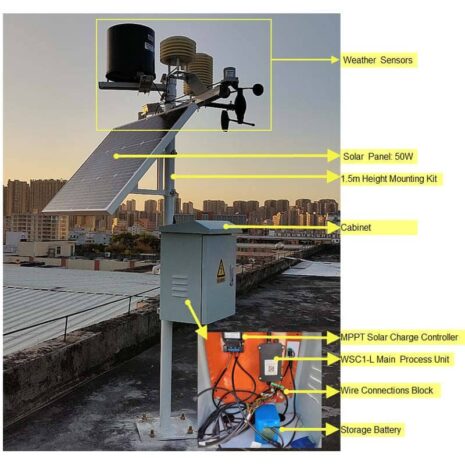

WSS-01 is designed to auto support the Dragino Weather station solution. Users just need to connect WSS-01 RS485 interface to WSC1-L.

The weather station main processor WSC1-L can auto-detect and upload the rainfall to the LoRaWAN Server. The tipping bucket of WSS-01 is adjusted to the best angle. When installation, user just needs to screw up and adjust the bottom horizontally.

WSS-01 package includes screw which can be installed to ground. If user want to install WSS-01 on pole, they can purchase WS-K2 bracket kit.

Features:
ABS enclosure.
Vents under funnel, avoid leaf or other things to avoid rain flow.
Small dimension, easy to install
RS485 Rain Gauge

Applications:

Weather Station
