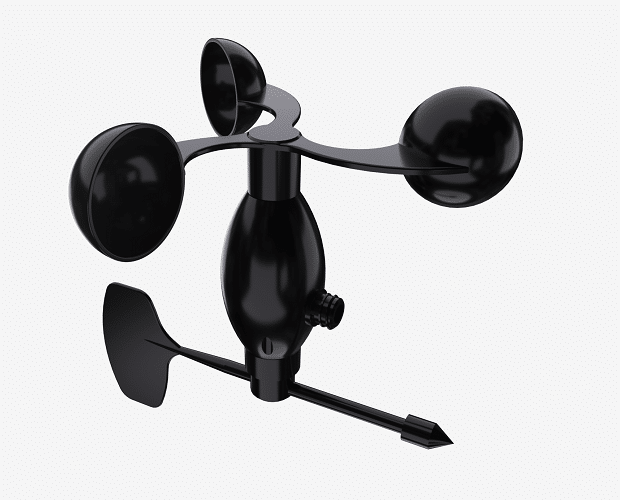

Dragino WSS-02 RS485 Wind speed and wind direction Sensor

WSS-02 is a RS485 wind speed and wind direction monitor designed for weather station solution.

WSS-02 shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion characteristics, and ensure the long-term use of the sensor without rust. At the same time,it cooperates with the internal smooth bearing system to ensure the stability of information collection .

Users only need to connect WSS-02 RS485 interface to WSC1-L. The weather station main processor WSC1-L can detect and upload the wind speed and direction to the IoT Server via wireless LoRaWAN protocol.

Specifications:
Wind speed range: 0 ~ 30m/s
Wind direction range: 0 ~ 360?
Start wind speed: ?0.3m/s
Accuracy: ??0.3?0.03V?m/s , ?1?
Input Power: DC 5~24v
Interface: RS485
Working Temperature: -30??70?
Working Humidity: <100% (no dewing) Power Consumption: 13mA ~ 12v. Cable Length: 2 meters Features: RS485 wind speed / direction sensor PC enclosure, resist corrosion Applications: Weather Station
