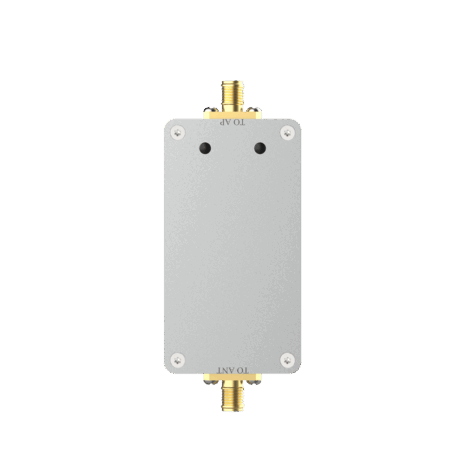

Edge Helium Mining RF Amplifier 868mhz – 17rx & 6tx
· Built-in Saw Filter in both Tx and Rx Link
· With 868MHz amplifier up to 4X more range
· Ultra-low noise figure 2.0dB
· 863-870MHz Full Band Lora Applications
· DC input：RF cable and 2.5*0.7mm DC socket
Kit includes: 1. Bias Tee 2. Amplifier 3. Power Adaptor
868MHz Bidirectional amplifier, used for Helium Network, 1W Output Power, 6dB Tx Gain, Operation from 863-870MHz
Description
The 868MHz signal booster operates from 863MHz-870MHz and uses for Helium Network. This component has a 6dB Tx gain , 17dB Rx gain, less than 2.0dB noise figure, less than 20ns Tx and Rx switching.
The 868MHz signal booster features rugged aluminum construction and is used indoor. The 868MHz signal booster has a SMA female input and RP-SMA male output. The 868MHz booster works for any 868MHz ISM band , such as LoRa, UHF RFID, helium, Sigfox, Burgler alarms, smart meters, fire alarms.
Kit comes with Bias Tee for Power and Power Adaptor.
Features
◆ Built-in Saw Filter in both Tx and Rx Link
◆ With 868MHz amplifier up to 4X more range
◆ Ultra-low noise figure 2.0dB
◆ 863-870MHz Full Band Lora Applications
◆ DC input：RF cable and 2.5*0.7mm DC socket
◆ UHF RFID
◆ Smart meters/fire alarms/burgler alarms
| Number | Items | Specifications |
| 1 | Frequency Range | 863-870MHz |
| 2 | Operating Voltage | 6-24V |
| 3 | Receiving Gain | 18dB±1 |
| 4 | Tx Gain: | 6dB±1 |
| 5 | Tx Max Output Power(P1dB) | 30dBm(1W) |
| 6 | Input Trigger Power | Min:0dBm Max:20dBm |
| 7 | EVM | 3%@27dBm |
| 8 | Rx Noise Figure | ＜2.0dB |
| 9 | Current Supply | 300mA@Pout 30dBm 12V |
| 10 | TX/RX Switch Time Delay | ＜1 us |
| 11 | LED Indicator | Tx: Green; Rx: red |
| 12 | Operating Temperature | -40℃～+70℃ |
| 13 | Storage Temperature | -40℃～+150℃ |
| 14 | Operating Humidity | Up to 95% rel. humidity |
| 15 | RF Connector | Input: SMA female; Output: RP-SMA male |
| 16 | Power Socket | 2.5*0.7mm DC( default ) or cable power supply |
| 17 | Shell Size | 77*35*14mm |
| 18 | Shell Material | Aluminum |
| 19 | Net Weight | 0.06Kg |
Block Diagram
