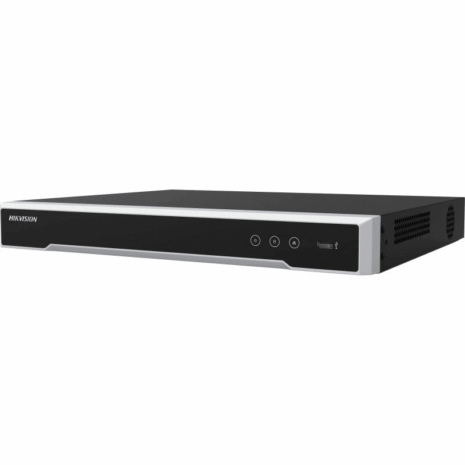

Hikvision 16-ch 2 Bay 1U 4K NVR

Advanced Features:

• Human/Vehicle Analysis: Enhanced AI capabilities for accurate human and vehicle detection.

Video and Audio Capabilities:

• IP Video Input: Supports up to 16 channels.
• HDMI Output: 1 channel, supports resolutions up to 4K (4096 x 2160) at 30 Hz.
• VGA Output: 1 channel, supports up to 1920 × 1080 at 60 Hz.
• Video Output Mode: Simultaneous HDMI/VGA output.
• Audio Output: 1 channel, RCA (Linear, 1 KΩ).
• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 k Ω).

Network Performance:

• Incoming Bandwidth: 160 Mbps.
• Outgoing Bandwidth: 80 Mbps.
• Network Protocols: Supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS.
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface.

PoE Capabilities:

• PoE Interface: 16 channels, 16 RJ-45 10/100 Mbps self-adaptive Ethernet interface.
• Power Consumption: ≤ 150W.
• Standard: IEEE 802.3 af/at.

Decoding and Recording:

• Decoding Format: H.265+, H.265, H.264+, H.264.
• Decoding Capability: 1 channel at 8 MP (30 fps) or 5 channels at 1080p (30 fps).
• Synchronous Playback: Supports up to 16 channels.
• Recording Resolution: Up to 8 MP, compatible with various resolutions including 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF.

Storage and Interface:

• SATA Interface: 2 SATA interfaces, each supporting up to 8TB capacity.
• USB Interface: 2 × USB 2.0.

General Specifications:

• Power Supply: 100-240V~, 50/60Hz, 3.2A MAX.
• Power Consumption: ≤ 15W.
• Working Temperature: -10 to +55º C (+14 to +131º F).
• Working Humidity: 10 to 90%.
• Chassis: 1U chassis.
• Dimensions: 385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″).
• Weight: ≤ 2.6 kg (5.7 lb).
