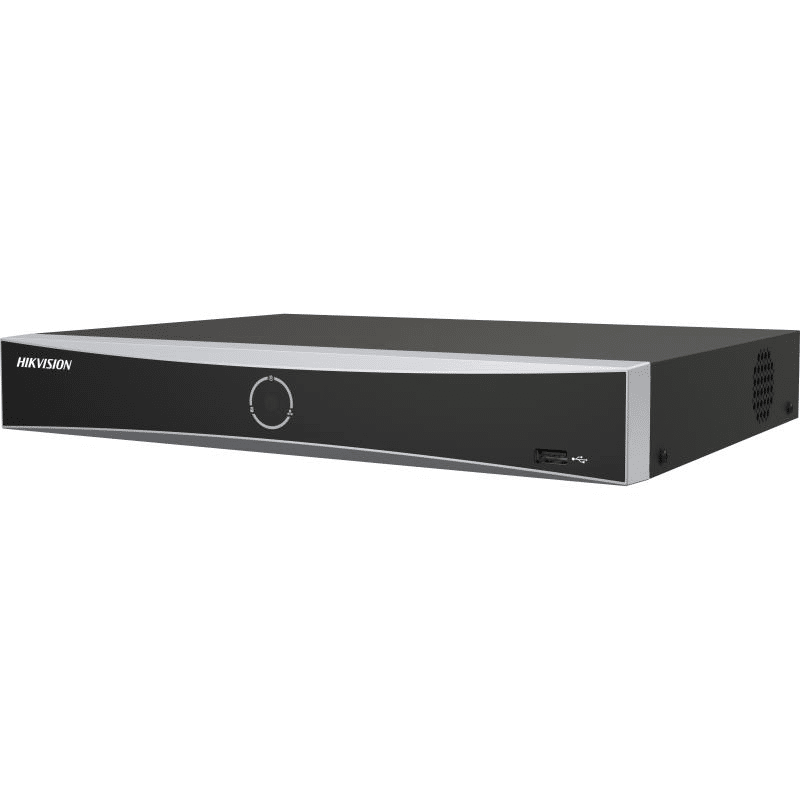

Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR

AI Capabilities by Device

• Features: Facial recognition, perimeter protection, motion detection 2.0

AI Capabilities by Camera

• Features: Facial recognition, perimeter protection, detection of objects thrown from buildings, motion detection 2.0, ANPR (Automatic Number Plate Recognition), VCA (Video Content Analysis)

Facial Recognition

• Face Attributes: Not applicable
• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library:
  • Up to 16 libraries, with a maximum of 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB)
  • Up to 16 libraries, with a maximum of 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Performance:
  • 1 channel, 4 MP
  • 1 channel, 8 MP
• Face Picture Comparison: 2 channels for images captured from the camera

Motion Detection 2.0

• By Device:
  • All channels, 4 MP (with enhanced SVC mode enabled, up to 8 MP)
  • Video analysis for human and vehicle recognition to reduce false alarms
• By Camera: All channels

Perimeter Protection

• By Device:
  • 1 channel, 4 MP (HD network camera, H.264/H.265)
  • Video analysis for human and vehicle recognition to reduce false alarms
• By Camera: All channels

Video and Audio

• IP Video Input: 4 channels
• Bandwidth:
  • Incoming: 40 Mbps
  • Outgoing: 80 Mbps
• Outputs:
  • HDMI: 1 channel, 4K (3840 × 2160) at 30 Hz, 2K (2560 × 1440) at 60 Hz, 1920 × 1080 at 60 Hz, 1600 × 1200 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz
  • VGA: 1 channel, 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous output
  • CVBS Output: Not applicable
• Audio:
  • Output: 1 channel, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Formats: H.265/H.265+/H.264+/H.264
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 4 channels
• Decoding Capability:
  • AI on: 1 channel at 12 MP (30 fps), 1 channel at 8 MP (30 fps), 3 channels at 4 MP (30 fps), 6 channels at 1080p (30 fps)
  • AI off: 1 channel at 12 MP (30 fps), 2 channels at 8 MP (30 fps), 4 channels at 4 MP (30 fps), 8 channels at 1080p (30 fps)
• Stream Types: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection: 128 connections
• API: ONVIF (Profile S/G), SDK, ISAPI
• Compatible Browsers: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or later versions
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power: ≤ 50 W
• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB per HDD
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0
• Alarm In/Out: 4/1 (4/1 is optional)

General

• GUI Language: Multiple languages including English, Russian, and more
• Power Supply: 48 VDC, 1.35 A
• Power Consumption: ≤ 10 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions: 320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight: ≤ 1 kg (2.2 lb., without HDD)
• Certification:
  • CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
  • Obtained certifications: CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
