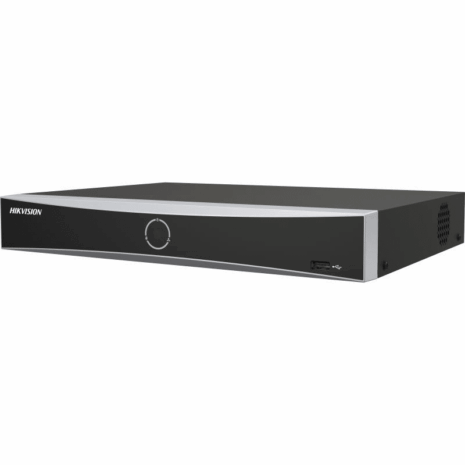

Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR

Intelligent Analytics

AI Capabilities by Device

• Facial recognition
• Perimeter protection
• Motion detection 2.0

AI Capabilities by Camera

• Facial recognition
• Perimeter protection
• Throwing objects from buildings
• Motion detection 2.0
• Automatic Number Plate Recognition (ANPR)
• Video Content Analytics (VCA)

Facial Recognition

• Face Attributes: Not applicable
• Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Library:
  • Option 1: Up to 16 libraries, up to 5,000 pictures in total (each ≤ 1MB, total ≤ 73MB)
  • Option 2: Up to 16 libraries, up to 20,000 pictures in total (each ≤ 4MB, total ≤ 1GB)
• Detection and Analytics Performance:
  • 1 channel, 4 MP
  • 1 channel, 8 MP
• Face Picture Comparison (Captured from Camera): 2 channels

Motion Detection 2.0

• By Device: All channels, 4 MP (up to 8 MP with enhanced SVC mode), video analysis for human and vehicle recognition to reduce false alarms
• By Camera: All channels

Perimeter Protection

• By Device: 1 channel, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
• By Camera: All channels

Video and Audio

• IP Video Input: 4 channels
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output:
  • 1 channel, resolutions: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output:
  • 1 channel, resolutions: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI1/VGA simultaneous output
• CVBS Output: Not applicable
• Audio Output: 1 channel, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format: H.265, H.265+, H.264, H.264+
• Recording Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Synchronous Playback: 4 channels
• Decoding Capability:
  • AI on: 1 channel @ 12 MP (30 fps), 1 channel @ 8 MP (30 fps), 3 channels @ 4 MP (30 fps), 6 channels @ 1080p (30 fps)
  • AI off: 1 channel @ 12 MP (30 fps), 2 channels @ 8 MP (30 fps), 4 channels @ 4 MP (30 fps), 8 channels @ 1080p (30 fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, AAC

Network

• Remote Connection: 128
• API: ONVIF (profile S/G), SDK, ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or above
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE Interface: 4 channels, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 50 W
• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB for each HDD
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0
• Alarm In/Out: 4/1 (optional)

General

• GUI Language: Multiple languages including English, Russian, French, Spanish, German, Chinese, etc.
• Power Supply: 48 VDC, 1.35 A
• Power Consumption: ≤ 10 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 320 mm × 240 mm × 48 mm (12.6″ × 9.4″ × 1.9″)
• Weight: ≤ 1 kg (2.2 lb) without HDD
• Certification:
  • Obtained: CE, FCC, IC, CB, KC, UL, RoHS, Reach, WEEE, RCM, UKCA, LOA, BIS
  • Compliant: CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
