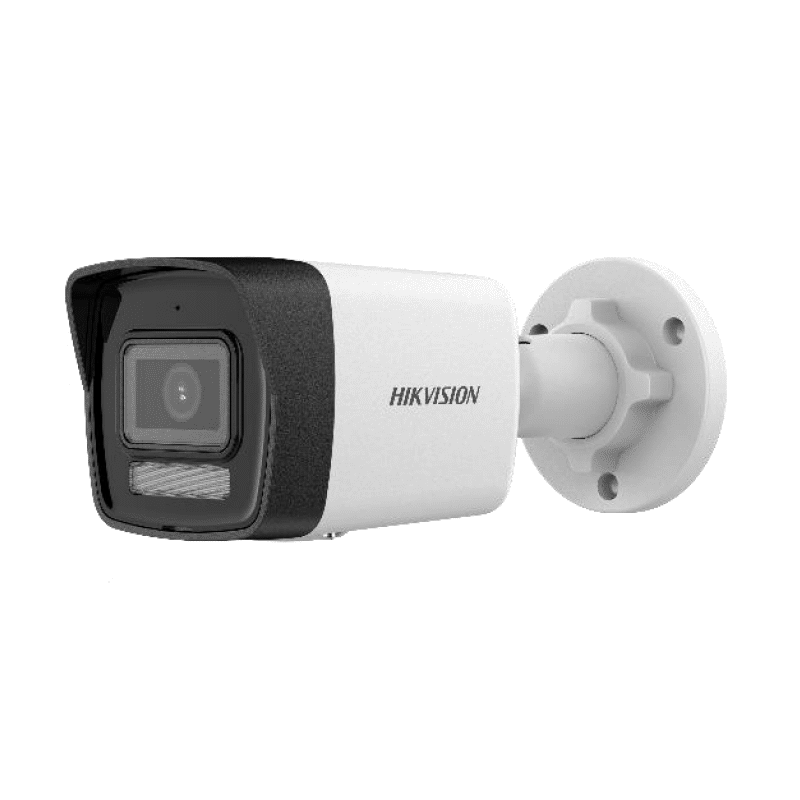

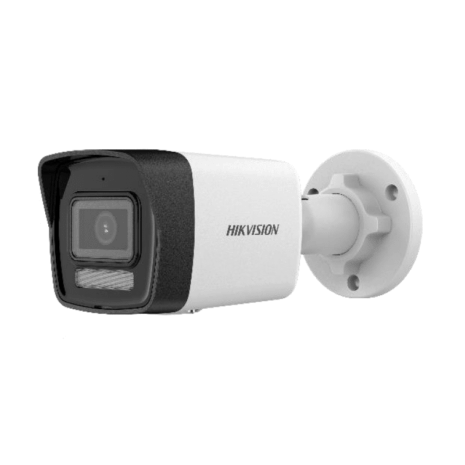

Hikvision 4 MP Smart Hybrid Light Fixed Bullet Network Camera

Camera Specifications

Image Sensor

• Type: 1/3″ Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440
• Minimum Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 mm and 4 mm options
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 98°, Vertical FOV 54°, Diagonal FOV 114°
  • 4 mm: Horizontal FOV 78°, Vertical FOV 42°, Diagonal FOV 93°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify) Distances

• 2.8 mm:
  • Detect: 63 m
  • Observe: 25 m
  • Recognize: 12 m
  • Identify: 6 m
• 4 mm:
  • Detect: 78 m
  • Observe: 31 m
  • Recognize: 15 m
  • Identify: 7 m

Illuminator

• Type: IR and White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Compression:
  • Main stream: H.265+, H.265, H.264+, H.264
  • Sub-stream: H.265, H.264, MJPEG
• Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Type: Mono sound
• Environment Noise Filtering: Yes
• Sampling Rate: 8 kHz/16 kHz
• Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Bit Rate:
  • 64 Kbps (G.711 ulaw, G.711 alaw)
  • 16 Kbps (G.722.1, G.726)
  • 32 to 160 Kbps (MP2L2)
  • 16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for ONVIF, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, T, G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host: Up to 32 users, 3 user levels (administrator, operator, user)
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE 10, IE 11 (plug-in required), Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• Signal-to-Noise Ratio (SNR): ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client software or web browser)
• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot (up to 512 GB microSD/microSDHC/microSDXC)
• Built-In Microphone: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection (with alarm triggering for human and vehicle), video tampering, exception
• Linkage: Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal & Plastic
• Dimensions: 170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
• Package Dimensions: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight: Approx. 270 g (0.6 lb.), with package approx. 481 g (1.1 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC:
  • FCC: 47 CFR Part 15, Subpart B
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
• Safety:
  • UL: UL 62368-1
  • CB: IEC 62368-1: 2014+A11
  • CE-LVD: EN 62368-1: 2014/A11: 2017
  • BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006
• Protection: IP67 (IEC 60529-2013)
