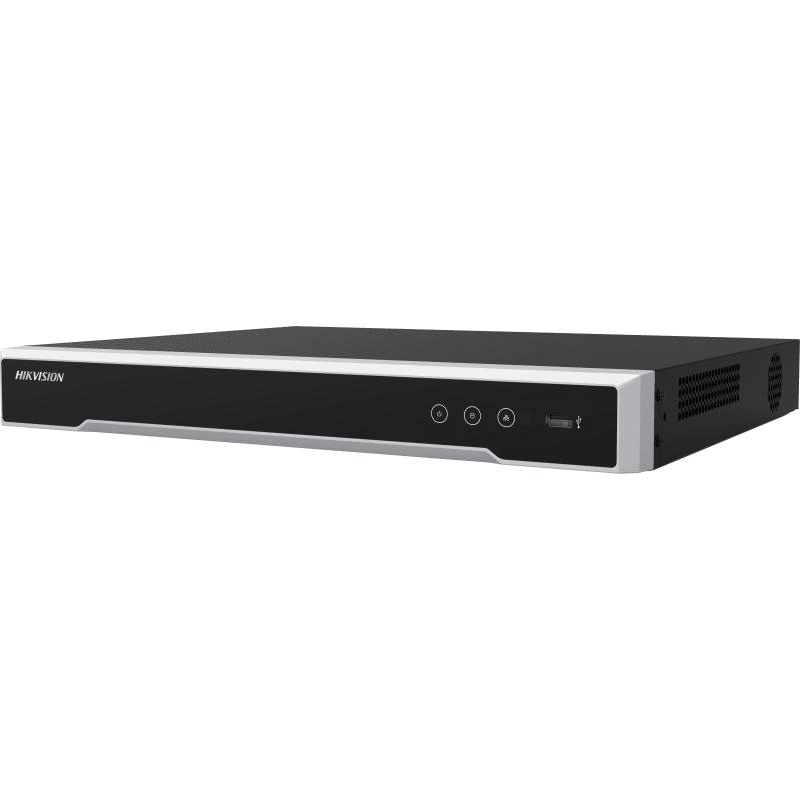

Hikvision 8-ch 1U 8 NON PoE 4K NVR

Device Specifications

Motion Detection 2.0

• Human/Vehicle Analysis: 4

Video and Audio

• IP Video Input: 8 channels
• HDMI Output:
  • 1 channel, resolutions: 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output:
  • 1 channel, resolutions: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 80 Mbps
• Audio Output: 1 channel, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format: H.265+, H.265, H.264+, H.264
• Decoding Capability:
  • 1 channel @ 8 MP (30 fps)
  • 5 channels @ 1080p (30 fps)
• Synchronous Playback: 8 channels
• Recording Resolution: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Network

• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 80W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity: Up to 8TB for each disk
• USB Interface: 2 × USB 2.0

General

• Power Supply: 48V, 2.5A MAX
• Power Consumption: ≤ 15W
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10 to 90%
• Chassis: 1U chassis
• Dimensions (W × D × H): 385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″)
• Weight: ≤ 2.6 kg (5.7 lb)
