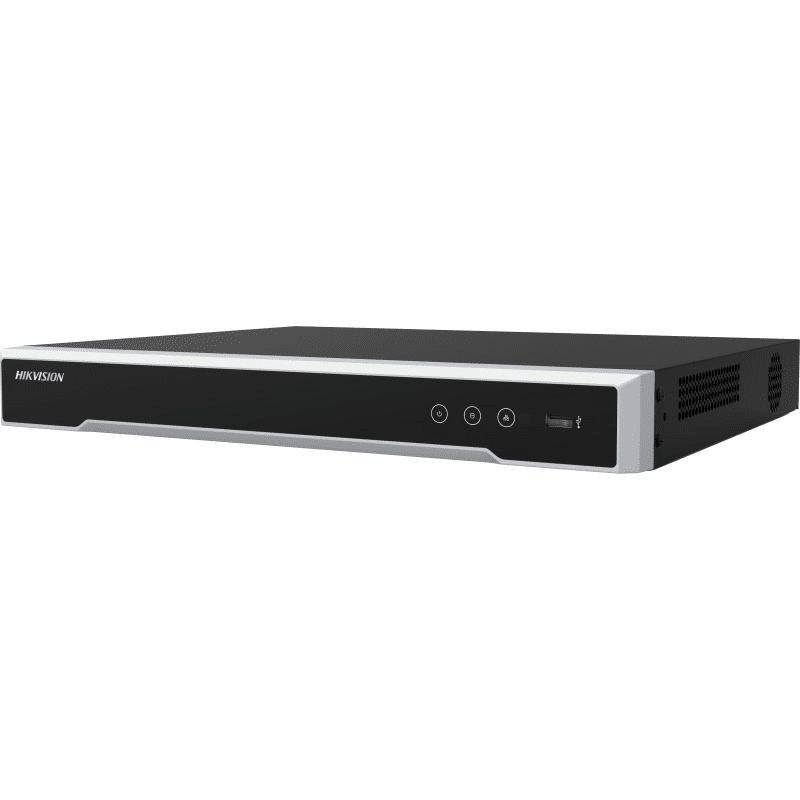

Hikvision 8-ch 1U 8 PoE 8K NVR

Video and Audio Specifications

IP Video Input

• Channels: Supports up to 8 channels.
• Resolution: Up to 32 MP.
• Ultra HD Mode: When enabled, supports up to 8 channels of 32 MP/24 MP IP video inputs.

Bandwidth

• Incoming Bandwidth: 128 Mbps.
• Outgoing Bandwidth: 256 Mbps.

Video Output

• HDMI Output:
  • 8K (7680 × 4320) at 30 Hz
  • 4K (3840 × 2160) at 60 Hz
  • 4K (3840 × 2160) at 30 Hz
  • 2K (2560 × 1440) at 60 Hz
  • 1920 × 1080 at 60 Hz
• VGA Output:
  • 1920 × 1080 at 60 Hz
• Video Output Mode: Independent HDMI/VGA output.
• CVBS Output:
  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Specifications

• Audio Output: 1 channel, RCA (Linear, 1 KΩ).
• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ), using the audio input.

Decoding

• Dual-Stream Recording: Supported.
• Decoding Format: H.265+/H.265/H.264+/H.264.
• Decoding Capability:
  • 2 channels at 32 MP (30 fps) + 2 channels at 8 MP (30 fps)
  • 10 channels at 8 MP (30 fps)
  • 20 channels at 4 MP (30 fps)
  • 40 channels at 1080p (30 fps)
• Synchronous Playback: Supports up to 8 channels.
• Recording Resolution: Up to 32 MP, supports 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF.
• Stream Type: Video, Video & Audio.
• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2.

Network Specifications

• Remote Connection: Supports up to 128 connections.
• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS.
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface.

PoE Capabilities

• PoE Interface: 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces.
• Power Consumption: ≤ 120 W.
• Standard: IEEE 802.3 af/at.

Auxiliary Interface

• SATA: 2 SATA interfaces, each supporting up to 16 TB capacity.
• Alarm In/Out: 4/1.
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 3.0

General Specifications

• Power Supply: 100 to 240 VAC, 50 to 60 Hz.
• Power Consumption: ≤ 15 W (without HDD and PoE off).
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F).
• Working Humidity: 10% to 90%.
• Dimensions: 385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″).
• Weight: ≤ 3 kg (without HDD, 6.6 lb.).

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014.
• CE:
  • EN 55032:2015+A1:2020
  • ENIEC61000-3-2:2019+A1:2021
  • EN 61000-3-3:2013+A1:2021
  • EN 50130-4:2011+A1:2014
  • EN 55035:2017+A11:2020.
