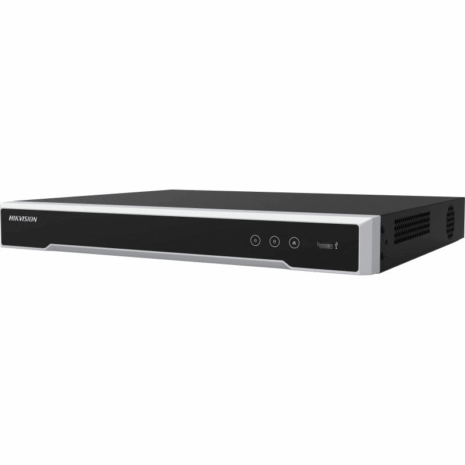

Hikvision 8-ch POE 2 bay 1U 4K NVR

Motion Detection 2.0

Human/Vehicle Analysis:

• Supports 4 channels.

Video and Audio Specifications

IP Video Input:

• 8 channels.

HDMI Output:

• 1 channel supporting:
  • 4K (4096 x 2160) at 30 Hz
  • 4K (3840 x 2160) at 30 Hz
  • 2K (2560 x 1440) at 60 Hz
  • 1920 x 1080 at 60 Hz
  • 1600 x 1200 at 60 Hz
  • 1280 x 1024 at 60 Hz
  • 1280 x 720 at 60 Hz

VGA Output:

• 1 channel supporting:
  • 1920 x 1080 at 60 Hz
  • 1280 x 1024 at 60 Hz
  • 1280 x 720 at 60 Hz

Video Output Mode:

• HDMI and VGA simultaneous output.

Bandwidth:

• Incoming Bandwidth: 80 Mbps.
• Outgoing Bandwidth: 80 Mbps.

Audio Output:

• 1 channel, RCA (Linear, 1 KΩ).

Two-Way Audio:

• 1 channel, RCA (2.0 Vp-p, 1 KΩ).

Decoding Specifications

Decoding Format:

• H.265+, H.265, H.264+, H.264.

Decoding Capability:

• 1 channel at 8 MP (30 fps) or 5 channels at 1080p (30 fps).

Synchronous Playback:

• 8 channels.

Recording Resolution:

• Supports 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF.

Network Specifications

Network Protocol:

• TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS.

Network Interface:

• 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface.

PoE Specifications

PoE Interface:

• 8 channels, 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces.

Power:

• ≤ 80W.

Standard:

• IEEE 802.3 af/at.

Auxiliary Interface

SATA:

• 2 SATA interfaces, each supporting up to 8TB capacity.

USB Interface:

• 2 × USB 2.0.

General Specifications

Power Supply:

• 48V, 2.5A MAX.

Power Consumption:

• ≤ 15W.

Working Temperature:

• -10 to +55ºC (+14 to +131ºF).

Working Humidity:

• 10% to 90%.

Chassis:

• 1U chassis.

Dimensions (W × D × H):

• 385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″).

Weight:

• ≤ 2.6 kg (5.7 lb).
