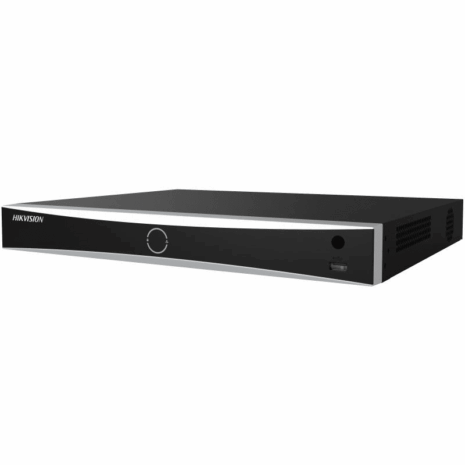

Hikvision 8-ch PoE 1U K Series AcuSense 4K NVR

Intelligent Analytics

AI Features

AI by Device:

• Facial recognition, perimeter protection, Motion Detection 2.0.

AI by Camera:

• Facial recognition, perimeter protection, motion detection 2.0, throwing objects from buildings, ANPR (Automatic Number Plate Recognition), VCA (Video Content Analysis).

Facial Recognition

Facial Detection and Analytics:

• Face picture comparison, human face capture, face picture search.

Face Picture Library:

• Supports up to 16 face picture libraries, totaling up to 20,000 face pictures (each picture ≤ 4 MB, total capacity ≤ 1 GB).

Performance:

• Facial detection and analytics: 1 channel, 8 MP.
• Face picture comparison: 4 channels.

Motion Detection 2.0

By Device:

• All channels, 4 MP (up to 8 MP when enhanced SVC mode is enabled) video analysis for human and vehicle recognition to reduce false alarms.

By Camera:

• All channels.

Perimeter Protection

By Device:

• 2 channels, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms.

By Camera:

• All channels.

Video and Audio Specifications

IP Video Input

• Channels: 8 channels.
• Incoming Bandwidth: 80 Mbps.
• Outgoing Bandwidth: 160 Mbps.

Video Output

HDMI Output:

• 1 channel supporting:
  • 4K (3840 × 2160) at 30 Hz
  • 2K (2560 × 1440) at 60 Hz
  • 1920 × 1080 at 60 Hz
  • 1600 × 1200 at 60 Hz
  • 1280 × 1024 at 60 Hz
  • 1280 × 720 at 60 Hz
  • 1024 × 768 at 60 Hz

VGA Output:

• 1 channel supporting:
  • 1920 × 1080 at 60 Hz
  • 1280 × 1024 at 60 Hz
  • 1280 × 720 at 60 Hz

Video Output Mode:

• HDMI and VGA independent output.

CVBS Output:

• Not available.

Audio Specifications

Audio Output:

• 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input).

Two-Way Audio:

• 1 channel, RCA (Linear, 1 KΩ).

Decoding

Decoding Format:

• H.265, H.265+, H.264, H.264+.

Recording Resolution:

• Supports up to 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF.

Synchronous Playback:

• 8 channels.

Decoding Capability:

• With AI on:
  • 1 channel at 12 MP (30 fps)
  • 2 channels at 8 MP (30 fps)
  • 4 channels at 4 MP (30 fps)
  • 8 channels at 1080p (30 fps)
• With AI off:
  • 2 channels at 12 MP (30 fps)
  • 3 channels at 8 MP (30 fps)
  • 6 channels at 4 MP (30 fps)
  • 12 channels at 1080p (30 fps)

Stream Type:

• Video, Video & Audio.

Audio Compression:

• G.711ulaw, G.711alaw, G.722, G.726, AAC.

Network Specifications

Remote Connection:

• Supports up to 128 connections.

API:

• ONVIF (profile S/G), SDK, ISAPI.

Compatible Browser:

• IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above versions.

Network Protocol:

• TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS.

Network Interface:

• 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface.

PoE Specifications

Interface:

• 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces.

Power:

• ≤ 80 W.

Standard:

• IEEE 802.3af/at.

Auxiliary Interface

SATA:

• 2 SATA interfaces, each supporting up to 10 TB capacity.

USB Interface:

• Front panel: 1 × USB 2.0.
• Rear panel: 1 × USB 2.0.

Alarm In/Out:

• 4/1.

General Specifications

GUI Language:

• English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian.

Power Supply:

• 48 VDC, 2.5 A.

Power Consumption:

• ≤ 15 W (without HDD, and PoE off).

Working Temperature:

• -10 °C to 55 °C (14 °F to 131 °F).

Working Humidity:

• 10% to 90%.

Dimensions:

• 385 mm × 315 mm × 52 mm (15.2″ × 12.4″ × 2.0″).

Weight:

• ≤ 3 kg (without HDD, 6.6 lb).

Certification

FCC:

• Part 15 Subpart B, ANSI C63.4-2014.

CE:

• EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017.

Obtained Certifications:

• CE, FCC, IC, CB, KC, UL, RoHS, Reach, WEEE, RCM, UKCA, LOA, BIS.
