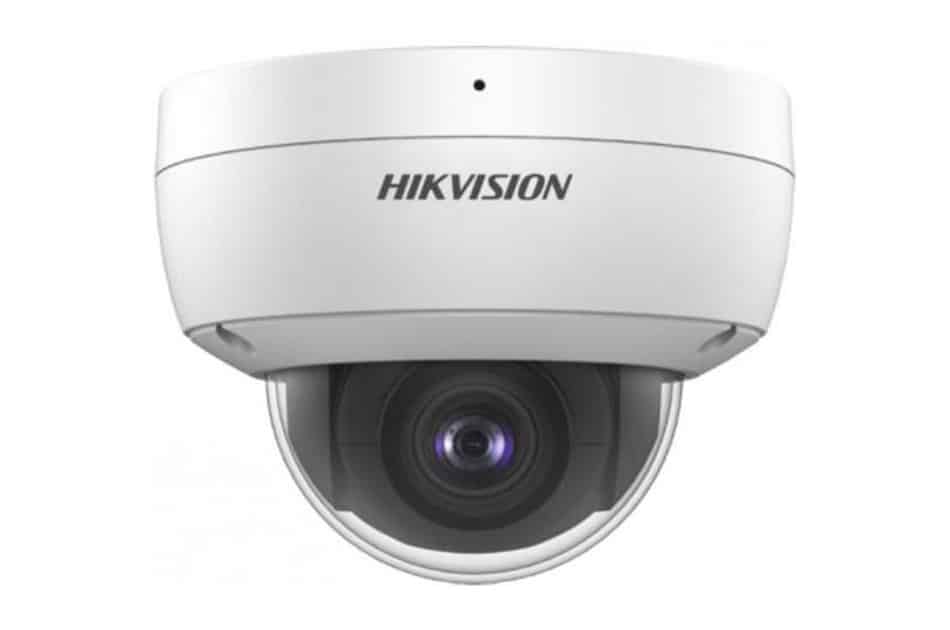

Hikvision 8 MP AcuSense Vandal Fixed Dome Network Camera

Camera Specifications

Image Sensor

• Type: 1/2.8″ Progressive Scan CMOS
• Max Resolution: 3840 × 2160
• Minimum Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR

Shutter Time

• Range: 1/3 s to 1/100,000 s

Day & Night

• Feature: IR cut filter

Angle Adjustment

• Pan: 0° to 355°
• Tilt: 0° to 75°
• Rotate: 0° to 355°

Lens

• Type: Fixed focal lens (2.8 mm and 4 mm optional)
• Focal Length & Field of View (FOV):
  • 2.8 mm: Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 128°
  • 4 mm: Horizontal FOV 87°, Vertical FOV 46°, Diagonal FOV 105°
• Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify) Distances

• 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
• 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator

• Type: IR
• Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Supported under certain settings

Video Bit Rate

• Range: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Video Compression:
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264

Region Of Interest (ROI)

• Regions: 1 fixed region for main stream and sub-stream

Audio

• Type: Mono sound
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bit Rate:
  • G.711ulaw/G.711alaw: 64 Kbps
  • G.722.1: 16 Kbps
  • G.726: 16 Kbps
  • MP2L2: 32-192 Kbps
  • MP3: 8-320 Kbps
  • AAC-LC: 16-64 Kbps
• Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users
• Security: Password protection, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters Switch: Yes
• Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB
• Built-In Microphone: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection (alarm triggering by specified target types – human and vehicle), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection (alarm triggering by specified target types – human and vehicle), face detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
• Dimensions: Ø121.4 mm × 92.2 mm (Ø4.8 × 3.6″)
• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 550 g (1.2 lb.)
• Package Weight: Approx. 800 g (1.8 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Language Support: 33 languages

General Functions

• Heartbeat, anti-flicker, password reset via email, pixel counter

Approvals

• EMC:
  • FCC: 47 CFR Part 15, Subpart B
  • CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
  • KC: KN32: 2015, KN35: 2015
• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006
• Protection:
  • IP67: IEC 60529-2013
  • IK10: IEC 62262: 2002
