Klipsch CA-650T Full-Range 6.5″ 2-WAY Speaker

Inside or out, the 70-volt Klipsch CA-650T compact, full-range loudspeaker delivers superior
sound from a durable and flexible package. Perfect for foreground or background distributed sound
applications in residential, commercial or recreational environments, this model provides big
time sound and worry-free performances.

Building on the success of our popular CA-6T model, the new CA-650T version features
enhanced cosmetics, added mounting flexibility and even better performance.
For efficiency and reliability, the CA-650T has been re-voiced and employs a high-power,
extended range low frequency driver. It features a 6.5-inch IMG cone woofer and 1-inch titanium
dome tweeter coupled to a square-mouth 90- degree by 90-degree Tractrix® Horn, which allows
the speaker to be mounted horizontally or vertically without affecting the coverage pattern.

Available in black or white, this speaker has a durable UV-resistant all-weather enclosure that
includes an internal multi-tap transformer with expanded range and a switchable direct 8-ohm
bypass. The tap settings for the CA-650T at 70V are 60W, 30W, 15W, 7.5W and 3.7W. The added 3.7W
tap setting offers further placement flexibility. The settings for 100V are 60W, 30W, 15W and 7.5W.

The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the
enclosure’s integral “center-of-gravity balanced” threaded studs that are positioned inside the
speaker and to the oversized knobs, ensuring positive position-lock. Connections are provided via

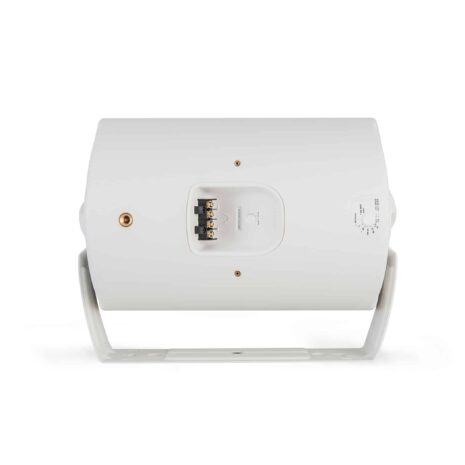

four-position barrier strips. This allows an installer to use two connectors for inputs and two for passthroughs, making it easier to daisy chain.

The CA-650T’s updated grille design stays securely fastened and incorporates a new paint formulation
for increased weather resistance and years of maintenance-free protection regardless of the
climate or environment. The speaker’s improved input cup allows for easier drainage and the added
3/8”-16 threaded insert for use with optional mounts offers better placement flexibility.

Specifications:

• FREQUENCY RESPONSE: (+/- 4 dB) 69 Hz – 20 kHz
• POWER HANDLING: 85 watts (19V)* | 300 watts peak
• MAXIMUM SPL: 111 dB | 117 dB peak
• SENSITIVITY: 95 dB
• NOMINAL IMPEDANCE: 8 ohm*
• TWEETER: 1” (2.54cm) titanium diaphragm compression driver
• HIGH FREQUENCY HORN: 90˚ x 90˚ Tractrix® Horn
• WOOFER: 6.5” (16.5cm) IMG woofer
• CROSSOVER FREQUENCY: 1.9kHz
• TAP SETTINGS: 3.75 watts, 7.5 watts, 15 watts, 30 watts, 60 watts @ 70V | 7.5 watts, 15 watts, 30 watts, 60 watts @ 100V
• ENCLOSURE TYPE: Bass-reflex via dual front-firing ports
• ENCLOSURE MATERIAL: ABS plastic
• DIMENSIONS: 9.5” (24.13cm) H x 15.2” (38.6cm) W x 10.9” (27.6cm) D
• WEIGHT: 13 lbs. (5.9kg)
• FINISHES: Black/White enclosure and grille
• WIRE GAUGE ACCOMODATED: 14 AWG
