Klipsch CA-800T Full-Range 8″ 2-way Speaker

Perfect for foreground or background distributed sound applications in indoor or outdoor residential,
commercial or recreational environments, the new compact, full-range 70-volt CA-800T
loudspeaker was designed for those who know better than to expect mediocre output.

Building on the success of our popular CA-8T model, which has been used in a countless number
of high-profile installations all over the U.S., the CA-800T version features enhanced cosmetics, added
mounting flexibility and even better performance.

For efficiency and reliability, the CA-800T has been re-voiced and employs a high-power,

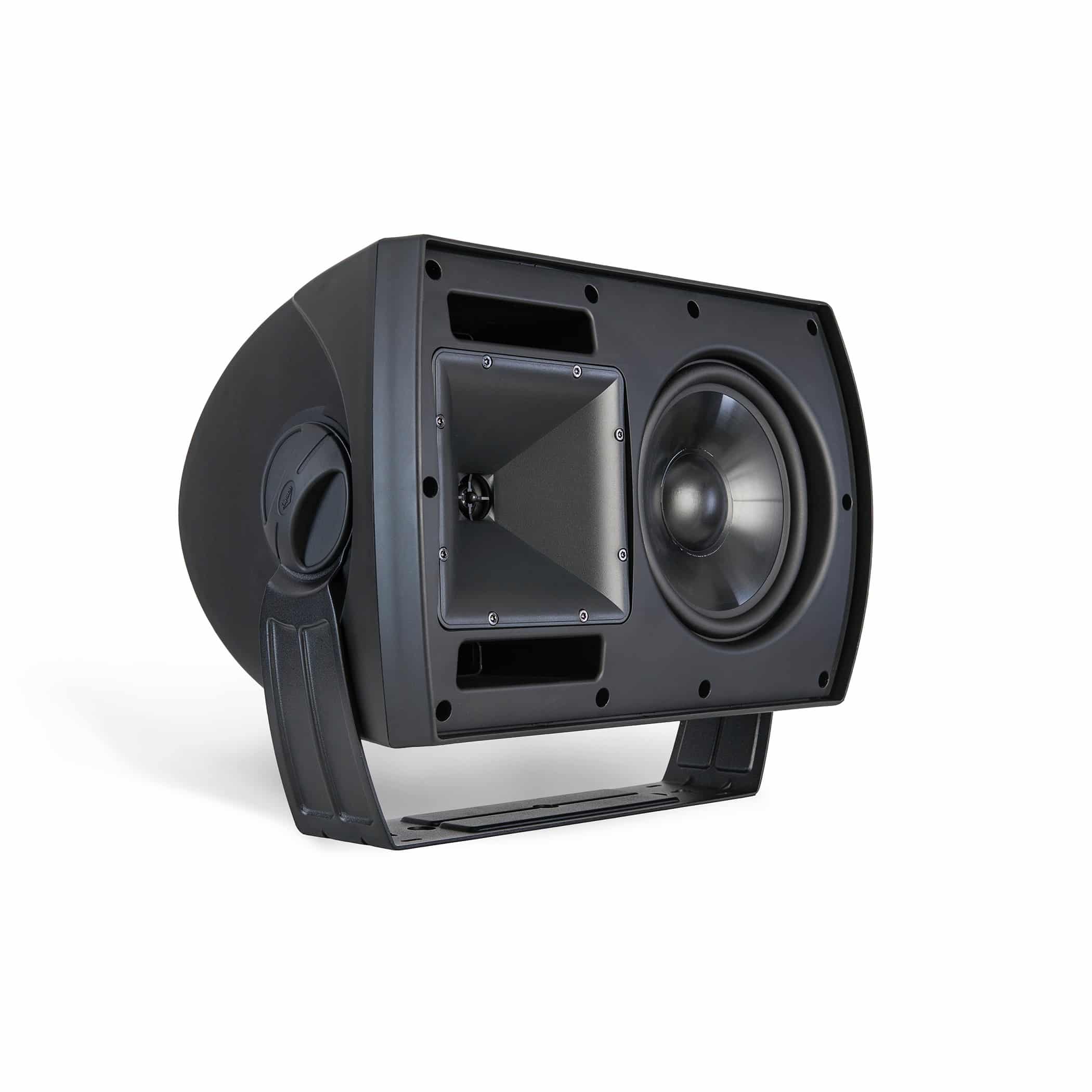

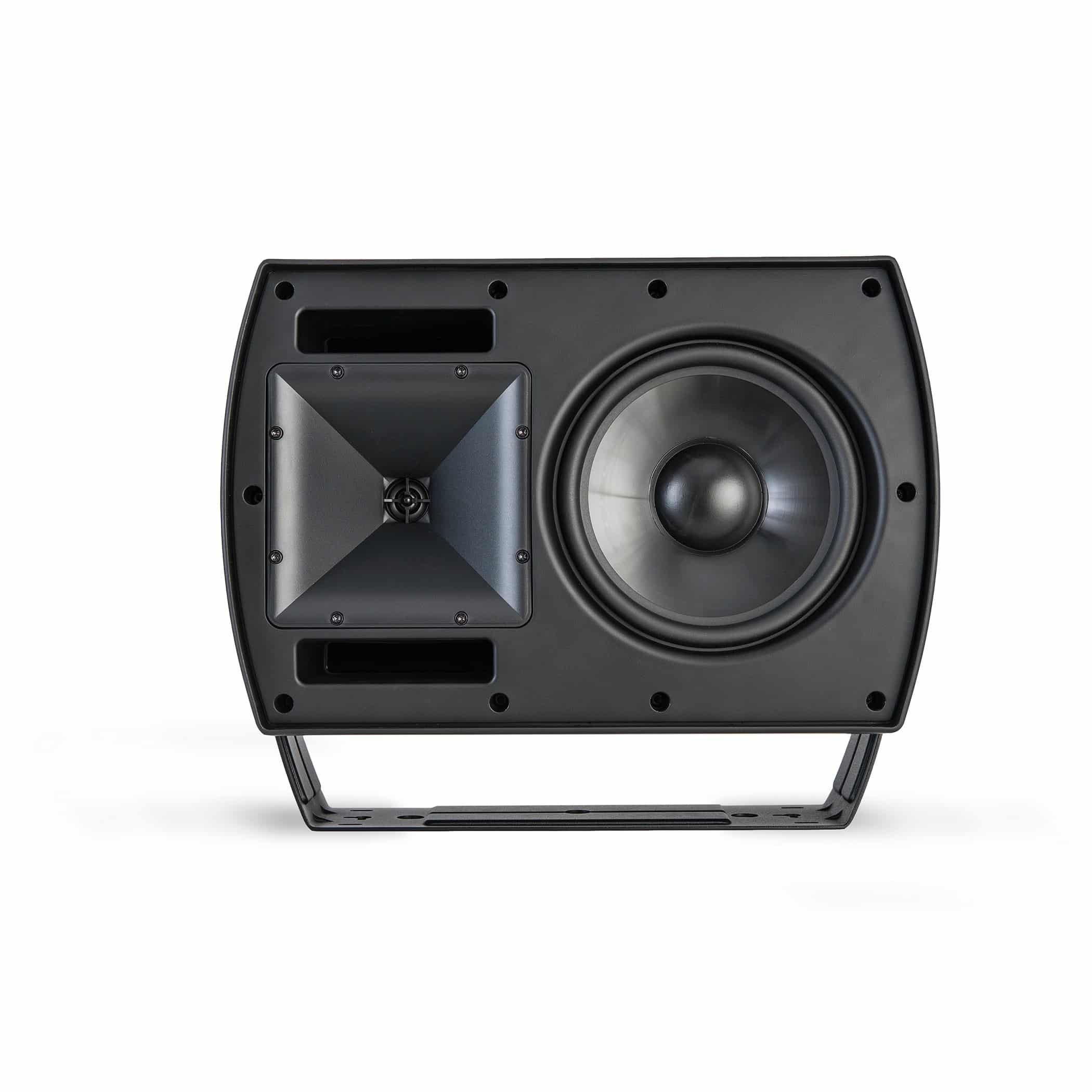

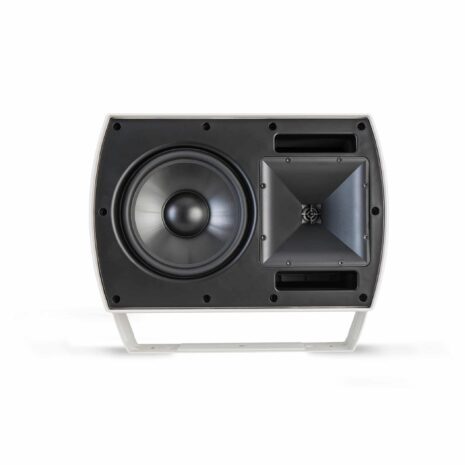

extended range low frequency driver. It features an 8-inch IMG cone woofer and 1-inch titanium dome
tweeter coupled to a square-mouth 90-degree by 90-degree Tractrix® Horn, which allows the

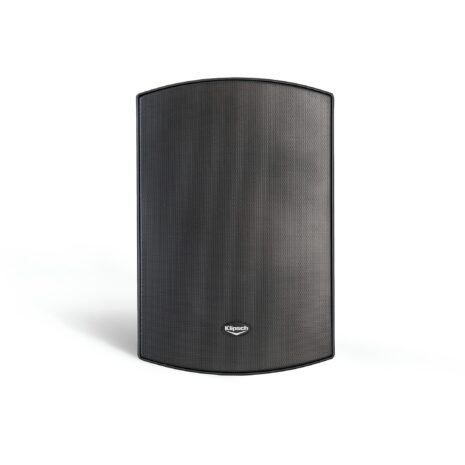

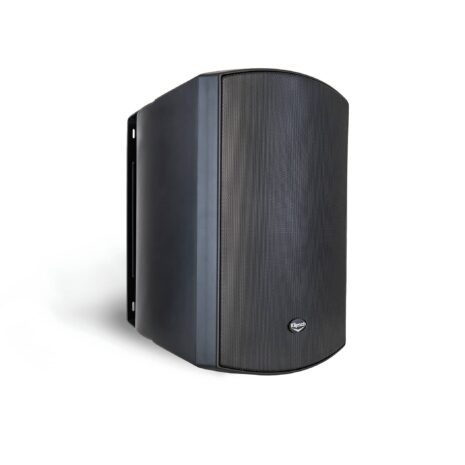

speaker to be mounted horizontally or vertically without affecting the coverage pattern.

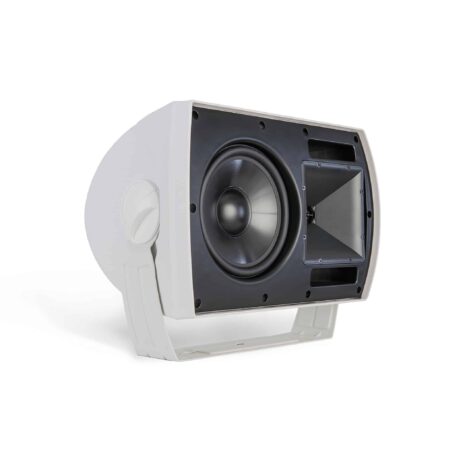

Available in black or white, this speaker has a durable UV-resistant all-weather enclosure that
includes an internal multi-tap transformer with expanded range and a switchable direct 8-ohm
bypass. The tap settings for the CA-800T at 70V are 60W, 30W, 15W, 7.5W and 3.7W. The added 3.7W
tap setting offers further placement flexibility. The settings for 100V are 60W, 30W, 15W and 7.5W.

The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the
enclosure’s integral “center-of-gravity balanced” threaded studs that are positioned inside the

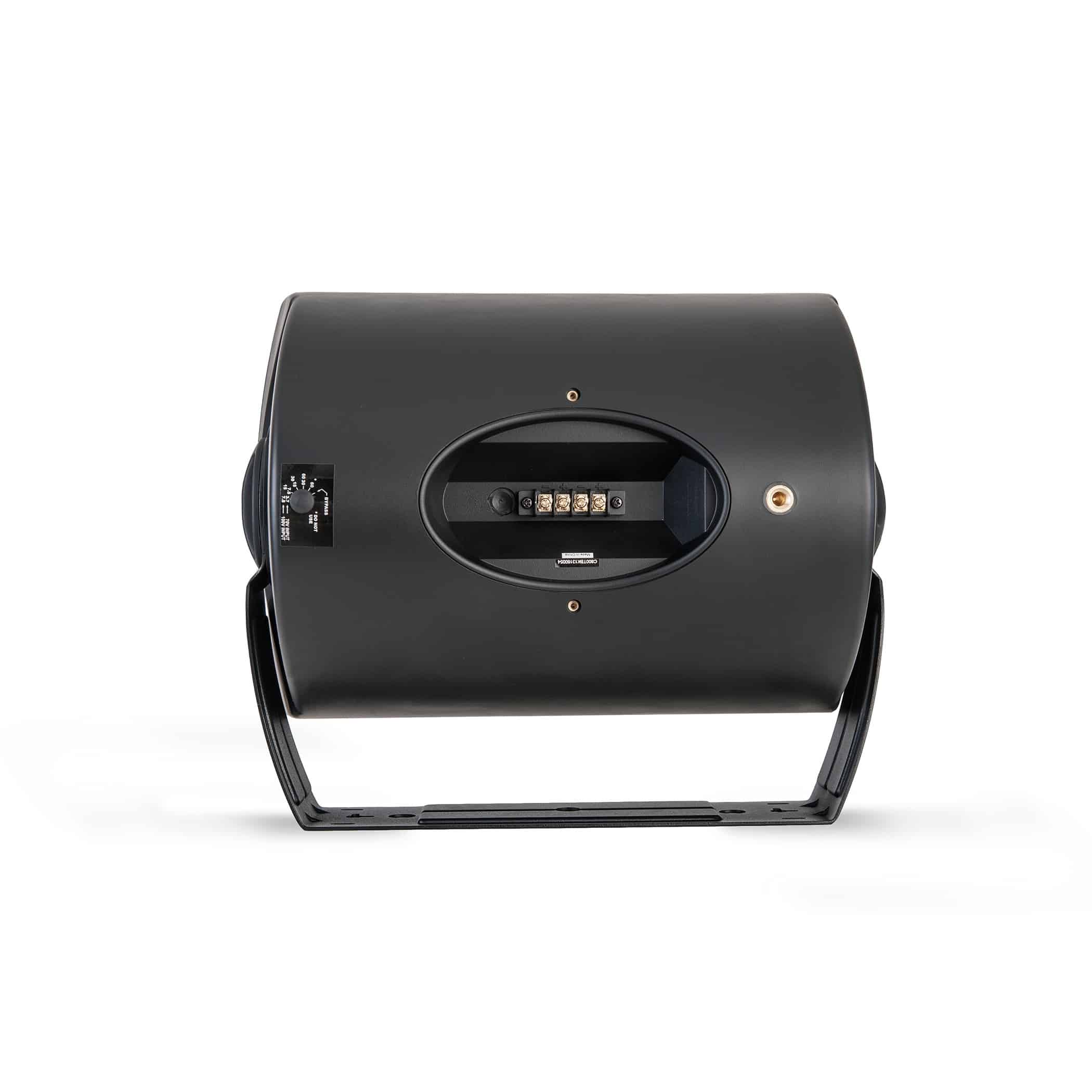

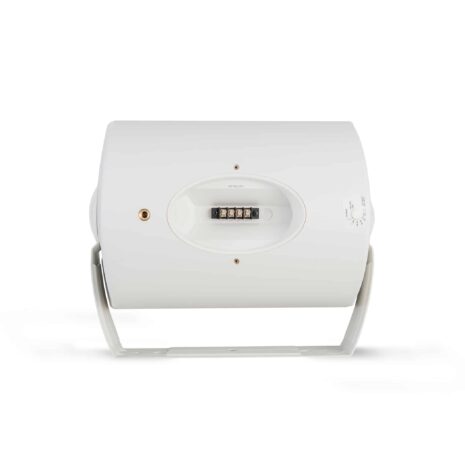

speaker and to the oversized knobs, ensuring positive position-lock. Connections are provided via
four-position barrier strips. This allows an installer to use two connectors for inputs and two for passthroughs, making it easier to daisy chain.

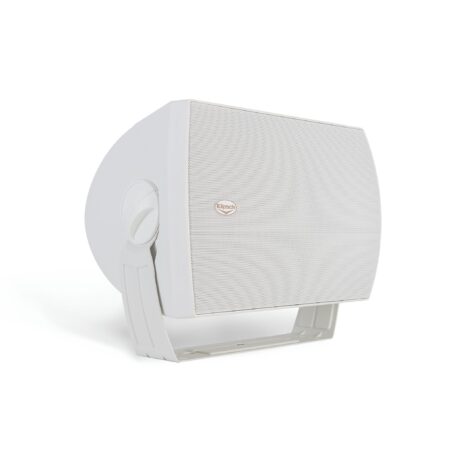

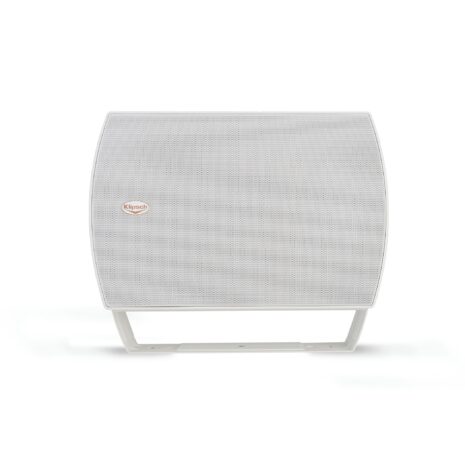

The CA-800T’s updated grille design stays securely fastened and incorporates a new paint formulation
for increased weather resistance and years of maintenance-free protection regardless of the
climate or environment. The speaker’s improved input cup allows for easier drainage and the added
3/8”-16 threaded insert for use with optional mounts offers better placement flexibility.

Specifications:

• FREQUENCY RESPONSE: 64-17.5kHz ± 4dB
• POWER HANDLING: 100W (21V)
• MAX CONTINUOUS OUTPUT: 113dB
• SENSITIVITY: (2.83V/1M)4 96dB
• HORIZONTAL COVERAGE: 90° ± 40 1.2kHz-20kHz
• VERTICAL COVERAGE: 90° ± 30 1kHz-20kHz
• DI: 7 ± 2.5dB 700Hz-20kHz
• Q: 5
• NOMINAL IMPEDANCE: 8 ohms (4.5 ohm min @167Hz)
• CROSSOVER: 1.9kHz with 12dB/Octave high-pass 12dB/Octave low-pass
• TRANSDUCERS: One K-1183-A 8″ woofer with IMG Cone, One K-150-A 1″ titanium diaphragm compression driver
• ENCLOSURE TUNING: Vented System via front firing ports
• ENCLOSURE MATERIAL: All-weather ABS plastic, paintable
• INPUT CONNECTORS: 4 position terminal strip
• TRANSFORMER TAPS: 70V: 60W, 30W, 15W, 7.5W, 3.75W, 100V: 60W, 30W, 15W, 7.5W, 3.75W
• Through Position: 8 ohms
• HEIGHT: 11.125″ (28.26cm)
• WIDTH: 16.375″ (41.53cm)
• DEPTH: 12.31″ (31.27cm)
• WEIGHT: 18 lbs. (8.16kg)
