Klipsch CP-4T Indoor/Outdoor Speakers (Pair)

COMPACT, HIGH PERFORMANCE INDOOR/OUTDOOR 70/100 VOLT LOUDSPEAKER

The Klipsch Compact Performance CP-4T with its smaller, aesthetic
design is the perfect distributed sound solution when high-value
and high-performance are top priorities. It is a versatile 70/100
Volt distributed audio solution whether operation is indoors or
out. The proprietary Tractrix® Horn provides high efficiency that
reproduces sound with unmatched low-distortion clarity and detail.
The conical-shaped, long-throw woofer is designed for minimal
cone breakup for more accurate low frequency response and is
reinforced with dual, front-firing ports in a bass-reflex design for
maximum bass output wherever the speaker is located. Traditional
Klipsch efficiency provides maximum output with its single, built-in
5-watt tap setting.

EASY INSTALLATION WITH A REFINED LOOK

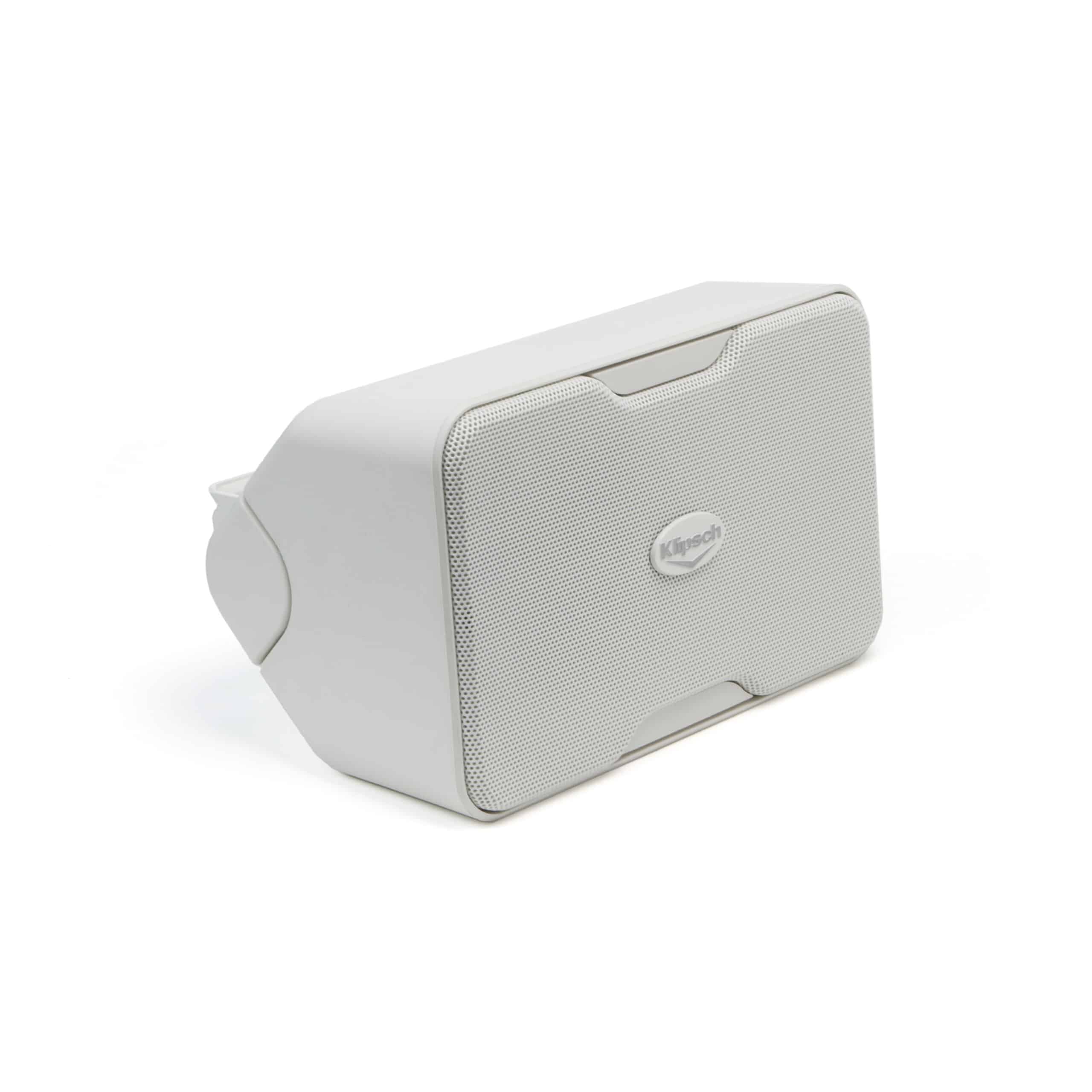

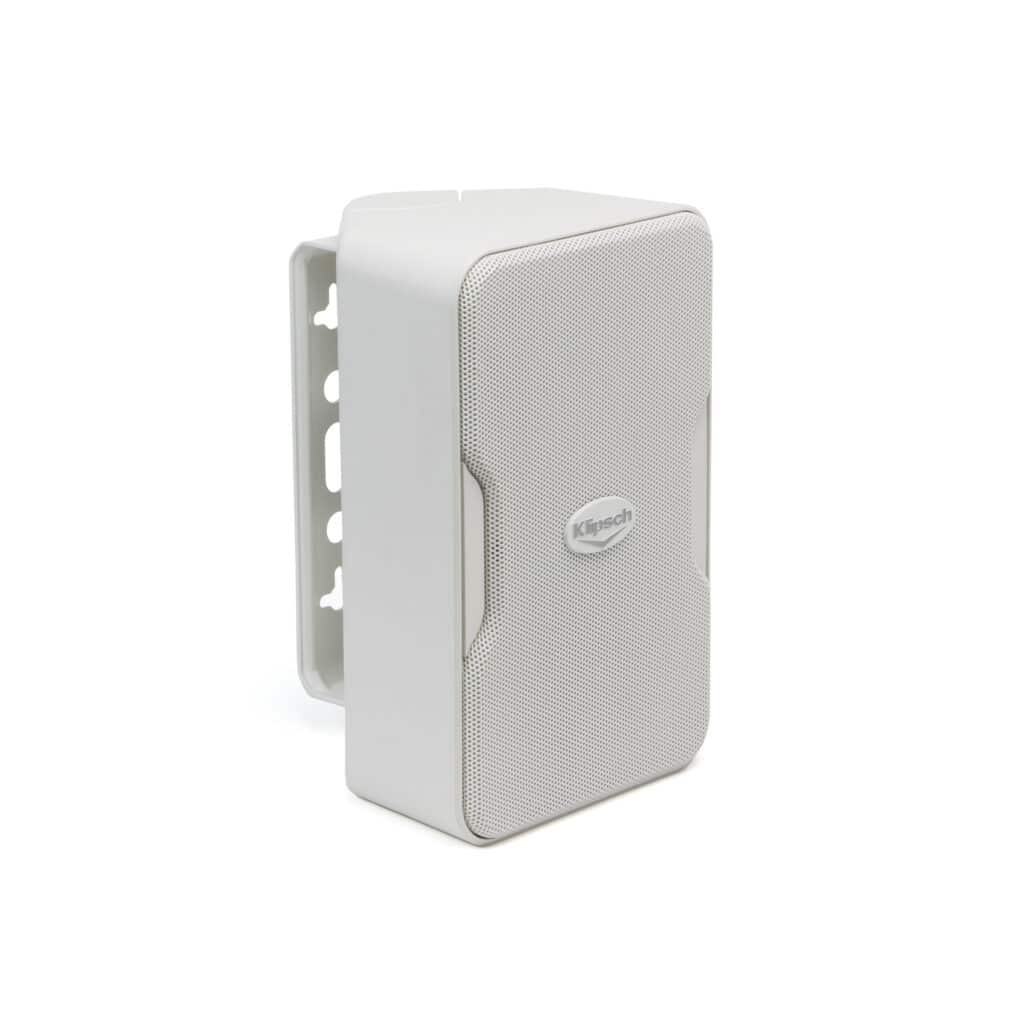

The CP-4T, offered in a paintable Black or White cabinet with

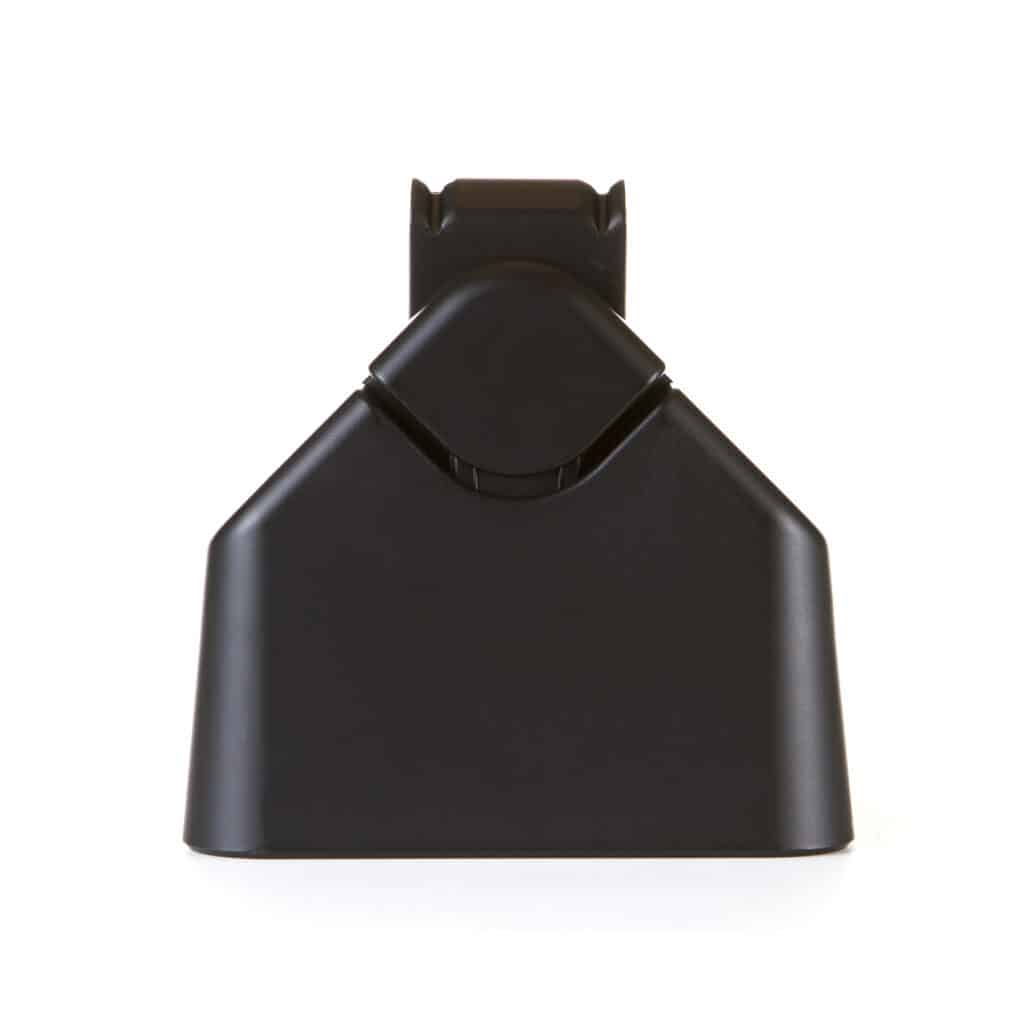

matching grille, has the ability to be tightly mounted into a wall to-wall or wall-to-ceiling corner with its V-shaped rear profile. The
solid, reinforced cabinet has an appealing look from all angles with
the included bracket an integral part of the design. The unique
front-attachment of the bracket combined with front baffle speaker
terminals assures a safe, easy, one-screwdriver installation.

Tool free 15° increment angle adjustment makes positioning a breeze.
If needed, the CP-4T is provided with dual 1/4”, 20 thread, rear positioned inserts for utilization of a third party bracket for special
applications such as pole-mounting and/or a safety cable attachment.

OUTPUT THAT OUTPACES ITS DIMINUTIVE SIZE
The CP-4T’s high efficiency provides sound reproduction at even
foreground music levels with its built-in 5 watt tap setting. The 90°
x 90° horn dispersion pattern assures wide, even coverage in either
a horizontal or vertical position.

SPECIFICATIONS

• FREQUENCY RESPONSE: 100Hz-22kHz +/- 3dB
• POWER HANDLING: 5 watt fixed @ 70V/10 watt fixed @ 100V
• MAXIMUM CONTINUOUS OUTPUT: 94 dB @ 70V/97 dB @ 100V
• SENSITIVITY: 91 dB
• NOMIMAL IMPEDANCE: N/A
• TWEETER: .75″ (1.9cm) aluminum dome tweeter
• HIGH FREQUENCY HORN: 90° x 90° Tractrix® Horn
• WOOFER: 3.5″ (8.9cm) long-throw IMG woofer
• CROSSOVER FREQUENCY: 3.2kHz 12dB octave
• ENCLOSURE TYPE: Bass-reflex via dual front-firing ports
• ENCLOSURE MATERIAL: Anti-resonant, mineral-filled PPC; paintable, weather resistant
• GRILLE: Powder-coated aluminum w/rotatable logo

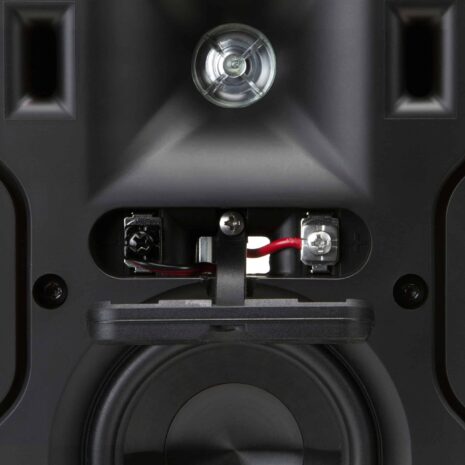

• TERMINALS: Front baffle mounted accessed via rear pull-through
• SPEAKER WEIGHT: 4.8 lbs. (2.2kg)
• SPEAKER DIMENSIONS: 8.8″(22.4cm) H x 5.5″(14.0cm) W x 4.7″(11.9cm) D
• SPEAKER DIMENSIONS W/WALL MOUNT: 8.8″(22.4cm) H x 5.5″(14.0cm) W x 5.5″(14.0cm) D
• OTHER MOUNTING OPTIONS: 1/4″, 20-thread inserts on cabinet rear
• FINISHES: White/Black enclosure and grille
• WIRE GAUGE ACCOMMODATED: up to 16AWG
• SOLD AS: Speaker pairs
• INCLUDED IN CARTON: Speakers (x2), Grilles (x2), Brackets (x2), Manual, Mounting Template, Bracket Retaining Screws (x4), Safety Instructions, Grille Removal Tool
• CARTON DIMENSIONS: 12.6″(320mm) H x 17.3″(440mm) W x 9″(230mm) D
• TOTAL CARTON WEIGHT: 10.8 lbs.(4.9kg)
