Klipsch CS16-CSM Custom Series In Ceiling Speaker

د.إ680

29 people are viewing this right now
3 products sold in last 3 hours
Selling fast! Over 12 people have this in their carts

Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16CSM features a 6.5” Polymer woofer and dual 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Features:

6.5” Polymer woofer
Dual 1” Polymer tweeter
Patented Sky Hook® Tool-Free Installation System
Bezel-Free Magnetic Grille

Available on backorder
SKU: 0743878042412 Categories: , ,

GOOD SOUND FOR ANY ROOM
Using the same design principles of our premium architectural and
box speaker lines, the all new Klipsch Custom series delivers true
Klipsch power and performance to any budget. With a 6.5” Dual
Voice Coil Polymer woofer and dual .75” Polymer Dome tweeters, the
CS-16CSM brings dynamic, powerful, detailed Klipsch sound to your
distributed audio system – for true stereo sound in spaces where two
speakers aren’t possible.

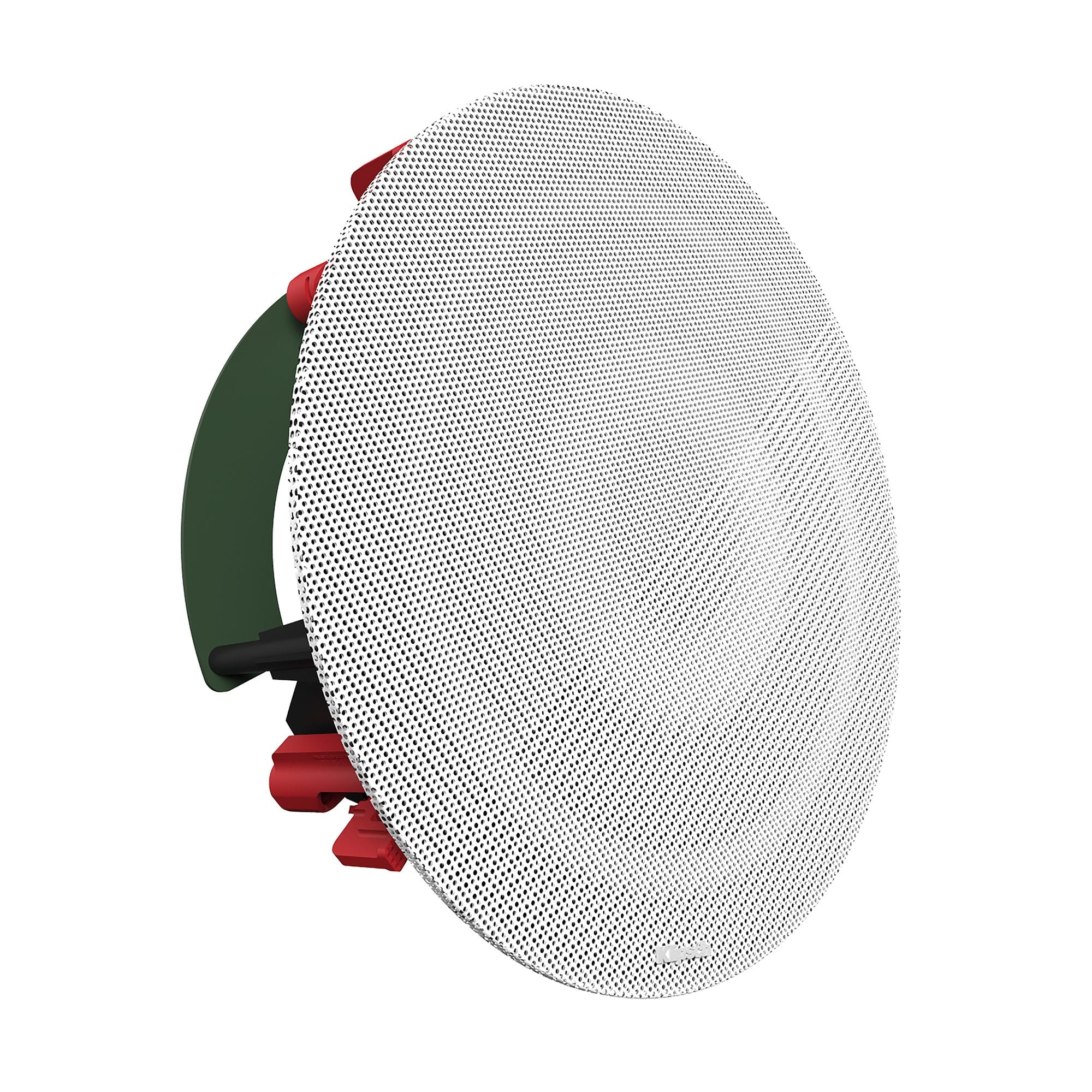

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

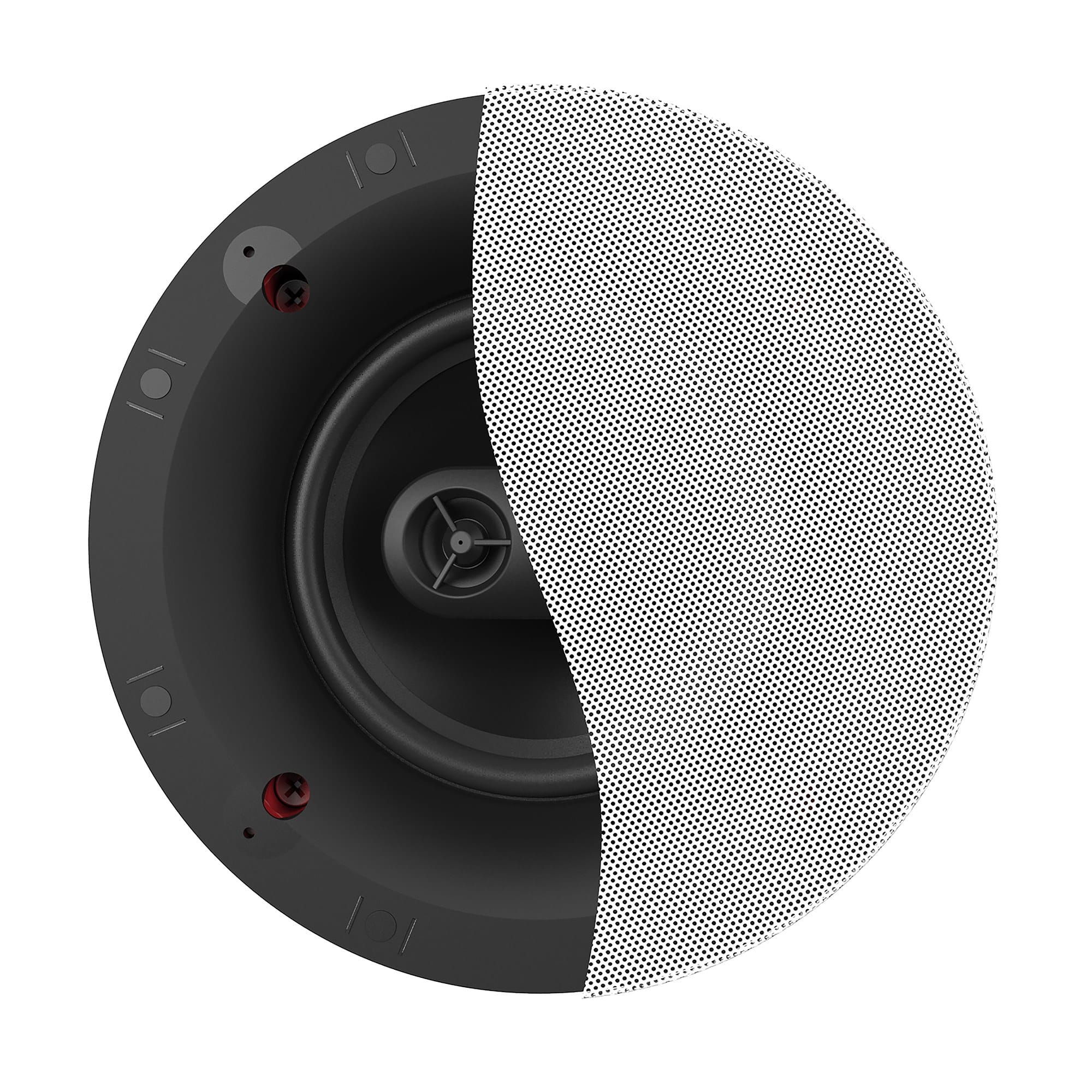

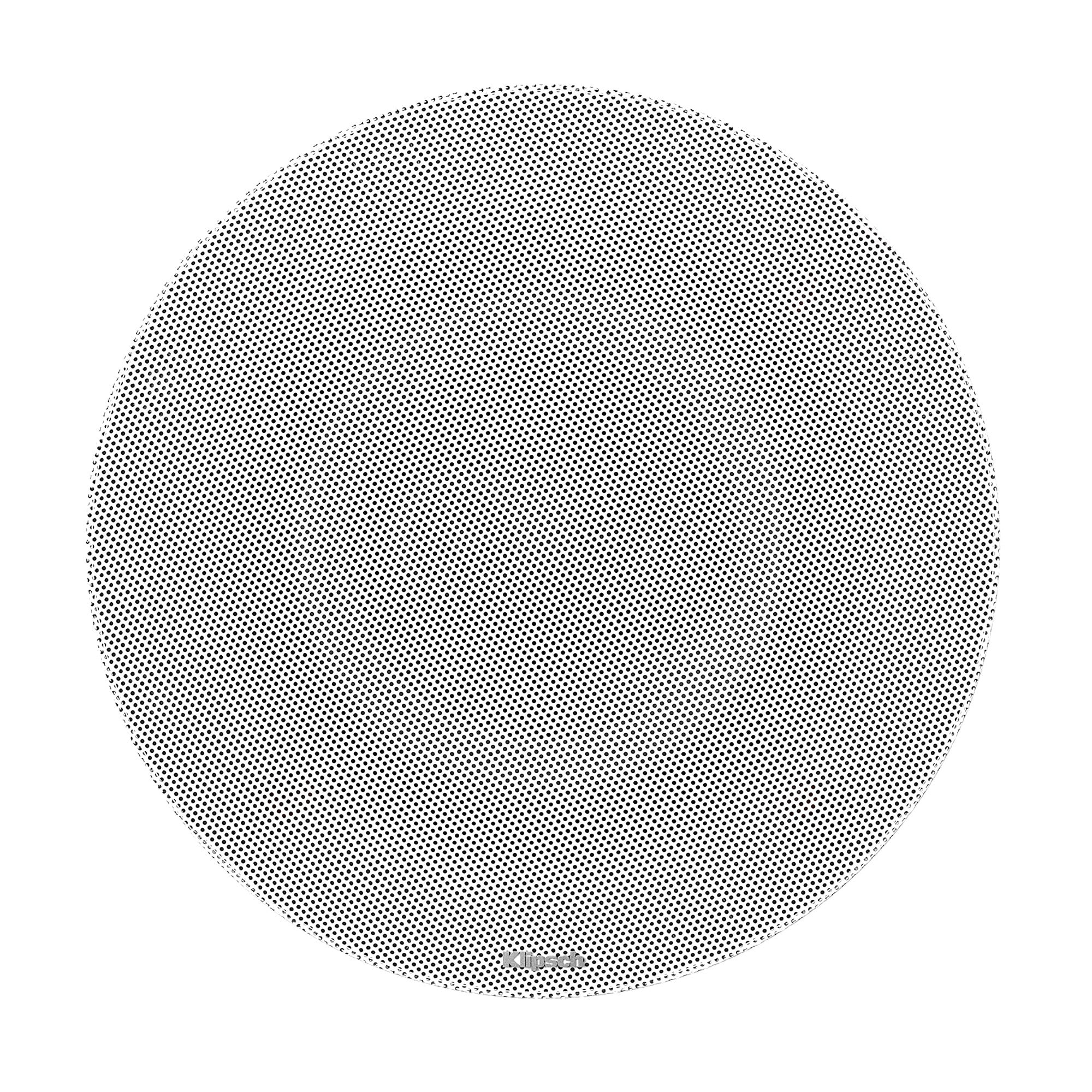

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powdercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space



SPECIFICATIONS

Frequency Range 65Hz – 20kHz +/- 3dB
High Frequency Driver Dual .75″ (1.9cm) Polymer Dome Tweeters
Low Frequency Driver 6.5” (16.51cm) Dual Voice Coil Polymer Woofer
Sensitivity 91 dB @ 2.83V / 1m
Power Handling 40W RMS / 160W Peak
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
Mounting Depth 4.34” (11.03cm)
Cutout Dimensions 8.3” (21.1cm)
Product Weight 7 lbs (3.18kg)
Included Round Magnetic Grille
Installation Kit IK-650-C II (Sold Separately)
Fire Rated Enclosure ME-650-C (Sold Separately)
Built From 2017
Weight 3.18 kg
Frequency Response

65Hz – 20kHz +/- 3dB
Sensitivity

91 dB @ 2.83V / 1m
Power Handeling (Cont/Peak)

40W RMS / 160W Peak
Nominal Impedance

8 Ohms Compatible
High Frequency Driver

Dual .75" (1.9cm) Polymer Dome Tweeters
Low Frequency Driver

6.5” (16.51cm) Dual Voice Coil Polymer Woofer
Enclosure Type

ABS/Infinite Baffle
Product Weight

7 lbs (3.18kg)
Brand

Klipsch
Finish

Black Baffle/Frame, White Paintable Grille
Mounting Depth

4.34” (11.03cm)
Cutout Dimensions

8.3” (21.1cm)
Product Dimensions

9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
