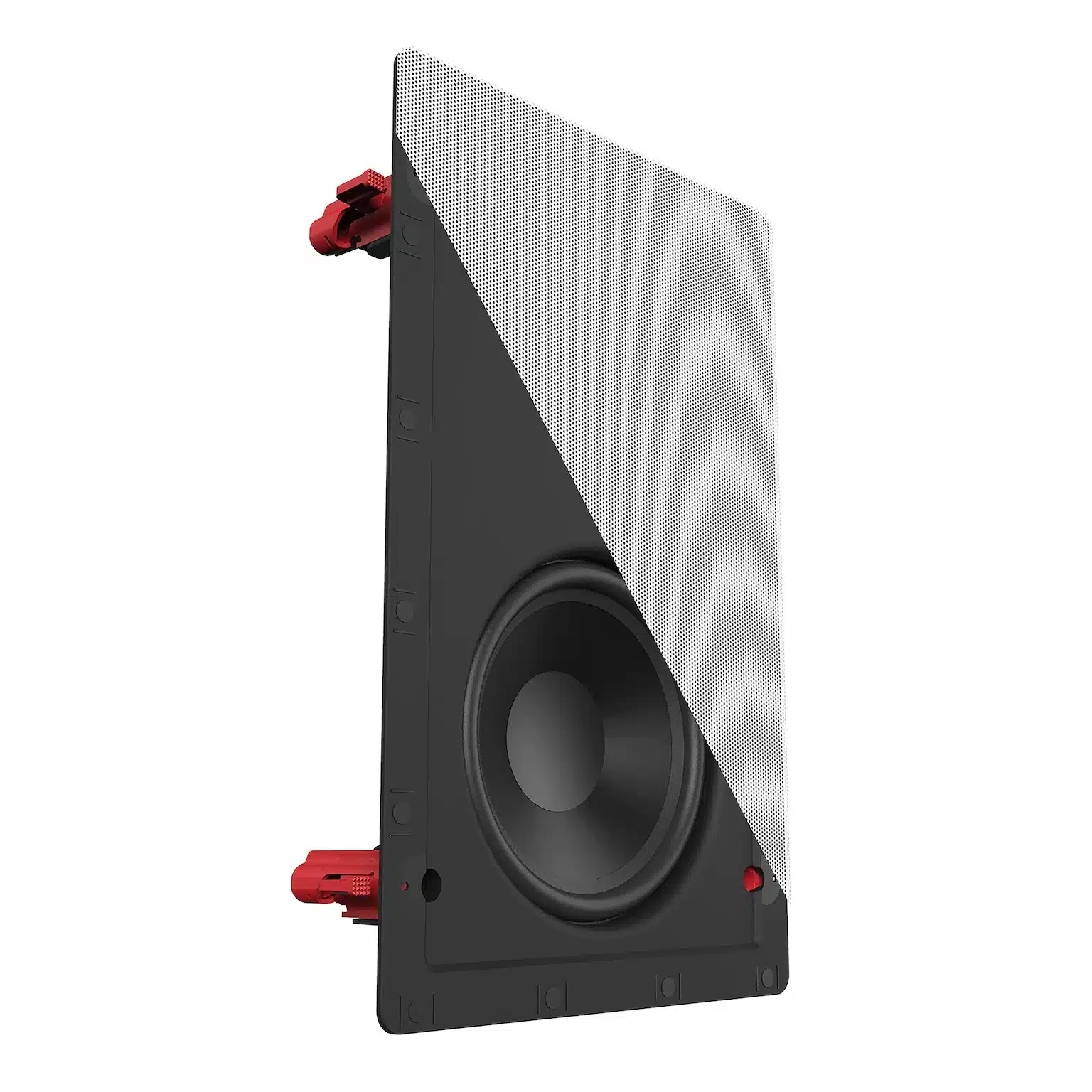

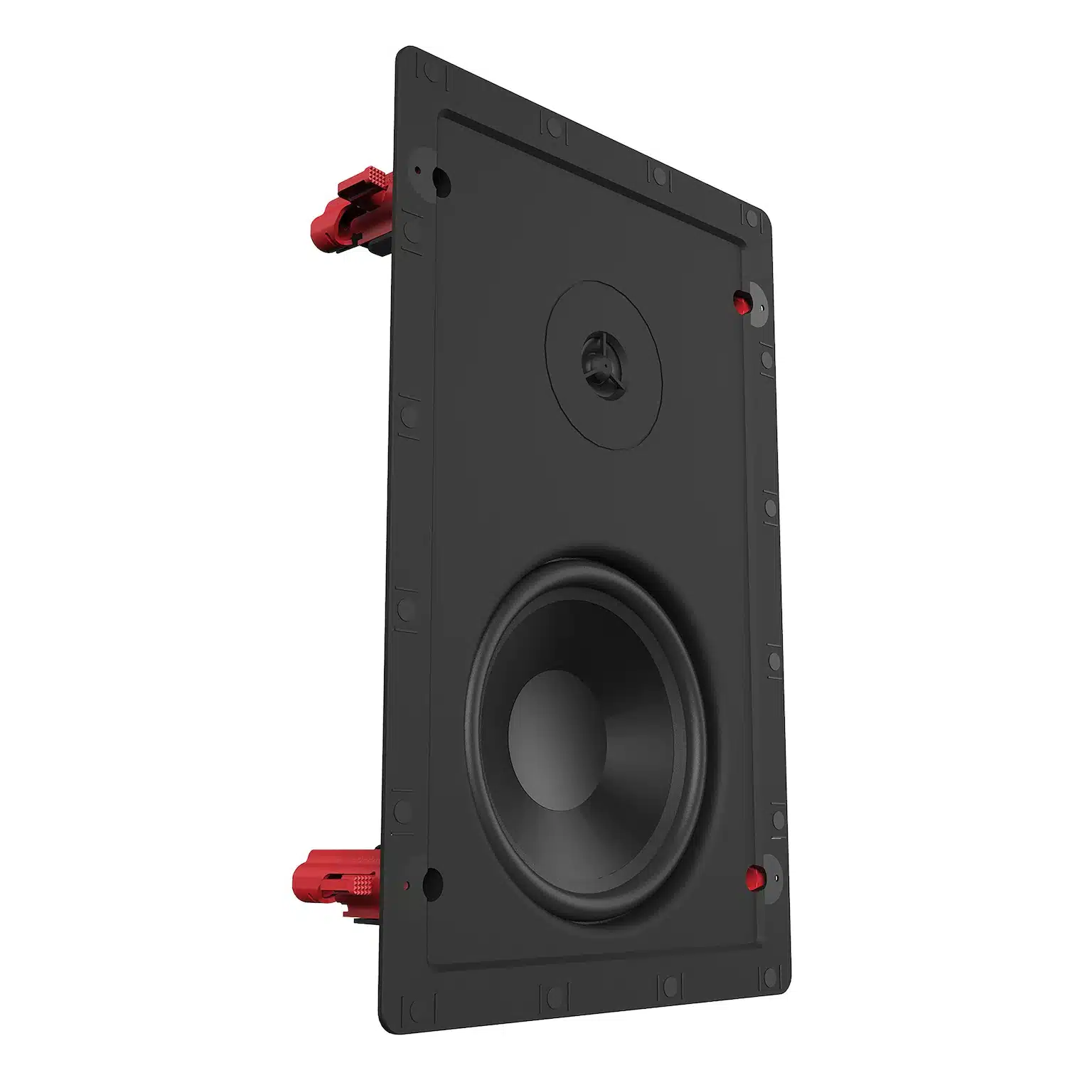

Klipsch CS16-W Custom Series In Wall Speaker
Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16W features a 6.5” Polymer woofer and a 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features:
6.5” Polymer woofer
1” Polymer tweeter
Patented Sky Hook® Tool-Free Installation System
Bezel-Free Magnetic Grille
GOOD SOUND IN ANY ROOM
Using the same design principles of our premium architectural and
box speaker lines, the all new Klipsch Custom series delivers true
Klipsch sound power and performance to any budget. With a 6.5”
Polymer woofer and a 1” Polymer Dome tweeter the CS-16W brings
dynamic, powerful, detailed Klipsch sound to your distributed audio
or home theater system.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

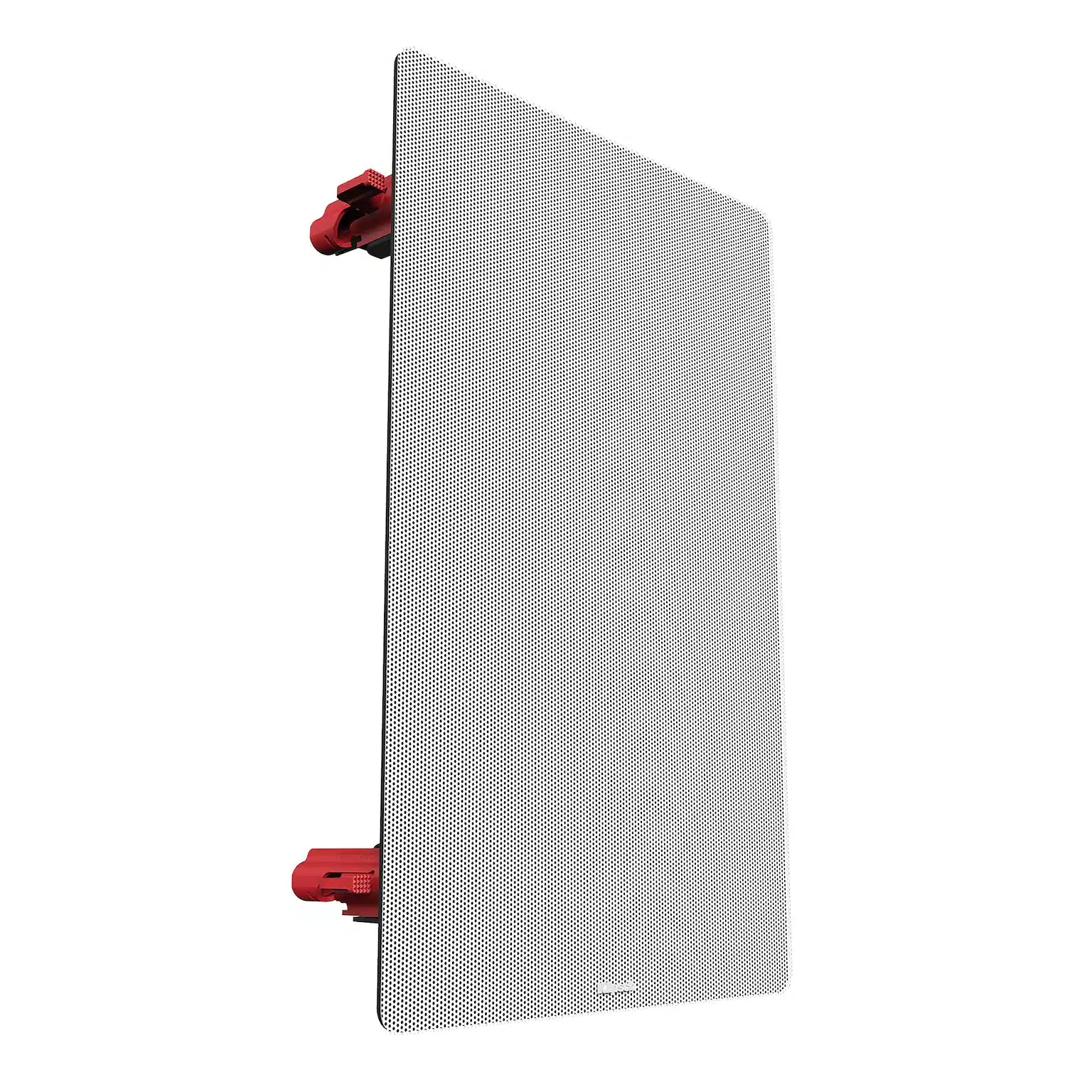

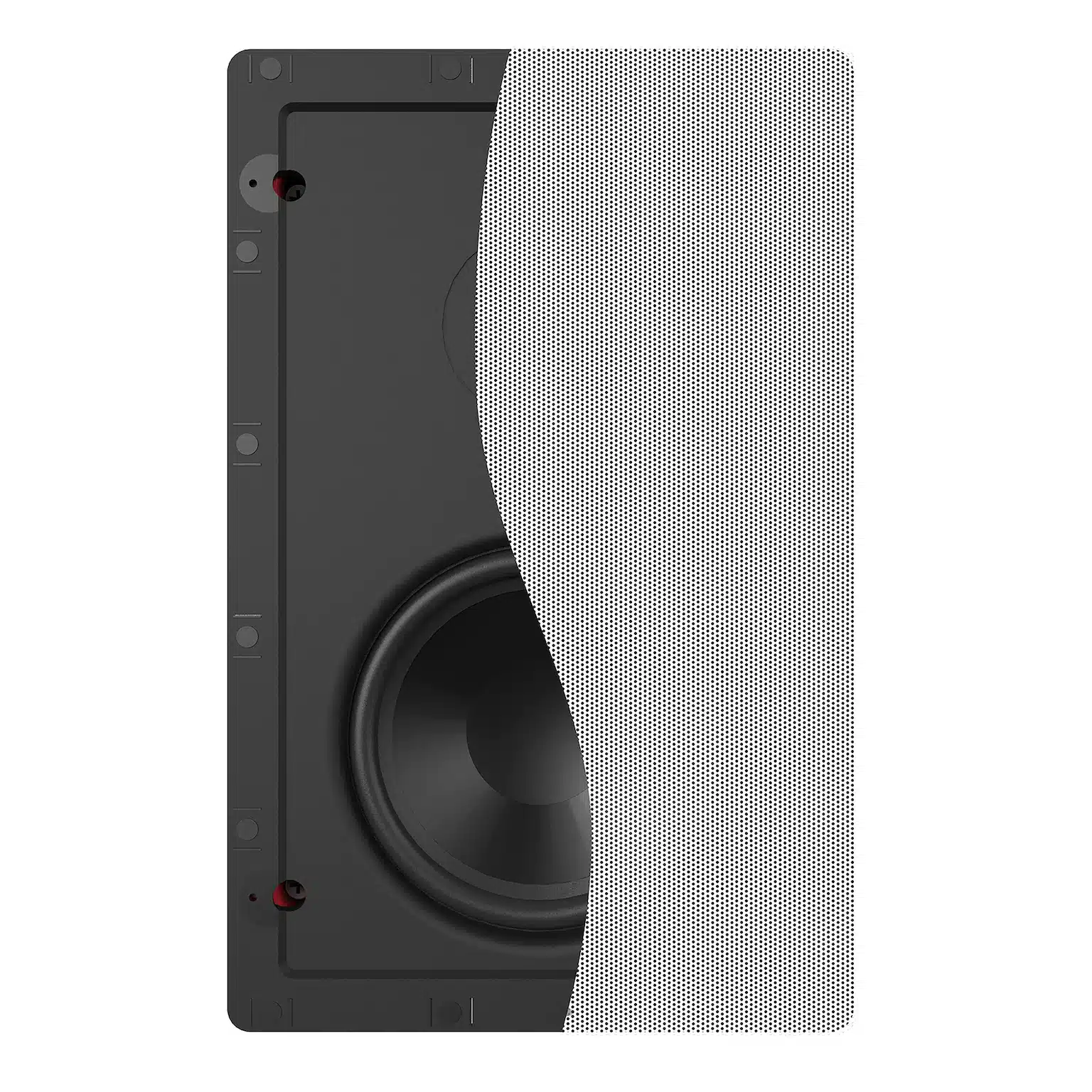

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space
SPECIFICATIONS
| Frequency Range | 65Hz – 20kHz +/- 3dB |
| High Frequency Driver | 1″ (2.54cm) Polymer Tweeter |
| Low Frequency Driver | 6.5” (16.51cm) Polymer Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Power Handling | 40W RMS / 160W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D) |
| Mounting Depth | 3.78” (9.6cm) |
| Cutout Dimensions | 13” H X 8” W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-650-W II (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
| Weight | 3.25 kg |
|---|---|
| Frequency Response | 65Hz – 20kHz +/- 3dB |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Power Handeling (Cont/Peak) | 40W RMS / 160W Peak |
| Nominal Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1" (2.54cm) Polymer Tweeter |
| Low Frequency Driver | 6.5” (16.51cm) Polymer Woofer |
| Enclosure Type | ABS/Infinite Baffle |
| Product Weight | 7.2lbs (3.25kg) |
| Brand | Klipsch |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Mounting Depth | 3.78” (9.6cm) |
| Cutout Dimensions | 13” H X 8” W (33.0cm H X 20.3cm W) |
| Product Dimensions | 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D) |
