Klipsch DS-160CDT Designer Series In-Ceiling Speaker
Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features:
- 6.5” Pivot Polypropylene woofer
- 1” Pivot Silk Dome tweeter
- Patented Sky Hook™ Cinch by Swarm Installation System
- Bezel-Free Magnetic Grille
Klipsch DS-160CDT Designer Series 6.5” In-Ceiling Speaker
HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles of
our premium architectural and box speaker lines, the all new Klipsch
Designer series brings true Klipsch power and performance. With
a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to
a round Tractrix® horn, the DS-160CDT brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.

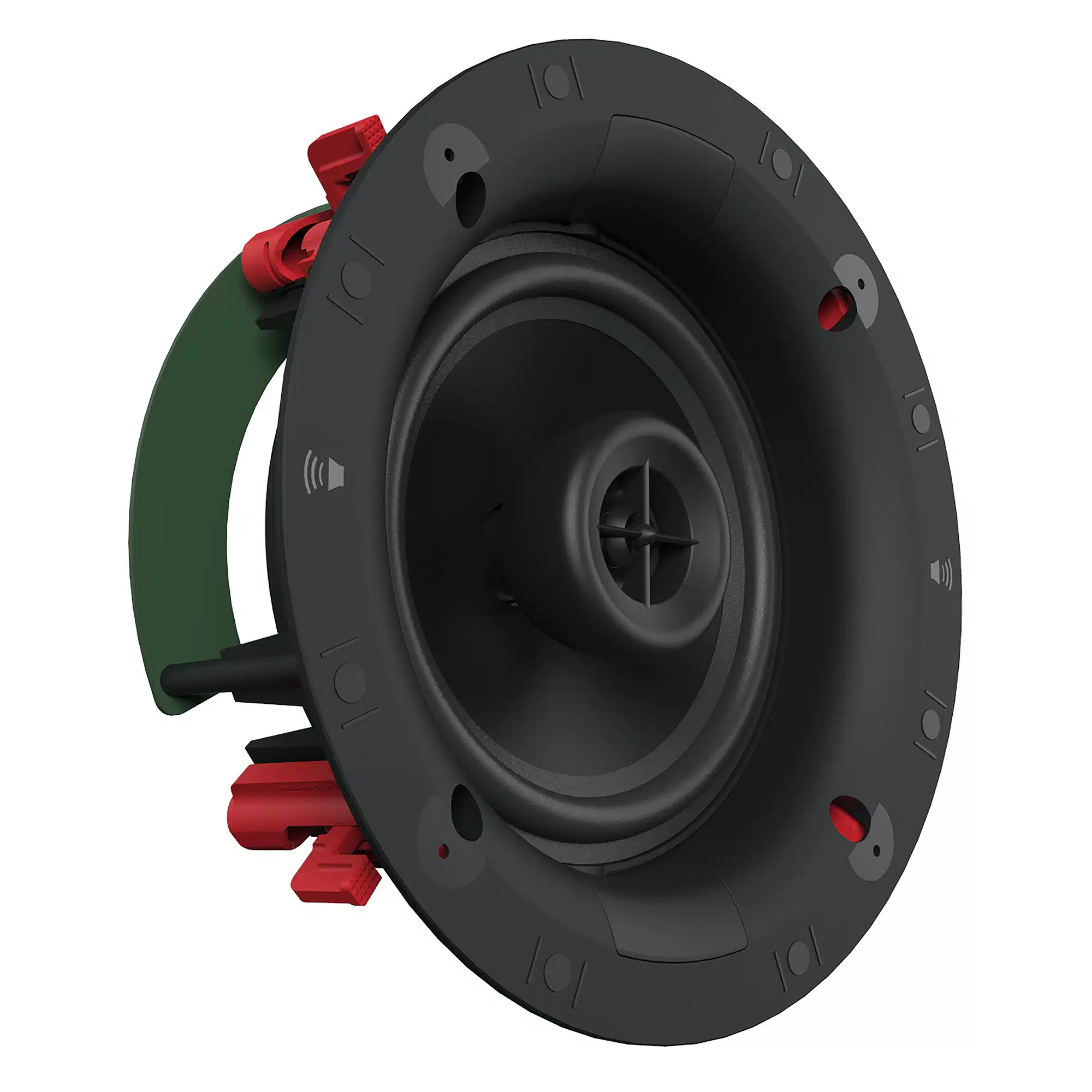

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.
CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.

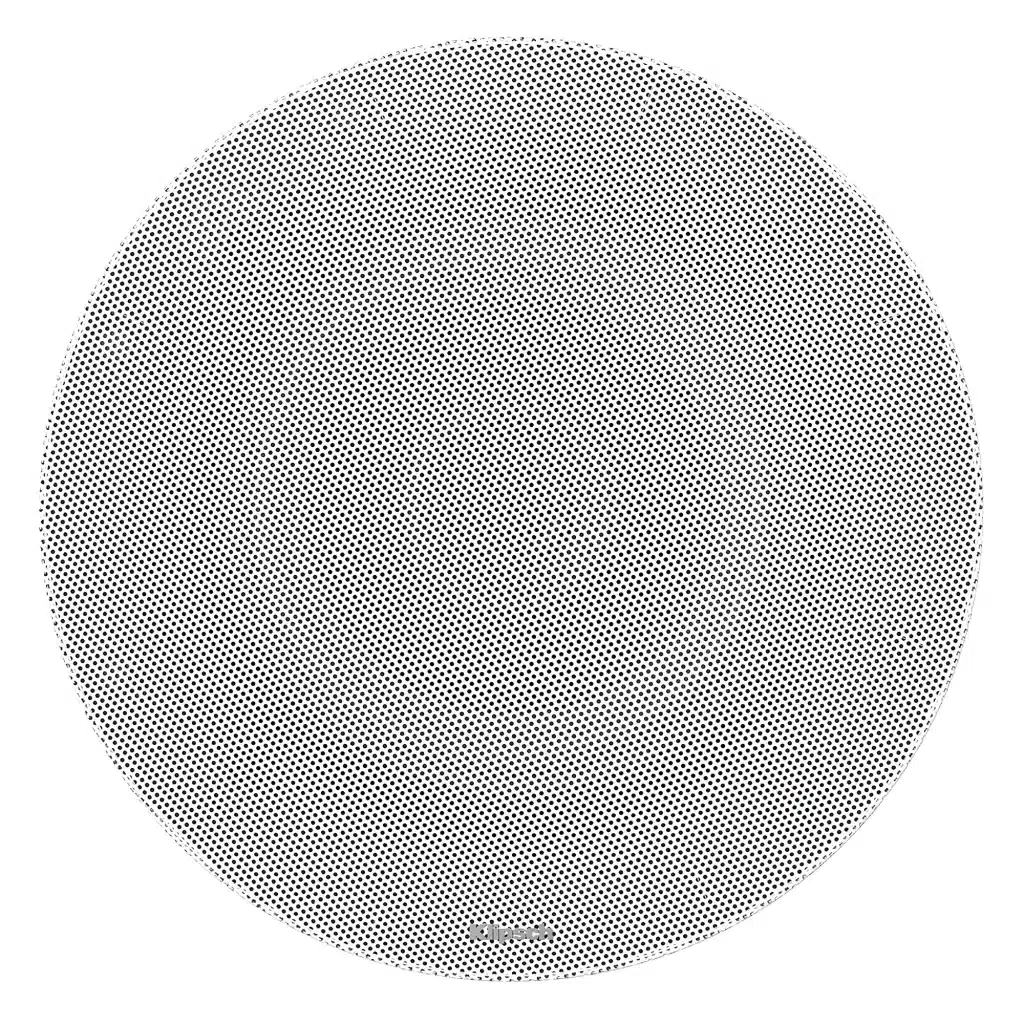

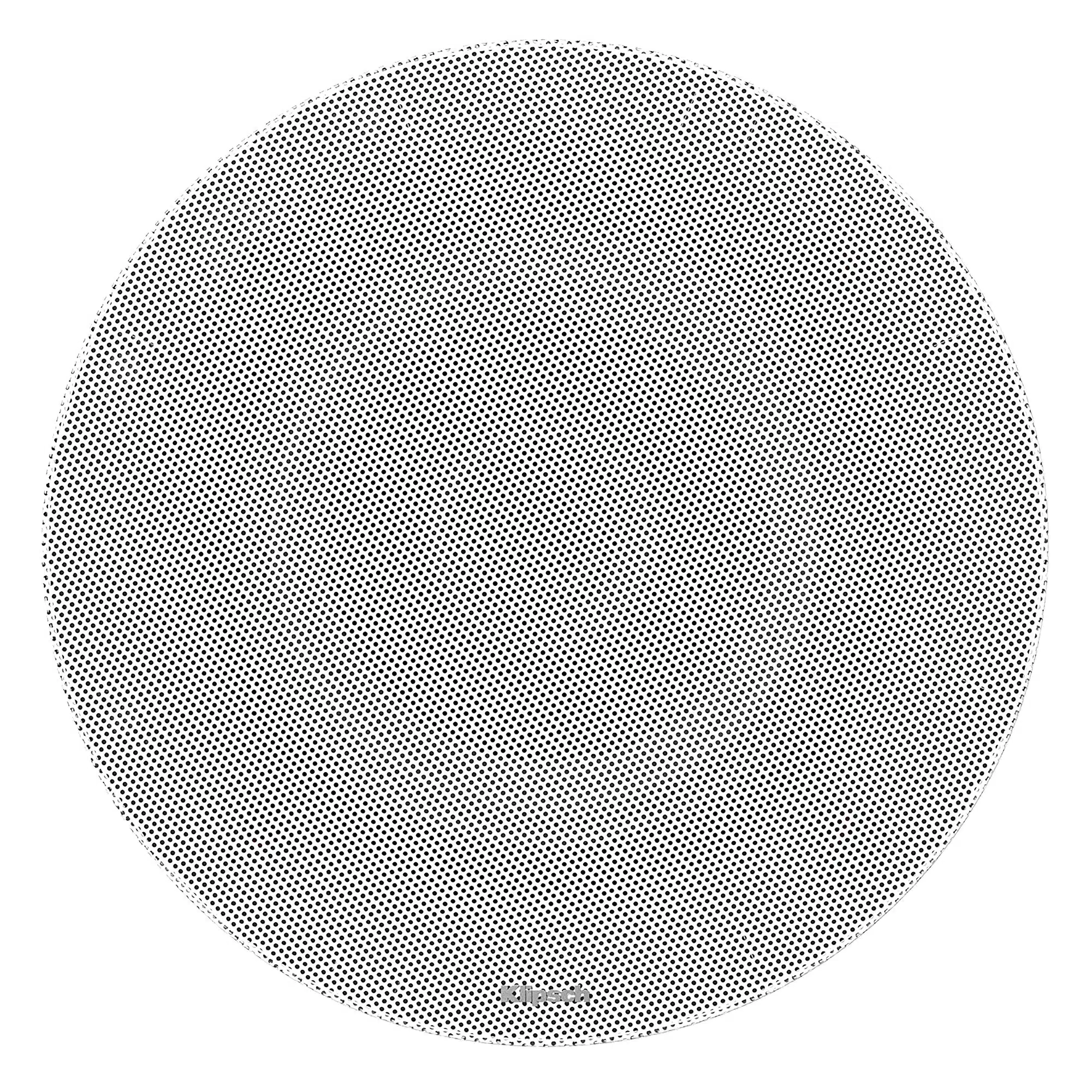

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space
SPECIFICATIONS
| Frequency Response | 77Hz – 20kHz +/- 3dB |
| High Frequency Driver | 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5” (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS/ 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
| Mounting Depth | 4.34” (11.03cm) |
| Cutout Dimensions | 8.3” (21.1cm) |
| Product Weight | 7 lbs (3.18kg) |
| Included | Round Magnetic Grille |
| Installation Kit | IK-650-C II (Sold Separately) |
| Fire Rated Enclosure | ME-650-C (Sold Separately) |
| Built From | 2017 |
| Weight | 3.18 kg |
|---|---|
| Frequency Response | 77Hz – 20kHz +/- 3dB |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Power Handeling (Cont/Peak) | 50W RMS/ 200W Peak |
| Nominal Impedance | 8 Ohms Compatible |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5” (16.51cm) Polypropylene Woofer |
| Enclosure Type | ABS/Infinite Baffle |
| Coverage Angle | 100° |
| Brand | Klipsch |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Mounting Depth | 4.34” (11.03cm) |
| Cutout Dimensions | 8.3” (21.1cm) |
| Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
