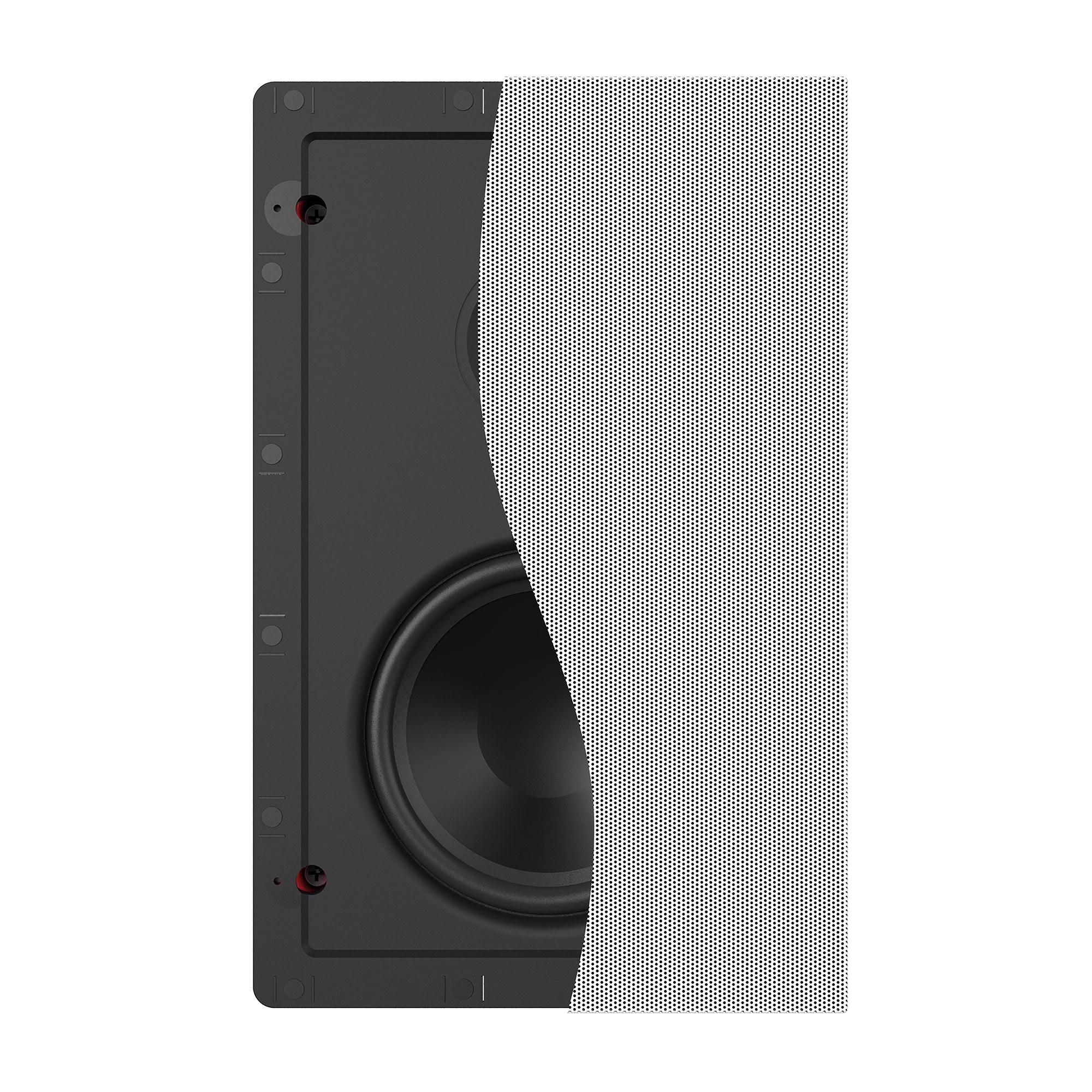

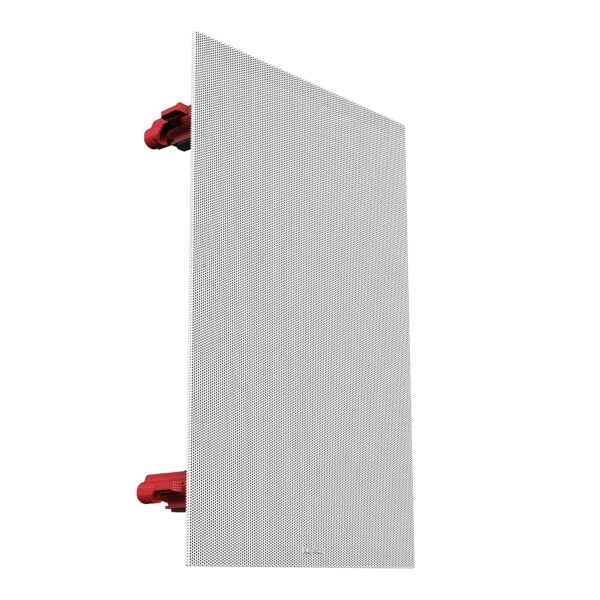

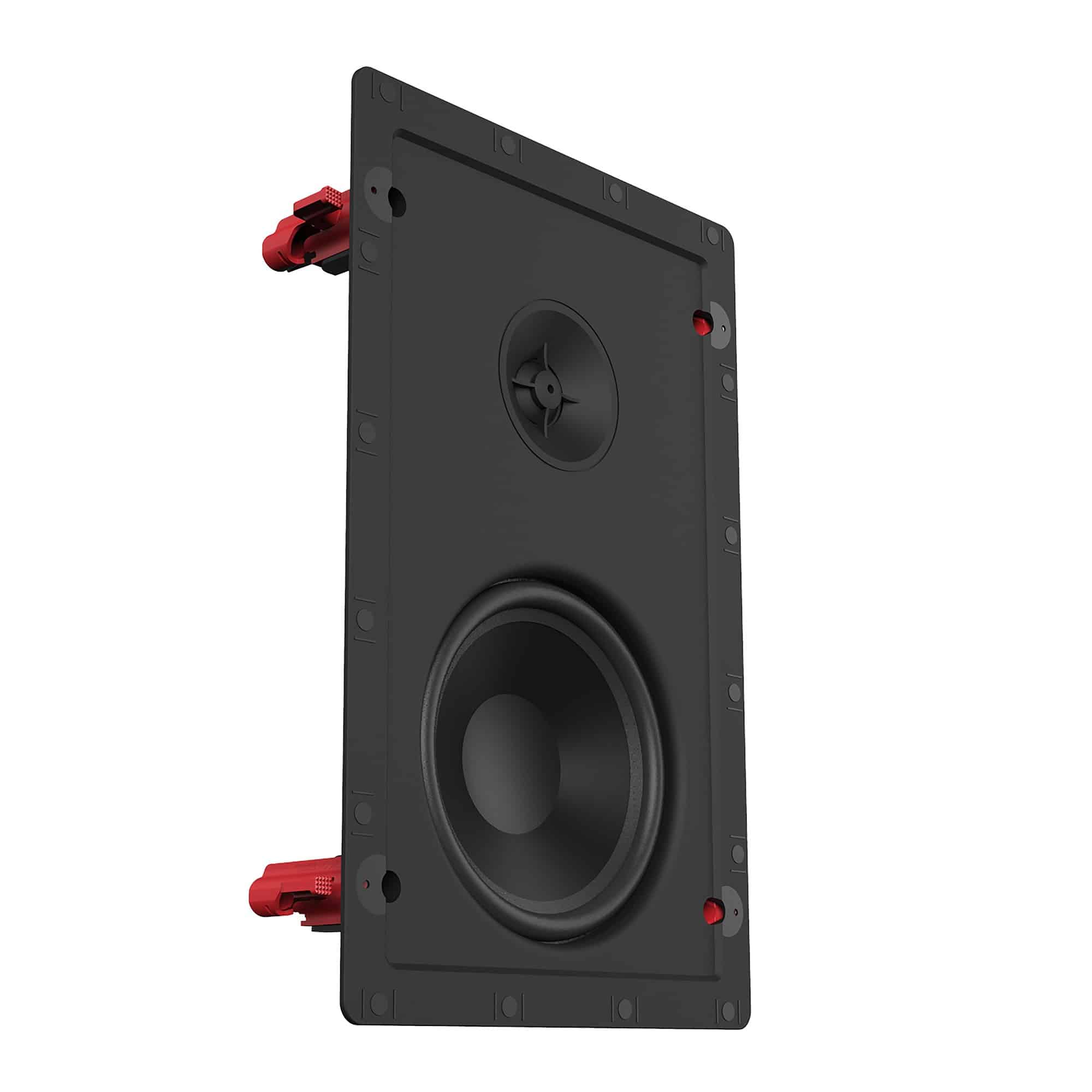

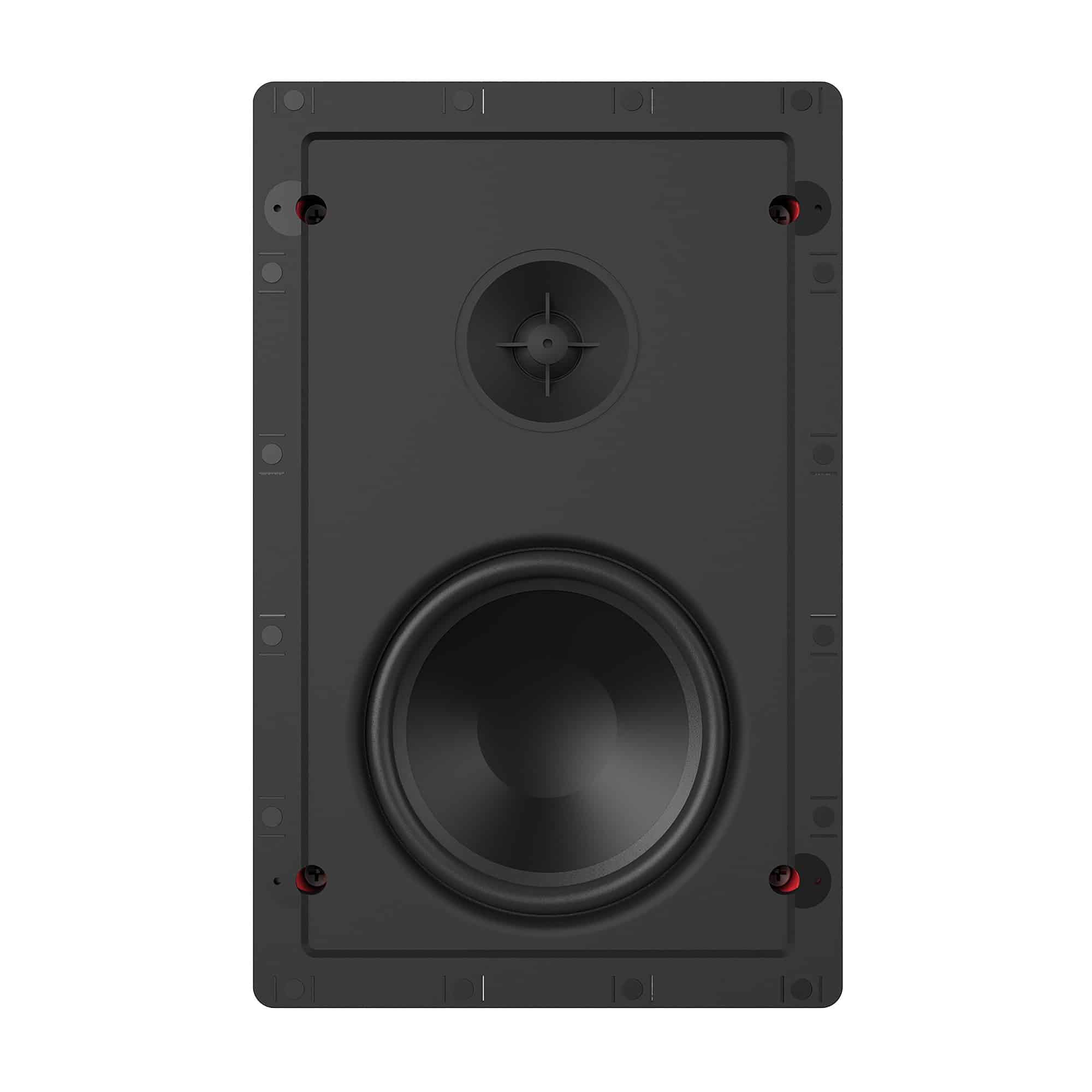

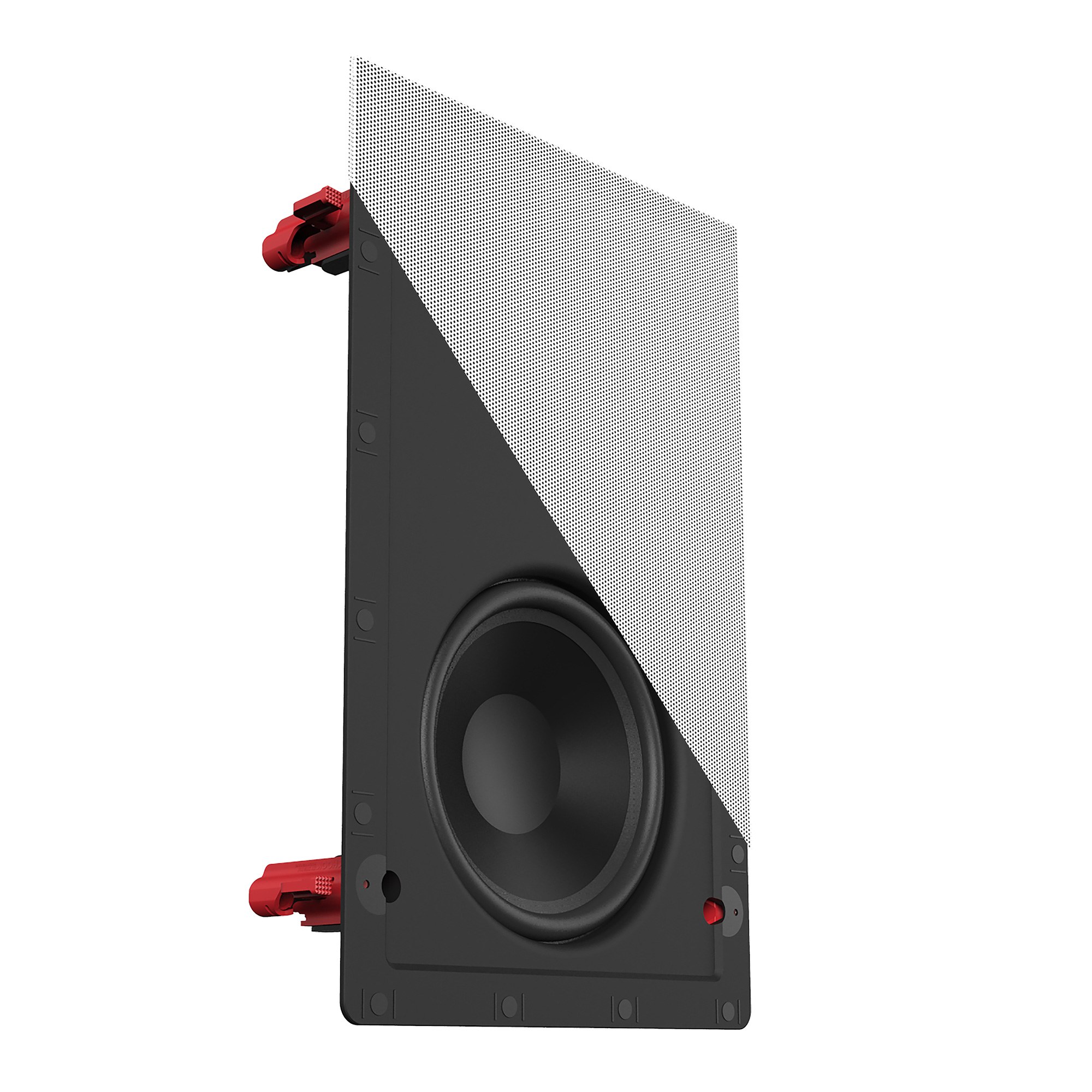

Klipsch DS-160W Designer Series In-Wall Speaker

د.إ940

29 people are viewing this right now
20 products sold in last 16 hours
Selling fast! Over 20 people have this in their carts

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160W features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.

Features:

6.5” Polypropylene woofer
1” Silk Dome tweeter
Patent-Pending SkyHook™ Tool-Free Installation System
Bezel-Free Magnetic Grille

Available on backorder
SKU: DS-160W Category:

Klipsch DS-160W Designer Series In-Wall Speaker

HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles
of our premium architectural and box speaker lines, the all new
Klipsch Designer series brings true Klipsch power and performance.
With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated
to a round Tractrix® horn, the DS-160W brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

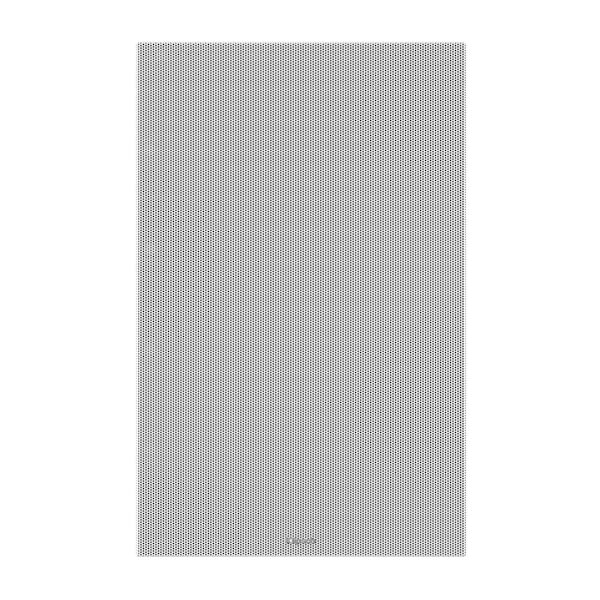

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space

Description

Frequency Range 77Hz – 20kHz /- 3dB
High Frequency Driver 1″ (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver 6.5” (16.51cm) Polypropylene Woofer
Sensitivity 91 dB @ 2.83V / 1m
Coverage Angle 100°
Power Handling 50W RMS / 200W RMS
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Product Dimensions 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
Mounting Depth 3.78” (9.6cm)
Cutout Dimensions 13” H X 8” W (33.0cm H X 20.3cm W)
Product Weight 7.2lbs (3.25kg)
Included Magnetic Grille
Installation Kit IK-650-W II (Sold Separately)
Fire Rated Enclosure ME-650-W (Sold Separately)
Built From 2017
Weight 3.25 kg
Frequency Response

77Hz – 20kHz +/- 3dB
Sensitivity

91 dB @ 2.83V / 1m
Power Handeling (Cont/Peak)

50W RMS/ 200W Peak
Nominal Impedance

8 Ohms Compatible
High Frequency Driver

1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver

6.5” (16.51cm) Polypropylene Woofer
Enclosure Type

ABS/Infinite Baffle
Coverage Angle

100°
Brand

Klipsch
Finish

Black Baffle/Frame, White Paintable Grille
Mounting Depth

3.78” (9.6cm)
Cutout Dimensions

13” H X 8” W (33.0cm H X 20.3cm W)
Product Dimensions

9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D
