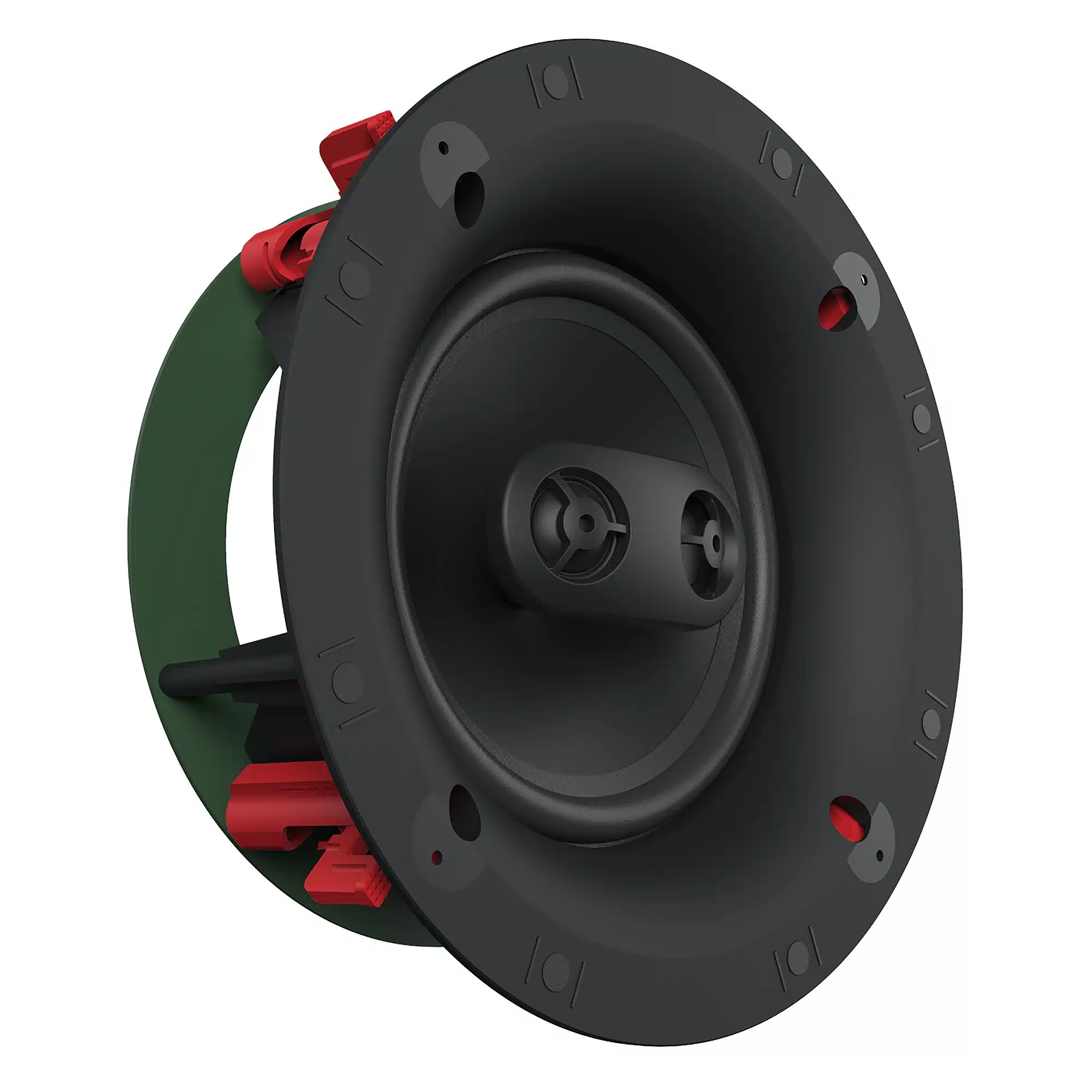

Klipsch DS-180CSM Designer Series In-Ceiling Speaker

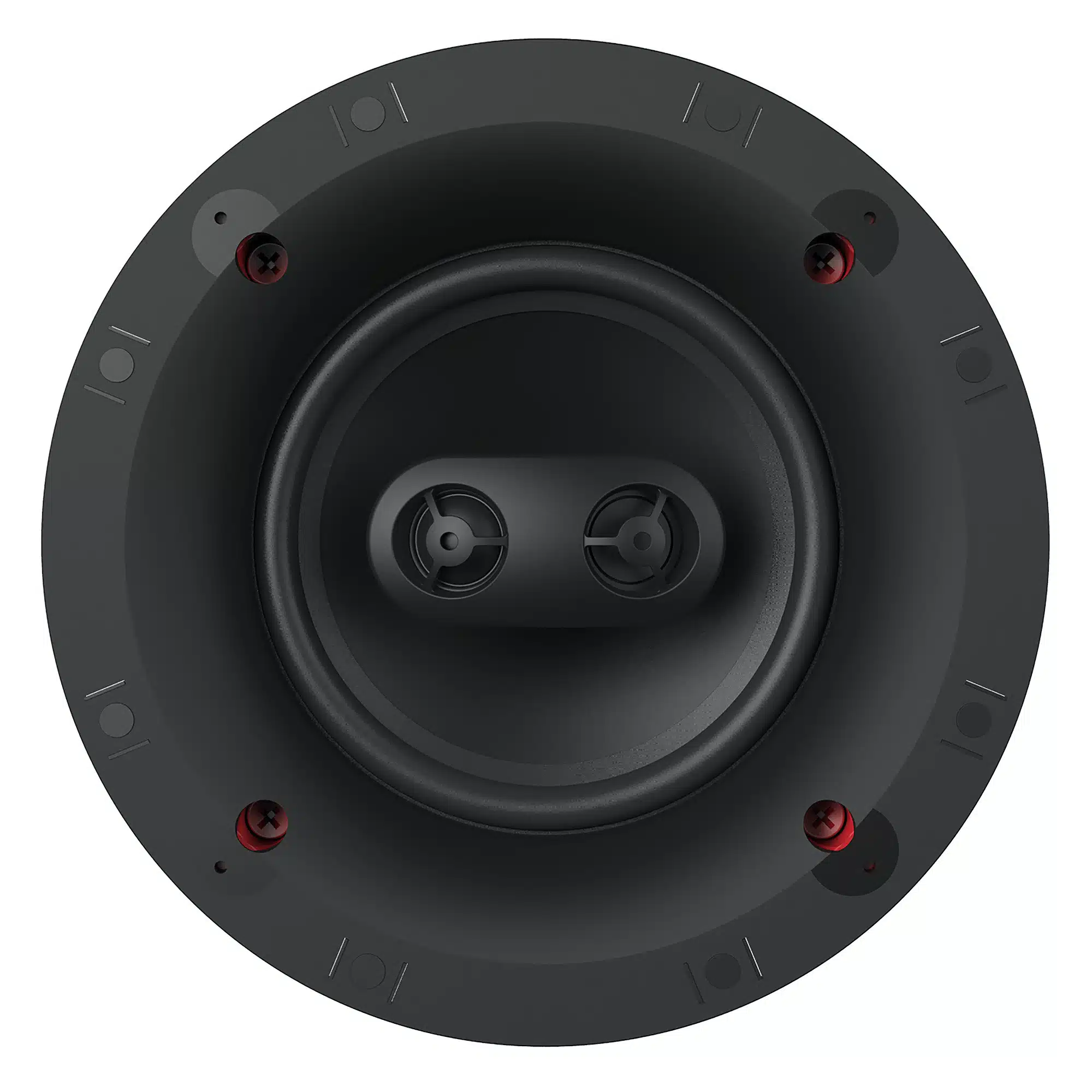

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system – for true stereo sound in spaces where two speakers aren’t possible.
Features:
- 8” Polypropylene woofer
- Dual .75” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
Klipsch DS-180CSM 8” Stereo In-Ceiling Speaker
STEREO SOUND FROM A SINGLE SPEAKER
Using the same acoustic voicing and design principles of our more
premium architectural and box speaker lines, the all new Klipsch
Designer series provides true Klipsch power and performance. With
a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome
tweeters, the DS-180CSM brings dynamic, powerful, detailed sound
to your distributed audio system – for true stereo sound in spaces
where two speakers aren’t possible.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

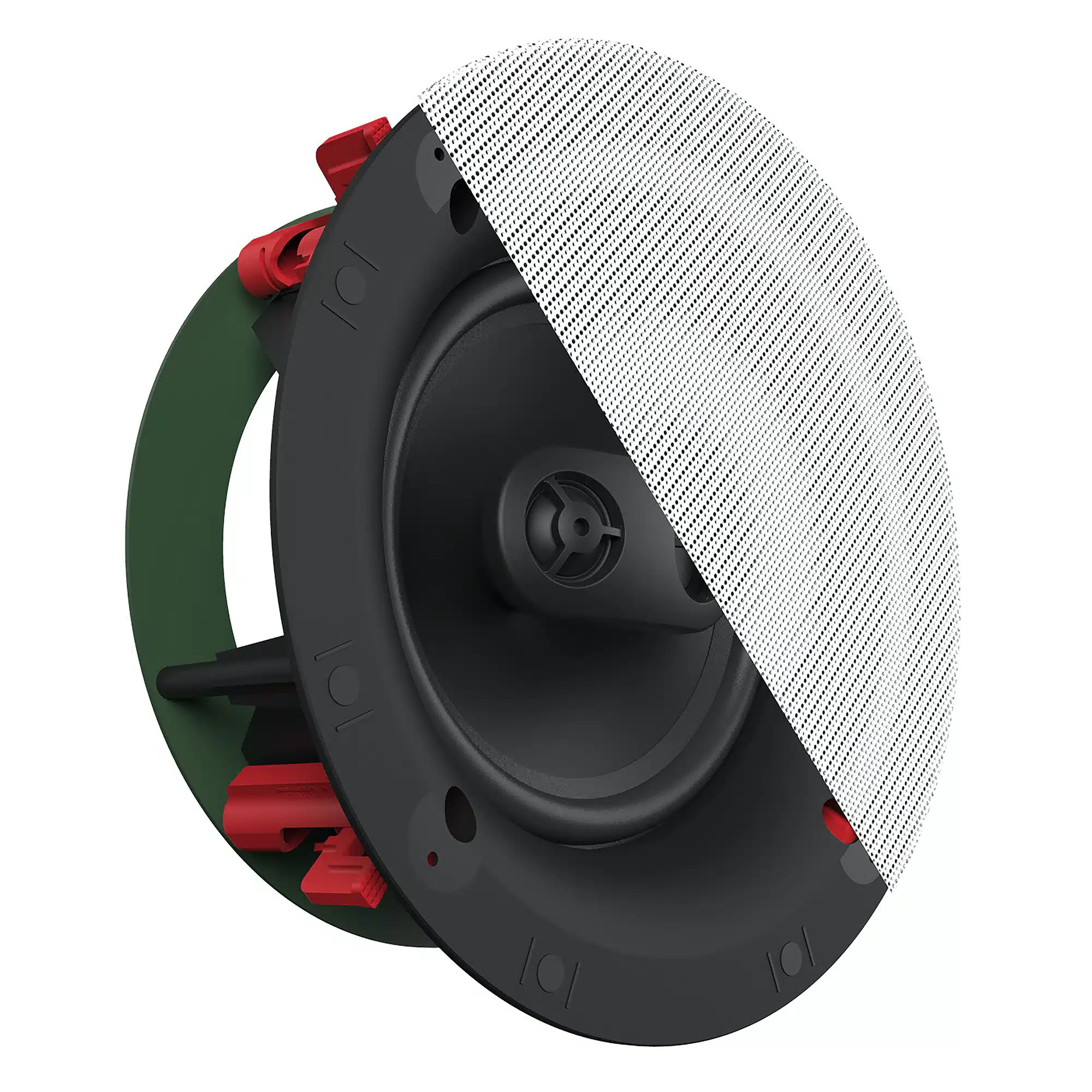

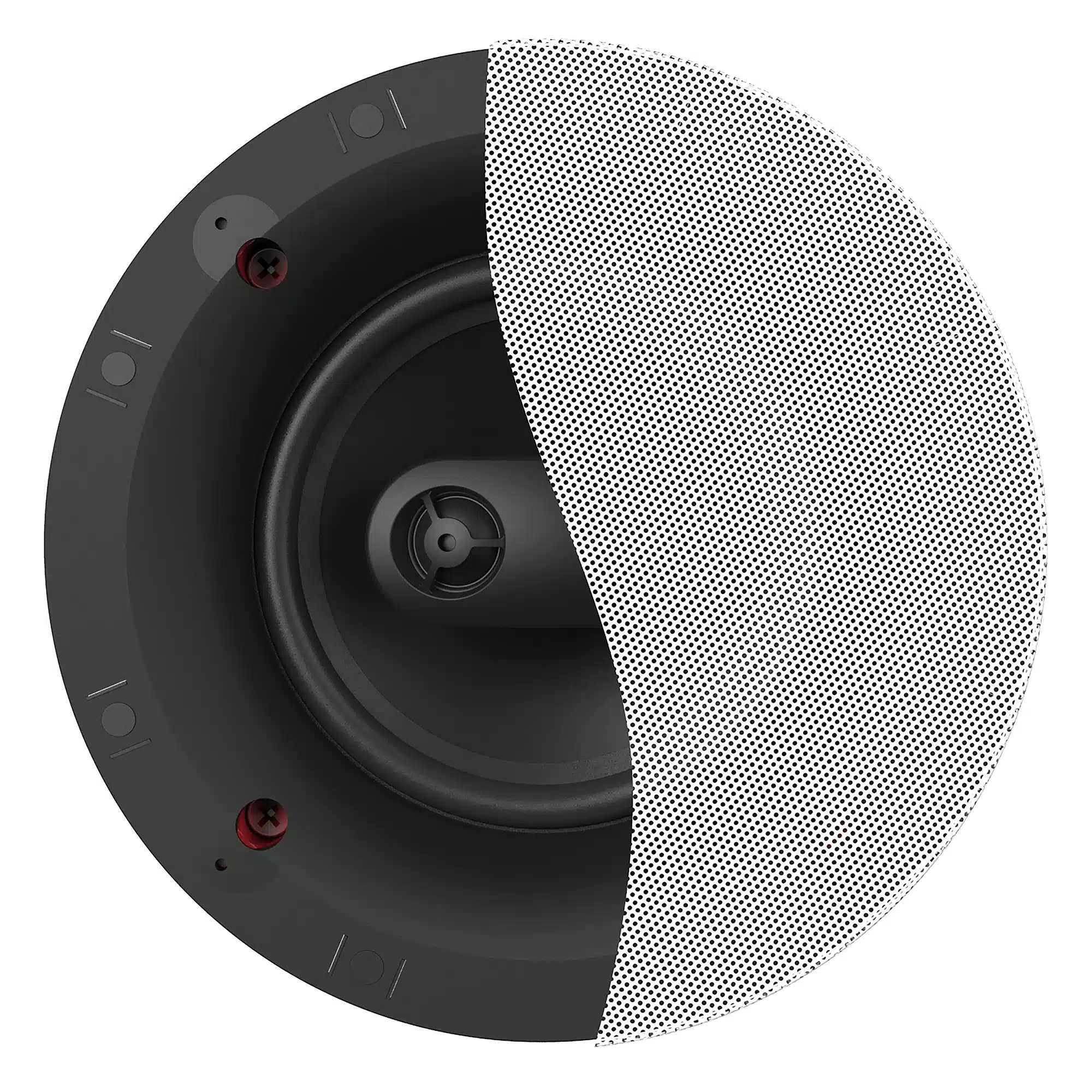

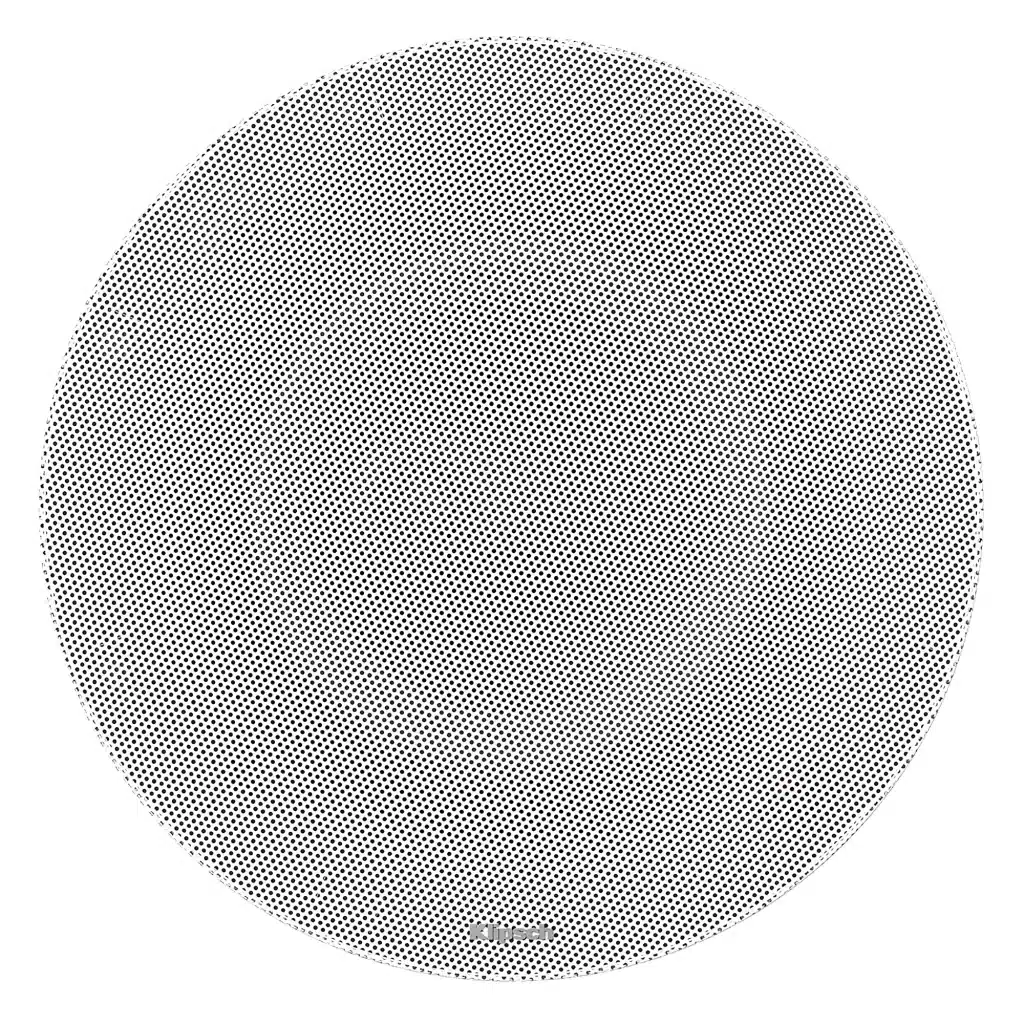

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space
SPECIFICATIONS
| Frequency Response | 73Hz – 20kHz +/- 3dB |
| High Frequency Driver | Dual .75″ (1.9cm) Silk Dome Tweeters |
| Low Frequency Driver | 8″ (20.32cm) Polypropylene Woofer |
| Sensitivity | 94 dB @ 2.83V / 1m |
| Coverage Angle | 160° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 4 Ohm |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
| Mounting Depth | 4.45” (11.3cm) |
| Cutout Dimensions | 9.8” (24.9cm) |
| Product Weight | 7.4 lbs (3.36kg) |
| Included | Flat Paintable Magnetic Grille |
| Installation Kit | IK-800-C II (Sold Separately) |
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
| Built From | 2017 |
| Weight | 3.36 kg |
|---|---|
| Frequency Response | 73Hz – 20kHz +/- 3dB |
| Sensitivity | 92 dB @ 2.83V / 1m |
| Power Handeling (Cont/Peak) | 50W RMS/ 200W Peak |
| Nominal Impedance | 8 Ohms Compatible |
| High Frequency Driver | Dual .75" (1.9cm) Silk Dome Tweeters |
| Low Frequency Driver | 8" (20.32cm) Polypropylene Woofer |
| Enclosure Type | ABS/Infinite Baffle |
| Coverage Angle | 160° |
| Brand | Klipsch |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Mounting Depth | 4.45” (11.3cm) |
| Cutout Dimensions | 9.8” (24.9cm) |
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
