Klipsch KI-102-SMA-II TRAPEZOIDAL 8″ 2-WAY COMMERCIAL LOUDSPEAKER

د.إ2,790 – د.إ3,015

29 people are viewing this right now
15 products sold in last 7 hours
Selling fast! Over 16 people have this in their carts

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

Features:

• Compact 22.5º symmetrical trapezoidal design
• 115dB maximum continuous output
• 8” woofer and 1” titanium diaphragm high-frequency compression driver
• 90º X 90º modified Tractrix Horn
• KLIP-circuit HF driver protection devices
• Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
• Available in Black, White or Raw MDF finish

SKU: KI-102-SMA-II Categories: ,

KI-102-SMA-II TRAPEZOIDAL 8″ 2-WAY Commercial Loud Speakers

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

The KI-102-SMA-II features a hybrid Tractrix “Mumps” Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

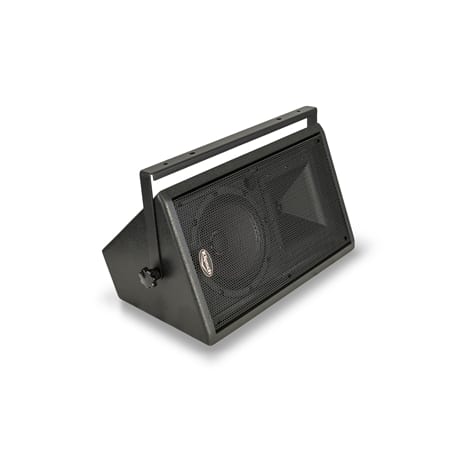

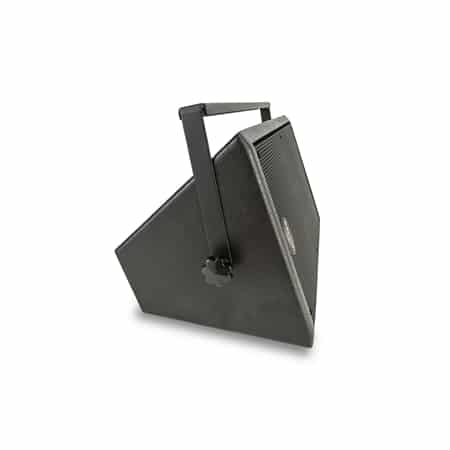

CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket



Features:

• Compact 22.5º symmetrical trapezoidal design
• 115dB maximum continuous output
• 8” woofer and 1” titanium diaphragm high-frequency compression driver
• 90º X 90º modified Tractrix Horn
• KLIP-circuit HF driver protection devices
• Top/Bottom attachments for optional Klipsch SB-102 U-shaped bracket
• Available in Black, White or Raw MDF finish

Applications:

• Restaurants
• Schools
• Houses of worship
• Health clubs
• AV production environments
• Auditoriums

SPECIFICATIONS:

  • FREQUENCY RESPONSE: (+/- 3 dB) 88 Hz – 17 kHz (-10 dB @ 56 Hz)
  • POWER HANDLING: 200 watts (31V) 800 watts peak
  • MAXIMUM SPL: 115 dB Continuous 121 dB Peak
  • SENSITIVITY: 95 dB
  • COVERAGE: Horizontal: 90° +/- 20º 2.1 kHz – 19 kHz, Vertical: 90° +/- 30º 2.5 kHz – 19 kHz
  • DIRECTIVITY INDEX (DI): 7 dB +/- 1 dB 1 kHz – 17 kHz
  • DIRECTIVITY FACTOR (Q): 5
  • NOMINAL IMPEDANCE: 8 ohms, minimum 4.9 ohms @ 184 Hz
  • OVERLOAD PROTECTION: KLIP Overload Protection Circuit-HF
  • CROSSOVER FREQUENCY: 2 kHz

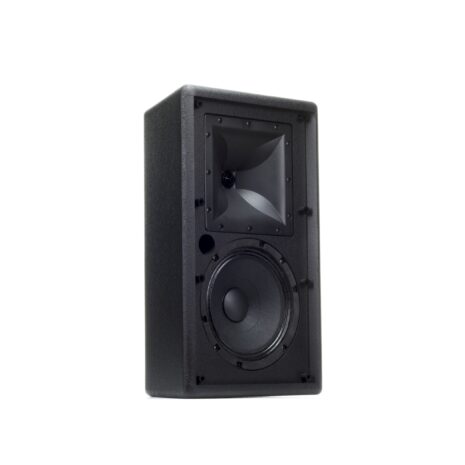

  • COMPONENTS: One K-81-ST 8″ woofer,One K-103-TI-KP 1” titanium compression driver on a K-802-M horn

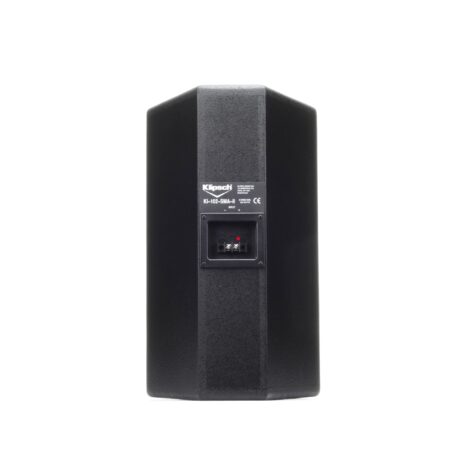

  • INPUT CONNECTION: Two point barrier strip
  • MOUNTING OPTIONS: 2 screws,  1/4” x 20 Machine screw for SB-102 Bracket
  • ENCLOSURE MATERIAL: 3/4″ MDF
  • HEIGHT: 18.9” (48.00cm)
  • WIDTH: 11.6” (29.46cm) front, 4.2” (10.67cm) rear
  • DEPTH: 9.3” (23.77cm)
  • WEIGHT: 24 lbs. (10.90kg)
  • FINISHES: Black, White
  • ACCESSORIES: SB-102 Mounting Bracket
Weight 10.9 kg
Dimensions N/A
color

Black, White
Brand

Klipsch
