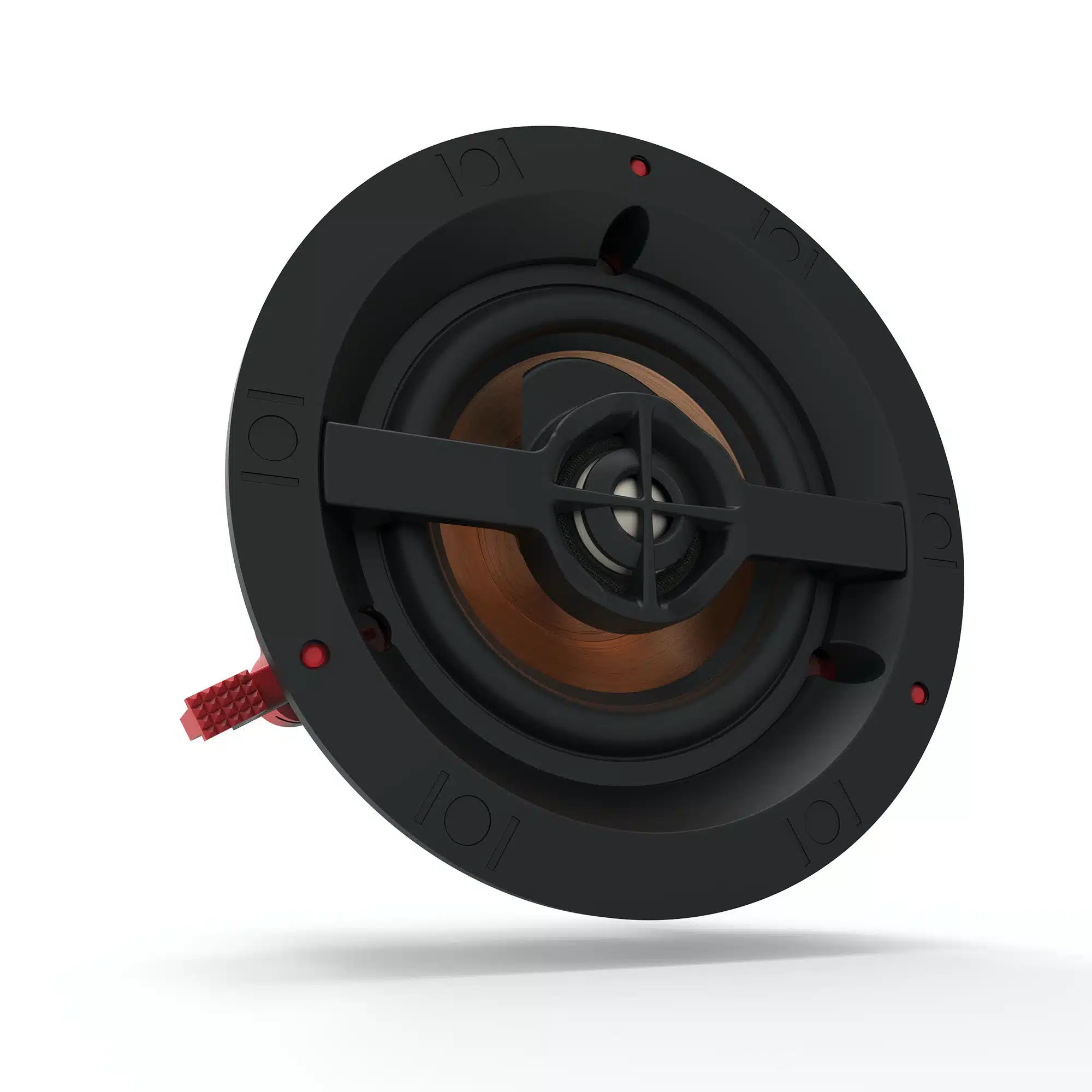

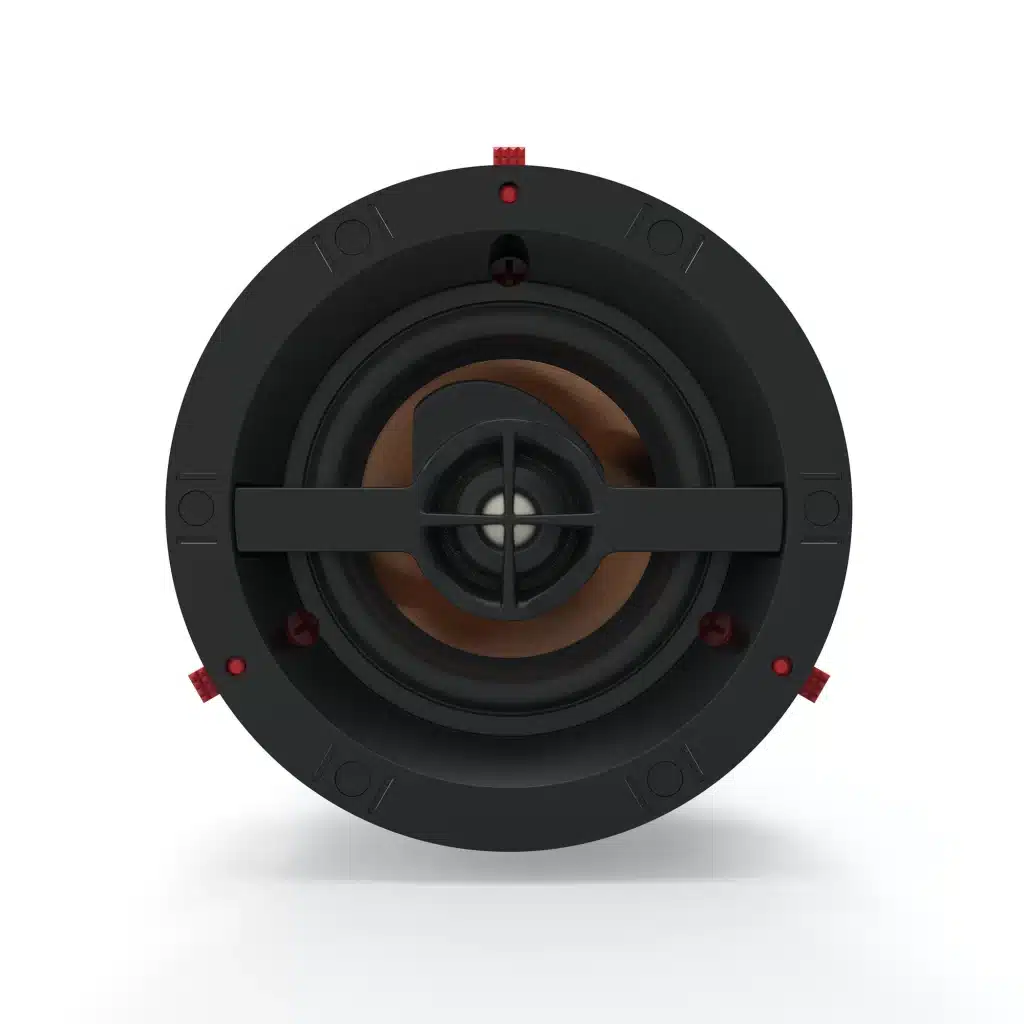

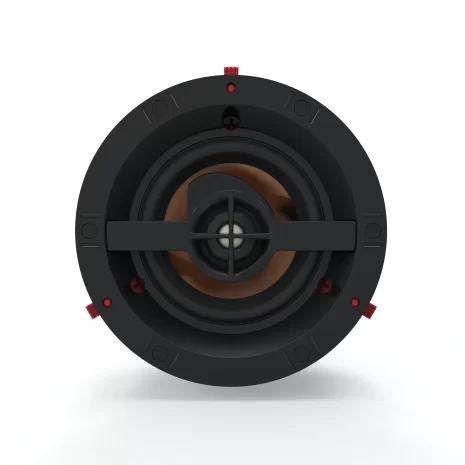

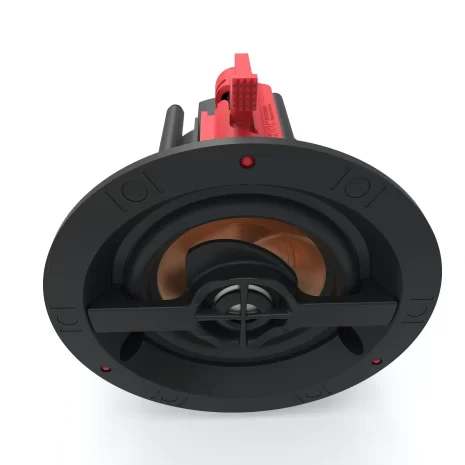

Klipsch PRO-14RC In-Ceiling Speaker

TRUE REFERENCE ACOUSTICS IN A SMALL PACKAGE
Using the same acoustic components and design as the highly
acclaimed Reference box speaker line, the Professional Reference
Architectural series perfectly combines the aesthetics of an
architectural speaker with the pure performance and dynamic
voicing of the Klipsch Reference series. With a 3.5” IMG woofer and a
.75” Aluminum Dome tweeter, the Pro-14C brings dynamic, powerful,
detailed Klipsch Reference sound to your distributed audio or home
theater system in a small aperture in-ceiling package.

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

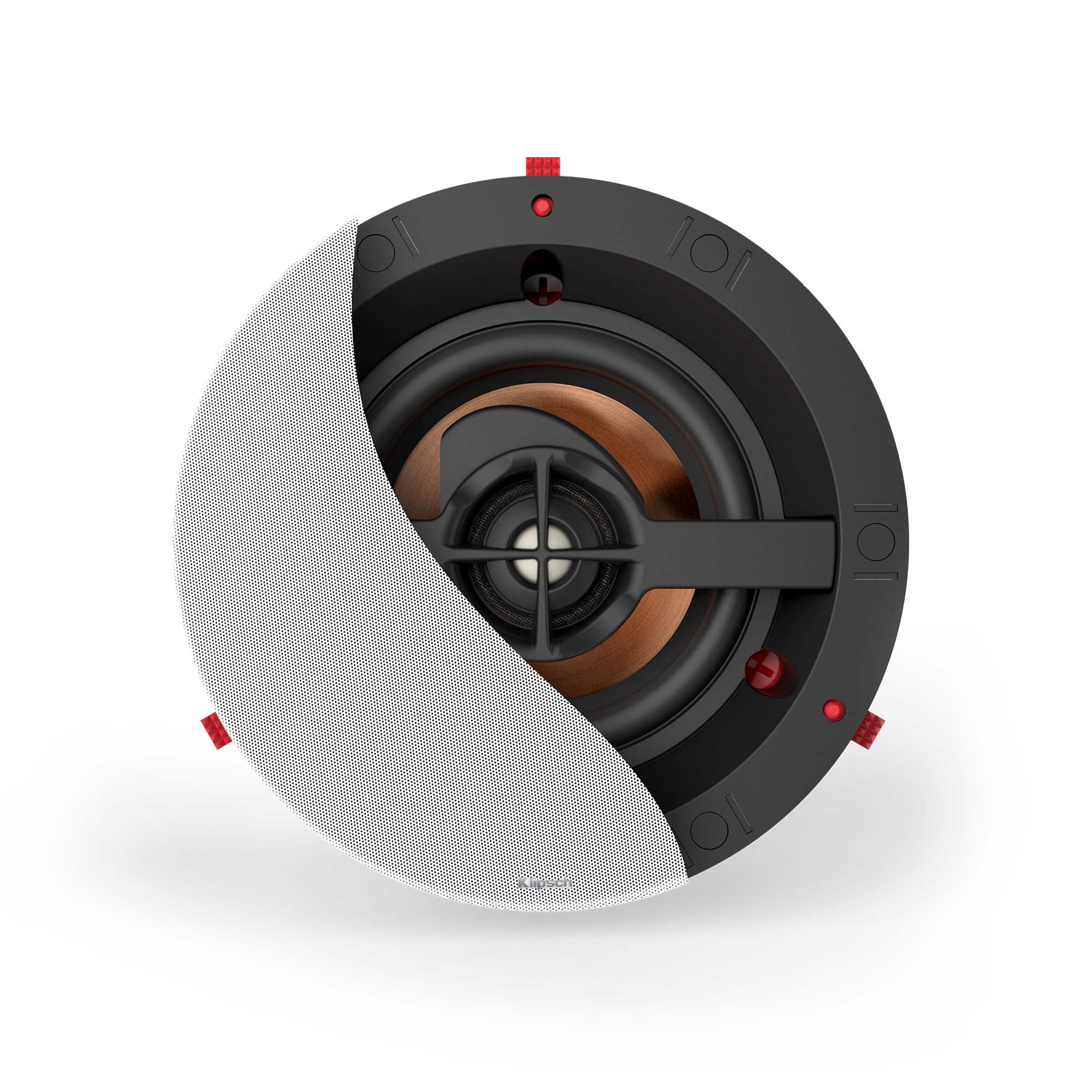

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

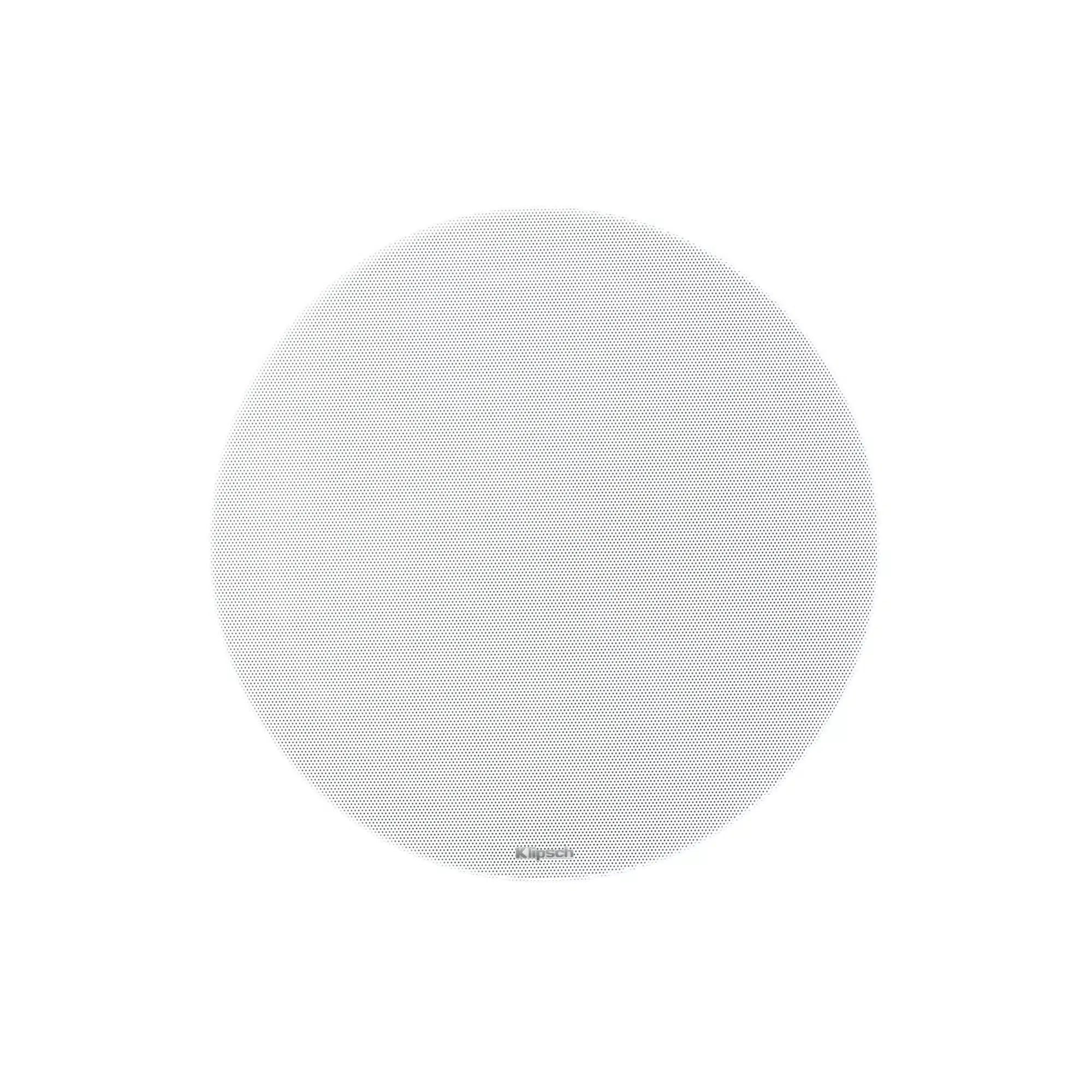

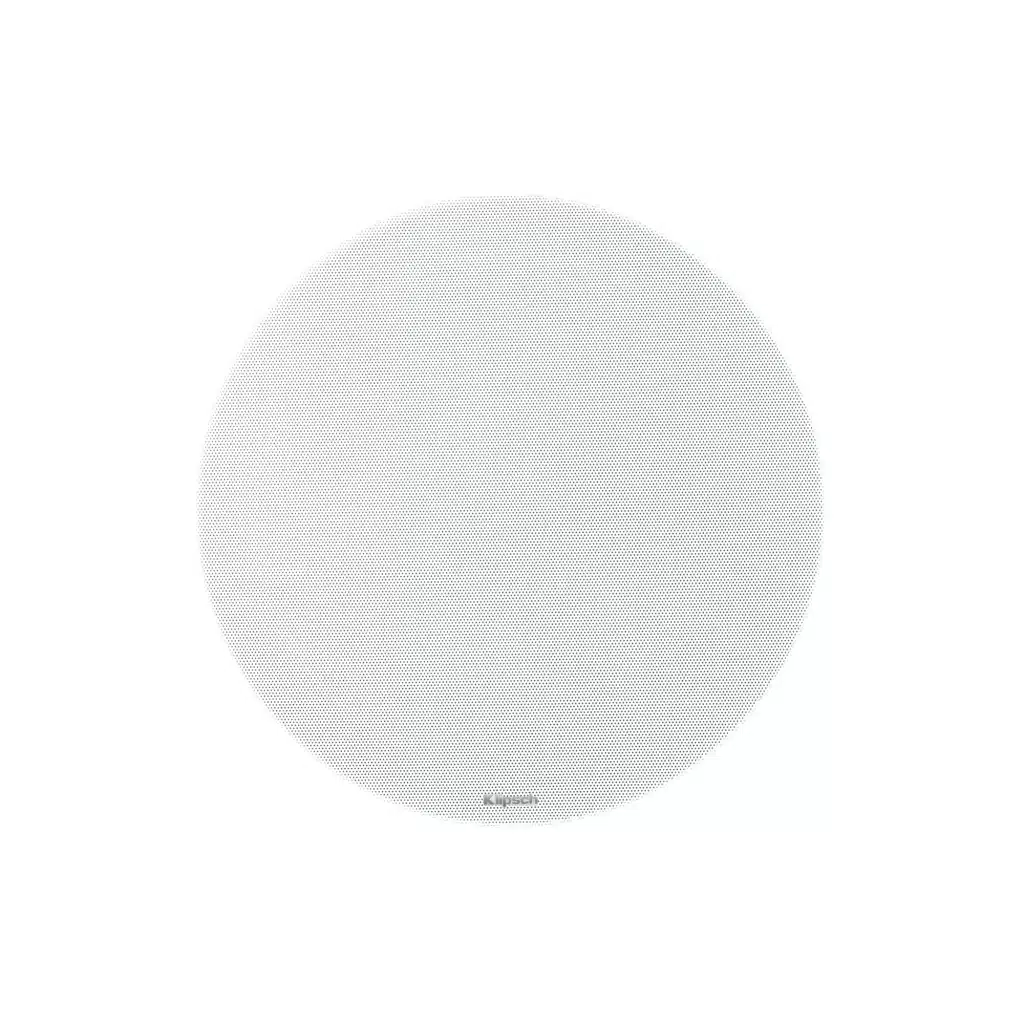

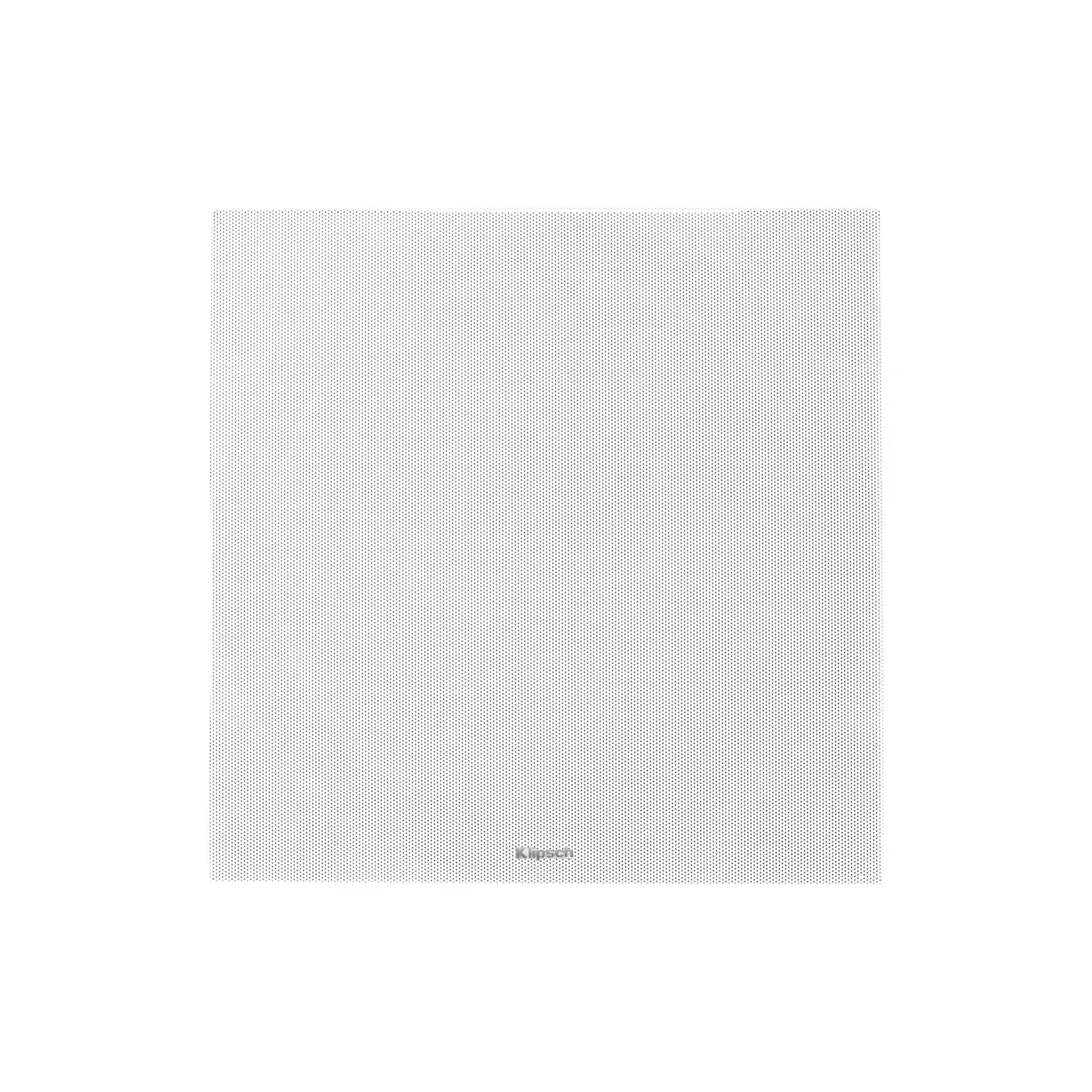

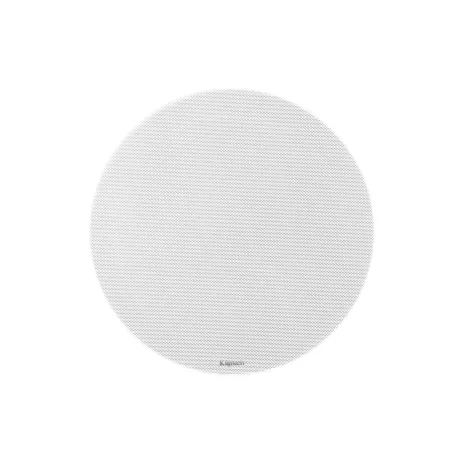

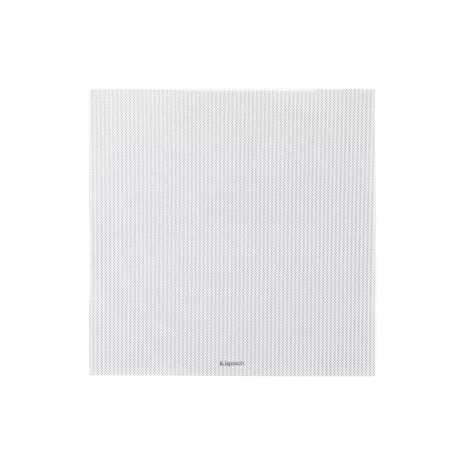

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but blend
in seamlessly with even the most luxurious interior designs. The
Professional Series Reference Premiere in-ceiling speakers include
both round and square grilles in the box, so they look great in any
space right out of the box.

PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.

SPECIFICATIONS
FREQUENCY RANGE 92Hz – 23kHz +/- 3dB
HIGH FREQUENCY DRIVER .75″ (1.9cm) Aluminum Dome Tweeter
LOW FREQUENCY DRIVER 3.5″ (8.89cm) IMG Woofer
SENSITIVITY 88 dB @ 2.83V / 1m
COVERAGE ANGLE 110°
POWER HANDLING 30W RMS / 120W Peak
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 4.86” W x 4.86” H x 4.5” D (12.3cm H x 12.3cm W x 11.3cm D)
MOUNTING DEPTH 4.34” (11.03cm)
CUTOUT DIMENSIONS 4.25” (10.8cm)
PRODUCT WEIGHT 4 lbs (1.8kg)
INCLUDED IN BOX Round Grille, Square Grille, Paint Shield
INSTALL KIT IK-400-C (Sold Separately)
BUILT FROM 2017
