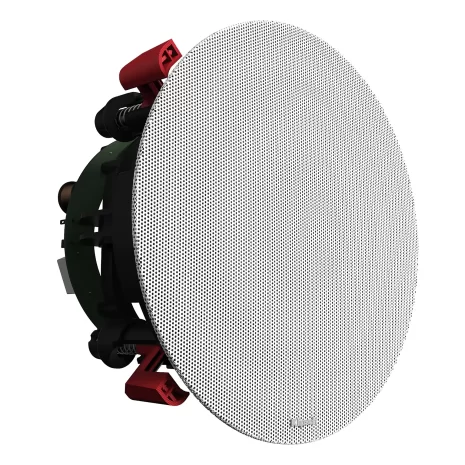

Klipsch PRO-16RC In-Ceiling Speaker

Klipsch PRO-16RC 6.5” In-Ceiling Speaker

TRUE REFERENCE ACOUSTICS
Using the same acoustic components and horn design as the
highly acclaimed Reference box speaker line, the Professional
Reference Architectural series perfectly combines the aesthetics of
an architectural speaker with the pure performance and dynamic

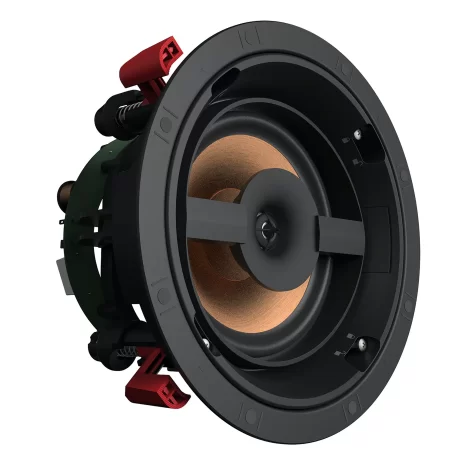

voicing of the Klipsch Reference series. With a 6.5” IMG woofer and
a 1” Aluminum Dome tweeter mated to a round Tractrix® horn, the
Pro-16RC brings dynamic, powerful, detailed Klipsch Reference sound
to your distributed audio or home theater system.

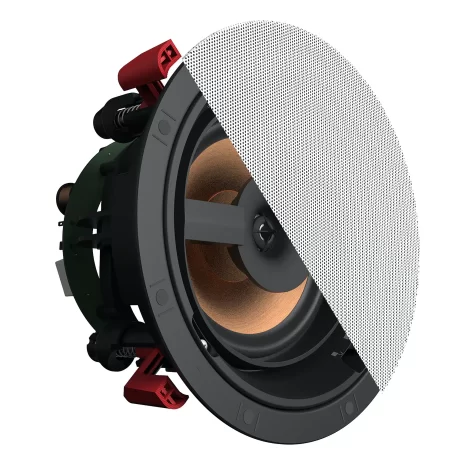

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.

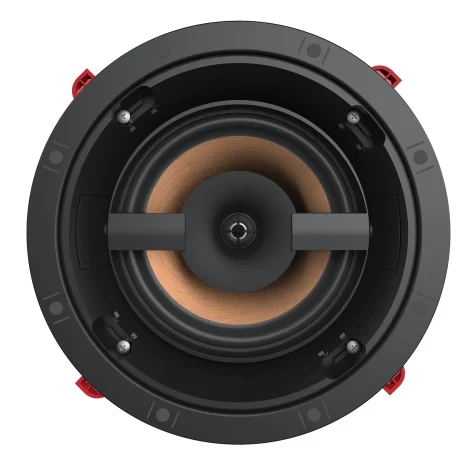

CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

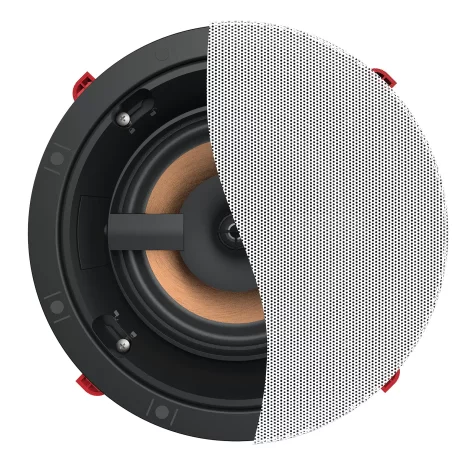

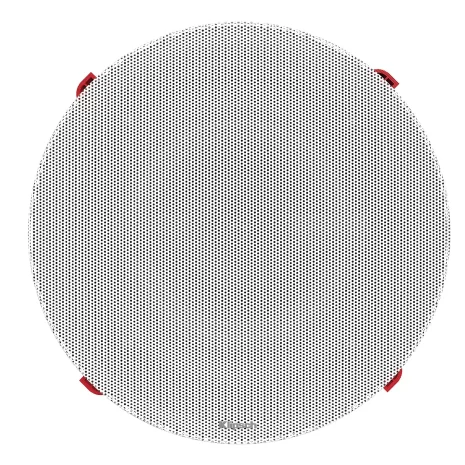

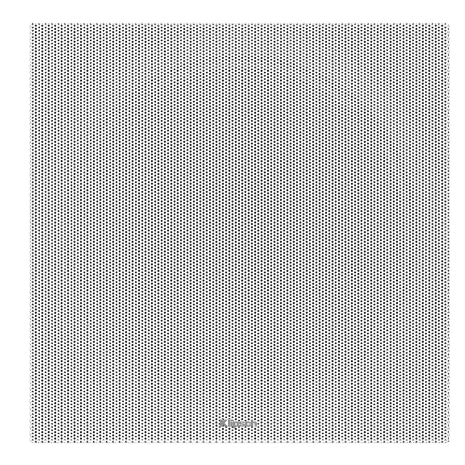

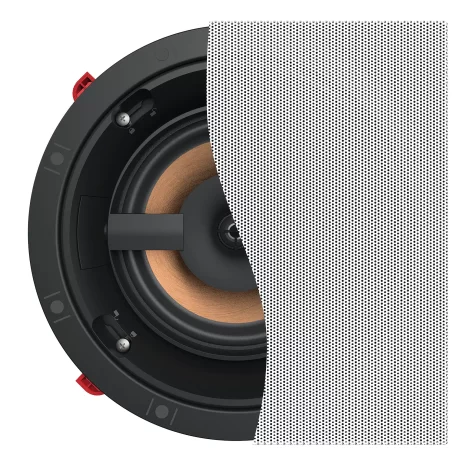

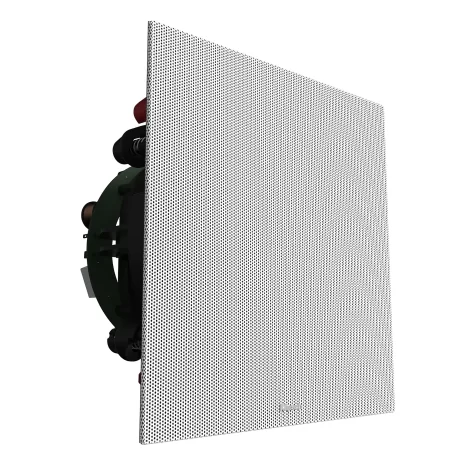

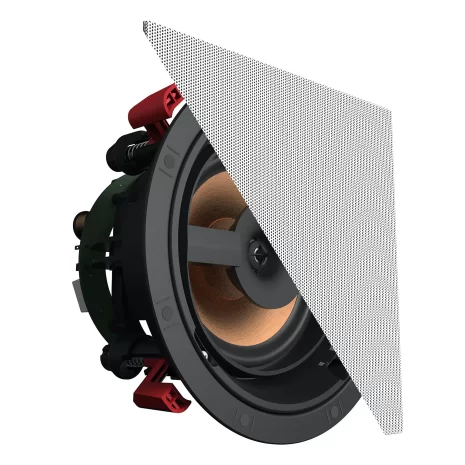

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but blend
in seamlessly with even the most luxurious interior designs. The
Professional Series Reference Premiere in-ceiling speakers include
both round and square grilles in the box, so they look great in any
space right out of the box.

PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.

SPECIFICATIONS
FREQUENCY RANGE 63Hz – 23kHz +/- 3dB
HIGH FREQUENCY DRIVER 1″ (2.54cm) Aluminum Dome Tweeter mated to a round
Tractrix® Horn
LOW FREQUENCY DRIVER 6.5″ (16.51cm) IMG Woofer
SENSITIVITY 94 dB @ 2.83V / 1m
COVERAGE ANGLE 100°
POWER HANDLING 50W RMS / 200W Peak
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 9.33” W x 9.33” H x 6.38” D (23.7cm H x 23.7cm W x 16.2cm D)
MOUNTING DEPTH 6.14” (15.6cm)
CUTOUT DIMENSIONS 8.15” (20.7cm)
PRODUCT WEIGHT 7.47 lbs (3.39kg)
INCLUDED IN BOX Round Grille, Square Grille, Paint Shield
INSTALL KIT IK-650-C II (Sold Separately)
