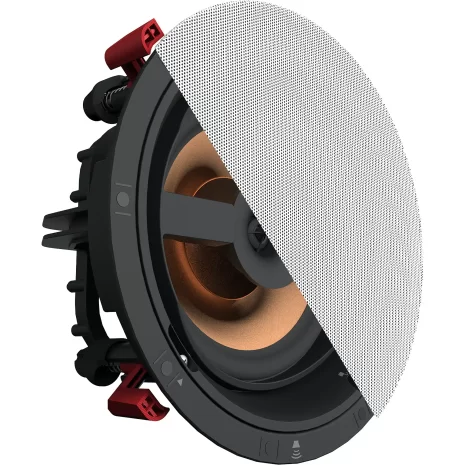

Klipsch PRO-18RC In-Ceiling Speaker

Klipsch PRO-18RC 8” In-Ceiling Speaker

TRUE REFERENCE ACOUSTICS
Using the same acoustic components and horn material as the highly
acclaimed Klipsch Reference box speaker line, the Professional
Reference Architectural series perfectly combines the aesthetics of
an architectural speaker with the pure performance and dynamic
voicing of the Klipsch Reference series. With an 8” IMG woofer and
a 1” Aluminum Dome Tweeter mated to a round Tractrix® horn, the
Pro-18RC brings dynamic, powerful, detailed Klipsch Reference sound
to your distributed audio or home theater system.

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs
to be engaged by hand to a preset clamping force, eliminating the
possibility of overtorquing, which can lead to breaking the dog leg
or cracking the drywall. The speaker module is then screwed to the
bezel (using machine screws instead of traditional drywall screws) for
a more robust, acoustically stable installation than the competition.

CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but
blend in seamlessly with even the most luxurious interior
designs.

PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.

SPECIFICATIONS
FREQUENCY RANGE 56Hz – 23kHz +/- 3dB
HIGH FREQUENCY DRIVER 1″ (2.54cm) Aluminum Dome Tweeter mated to a round
Tractrix® Horn
LOW FREQUENCY DRIVER 8″ (20.32cm) IMG Woofer
SENSITIVITY 95 dB @ 2.83V / 1m
COVERAGE ANGLE 100°
POWER HANDLING 50W RMS / 200W Peak
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 10.91” W x 10.91” H x 6.57” D (27.7cm H x 27.7cm W x 16.7cm D)
MOUNTING DEPTH 6.34” (16.1cm)
CUTOUT DIMENSIONS 9.72” (24.7cm)
PRODUCT WEIGHT 9.63 lbs (4.37kg)
INCLUDED IN BOX Round Grille, Square Grille, Paint Shield
INSTALL KIT IK-800-C II (Sold Separately)
