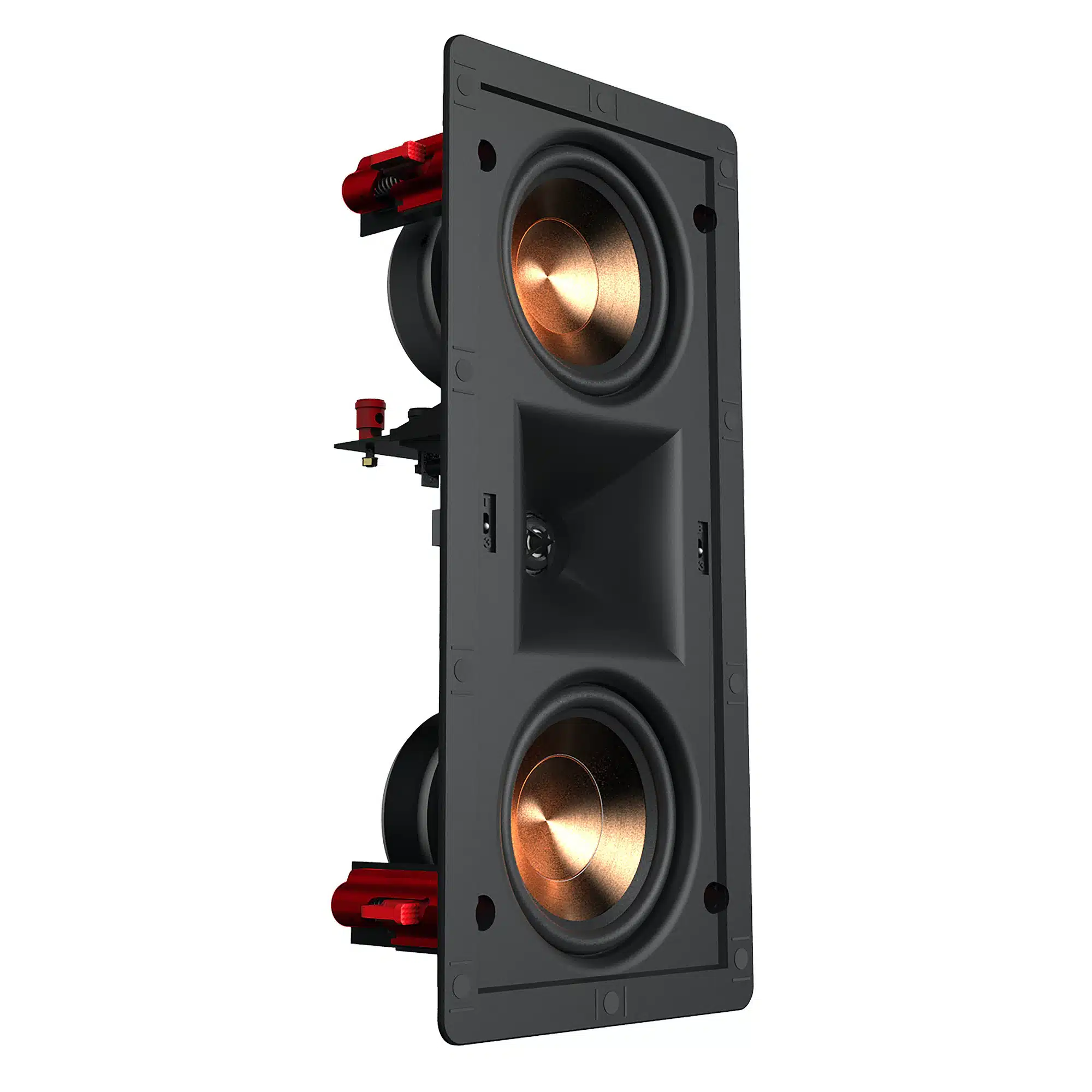

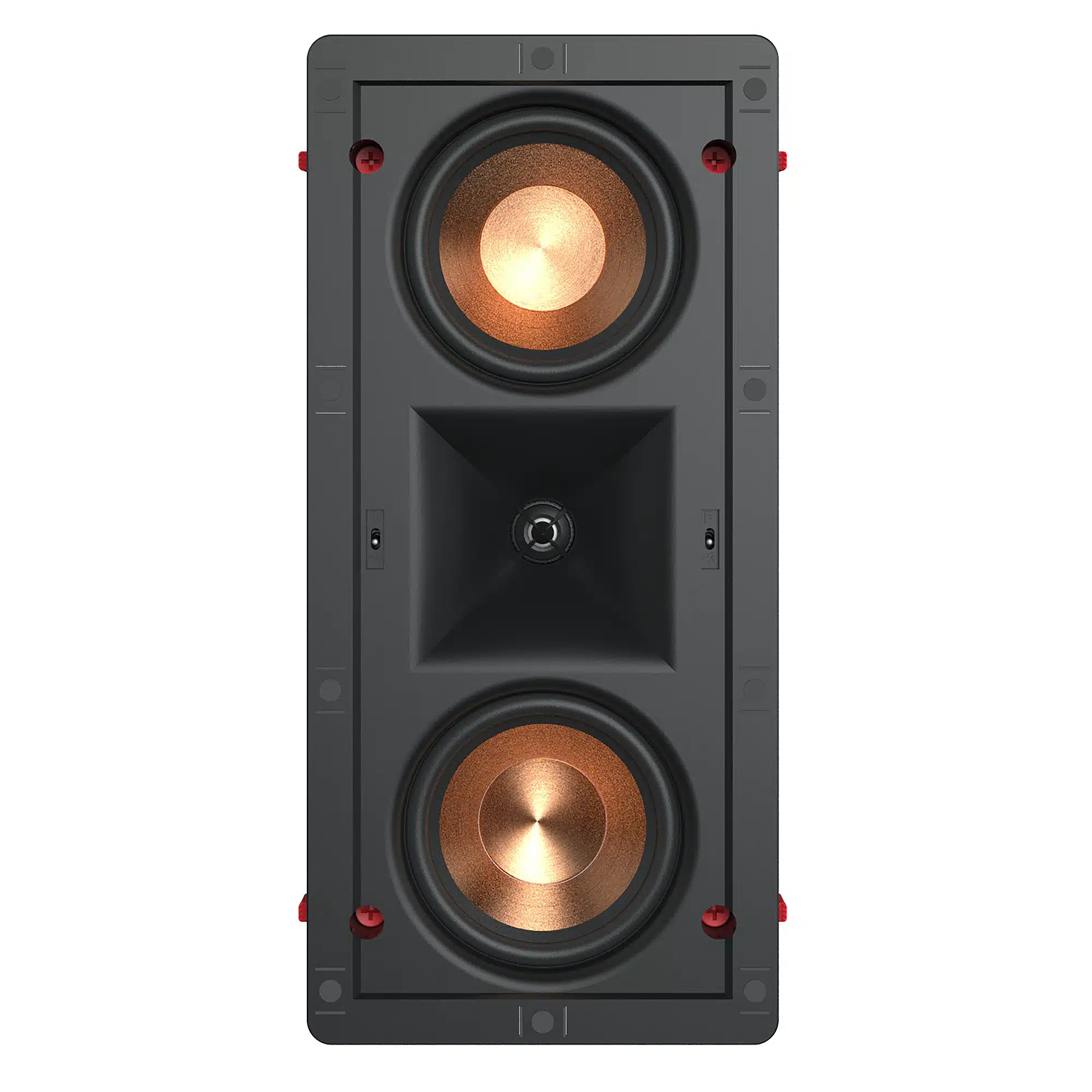

Klipsch PRO-24RW In-Wall LCR Speaker

TRUE REFERENCE ACOUSTICS IN A SMALL PACKAGE
Using the same acoustic components and horn design as the highly
acclaimed Klipsch Reference box speaker line, the Professional
Reference Architectural series perfectly combines the aesthetics of
an architectural speaker with the pure performance and dynamic
voicing of the Klipsch Reference series. With dual 4” IMG woofers
and a 1” Aluminum Dome tweeter, the Pro-24RW LCR brings dynamic,
powerful, detailed Klipsch Reference sound to your distributed audio
or home theater system in a small aperture in-wall package.

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

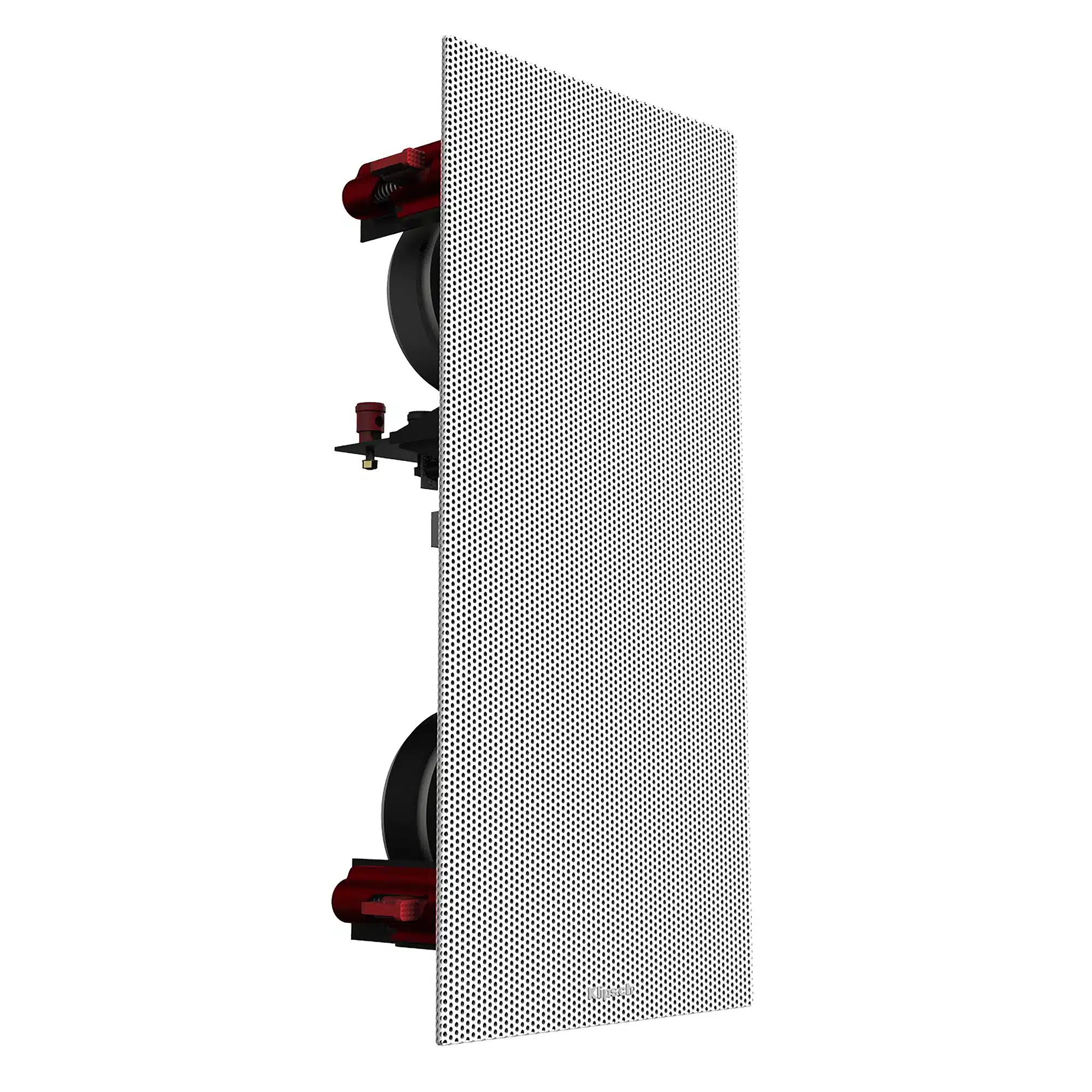

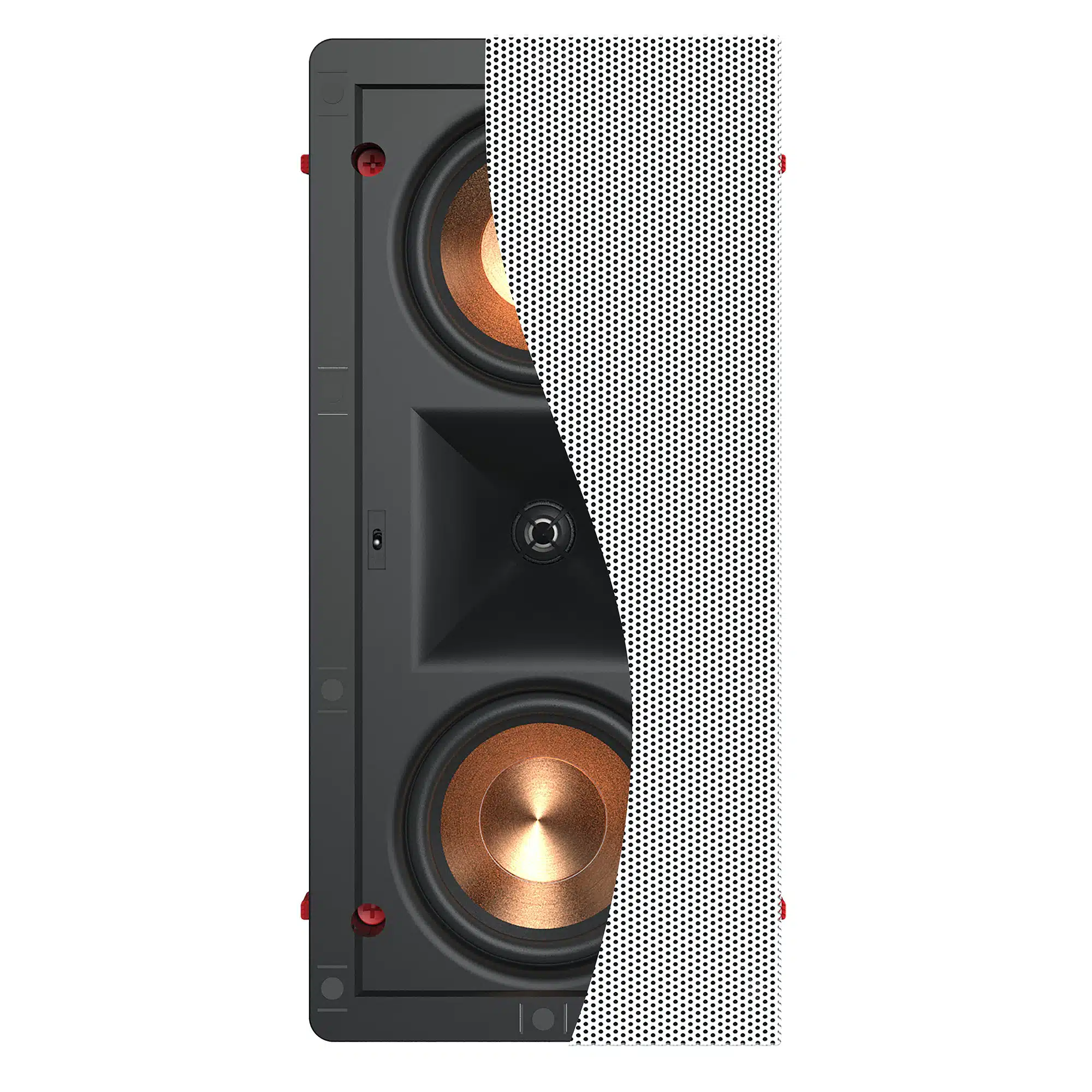

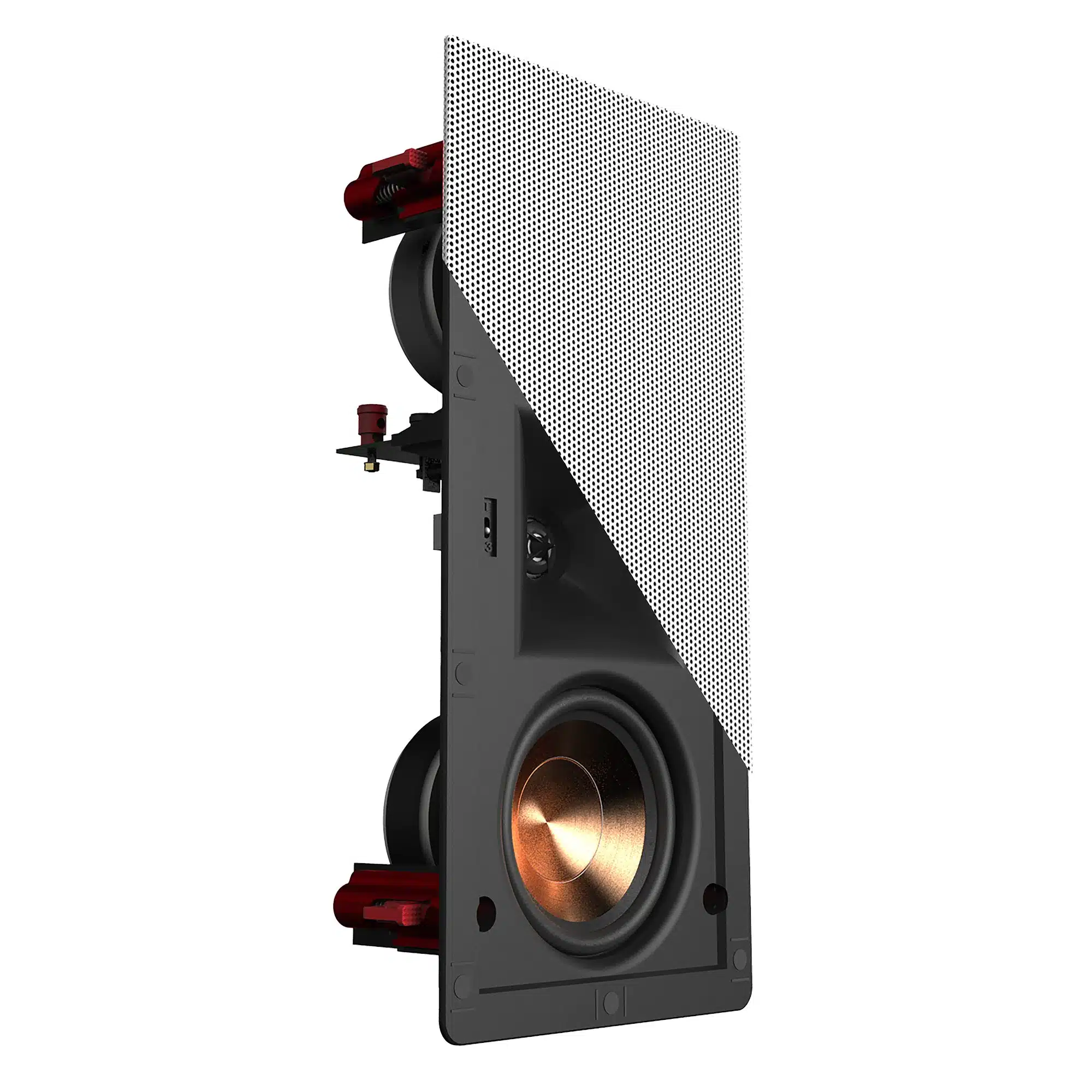

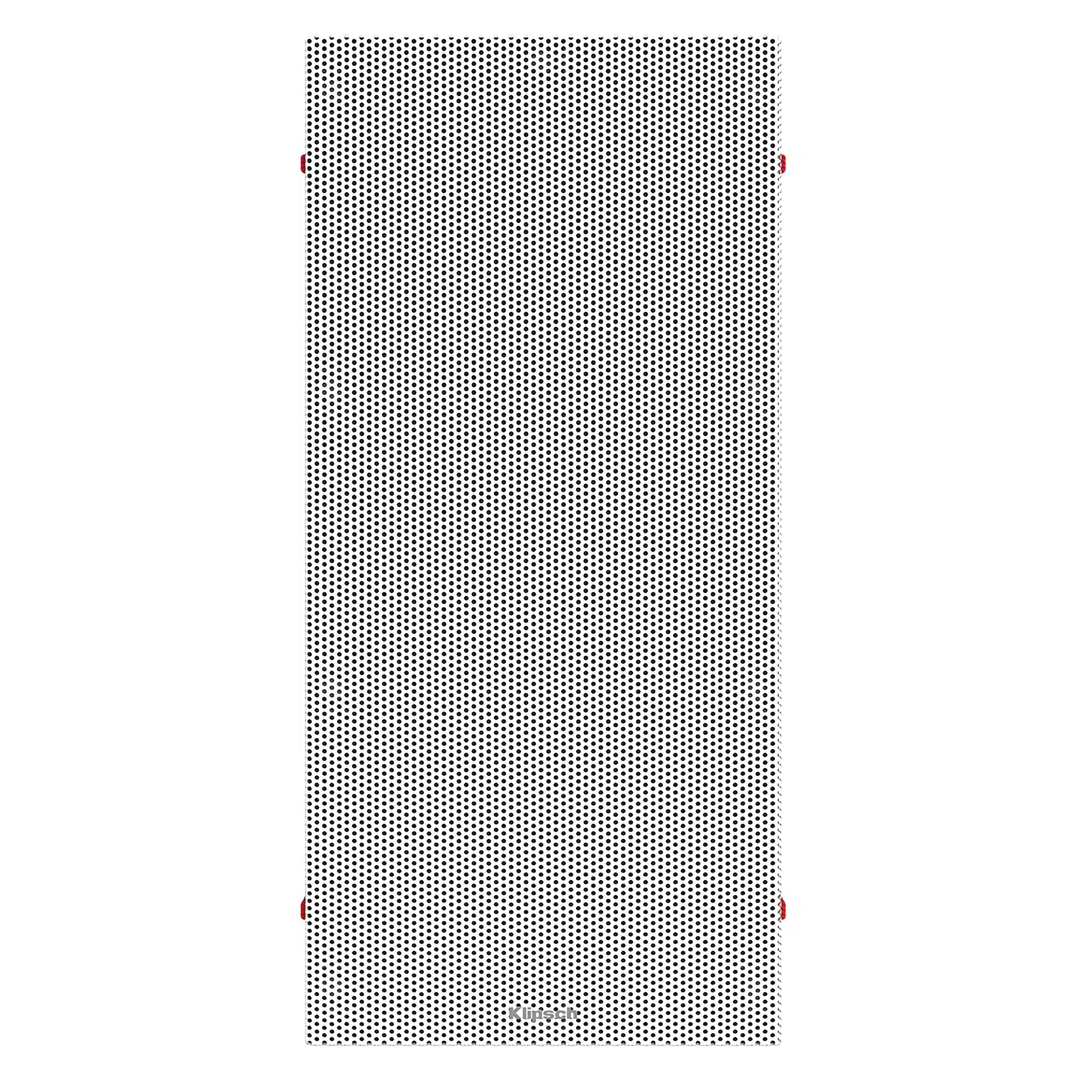

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to
cover the speaker module to protect it from paint or construction
dust during renovations or remodels.

SPECIFICATIONS
FREQUENCY RANGE 90Hz – 23kHz +/- 3dB
HIGH FREQUENCY DRIVER 1″ (2.54cm) Aluminum Dome Tweeter
LOW FREQUENCY DRIVER Dual 4″ (10.16cm) IMG Woofers
SENSITIVITY 89 dB @ 2.83V / 1m
COVERAGE ANGLE 90° x 90°
POWER HANDLING 30W RMS / 120W Peak
IMPEDANCE 4 Ohm
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 6.2” W x 13.3” H x 3.4” D (15.75cm H x 31.8cm W x 8.6cm D)
MOUNTING DEPTH 3.3” (8.3cm)
CUTOUT DIMENSIONS 12.5” H X 5.4” W (31.75cm H X 13.7cm W)
PRODUCT WEIGHT 4.5lbs (2.1kg)
INCLUDED IN BOX Flat Magnetic Grille, Paint Shield
INSTALL KIT IK-402-W (Sold Separately)
BUILT FROM 2017
