Klipsch PRO-800SW In-Wall Subwoofer

DISCRETE LOW FREQUENCIES

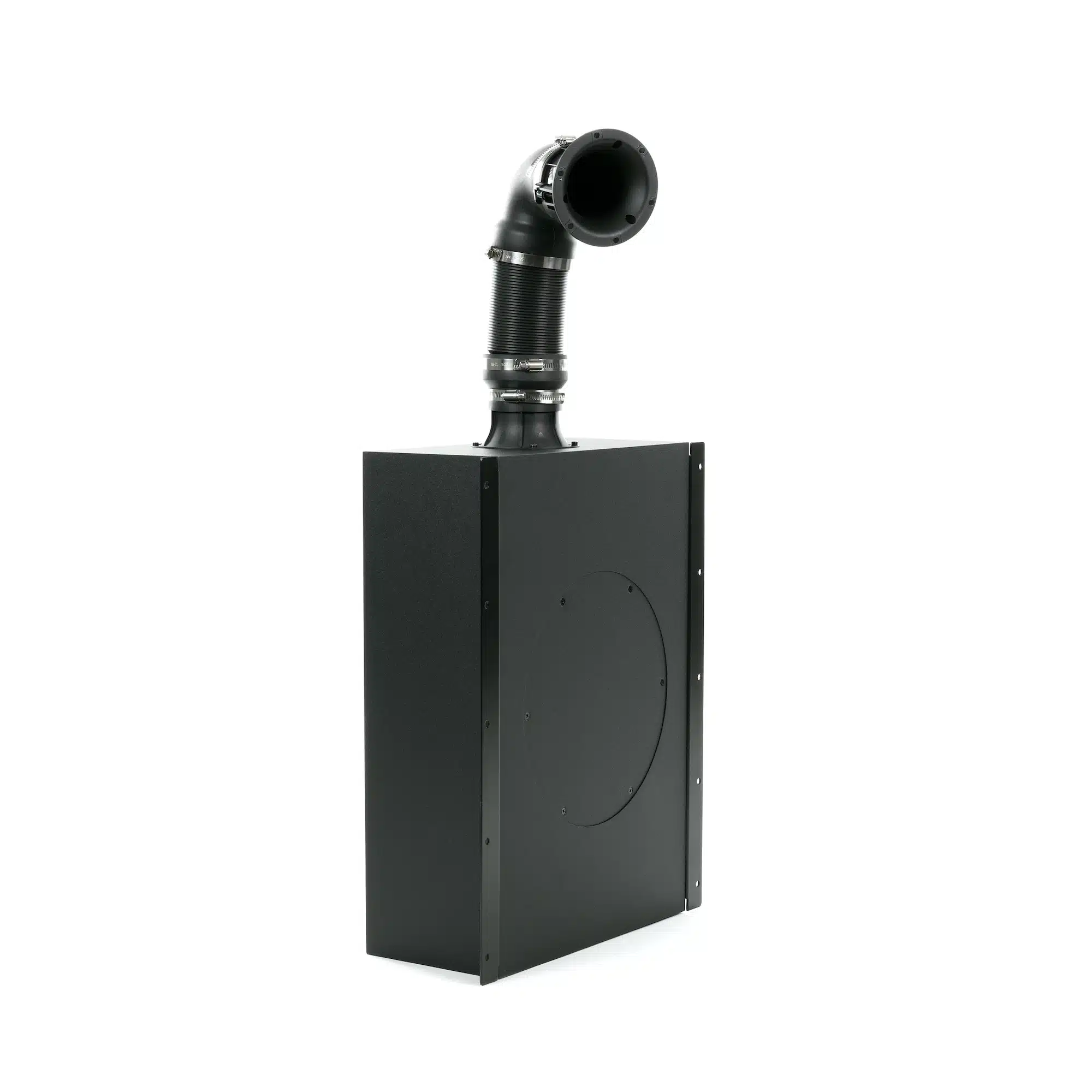

The PRO-800SW provides clean, dynamic low frequencies to support
distributed audio or small home theater systems, while its bandpass
design allows for a minimal visual footprint in the room. The robust,
flexilble port tube opens to just a 4.5” opening with a flat magnetic
grille that matches the diameter of most down can lights – for a
clean, modern look in any interior space.

HIGH PERFORMANCE ACOUSTICS

8” long-throw Cerametallic™ woofer provides dynamic, balanced low
frequencies, while the dual voice coil design allows for maximum
system design flexibility. Maximize the output and acoustic
performance using the KDA Series DSP amplifiers, which include
presets for optimized EQ and limiter settings custom designed by
Klipsch engineers specifically for the PRO-800SW.

PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM

The exclusive installation system engages the ceiling connector
dog legs automatically when it is inserted into the cutout hole,
eliminating the need for a screwdriver or drill, and greatly reducing
installation time.

MDF ENCLOSURE

The durable, robust MDF enclosure, provides accurate, powerful low
frequencies while helping to isolate sound from neighboring rooms.

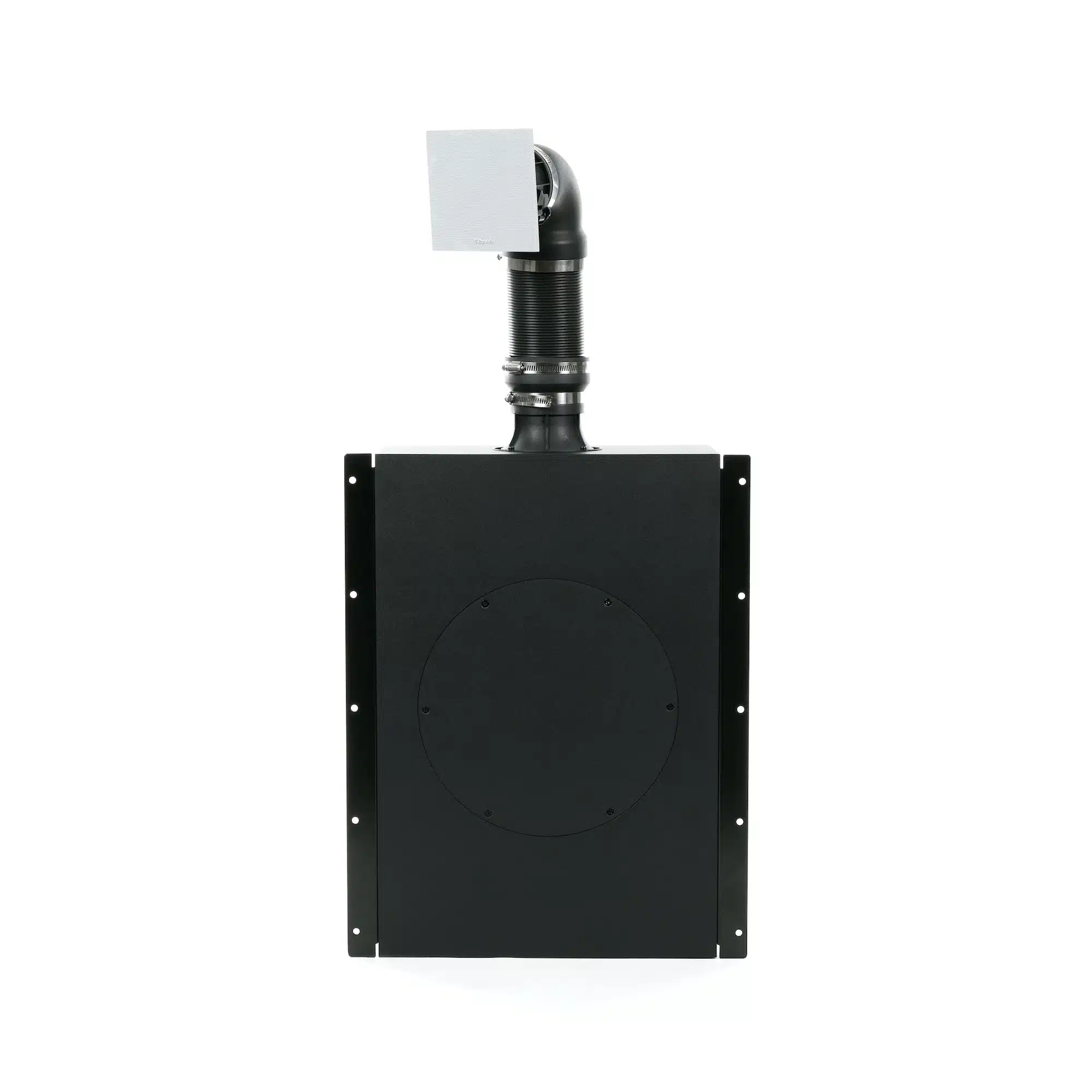

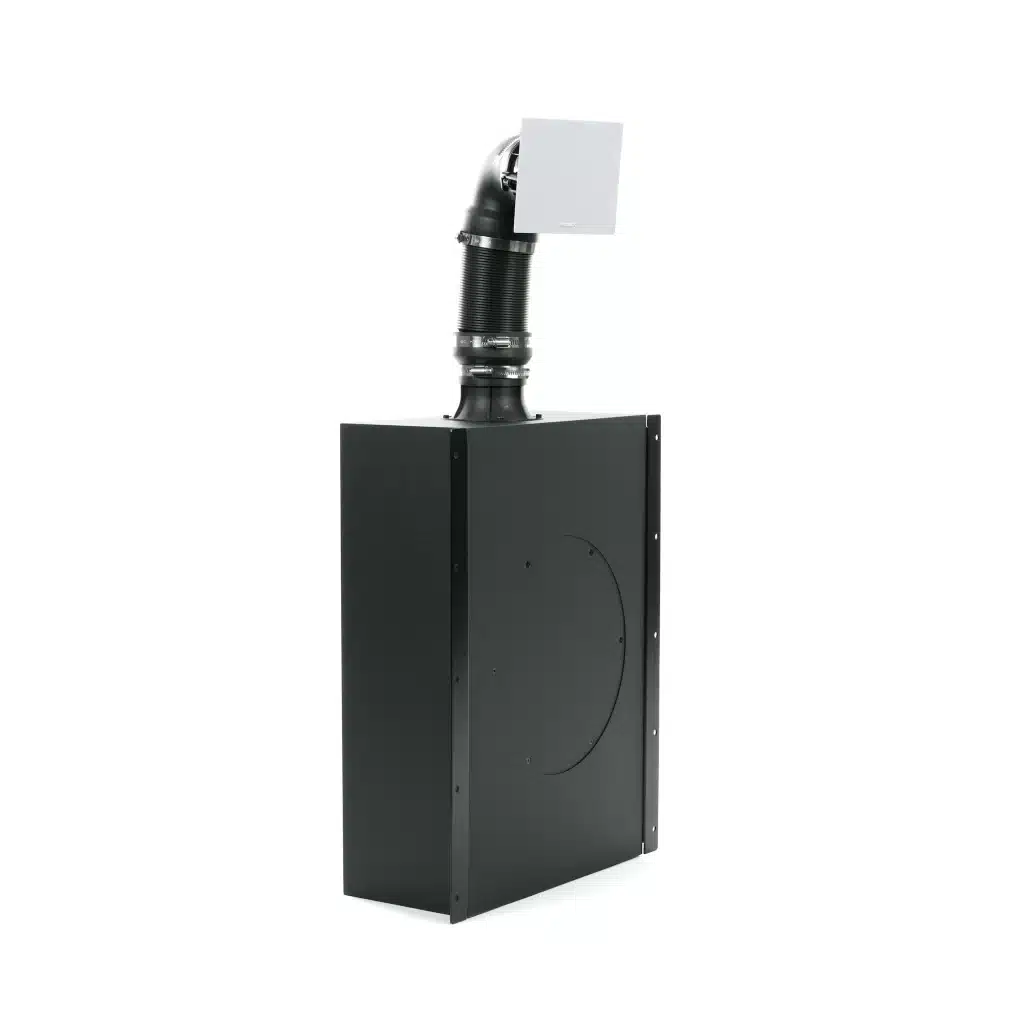

MAGNETIC, PAINTABLE GRILLE

Magnetic, bezel-free, paintable grille blends seamlessly into even the
most luxurious of living spaces and home theaters.

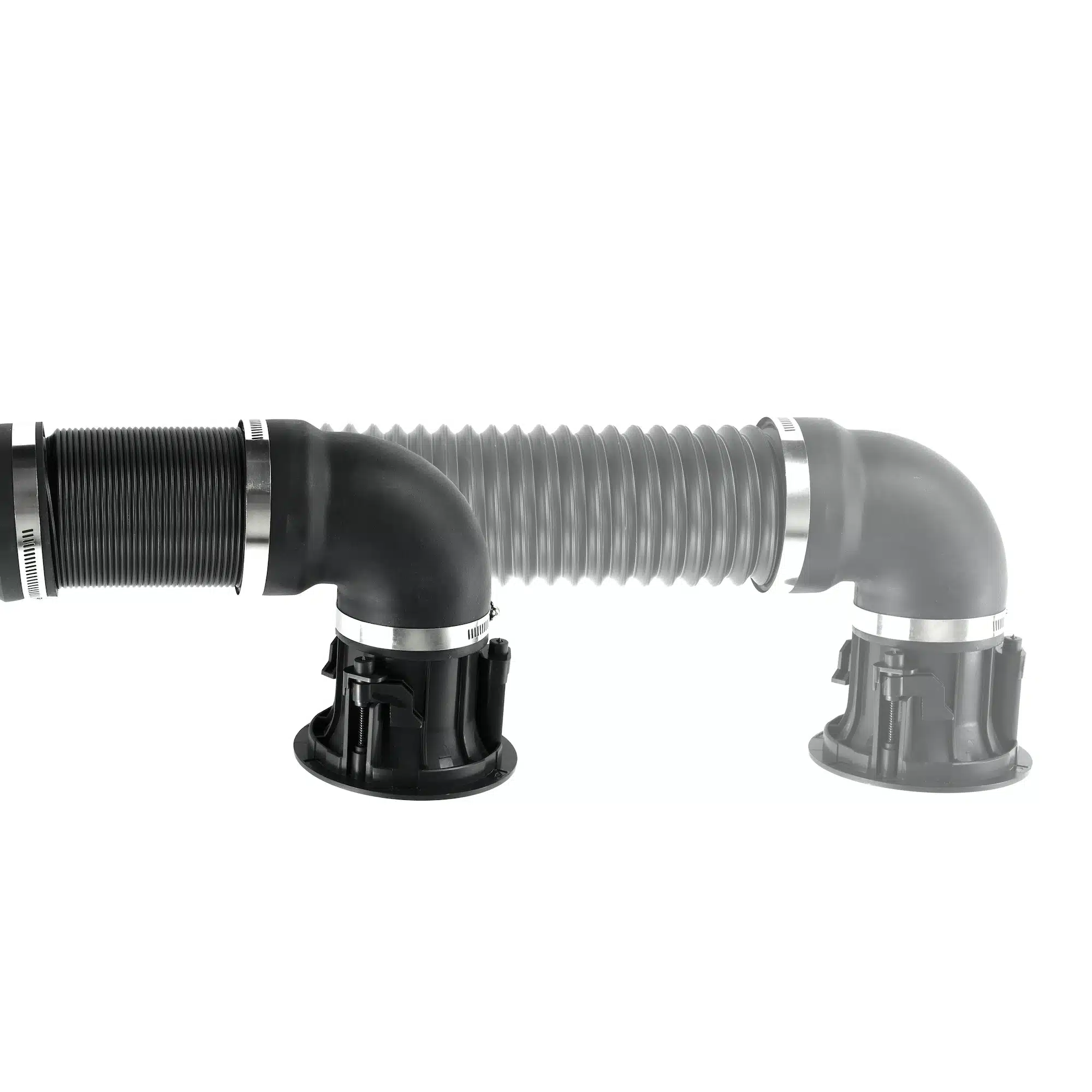

FLOOR VENT KIT ACCESSORY

Also available is a vent boot kit, allowing the PRO-800SW port tube to
connect to a 4”x10” floor vent, for more discrete termination.
(Sold Separately)

SPECIFICATIONS
FREQUENCY RANGE* 38Hz – 125Hz +/- 3dB
SYSTEM TYPE Bandpass via flexible port tube
WOOFER 8″ (203cm) Dual Voice Coil Long-Throw Cerametallic™
MAXIMUM OUTPUT* 103dB @ 70Hz
POWER HANDLING 125W RMS / 300W Peak
IMPEDANCE 2 x 8 Ohm
ENCLOSURE MATERIAL MDF
FINISH Black Polymer Veneer with White, Paintable Grille
PRODUCT DIMENSIONS Cabinet: 6.9” H x 21.1” W x 14.2” D (176mm x 536mm x 361mm)
Grille: 5” (127mm)
MOUNTING DEPTH 7” (178mm)
CUTOUT DIAMETER 4.25” (108mm)
PRODUCT WEIGHT 22.1 lbs (10.1 kg)
ACCESSORIES PRO-800SW Vent Boot Kit (Sold Separately)
BUILT FROM 2017
