Klipsch R-121SW Subwoofer

Klipsch R-121SW Subwoofer Specifications:

• FREQUENCY RANGE: 28Hz – 120Hz
• MAXIMUM ACOUSTIC OUTPUT: 118 dB
• AMPLIFIER: All Digital
• AMPLIFIER POWER: (CONT/PEAK) 200W/400W

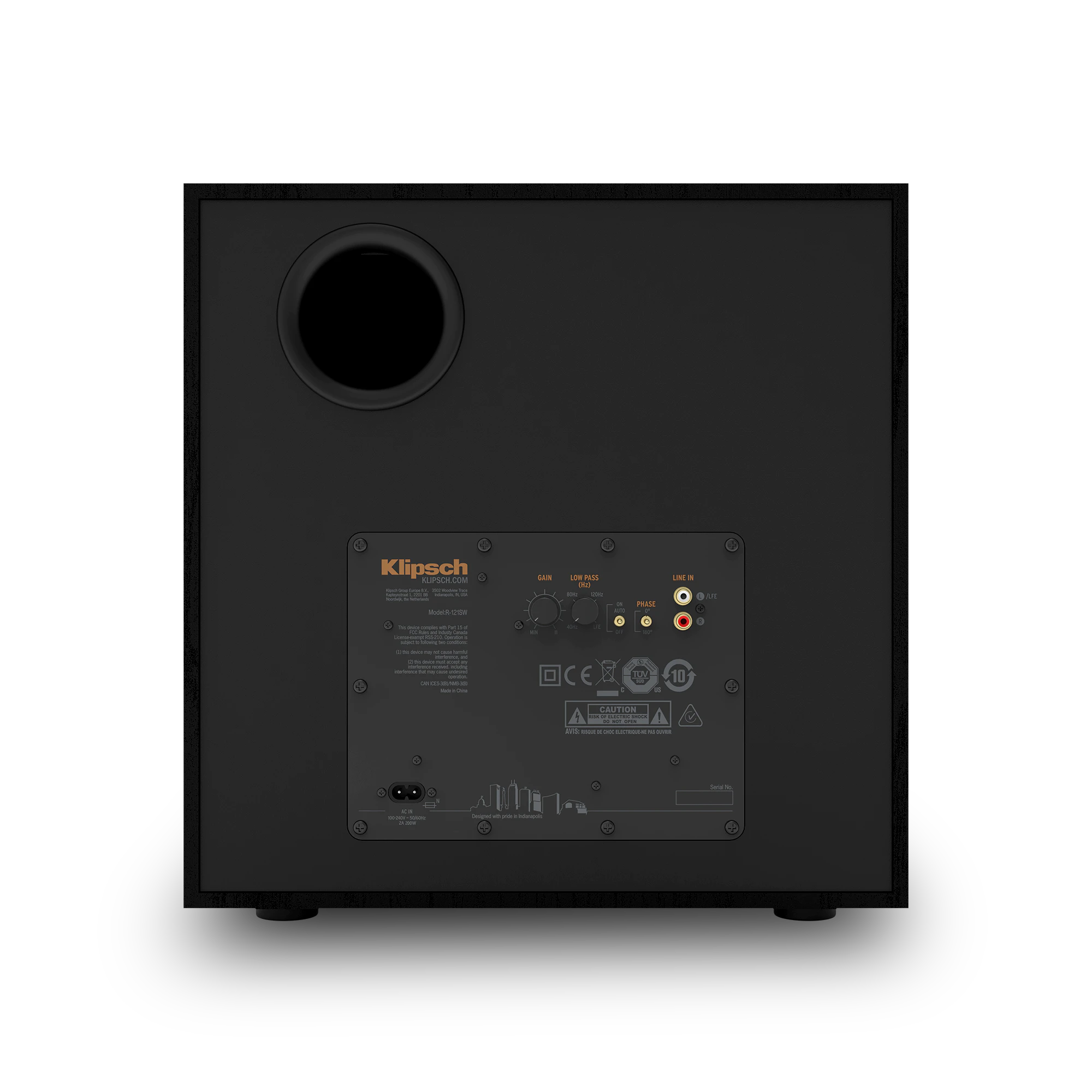

• AMPLIFIER FEATURES: Volume, Low-pass, 0/180 phase, Auto Power On
• DRIVER COMPONENTS: 12″ high excursion spun-copper TCP woofer
• ENCLOSURE MATERIAL: MDF

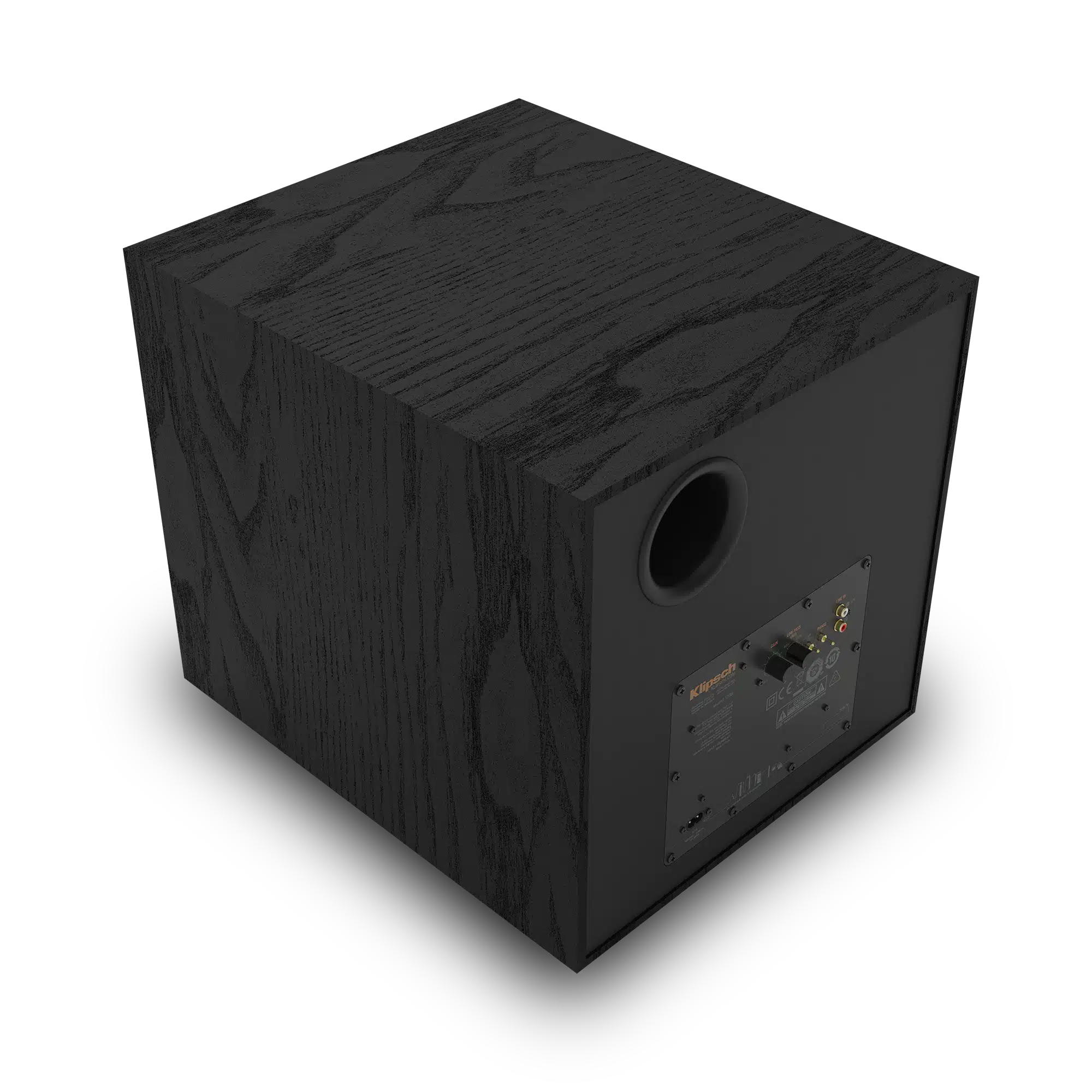

• ENCLOSURE TYPE: Bass-Reflex via rear-firing port
• INPUTS: Line level/LFE RCA jacks
• HEIGHT: INCHES (MM) 16.6″ (421 mm)
• WIDTH: INCHES (MM) 16″ (406 mm)
• DEPTH: INCHES (MM) 19.7″ (500mm)
• PRODUCT WEIGHT: LBS (KG) 35 lbs (16.0 kg)
• FINISHES: Black Textured Wood Grain Vinyl

SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Thermoformed Crystalline Polymer (TCP) woofers are exceptionally light while being
extremely rigid and tightly packed – providing remarkable low frequency response,
with minimal cone breakup and distortion without degradation.

ALL-DIGITAL AMPLIFIER
The built-in, all-digital amplifier delivers ample power with high efficiency and true-tosource accuracy in reproduction, ensuring maximum efficiency for maximum output,
detail, and power.

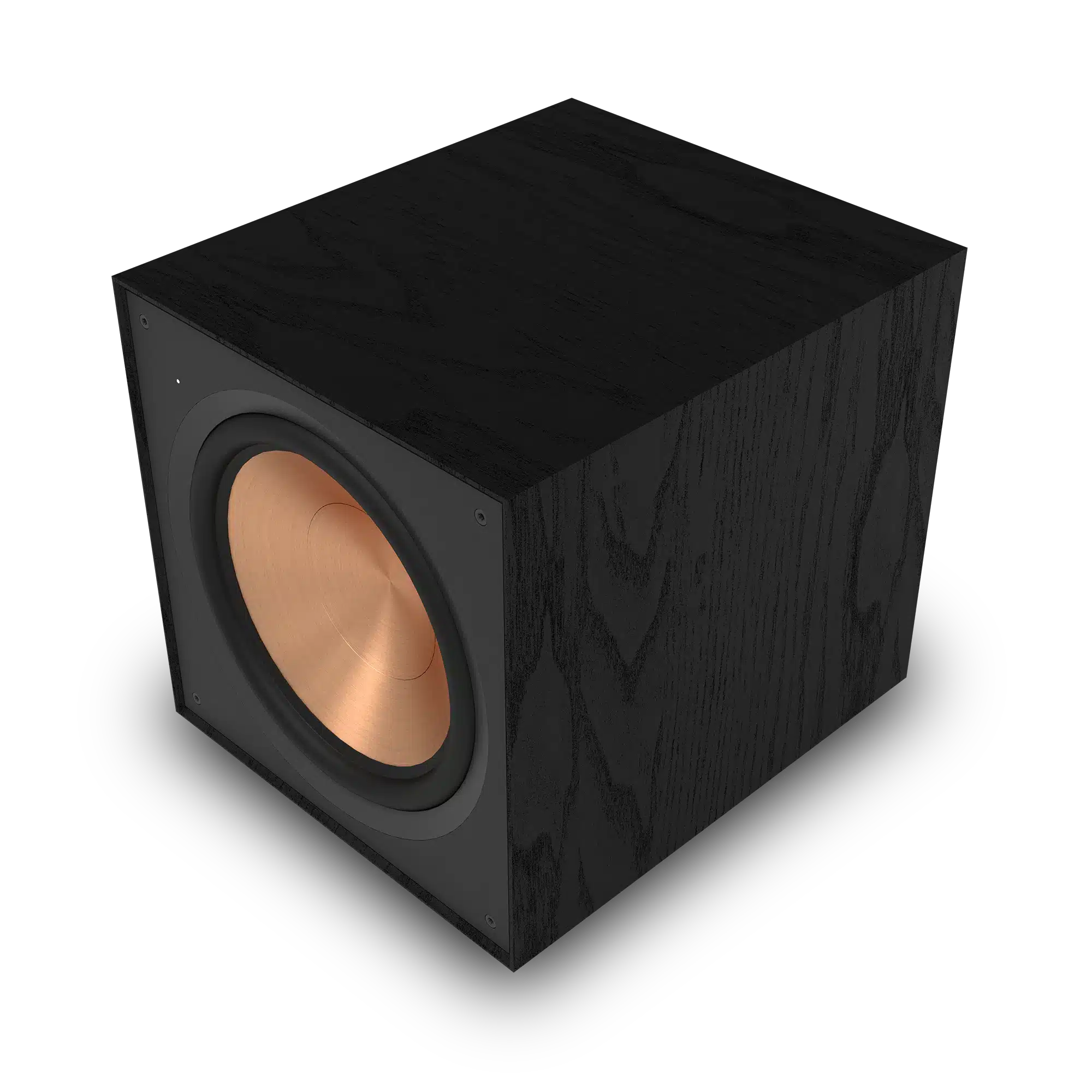

FRONT-FIRING DRIVER
The high-performance driver provides deep bass and room placement flexibility.

LOW PASS CROSSOVER AND PHASE CONTROL
Ensures the subwoofer’s low-frequency tones blend with other Klipsch speakers and
establish the ideal level of bass for your room.

LINE/LFE INPUTS
Ensures compatibility with home theater receivers.

MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into
any décor.

HIGH QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet
vibration for less audible coloration and improved sonic accuracy.

FRONT-MOUNTED LED POWER INDICATOR
Indicates when the system is on or off.

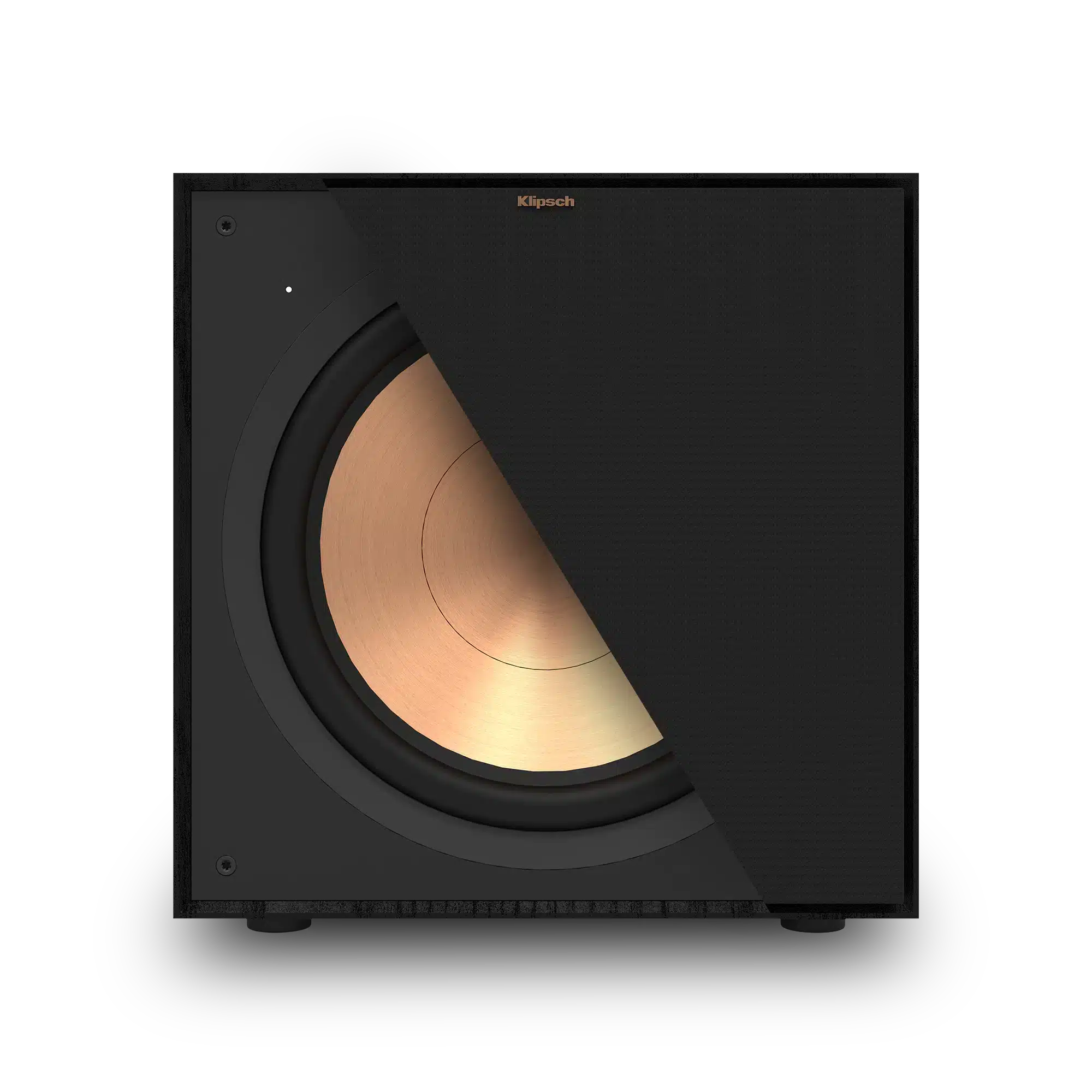

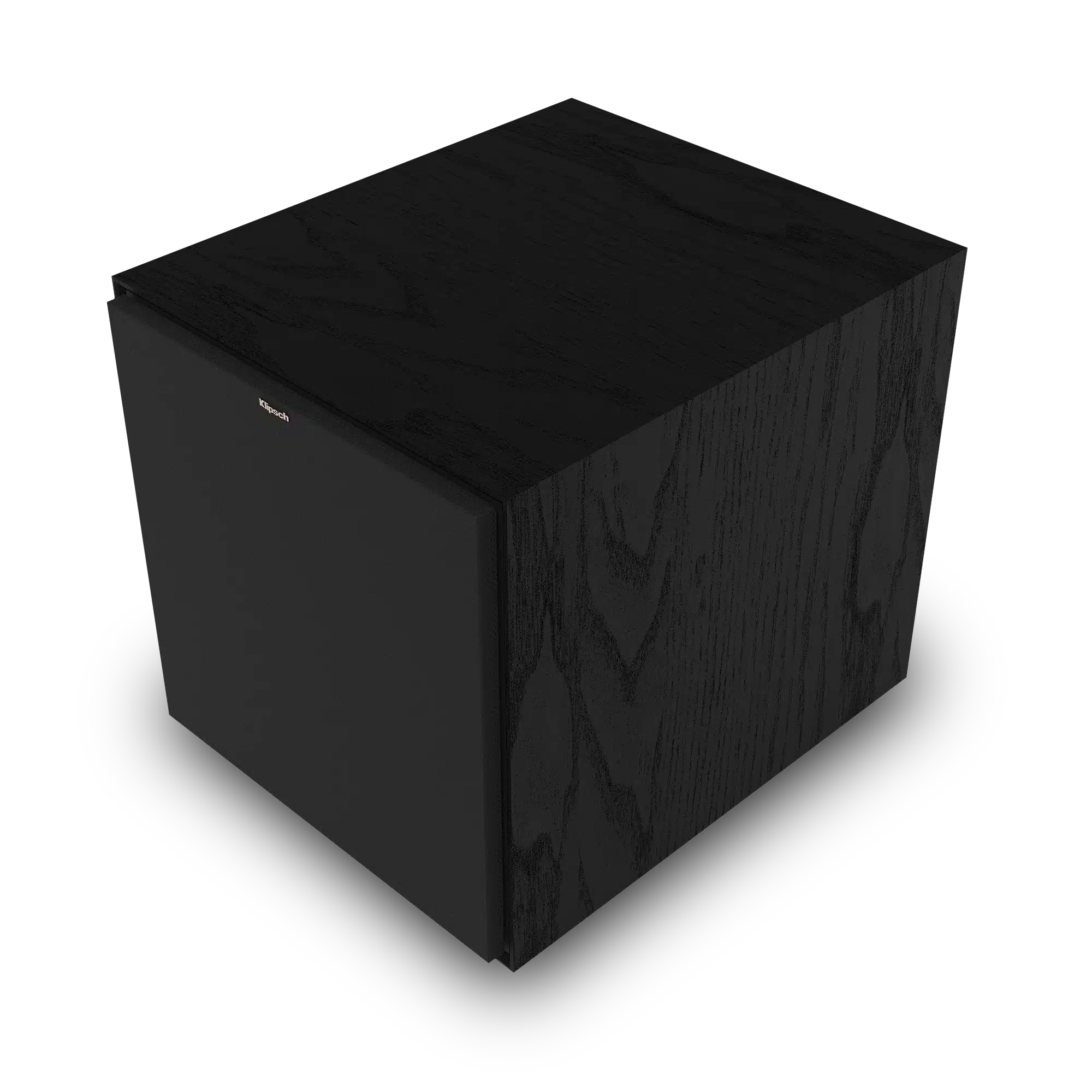

LOW PROFILE GRILLE
Adds a refined look that is acoustically transparent.
