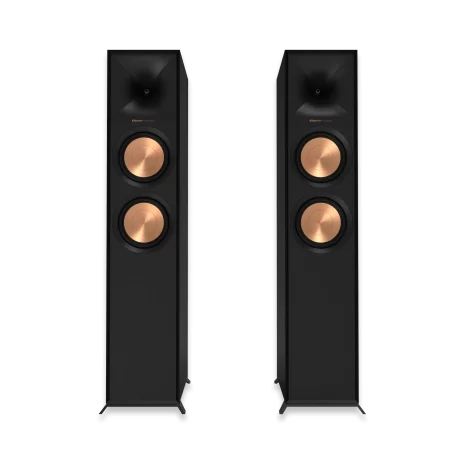

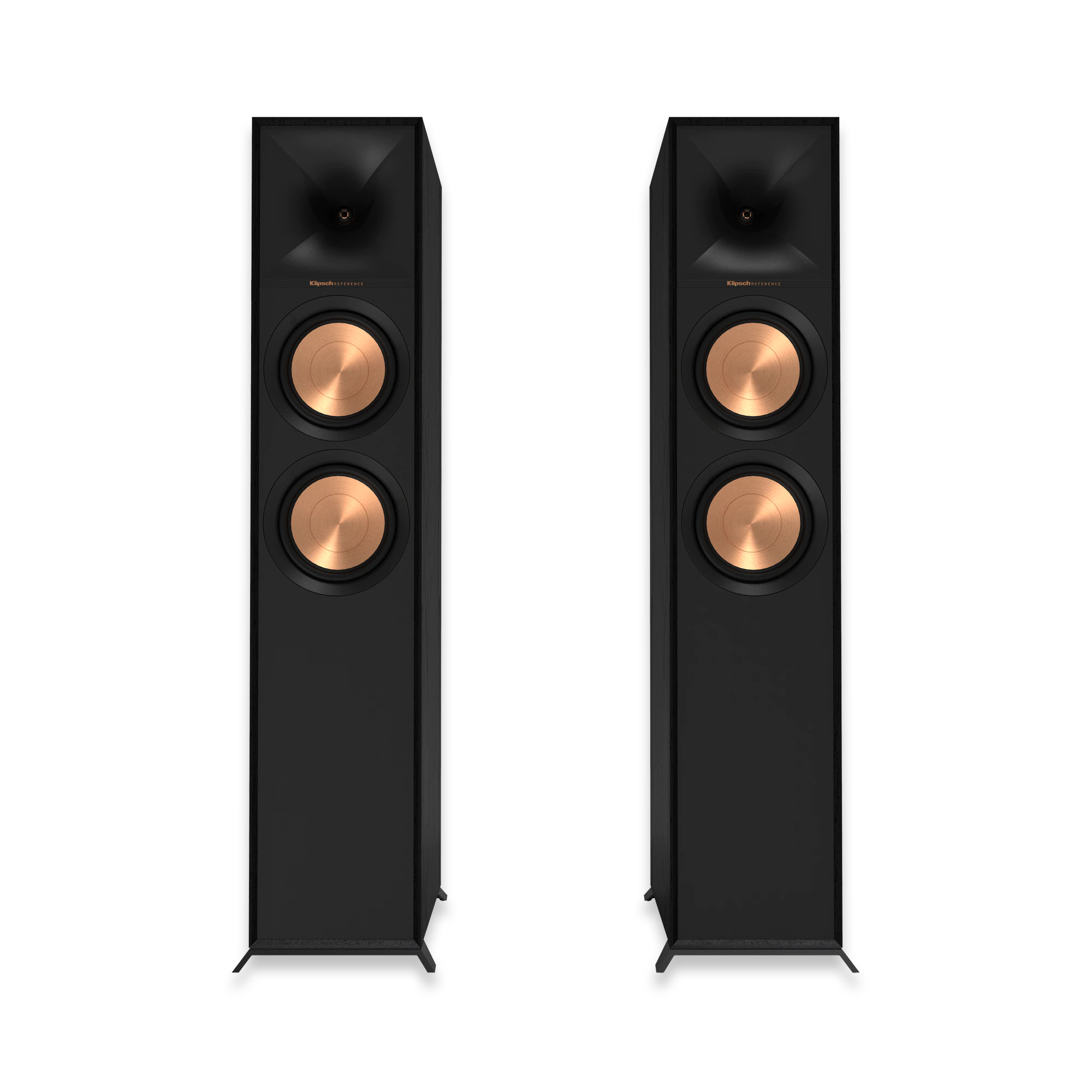

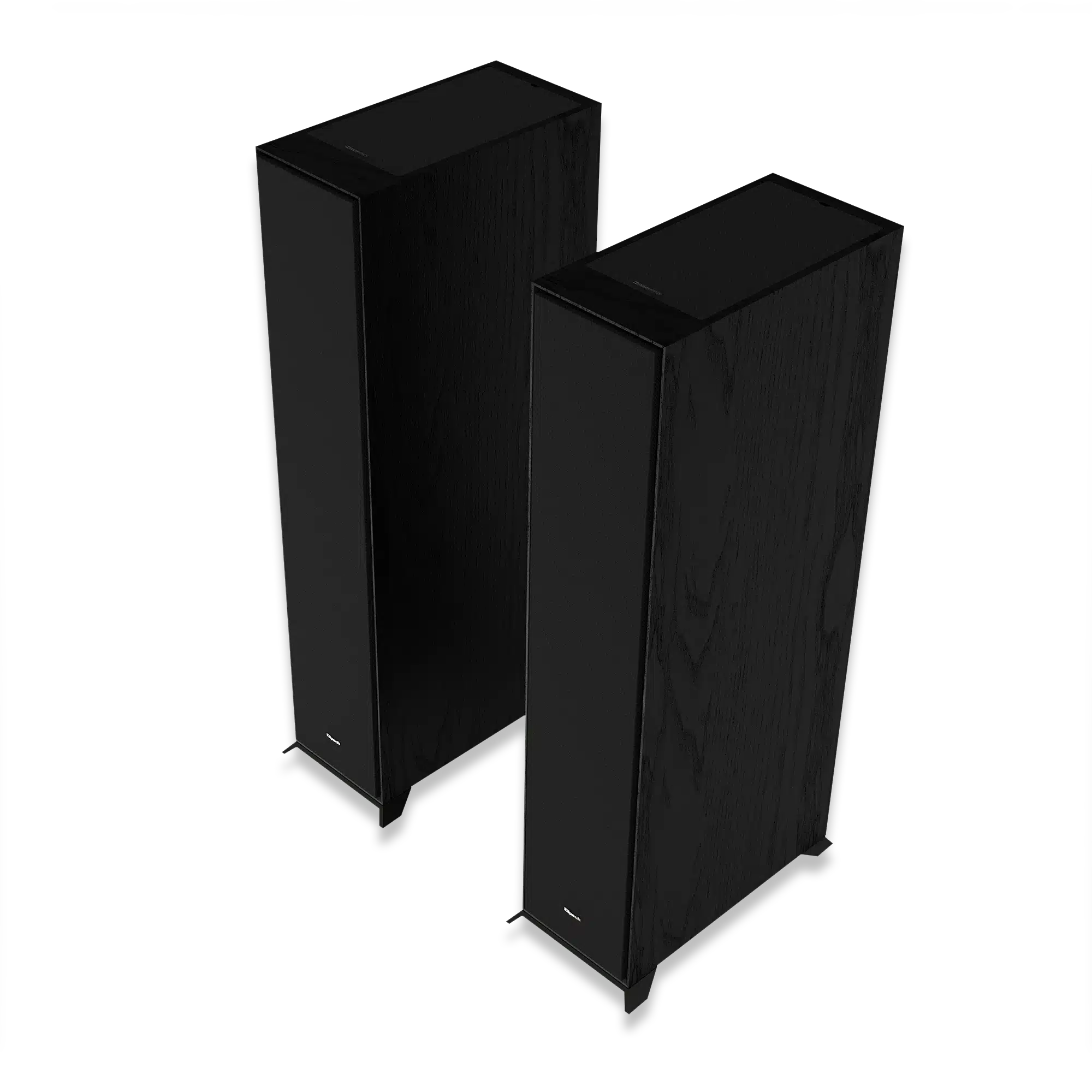

Klipsch R-605FA Dolby Atmos Floorstanding Speakers
The Klipsch R-605FA Floorstanding Speaker is designed to bring you immersive 360-degree sound thanks to the integrated up-firing Dolby Atmos speakers. Rich and detailed sound is assured thanks to all-new proprietary technologies including the 90 x 90 degrees Tractrix horn and the Linear Travel Suspension tweeter. The rear Tractrix port creates optimal airflow thats free of distortion even at the lowest frequencies. Perfect for all your entertainment including TV movies games and music the Klipsch Reference speakers boast a sleek and modern appearance for any home cinema or living space.
Klipsch R-605FA Specifications:
Main Channel:
- FREQUENCY RESPONSE: 38Hz – 21kHz +/- 3dB
- SENSITIVITY*: 96 dB (In-Room)
- POWER HANDLING: (CONT/PEAK) 100W/400W
- NOMINAL IMPEDANCE: 8 ohms Compatible
- CROSSOVER FREQUENCY: 1,440 Hz
- HIGH FREQUENCY DRIVER: 1″ Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn - LOW FREQUENCY DRIVER: Dual 6.5″ spun-copper TCP woofers
- ENCLOSURE MATERIAL: MDF
- ENCLOSURE TYPE: Bass-Reflex via rear-firing Tractrix®ports
- INPUTS: Single Gold Plated Binding Posts
- HEIGHT: INCHES (MM) 40″ (1017 mm)
- WIDTH: INCHES (MM) 9.5″ (240 mm)
- DEPTH: INCHES (MM) 18.2″ (463 mm)
- PRODUCT WEIGHT: LBS (KG) 50 lbs (22.7 kg)
- FINISH: Black Textured Wood Grain Vinyl
- INCLUDED ACCESSORIES: Injection molded feet & screws
Height Channel:
- FREQUENCY RESPONSE: Conforms to Dolby Atmos Specifications
- SENSITIVITY: Conforms to Dolby Atmos Specifications
- POWER HANDLING: 75W/150W
- NOMINAL IMPEDANCE: 8 ohms Compatible
- HIGH FREQUENCY DRIVER: 1″ Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn - LOW FREQUENCY DRIVER: 5.25″ spun-copper IMG woofer
- ENCLOSURE TYPE: Acoustic Suspension
- INPUTS: Single Gold Plated Binding Posts
ALL NEW 90° X 90° TRACTRIX HORN
TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS
Our proprietary speaker technologies are ideal for delivering the most immersive,
impactful 360° Dolby Atmos® listening experience. Controlled directivity and high-performance have been an integral part of Klipsch acoustic design principals for the
better part of a century.

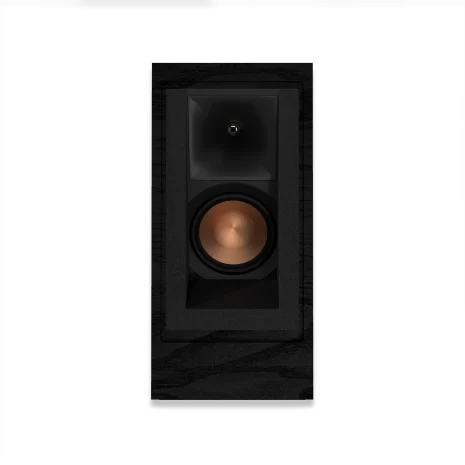

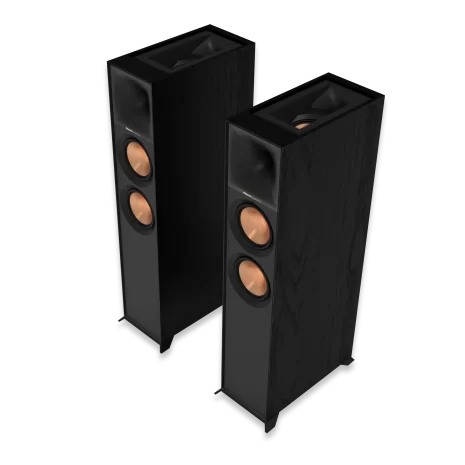

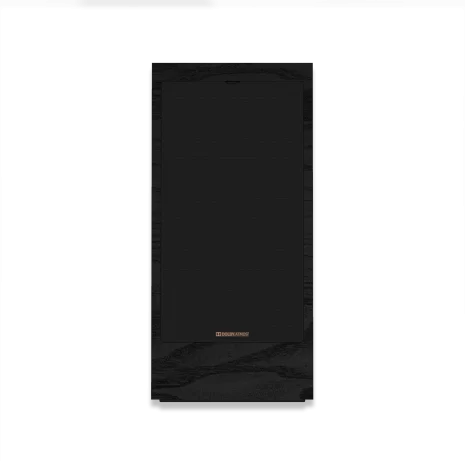

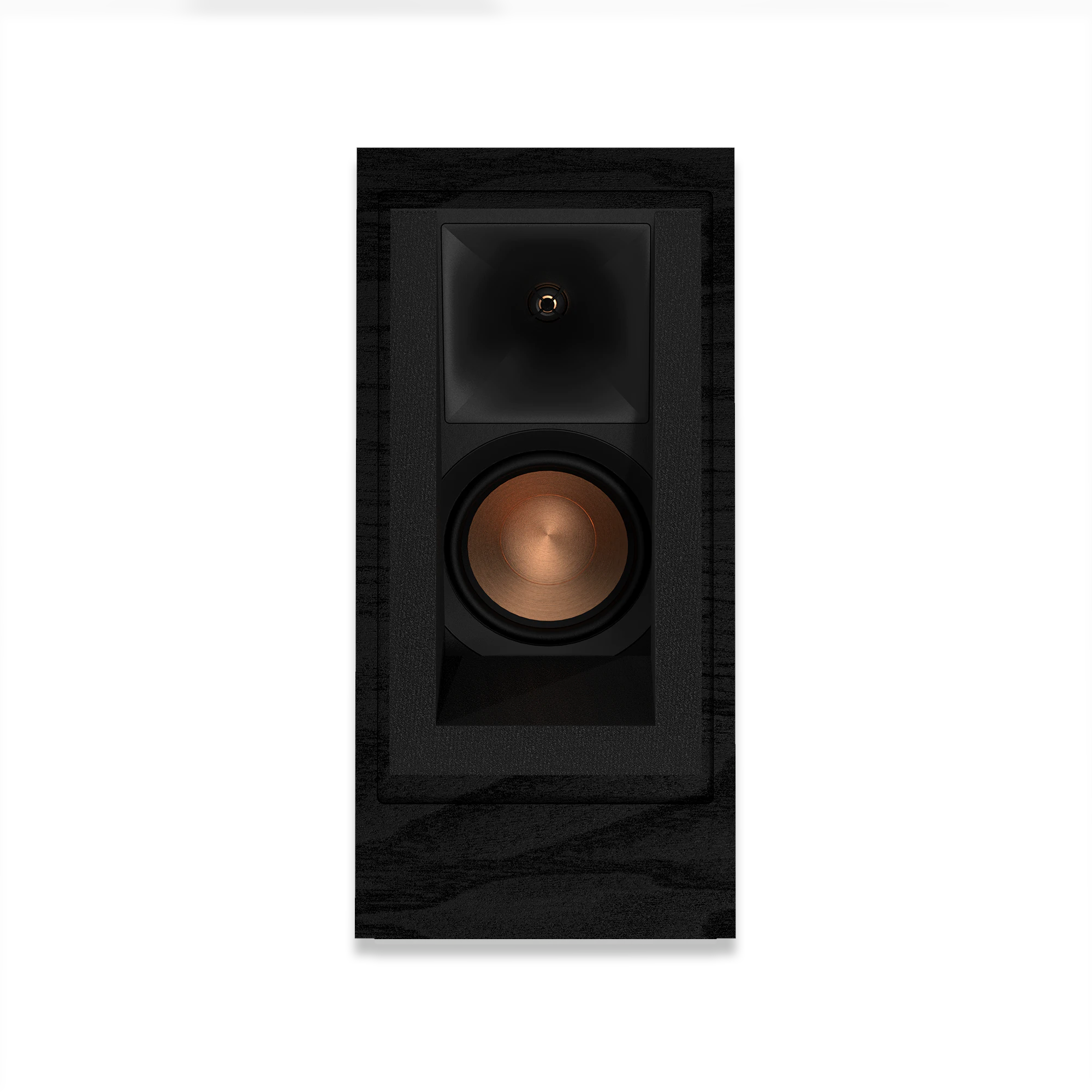

BUILT-IN ELEVATION SPEAKER
Not just your typical full-range tower speaker, the R-605FA features a high
performance up-firing Dolby Atmos speaker integrated in the top for an enveloping
soundstage. It’s a perfectly matched set up that virtually disappears.
ALL NEW 90° X 90° TRACTRIX HORN
Our exclusive Tractrix® horn technology delivers the power, detail and emotion
of the live music experience with the cleanest, most natural sound possible.
The increased outer horn dimensions allow for directivity control over a larger
bandwidth of frequencies, resulting in improved high frequency directivity and a
more accurate sound stage.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER WITH
KAPTON SUSPENSION
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced,
detailed performances. Aluminum is an extremely light and rigid material used in
the tweeter assembly to provide high efficiency and improve resolution and detail.
LTS tweeters are a hallmark of Klipsch speakers, making it a core component of
some of the best speakers in the world.
SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference
Premiere series, the TCP woofers have steeper angling of the cones for a smoother
response and improved accuracy and transparency. The additional ribbing increases
the overall rigidity for less cone breakup at higher frequencies.

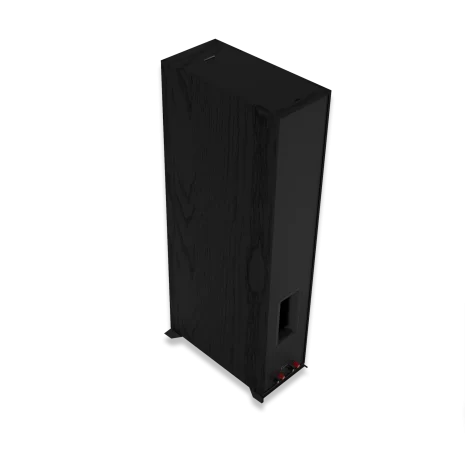

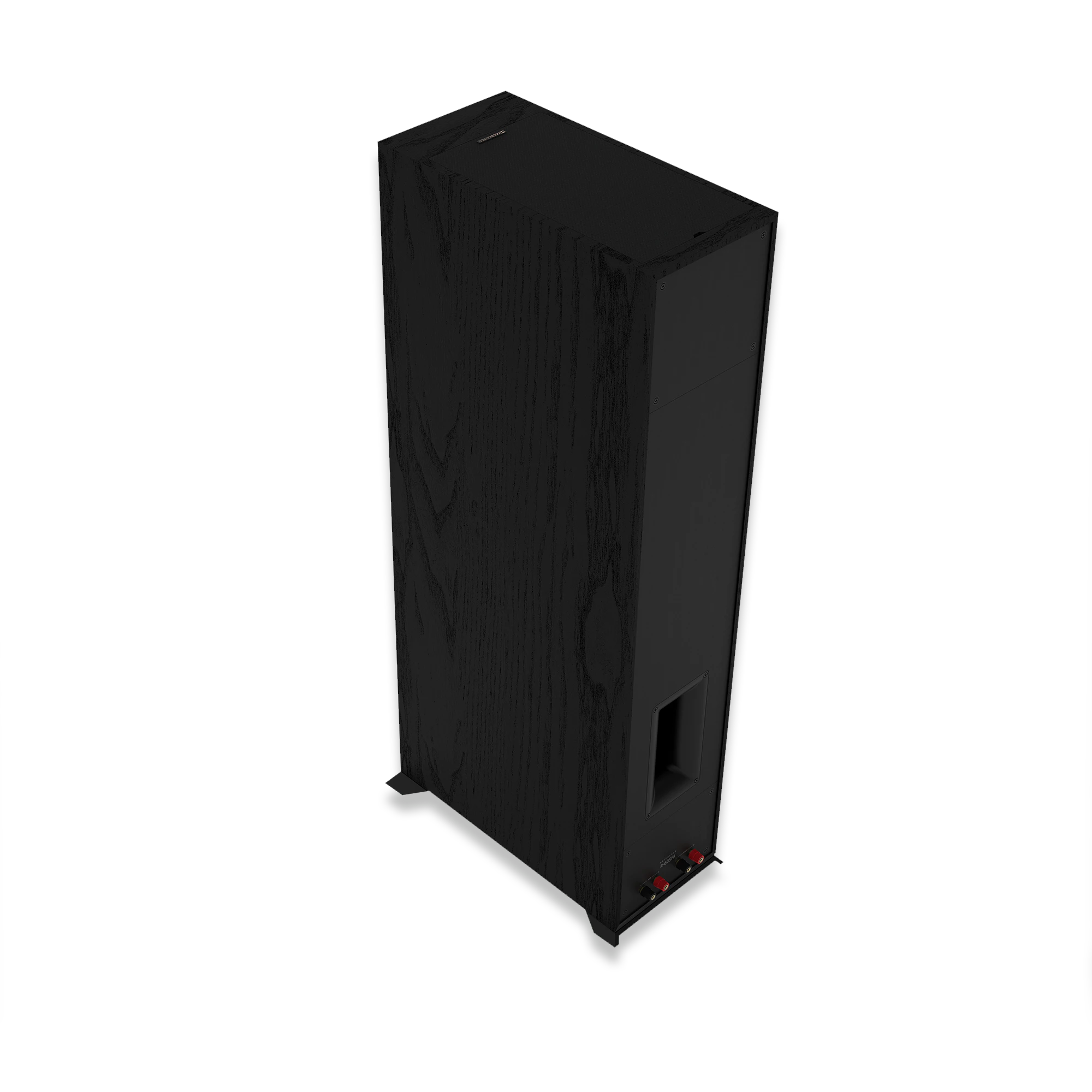

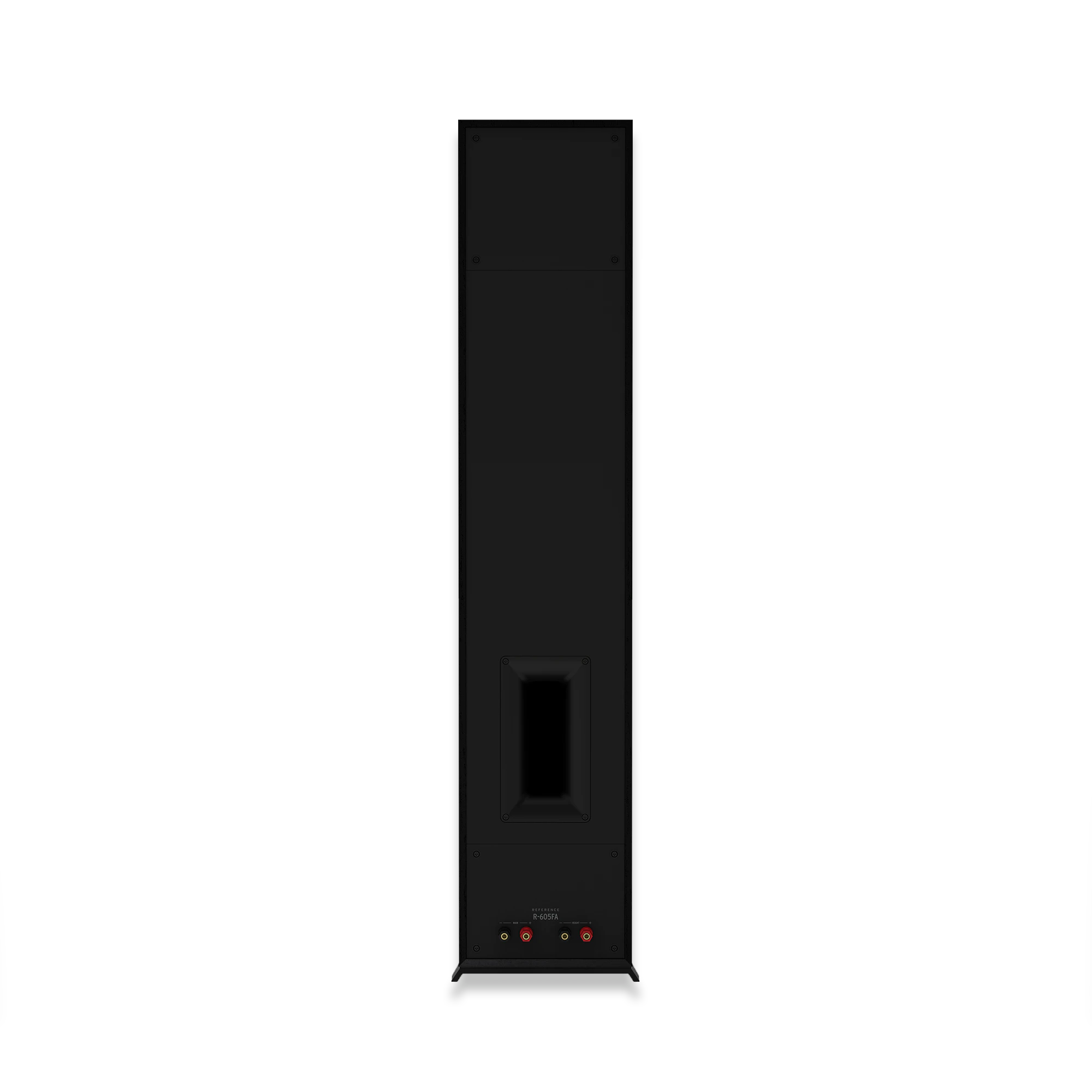

REAR TRACTRIX PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating
ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

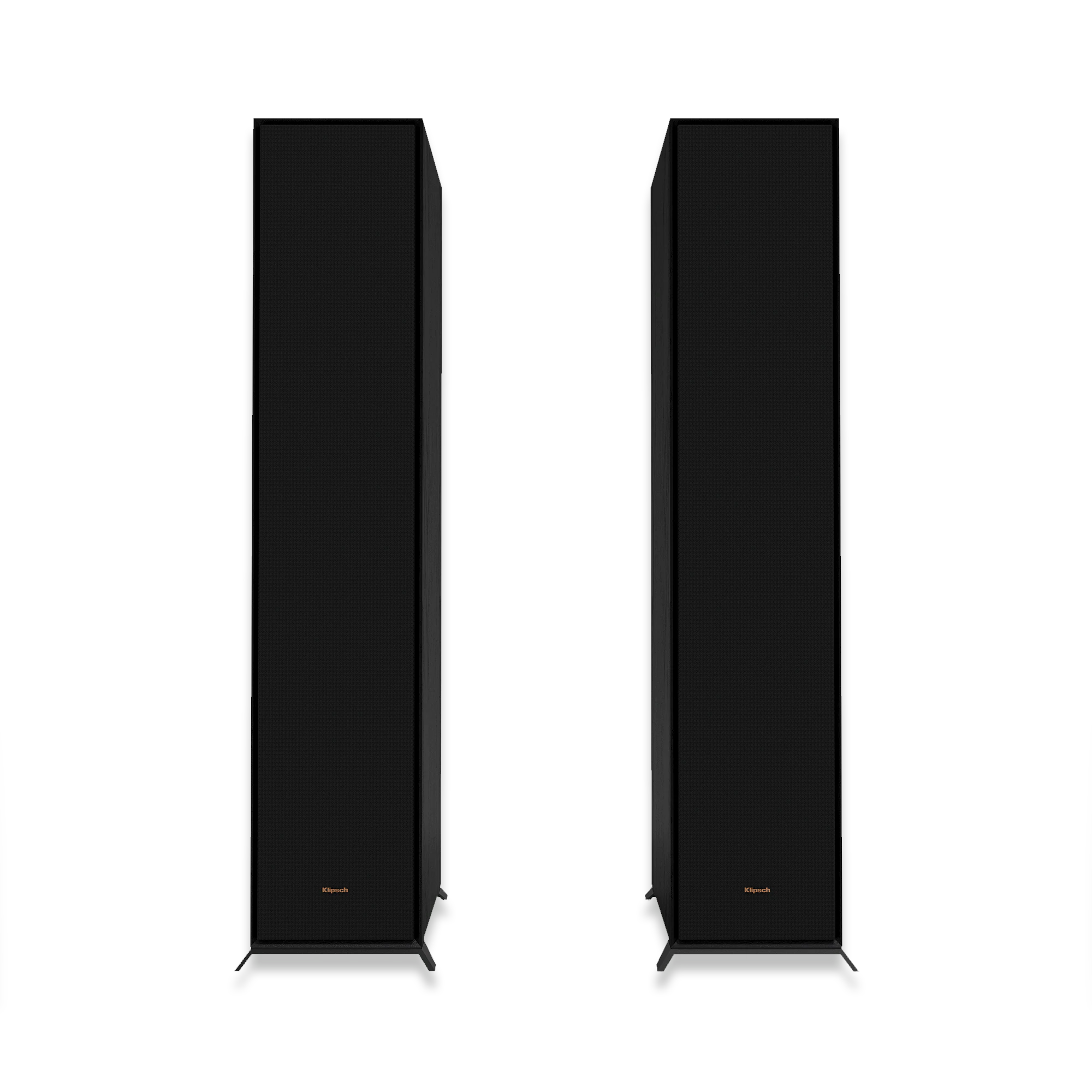

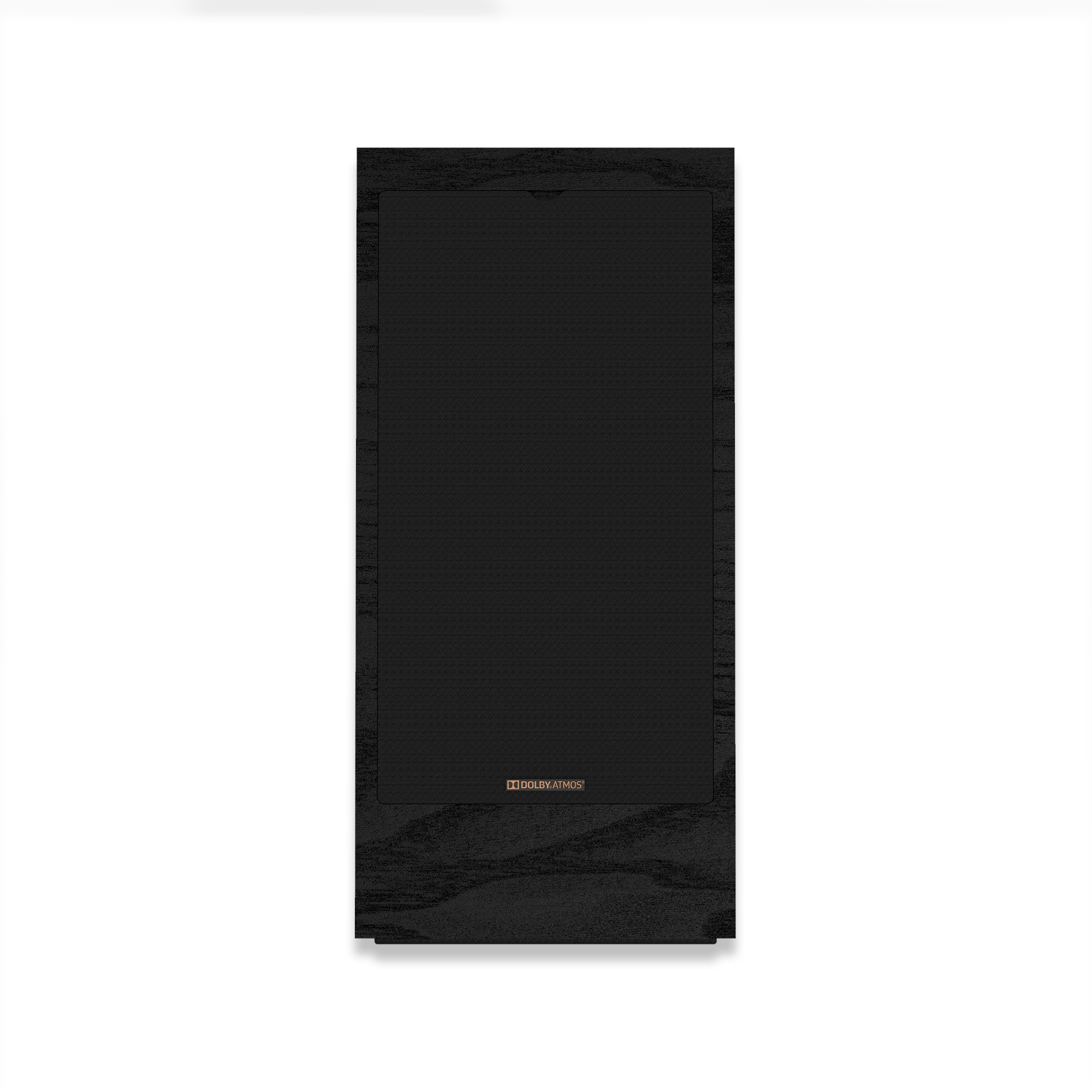

SLEEK, MODERN APPEARANCE
Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the
speakers a polished, modern appearance.

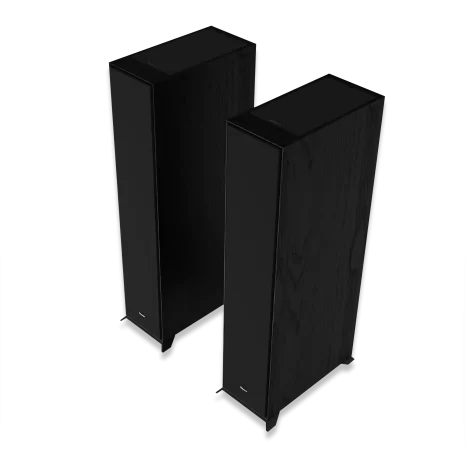

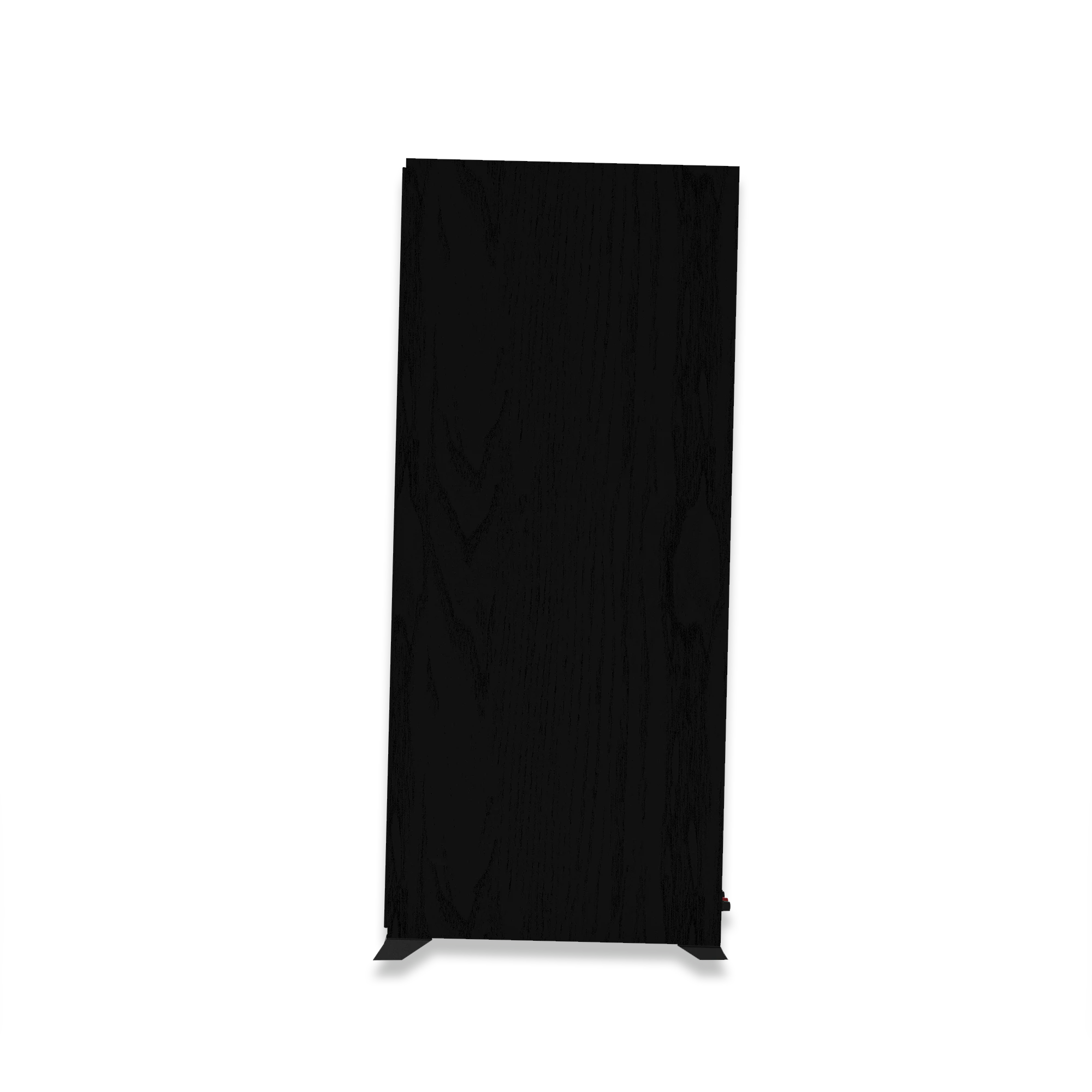

MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into
any décor.
HIGH QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet
vibration for less audible coloration and improved sonic accuracy.
| Weight | 44.4 kg |
|---|---|
| Dimensions | 43.9 × 24 × 101.7 cm |
| Frequency Response | 38Hz – 21kHz +/- 3dB (Main Channel) Conforms to Dolby Atmos Specifications (Height Channel) |
| Sensitivity | 96 dB @ 2.83V/1M Conforms to Dolby Atmos Specifications (Height Channel) |
| Power Handeling (Cont/Peak) | 100W/400W (Main Channel) 75W/150W (Height Channel) |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | 1440 Hz (Main Channel) |
| High Frequency Driver | 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn (Main Channel) 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn (Height Channel) |
| Low Frequency Driver | Dual 6.5” spun-copper TCP woofers (Main Channel) 5.25” spun-copper IMG woofer (Height Channel) |
| Enclosure Material | MDF (Main Channel) |
| Enclosure Type | Bass-Reflex via rear-firing Tractrix®ports (Main Channel) Acoustic Suspension (Height Channel) |
| Inputs | Single Gold Plated Binding Posts (Main Channel) Single Gold Plated Binding Posts (Height Channel) |
| Height | 40” (1017 mm) |
| Width | 9.4” (240 mm) |
| Depth | 17.3” (439 mm) |
| Weight | 49 lbs (22.2 kg) |
| Accessories | Injection molded feet & screws |
| Brand | Klipsch |
