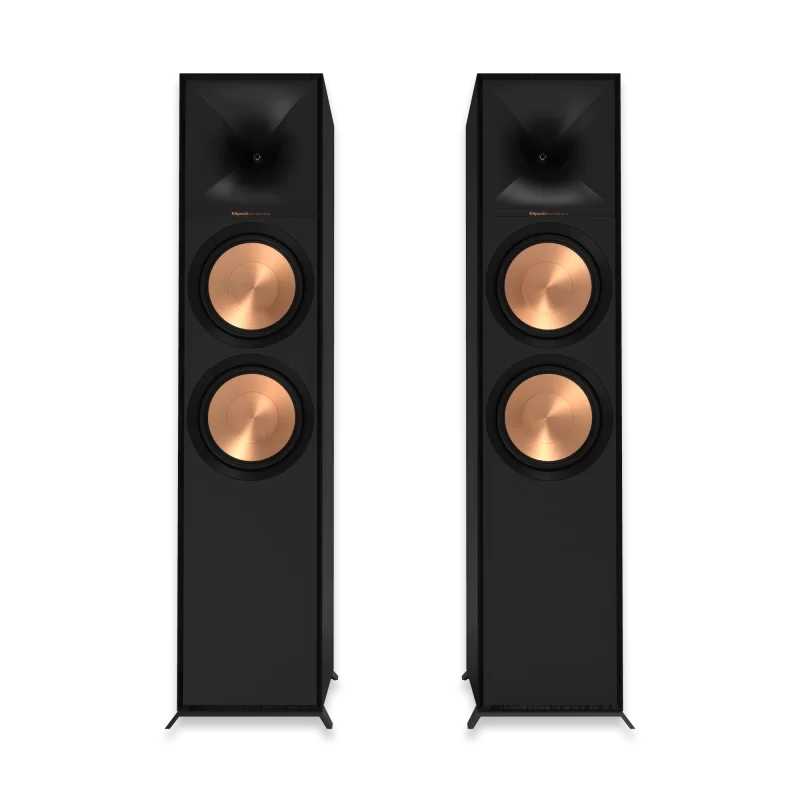

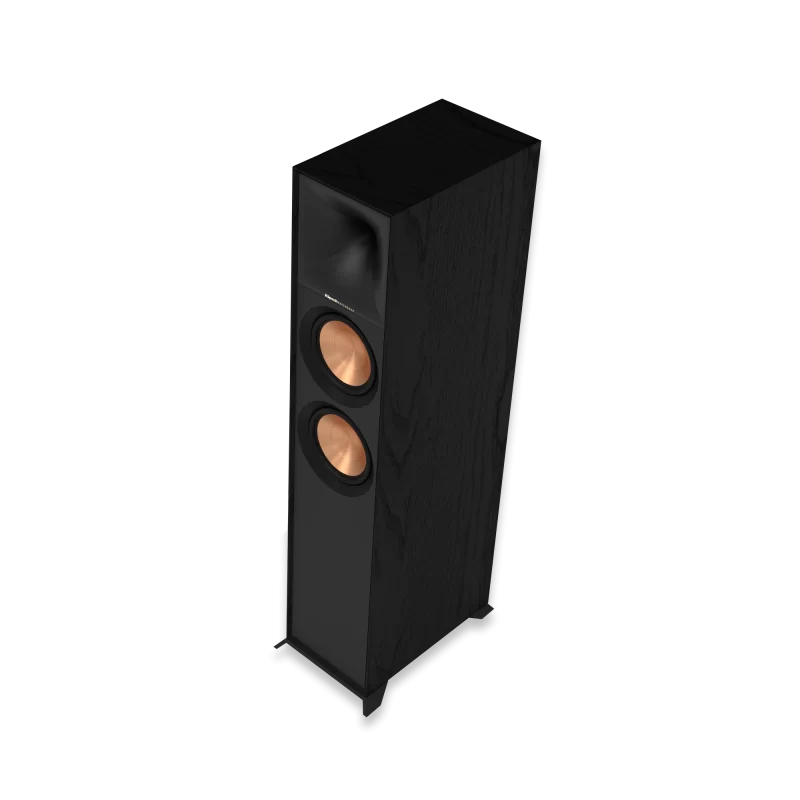

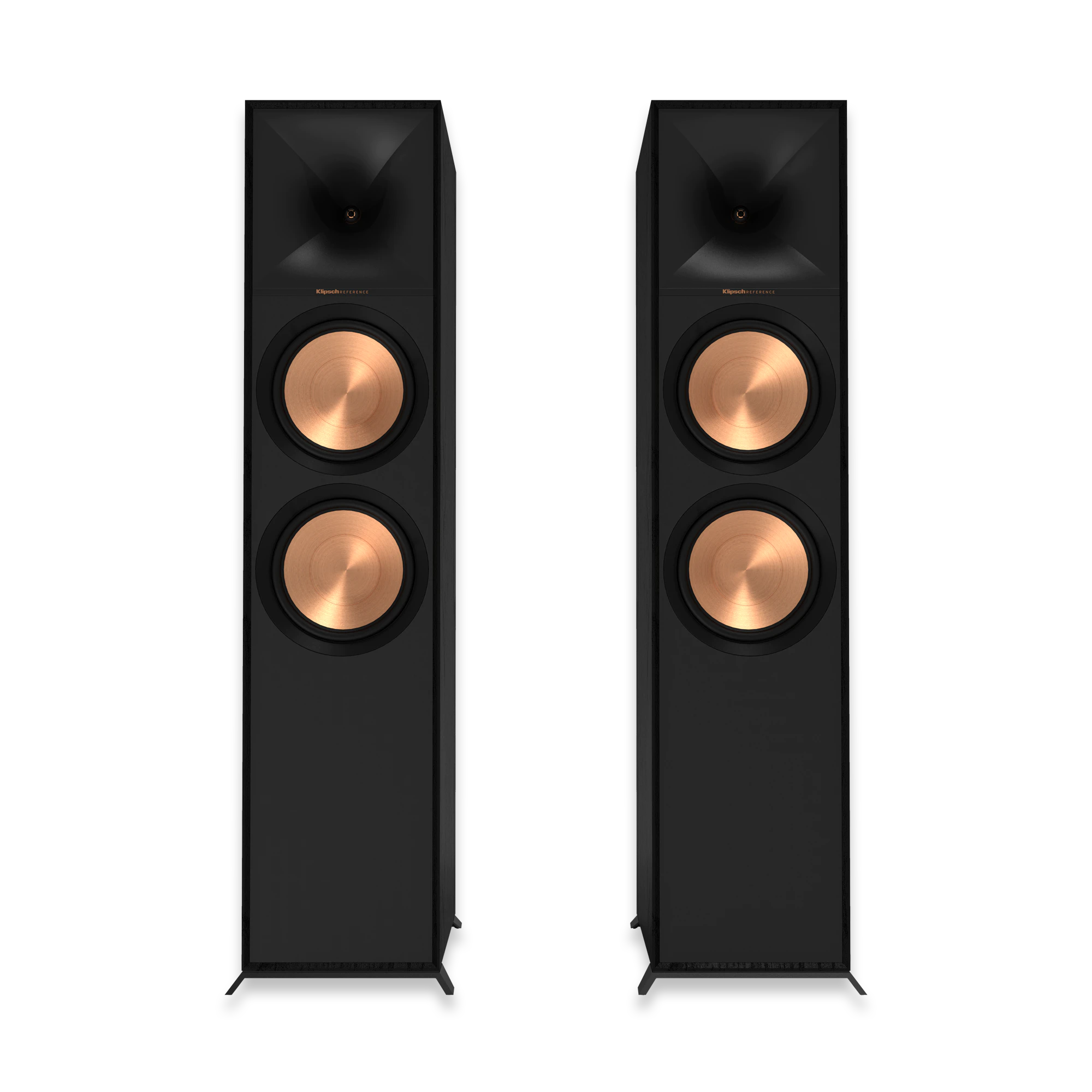

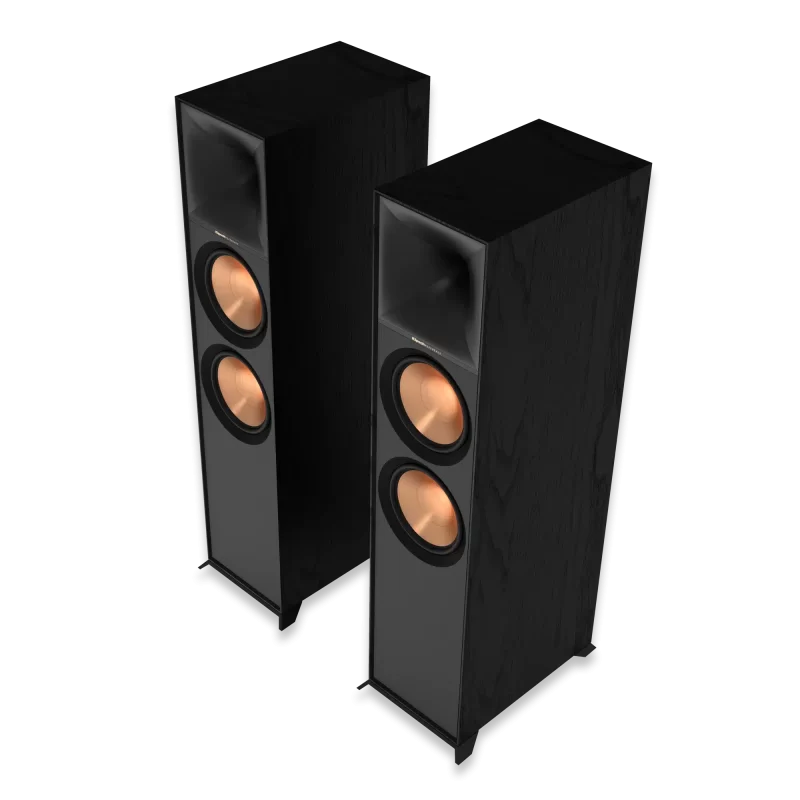

Klipsch R-800F Floorstanding Speakers

Klipsch R-800F Specifications:

• FREQUENCY RESPONSE: 34Hz – 21kHz +/- 3dB
• SENSITIVITY*: 98 dB (In-Room)
• POWER HANDLING: (CONT/PEAK) 150W/600W
• NOMINAL IMPEDANCE: 8 ohms Compatible
• CROSSOVER FREQUENCY: 1,400 Hz
• HIGH FREQUENCY DRIVER: 1″ Aluminum LTS tweeter mated to a 90 x 90 square
  Tractrix® Horn
• LOW FREQUENCY DRIVER: Dual 8″ spun-copper TCP woofers
• ENCLOSURE MATERIAL: MDF
• ENCLOSURE TYPE: Bass-Reflex via rear-firing Tractrix®ports
• INPUTS: Single Gold Plated Binding Posts
• HEIGHT: INCHES (MM) 43″ (1093 mm)
• WIDTH: INCHES (MM) 10.9″ (277 mm)
• DEPTH: INCHES (MM) 17.5″ (443 mm)
• PRODUCT WEIGHT: LBS (KG) 54 lbs (24.5 kg)
• FINISH: Black Textured Wood Grain Vinyl
• INCLUDED ACCESSORIES: Injection molded feet & screws

ALL NEW 90° X 90° TRACTRIX HORN
Our exclusive Tractrix® horn technology delivers the power, detail and emotion
of the live music experience with the cleanest, most natural sound possible.
The increased outer horn dimensions allow for directivity control over a larger
bandwidth of frequencies, resulting in improved high frequency directivity and a
more accurate sound stage.

LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER WITH
KAPTON SUSPENSION
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced,
detailed performances. Aluminum is an extremely light and rigid material used in
the tweeter assembly to provide high efficiency and improve resolution and detail.
LTS tweeters are a hallmark of Klipsch speakers, making it a core component of
some of the best speakers in the world.

SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS
Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference
Premiere series, the TCP woofers have steeper angling of the cones for a smoother
response and improved accuracy and transparency. The additional ribbing increases
the overall rigidity for less cone breakup at higher frequencies.

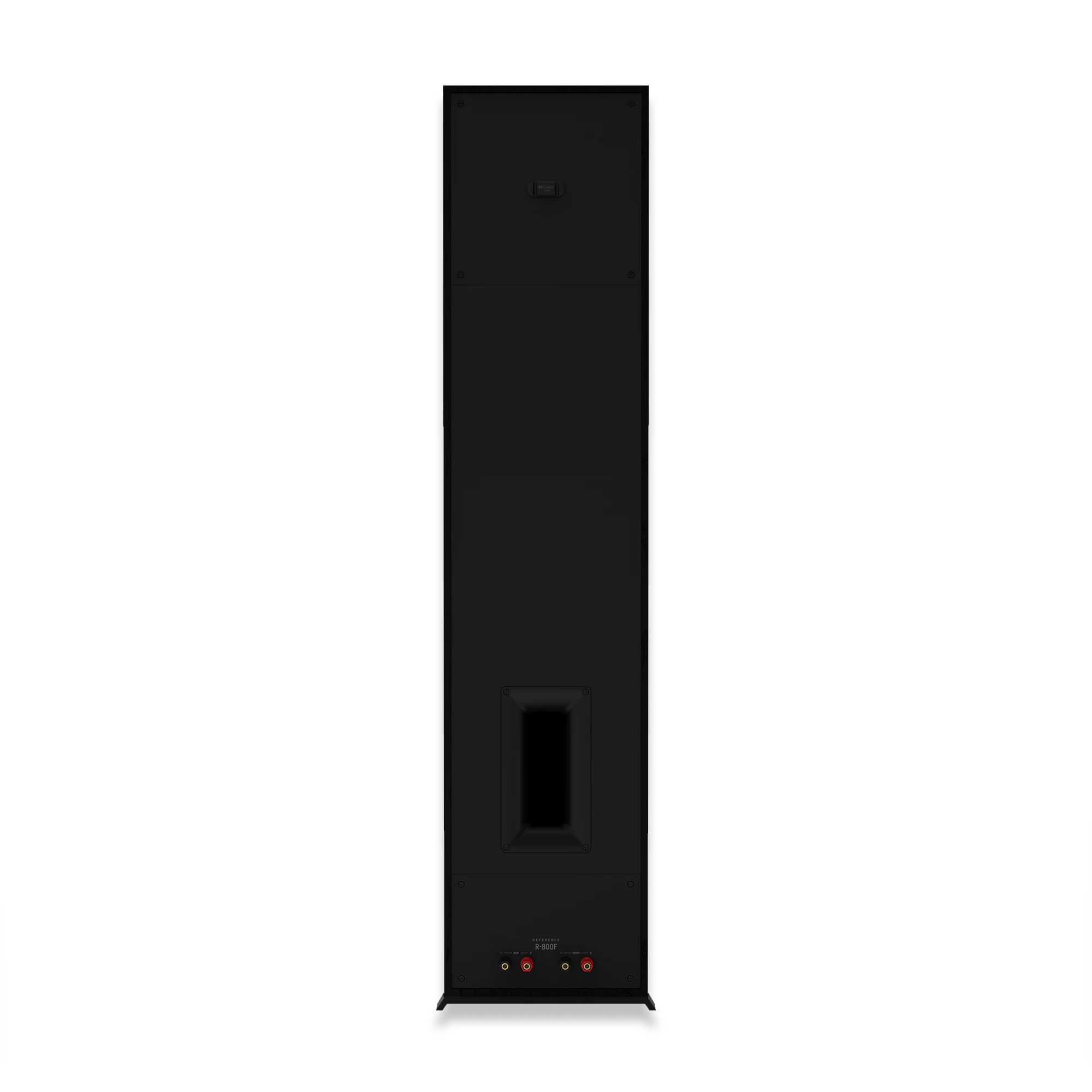

REAR TRACTRIX PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating
ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

SLEEK, MODERN APPEARANCE

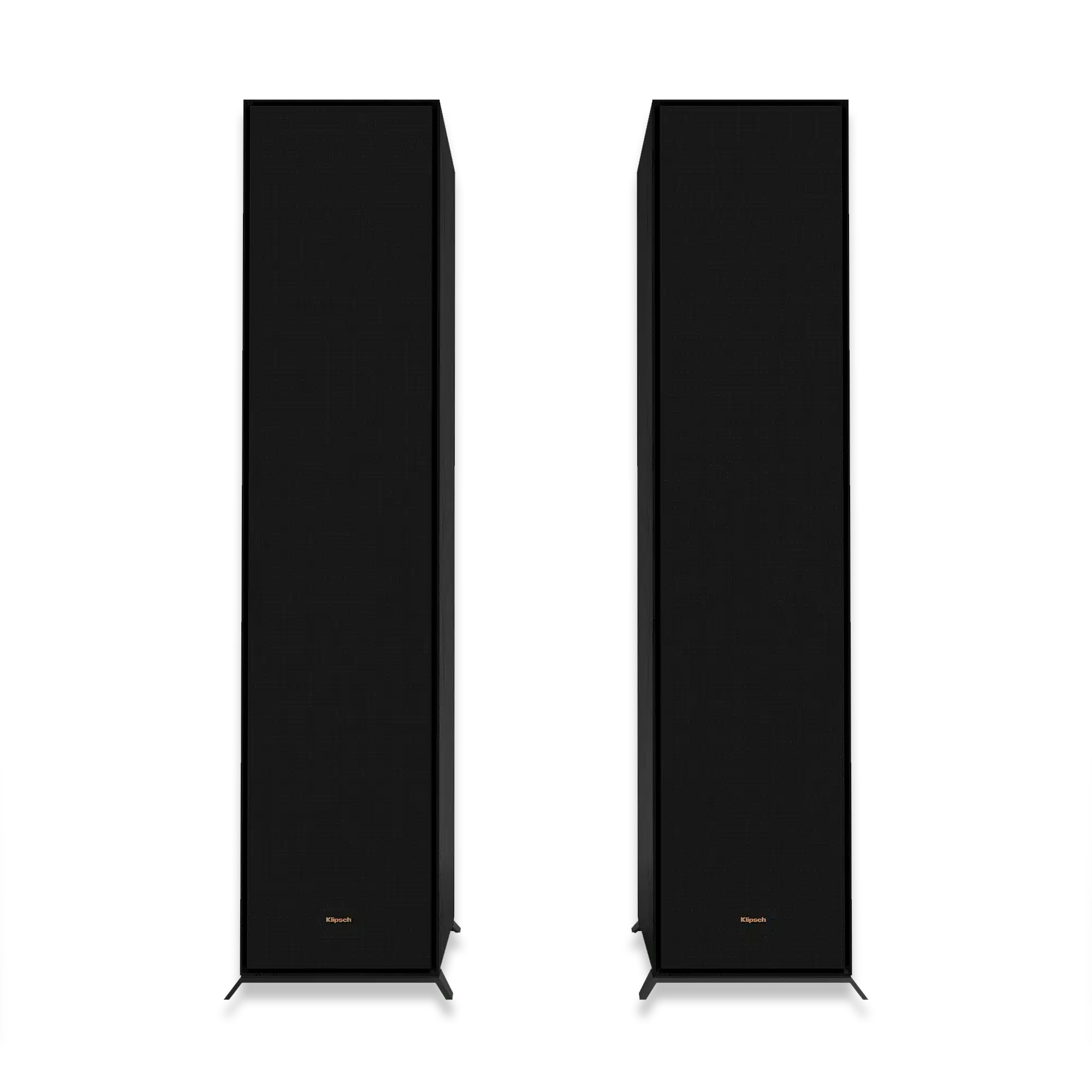

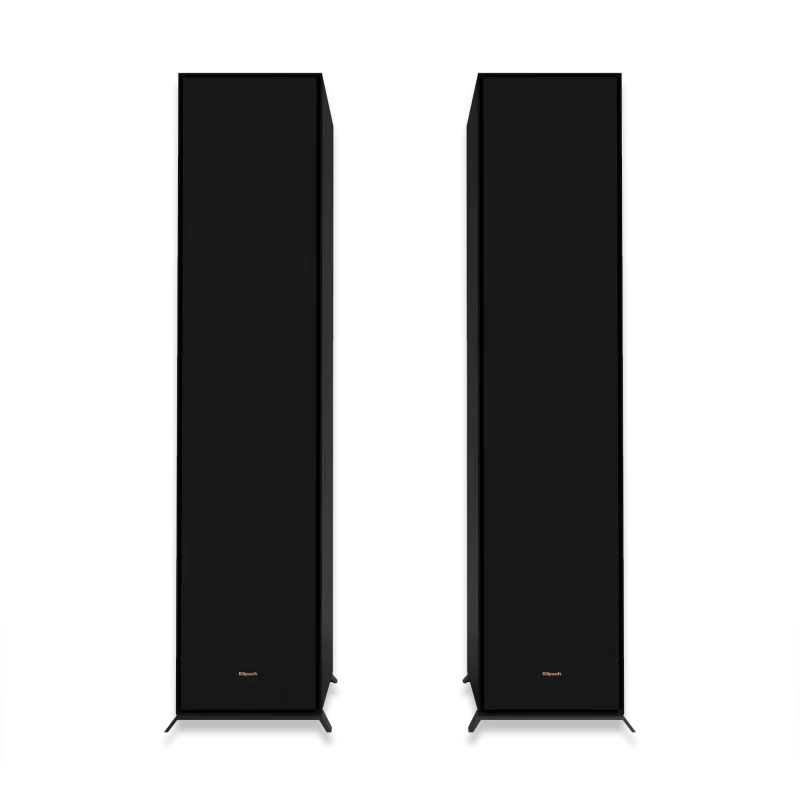

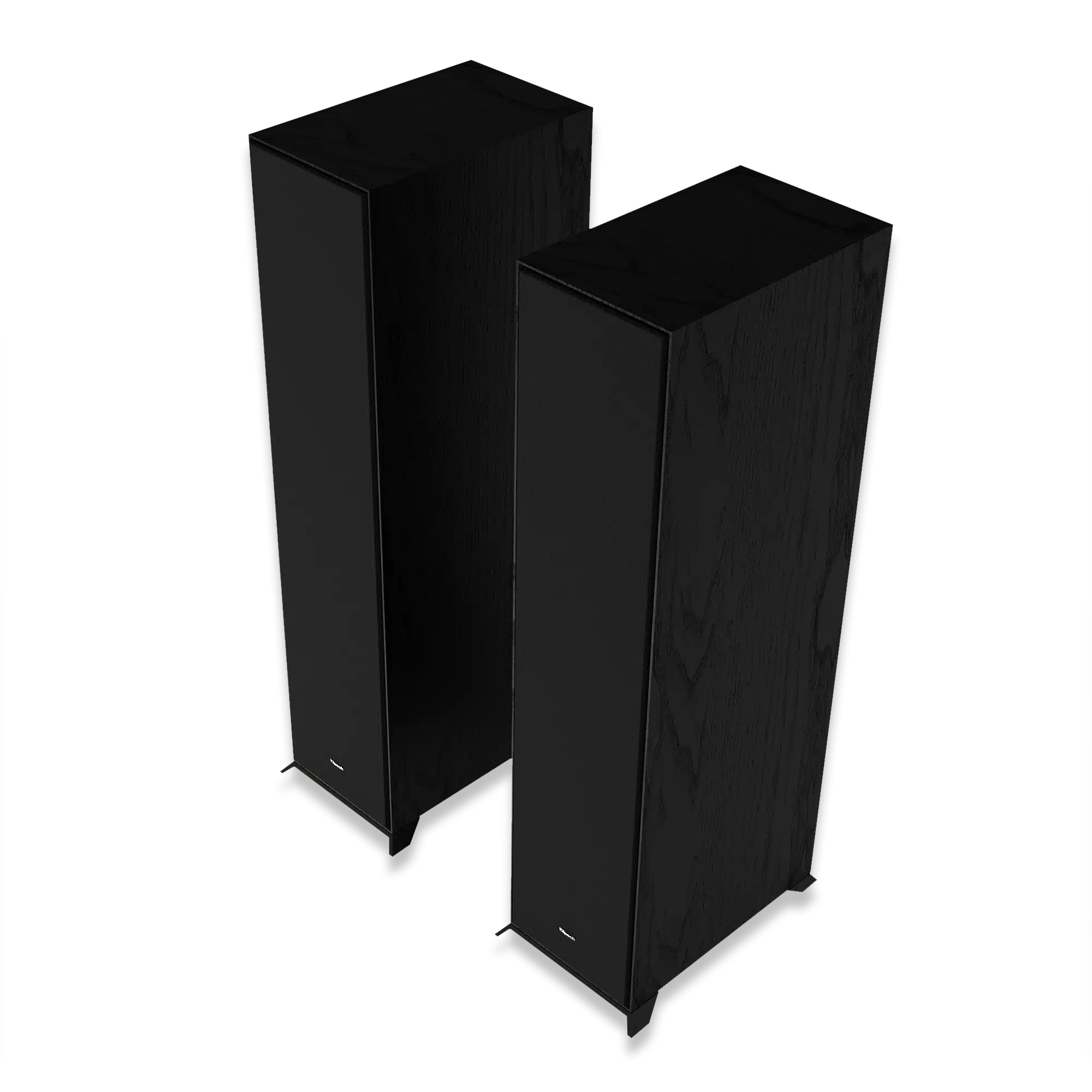

Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the
speakers a polished, modern appearance.

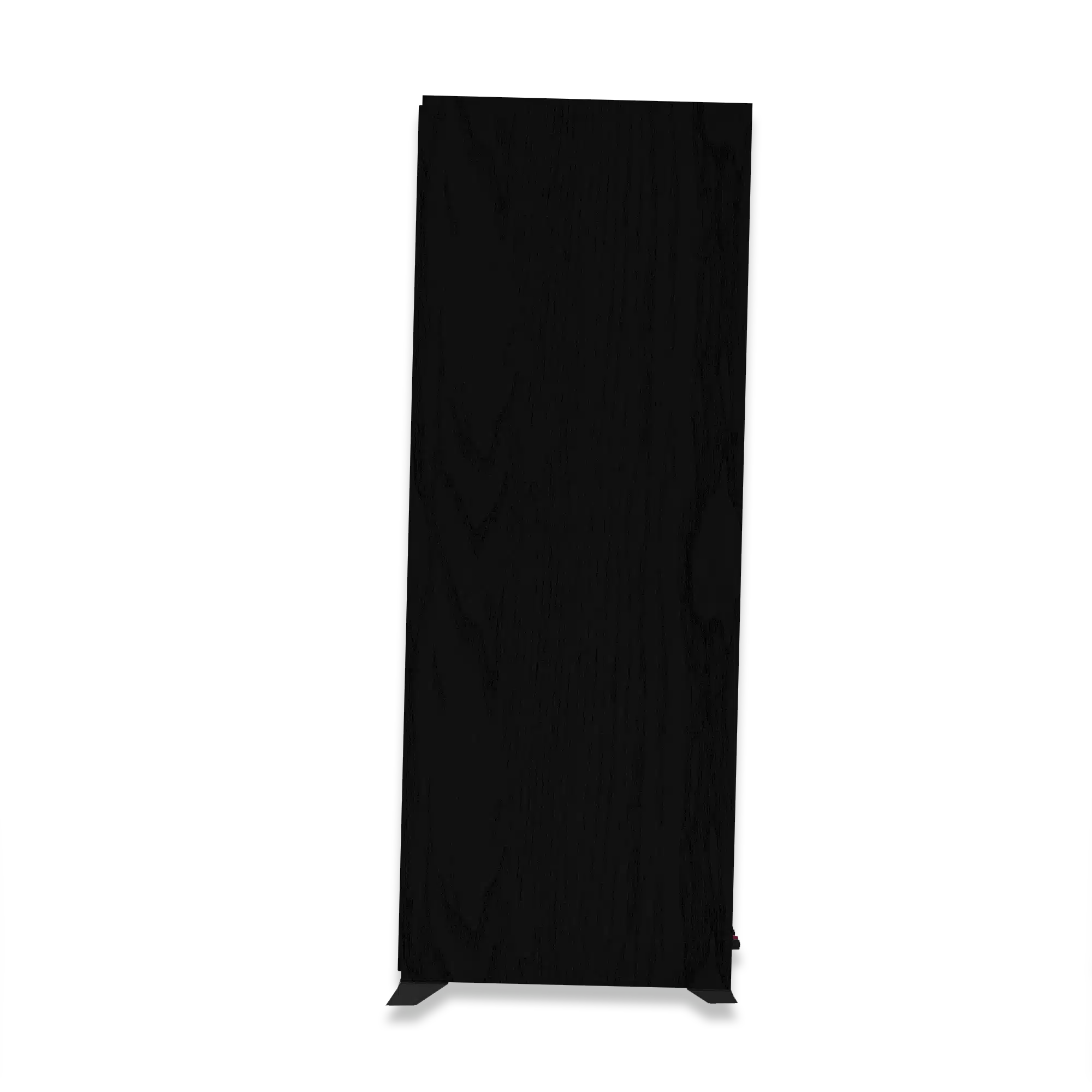

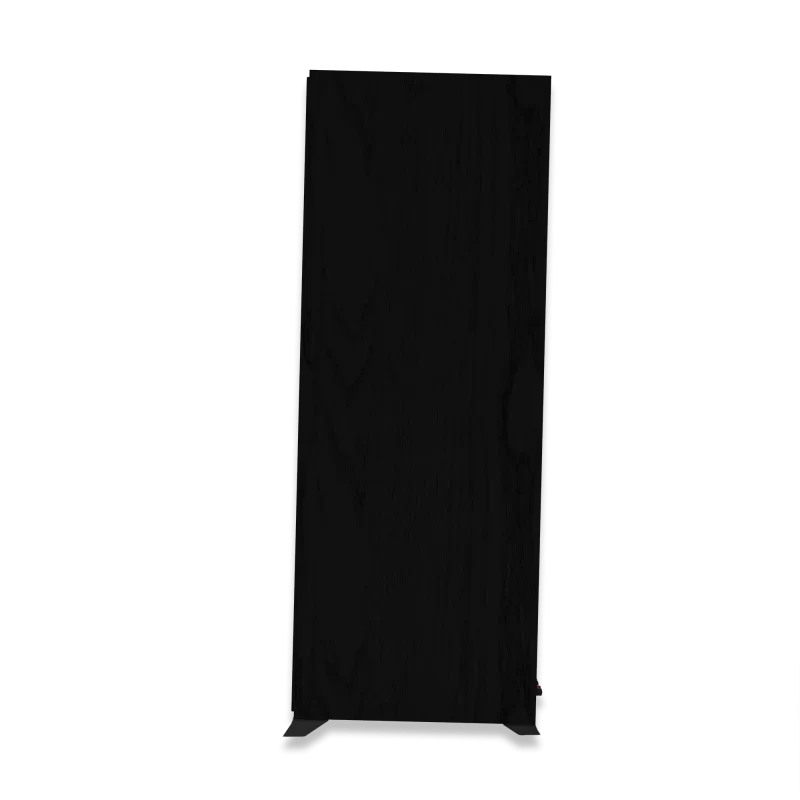

MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless integration into
any décor.

HIGH QUALITY CABINET DESIGN
Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet
vibration for less audible coloration and improved sonic accuracy.

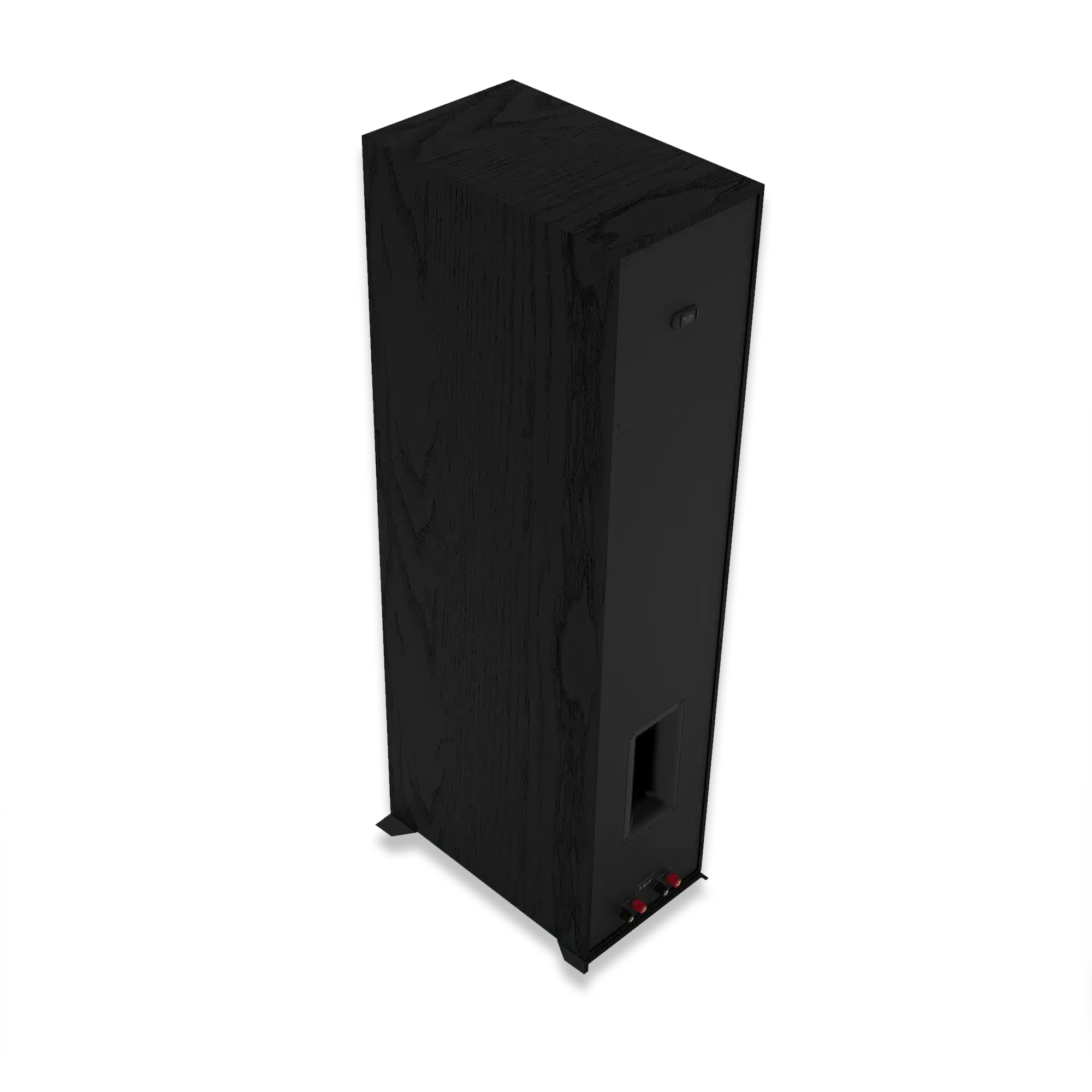

REFINED ATMOS CONNECTIONS
Upgrading to Dolby Atmos is extremely easy with the simple and hidden connections
located on the back of the speakers. These refined connections reduce the amount
of wire seen and hold them in place for better wire management.
