Klipsch RP-5000F II Floorstanding Speakers – Ebony

Klipsch RP-5000F II Specifications:

FREQUENCY RESPONSE: 40-25kHz +/- 3dB
SENSITIVITY*: 95dB @ 2.83V / 1m*
POWER HANDLING: (CONT/PEAK) 100W / 400W
NOMINAL IMPEDANCE: 8 Ohms Compatible
CROSSOVER FREQUENCY: 1900Hz
HIGH FREQUENCY DRIVER: 1″ Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn

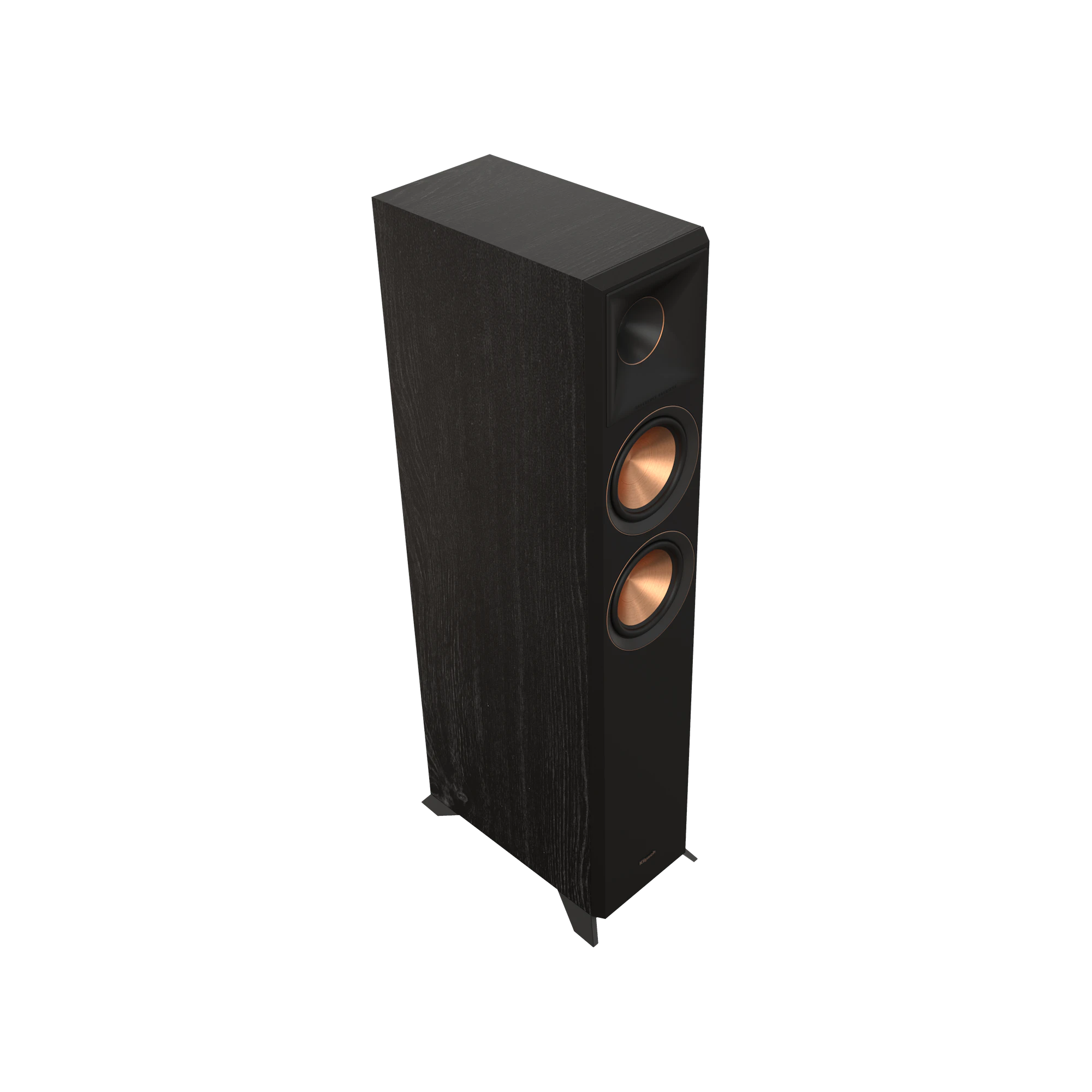

LOW FREQUENCY DRIVER: Dual 5.25″ Cerametallic Cone Woofers with Faraday
rings
ENCLOSURE MATERIAL: MDF (Internally Braced)

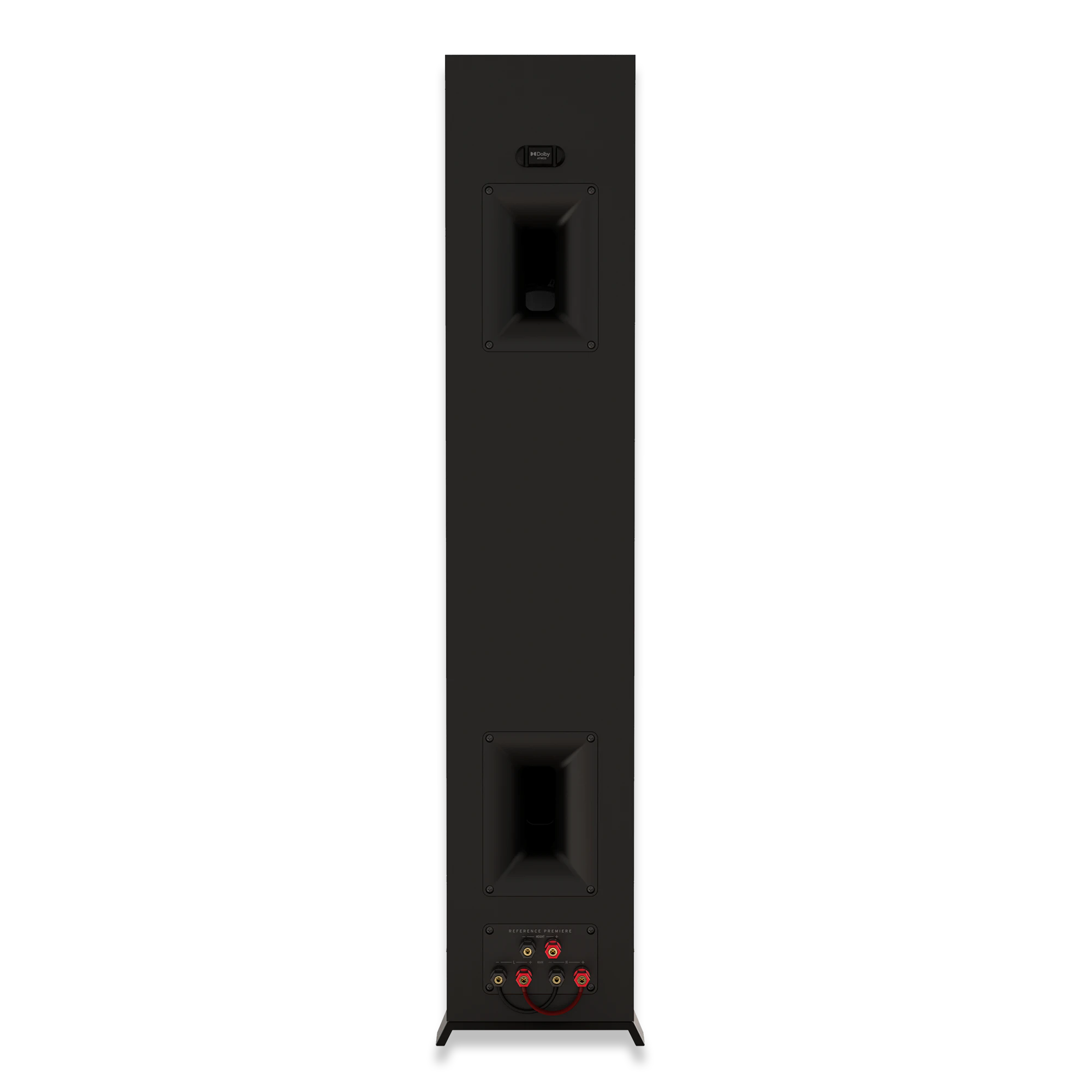

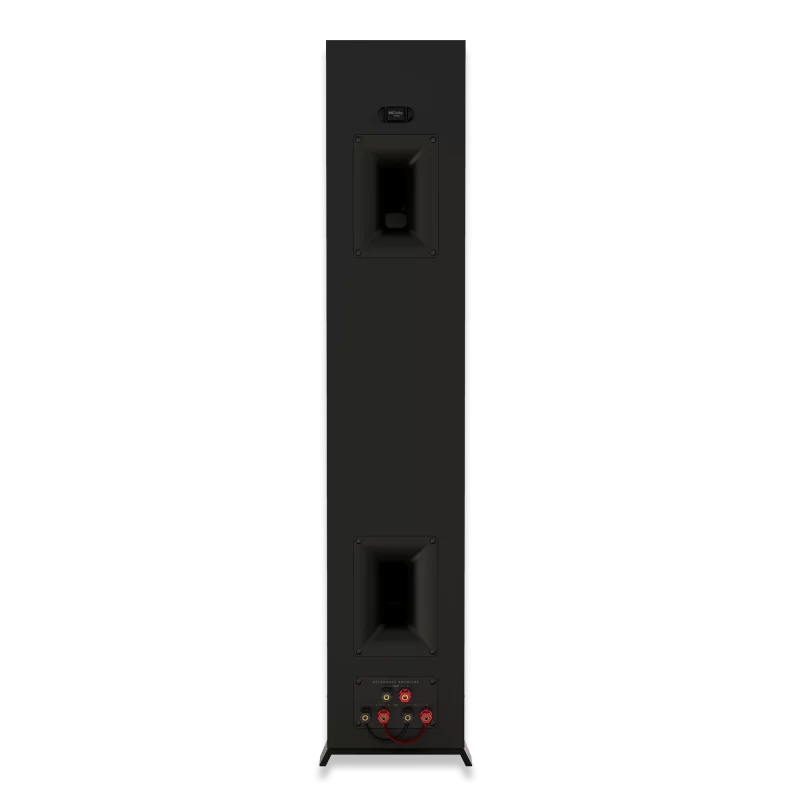

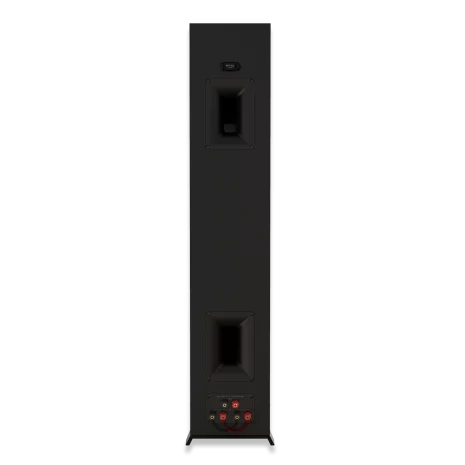

ENCLOSURE TYPE: Bass Reflex via dual chamber rear-firing Tractrix® Ports
INPUTS :Dual aluminum binding posts / bi-wire / bi-amp with
Dolby Atmos® passthrough
HEIGHT: INCHES (MM) 36.10 (91.7 cm)
WIDTH: INCHES (MM) 8.15″ (20.7 cm)
DEPTH: INCHES (MM) 14.75″ (37.5 cm)
PRODUCT: WEIGHT LBS (KG) 38.6lb (17.55kg)
FINISH Ebony, Walnut

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high
frequencies towards the listening area. Proprietary Tractrix® geometry provides
the most efficient transfer of high frequency waves into the listening area. The
phase plug and compressed molded silicon face ensure smooth frequency response.
When combined, the cleanest, most natural sound possible is created. The second
generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS tweeters are a hallmark of previous Reference lines, making it a
core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are
exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
New aluminum shorting rings reduce distortion as well as increased power handling
and the new motor structure improve transit response with more control with
greater speed and accuracy

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most
efficient, fastest air transfer from the cabinet, which reduces port noise for punchier
low frequencies. Klipsch Tractrix ports have custom designed inner flares that help
reduce air turbulence entering the port. Less turbulent air helps reduce port noise
for cleaner, more powerful bass.

BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high
and low frequency current into separate speaker cables, reducing intermodulation
distortion, for clearer midrange. Bi-amping allows for customization using outboard
crossovers when using separate amplifiers.

ADVANCED CABINET DESIGN
Additional bracing and a divided cabinet have been added to minimize cabinet
resonances and vibration, for the utmost transparency and clarity.

REFINED ATMOS CONNECTIONS
Upgrading to Dolby Atmos is extremely easy with the simple and hidden connections
located on the back of the speakers. These refined connections reduce the amount
of wire seen and hold them in place for better wire management.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for
any connection type.

FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a
scratch resistant finish.

CAST ALUMINUM FEET
Provides a more modern look with less resonance than MDF or ABS plastic. It is
mechanically designed to minimize surface area in contact with floor, decoupling the
speaker for faster, tighter low frequencies and more detail.

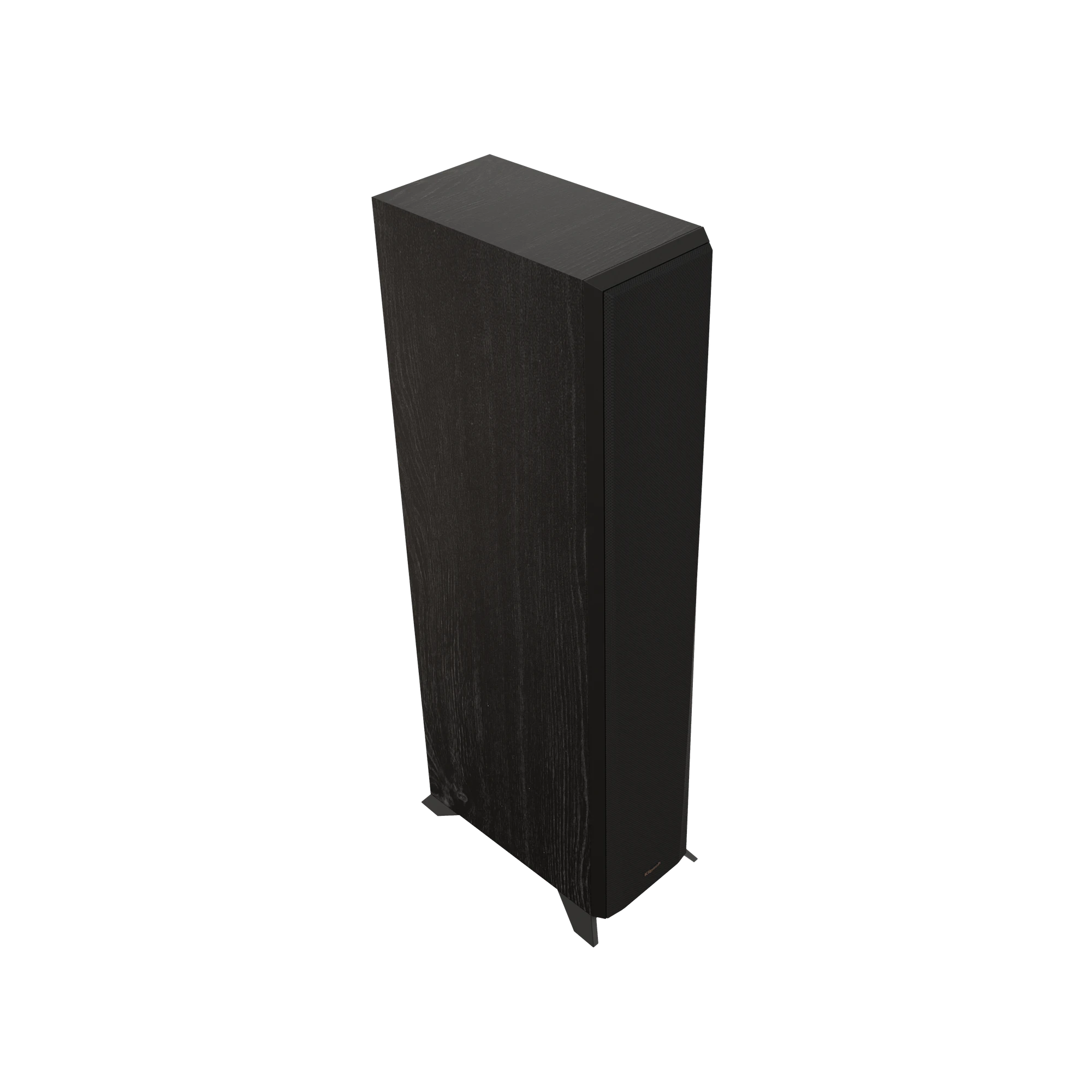

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to
discrete performance piece
