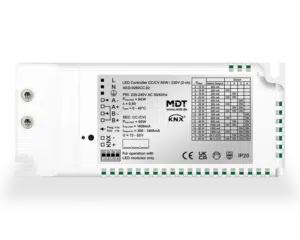

MDT KNX LED Controller CC/CV 30 W / 230 V 2-Channel
KNX LED Controller CC/CV 30 W / 230 V 2-Channel. Version with integrated power supply in compact design. Constant current LED controller with max. output current of 700 mA. Optimised Hybrid dimming for a better Light quality. Comprehensive Application, absolute und relative Dimming. Dim range von 0,2 % to 100 %. Perfect dim behaviour over the entire dimming range. Maximum output power 30 W over both channels. Max output current 700 mA. Constant current selectable via DIP switch. Tunable White colour temperature control. Selectable Dim curve, individual sequences. Operation mode: 2x white, Tunable White. Automatic colour temperature control Dim2Warm. Dynamic daylight control HCL. Automatic time dependent dimming. Day / Night Function. Overcurrent and temperature monitoring. Secondary connection up to 6 m. Integrated power supply in compact design. Dimensions (W x H X D): 129 mm x 54 mm x 25 mm. 3 Year warranty.
Brand | MDT |
---|
