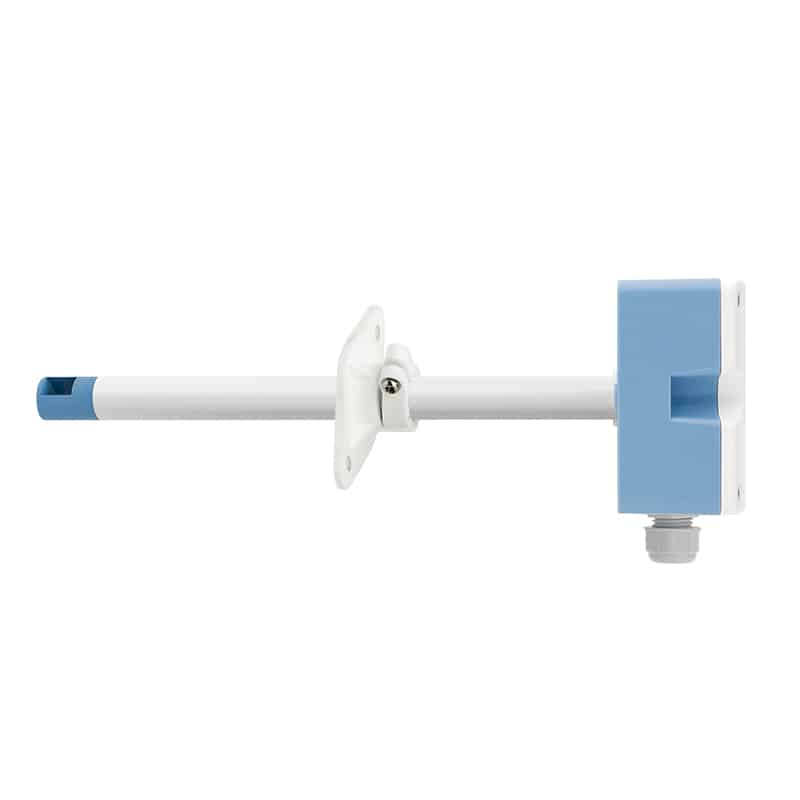

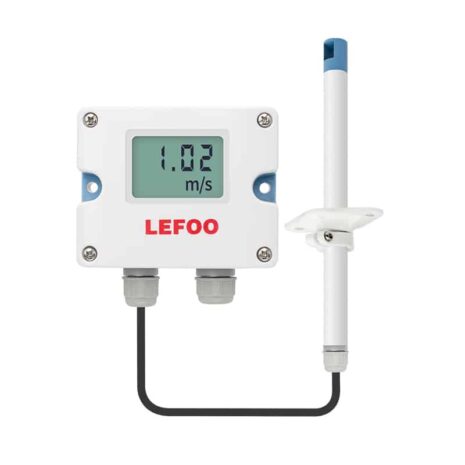

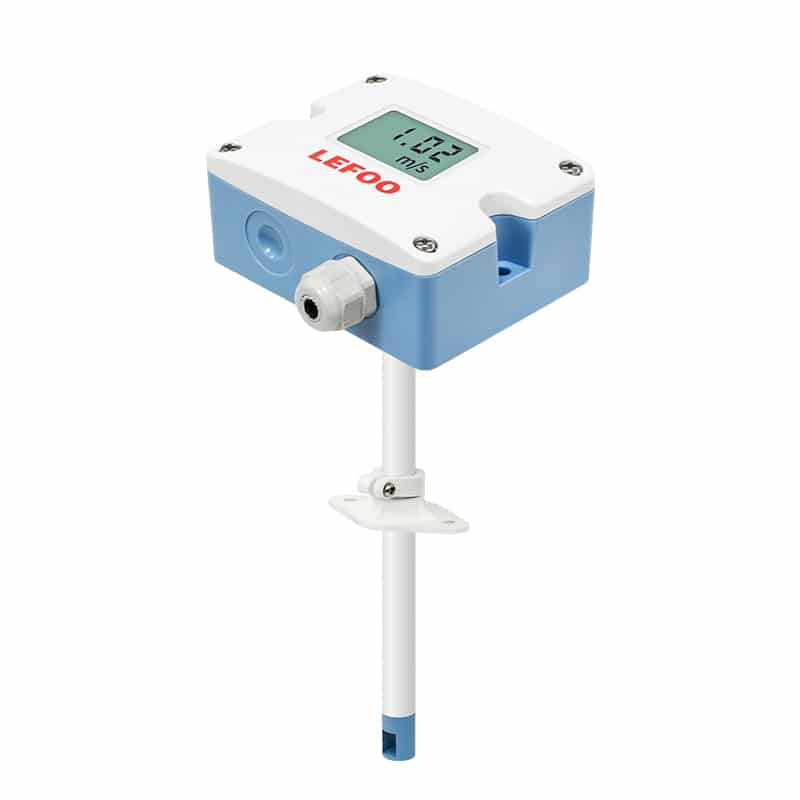

Lefoo LFS10 Air Velocity Sensor

Air Speed Transmitter LFS10
LEFOO LFS10 wind speed transmitter is based on the principle of hot film type. The high-quality hot film sensor is manufactured by MEMS technology. It has the characteristics of high measurement accuracy, large measurement range, good stability and strong environmental adaptability. It is Ideal for air velocity measurement in application scenarios such as HVAC, duct air volume measurement, clean room ventilation, laminar flow monitoring processes and environmental control.

Features

* Adopt imported high-precision MEMS sensor, with good long-term stability and anti-interference ability

* Power supply and output with overvoltage and reverse polarity protection

* Optional isolated R485 output

* Strong anti-pollution ability, easy to install and maintain

Specifications:-

Working Voltage: 24V AC/DC?20%
Measuring Range: 0-10m/s,0-15m/s,0-20m/s,0-30m/s
Resolution: 0.01m/s
Output signal: RS485/Modbus, 0~10VDC/4~20mA
Output load: ?500?(Current output),?2k?(Voltage output)
Working temperature: -10-60?
Storage temperature: -20-80?
Probe length: 210mm(optional)
Display: WIth/without LCD backlight display(optional)
Protection Class: Shell IP65,Probe IP20
Material: Shell PC,Probe PA6
Electromagnetic compatibility: EN 61326-1
Certifications: RoHS,CE
